TRIPP LITE
TRIPP LITE B127F-1A1-MMDDA DP OVER FIB EXT KIT TAA 985FT
Mfg Part Number: B127F-1A1-MMDDA , Item #: 5228653
, PO and Wire.
DisplayPort Extender for Digital Signage in Schools, Trade Shows and Lecture Halls

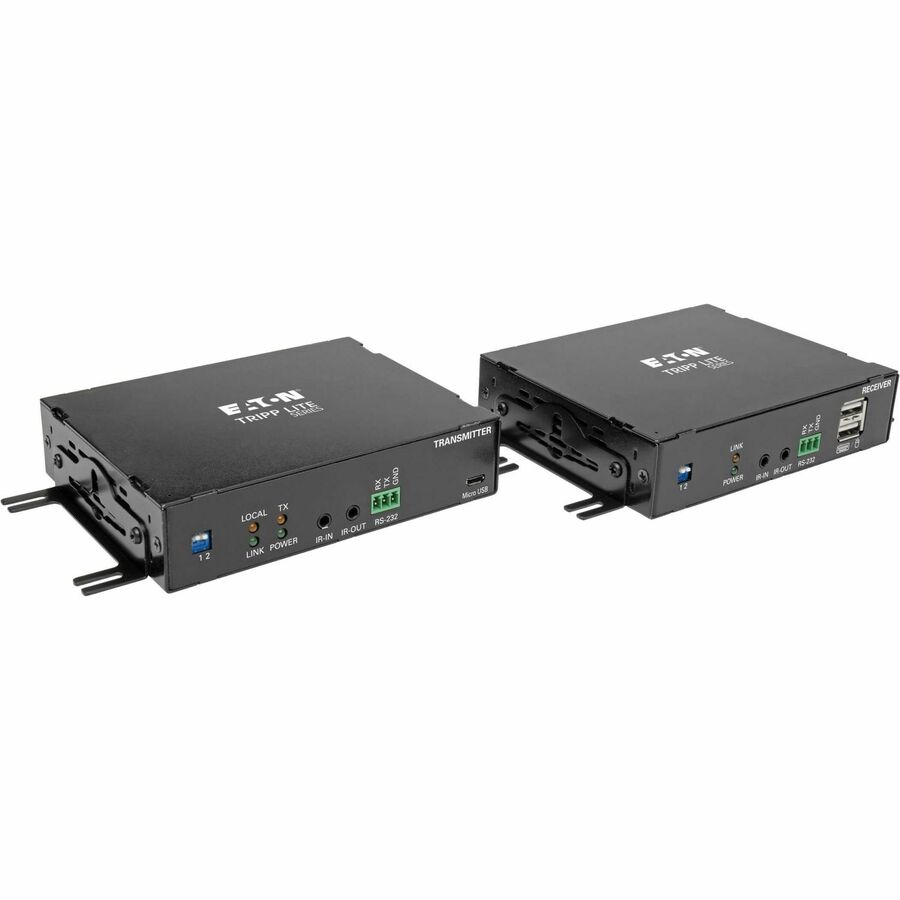

This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and digital signage applications where the source and display are farther apart than conventional AV cables allow. The B127F-1A1-MMDDA extends 4K video and stereo audio signals from a DisplayPort (DP) source device to a DisplayPort monitor up to 985 feet (300 meters) away via user-supplied duplex multimode LC fiber cabling.
Transmits Crystal-Clear 4K DisplayPort Video with Multi-Channel Audio and 4:4:4 Color
The B127F-1A1-MMDDA supports Ultra HD 4K video resolutions up to 3840 x 2160 at 60 Hz with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with riche
DIP Switches Extend Your Choice of USB, IR or RS-232 Signals
The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1, bi-directional IR and RS-232 functions. Only one function can be extended at a time.
Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter and receiver work right out of the box with no software required. Mounting hardware is included for installing the units on walls, poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with DisplayPort cables (such as P580-Series). Then, connect the two units using a duplex multimode LC fiber cable (N820-Series). Connect an optional display to the transmitter's local HDMI output to monitor the image connected to the remote receiver. The local port allows connection of displays with lower resolutions, such as 720p and 1080p, without affecting the 4K 60 Hz signal transmission to the receiver.
TAA-Compliant for GSA Schedule Purchases
The B127F-1A1-MMDDA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B127F-1A1-MMDDA |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite by Eaton |
| Product Model | B127F-1A1-MMDDA |
| Product Name | B127F-1A1-MMDDA KVM Console/Extender |
| Product Type | KVM Console/Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 985 ft |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of HDMI Ports | 1 |
| Number of USB Ports | 3 |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 240 V AC |
| Input Voltage Range | 100V AC to 240V AC |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Wall Mountable |
| Form Factor | Rack-mountable |
| Transmitter Height | 5.04" |
| Transmitter Width | 1.17" |
| Transmitter Depth | 3.94" |
| Receiver Height | 5.04" |
| Receiver Width | 1.17" |
| Receiver Depth | 3.94" |
| Transmitter Weight (Approximate) | 8.11 oz |
| Receiver Weight (Approximate) | 8.11 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
