PLATINUM TOOLS

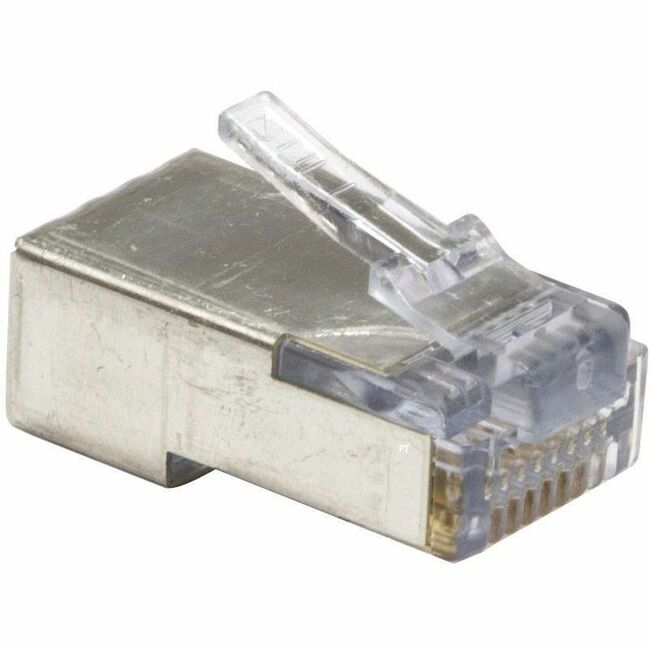

PLATINUM TOOLS 100020 EZ-RJ45 SHIELDED CAT5E/6, (INTERNAL GROUND). 50/BAG.
Mfg Part Number: 100020 , Item #: 5220651
Image may not reflect the actual item.
Price: $86.18
Quantity:
More to Come
Last Updated: Jun 19, 2025
No Sales Tax except these states
, PO and Wire.
EZ-RJ45 Pass-Through RJ45 Connectors, CAT5E/6 Shielded with Internal Ground - 50pcs in Bulk Bag
- EZ-RJ45 pass-through RJ45 connectors
- Shielded with internal ground
- Package includes 50 pieces
- Bulk bag packaging
- 0.260" (6.60mm) max cable outer diameter
- 0.040" (1.016mm) max insulation diameter (conductors)
- Compatible with solid or stranded 24 - 23AWG twisted pair cable

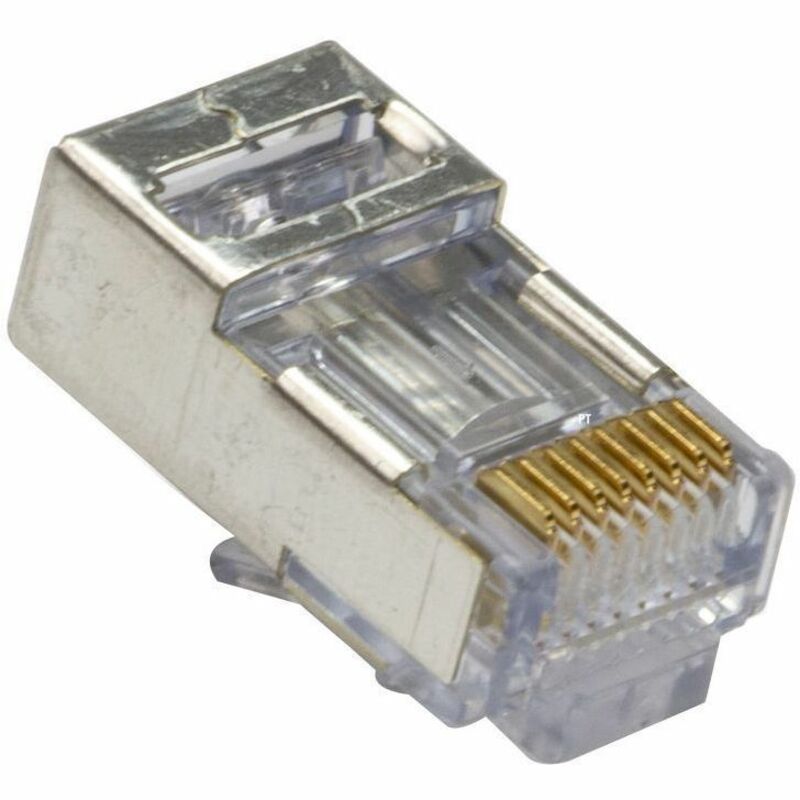

- 50 micron gold plated contacts
- Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade
- Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies
- Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance

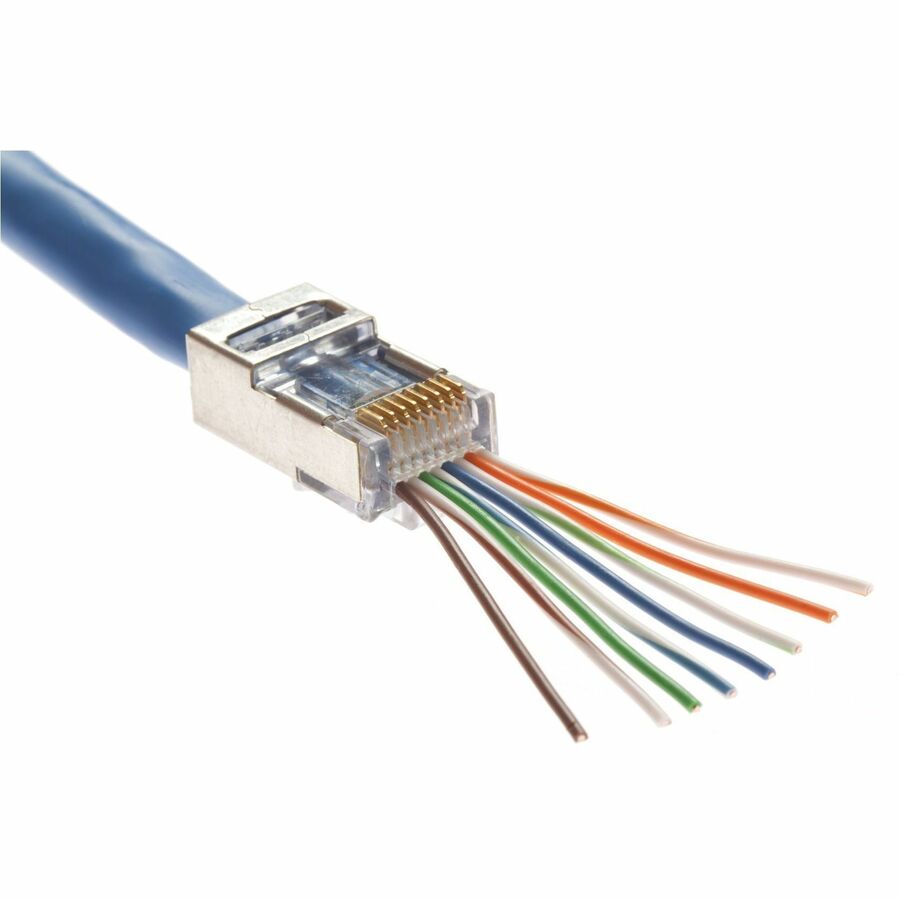

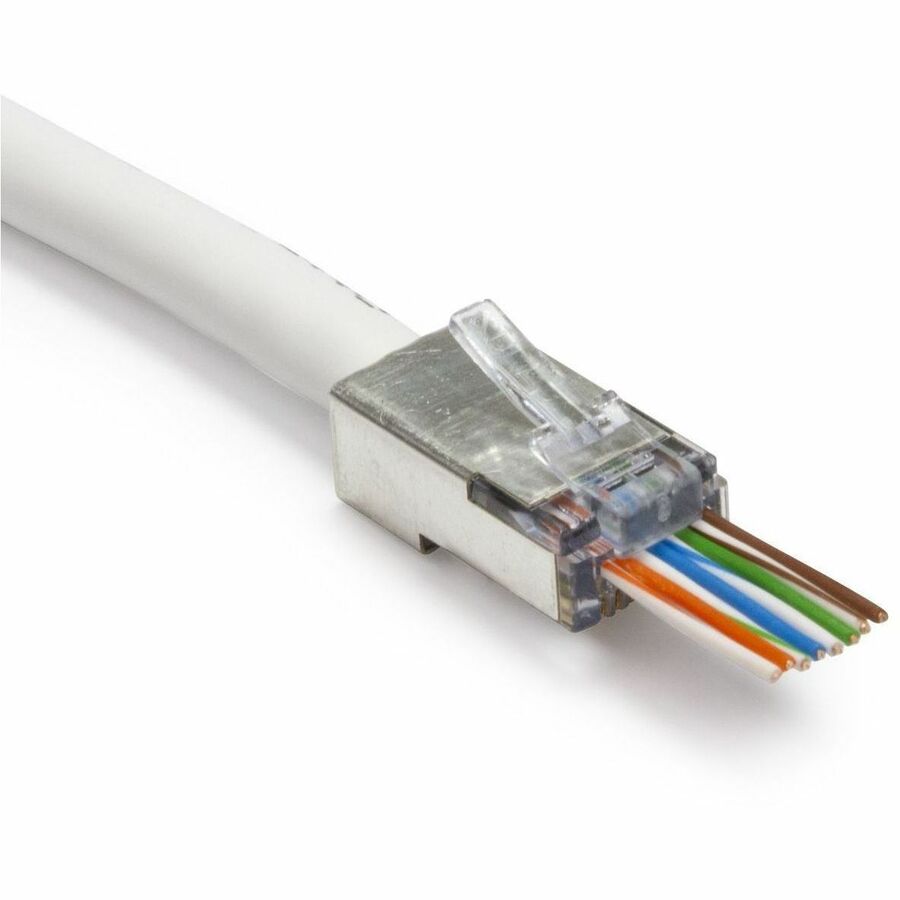

- Connector design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs
- Recommended for data applications only
- Not recommended for PoE applications
- Rated for up to 1G bandwidth
- Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated. RoHS compliant
- Recommended crimp tools: 100062, 100054 or 100004
Main Specification
| General Information | |
| Manufacturer | NSI Industries |
| Manufacturer Part Number | 100020 |
| Manufacturer Website Address | https:/siindustries.com/ |
| Brand Name | NSI |
| Product Line | EZ-RJ45 |
| Product Name | EZ-RJ45 Network Connector |
| Packaged Quantity | 50 |
| Packing | Bag |
| Product Type | Network Connector |
| Technical Information | |
| Connector Type | RJ-45 Network - Male |
| Connector Details | 1 x RJ-45 Network - Male |
| Connector Gender | Male |
| Shielding | Yes |
| Features | Crosstalk Protection |
| Features | Alien Cross Talk (AXT) |
| Features | Crimp Connector |
| Physical Characteristics | |
| Color Family | Other |
| Product Color | Metal |
| Product Material | Polycarbonate |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | United States |
