PLATINUM TOOLS 100003B EZ-RJ45 CAT5E CONNECTOR. 100/BOX.
Mfg Part Number: 100003B , Item #: 5220196
Image may not reflect the actual item.
Price: $73.05
Quantity:
More to Come
Last Updated: Jun 18, 2025
No Sales Tax except these states
, PO and Wire.

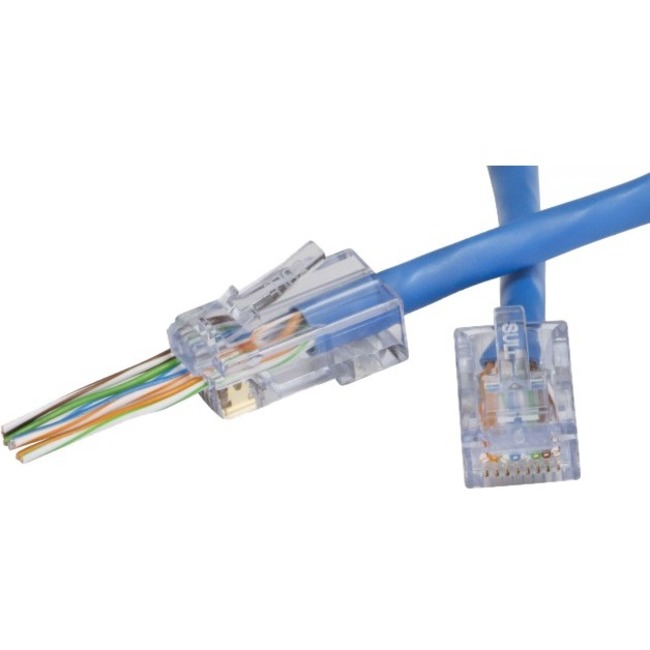

The Original EZ-RJ45 CAT5e Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized!
Recommended for Data Applications Only
Rated to 1 Gb
Crimp with one of the EZ-RJ45 Crimp Tools.
*Part Numbers 100062, 100054 or 100004
- Max Cable Outer Diameter: 0.240" (6.09mm)
- Max Insulation Diameter (Conductors): 0.040" (1.016mm)
- Meets ANSI/EIA/TIA/TAA specifications
- UL Listed E188111, UL94 V-0 and RoHS3/FCC compliant
- Solid or Stranded, 24 - 23 AWG
- 50 micron gold plated contacts
- Color: Clear/Transparent
- Made in USA
Main Specification
| General Information | |
| Manufacturer | NSI Industries |
| Manufacturer Part Number | 100003B |
| Manufacturer Website Address | http://www.platinumtools.com |
| Brand Name | Platinum Tools |
| Product Line | EZ-RJ45 |
| Product Name | EZ-RJ45 CAT5/5e Connectors, 100 Pc. Box |
| Packaged Quantity | 100 |
| Product Type | Network Connector |
| Technical Information | |
| Connector Type | RJ-45 Network |
| Connector Details | 1 x RJ-45 Network |
| Contact Plating | Gold |
| Physical Characteristics | |
| Color Family | Clear |
| Product Color | Transparent |
| Product Color | Clear |
| Miscellaneous | |
| Additional Information |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
