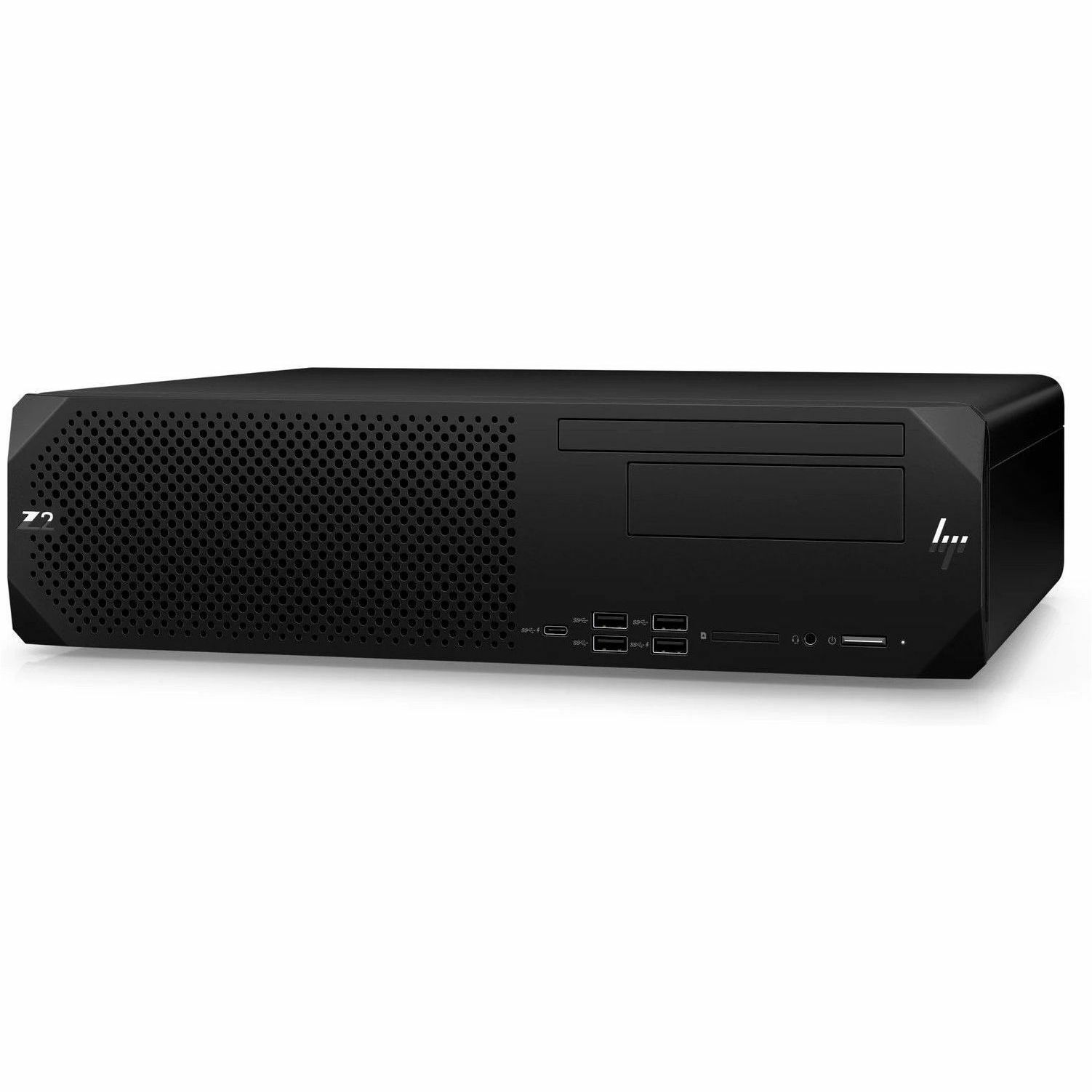

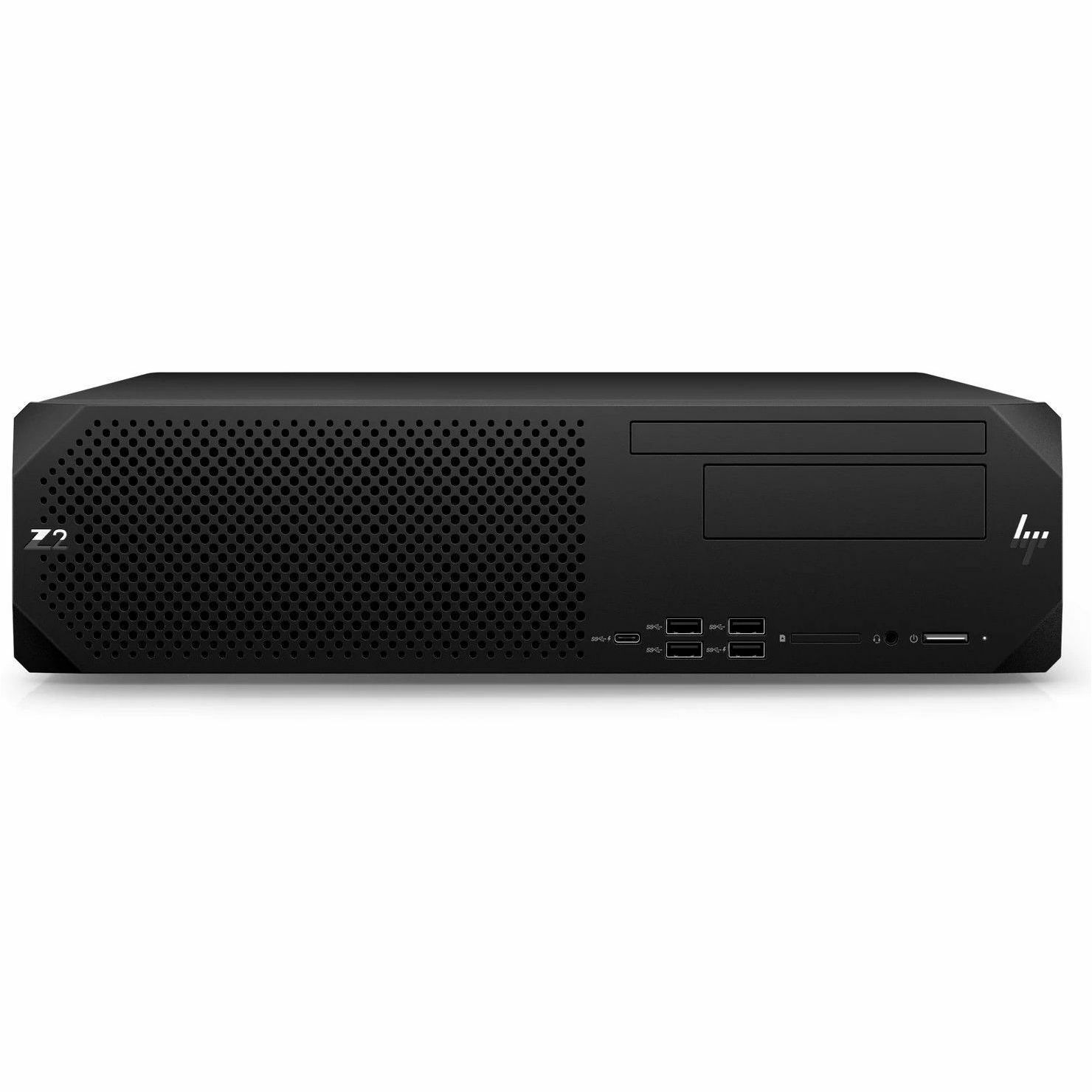

HP B29Y7UT#ABA Z2 G9 SFF i714700 32G 1TB

Full size Z tower power at half the size

Get all the power of a full size tower at a fraction of the size. Re-engineered to fit full-height, full-length graphics while leaving room for upgrades and expansion, the Z2 SFF delivers high performance for your intensive workflow-from 3D design to real time ray tracing-now and in the future.

Full height, full length performance

Design, simulate and real time ray trace on a Z SFF -- FHFL pro graphics and Intel® Core™ processors.

ISV Certified

Work with confidence knowing your PC is certified with leading software applications to ensure peak performance.

Configurable for today. Expandable for tomorrow.

Accelerate your current workflow with options across processor, graphics, memory, storage, and I/O ports.

Featuring | Windows 11

Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.

Intel® Core™ i7 processor

Run several CPU-heavy programs simultaneously without sacrificing performance with an Intel® Core™ i7 processor.

Security is your top priority

The HP Wolf Pro Security Edition provides precon?gured enterprise-level PC protection for small and medium sized businesses.

Smaller, Functional Design

The stunning new design features front and rear ledges, so you can easily move your system from location to location.

Tool-less Access

Evolve your work. Evolve your rig. With a tool-less sliding access cover, you can easily get into the the interior, and customize your Z to fit your needs.

Thermal Management

Innovatively designed to keep hardware components cool and quiet no matter how hard you push it. Have confidence to run your system at max load 24/7.

General Information
Manufacturer	HP Inc.
Manufacturer Part Number	B29Y7UT#ABA
Manufacturer Website Address	http://www.hp.com
Brand Name	HP
Product Series	Z2 G9
Product Name	Z2 Small Form Factor G9 Workstation
Product Type	Workstation
Processor
Number of Processors Supported	1
Number of Processors Installed	1
Processor Type	Core i7
Processor Generation	14th Gen
Processor Model	i7-14700
Processor Core	Icosa-core (20 Core)
Processor Speed	2.10 GHz
L3 Cache	33 MB
Processor Socket	Socket LGA-1700
Processor Threads	28
Chipset
Chipset Manufacturer	Intel
Chipset Model	W680
Memory
Standard Memory	32 GB
Maximum Memory Supported	128 GB
Memory Technology	DDR5 SDRAM
Total Number of Memory Slots	4
Error Checking	Non-ECC
Memory Configuration	1 x 32GB
Signal Processing	Unbuffered
Storage
Drive Type	SSD
Total Solid State Drive Capacity	1 TB
Solid State Drive Interface	PCI Express NVMe 4.0 x4
Controllers
Controller Type	Serial ATA/600
Controller Type	NVMe
RAID Supported	Yes
RAID Levels	0, 1
Display & Graphics
Graphics Controller Model	RTX A1000
Graphics Memory Capacity	8 GB
Graphics Memory Accessibility	Dedicated
Network & Communication
Ethernet Technology	Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports	12
USB Type-C	Yes
USB Type-C Detail	1 x SuperSpeed USB Type-C® 20Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4, HP Sleep and Charge
DisplayPort	Yes
Number Of Ethernet Ports	1
Number of DisplayPort Outputs	2
Optional Ports	Details regarding optional ports aggregated from the information available for this product's family/series. Flex I/O module: choose one from the following: (1) DisplayPort 1.4, (1) HDMI 2.0b, (1) VGA, 1 Dual USB-A 5Gbps, 1 USB-C® 10Gbps (Power Delivery 15W, Alt Mode DisplayPort), (1) 2nd 1GbE LAN, (1) 1Gbps Fiber LC LAN, (1) Thunderbolt 3 with USB4 Type-C® 40Gbps port (cabled to PCIe AIC)
Input Devices
Keyboard Localization	English
Operating System
Operating System Platform	Windows
Operating System	Windows 11 Pro
Operating System Language	English
Power Description
Input Voltage	230 V AC
Input Voltage	120 V AC
Maximum Power Supply Wattage	450 W
Frequency	50 Hz
Frequency	60 Hz
Physical Characteristics
Color Family	Black
Product Color	Black
Form Factor	Small Form Factor
Height	3.9"
Width	15.1"
Depth	12.1"
Weight (Approximate)	11.02 lb
Miscellaneous
Package Contents	Z2 Small Form Factor G9 Workstation Keyboard Mouse
Energy Star	Yes
TCO Certified	Yes
Energy Efficiency Certification	China Energy Conservation Program (CECP)
Energy Efficiency Compliance	Energy-related Products Directive (ErP)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	1 Year
