HP 9J2K9UT#ABA Z6G5A RTP7945WX 16G 512GB

Overview | Maximized Cores. Astounding Graphics. Unbound Potential

The Z6 G5 A is a powerhouse for virtual production, 3D rendering, AI and machine learning. Its innovative system design, with a next-gen AMD Ryzen™ Threadripper™ PRO CPU, combines an astounding number of cores in a single CPU with multiple GPUs. Create and render at once on intensive projects.

Create, render, process-all at once

Tear through virtual production, 3D modeling, AI and machine learning. The system design packs a staggering number of cores into a single workstation CPU so there's room for multiple high-end GPUs. And do it all with efficient performance per watt.

Comprehensive security. Trusted reliability

Get peace of mind with a workstation that's built to endure. The Z6 G5 A undergoes 360K hours of rigorous testing, MIL-STD testing, and is certified for pro apps. And with HP Wolf Security for Business, it's protected below, in, and above the OS.

Expandable. Flexible. Whisper Quiet

Designed to pack all the power and components you need now with room to grow. Get maximum expandability with large storage and memory con?gurations. Conquer intense projects with a device designed to run quiet and cool.

Part of the world's most sustainable PC portfolio

At HP, we care about the impact our products have on our people, communities, and the planet. Z products are designed with sustainability at the forefront. So, you can take pride in choosing Z, knowing that you are helping protect our shared future.

Features | Windows 11

Work anywhere without compromising on performance or security with Windows 11 powered by HP's collaboration and connectivity technology.

AMD® Ryzen™ processor

Bring your ideas to life quickly and effectively with the latest AMD® Ryzen™ processors.

Security is your top priority

The HP Wolf Pro Security Edition provides preconfigured enterprise-level PC protection for small and medium sized businesses.

HP Anyware

Access the power of your Z from any device with HP Anyware-remote access software delivering fast responsiveness and image quality, even in film editing and data visualizations.

General Information
Manufacturer	HP Inc.
Manufacturer Part Number	9J2K9UTABA
Manufacturer Website Address	http://www.hp.com
Brand Name	HP
Product Series	Z6 G5 A

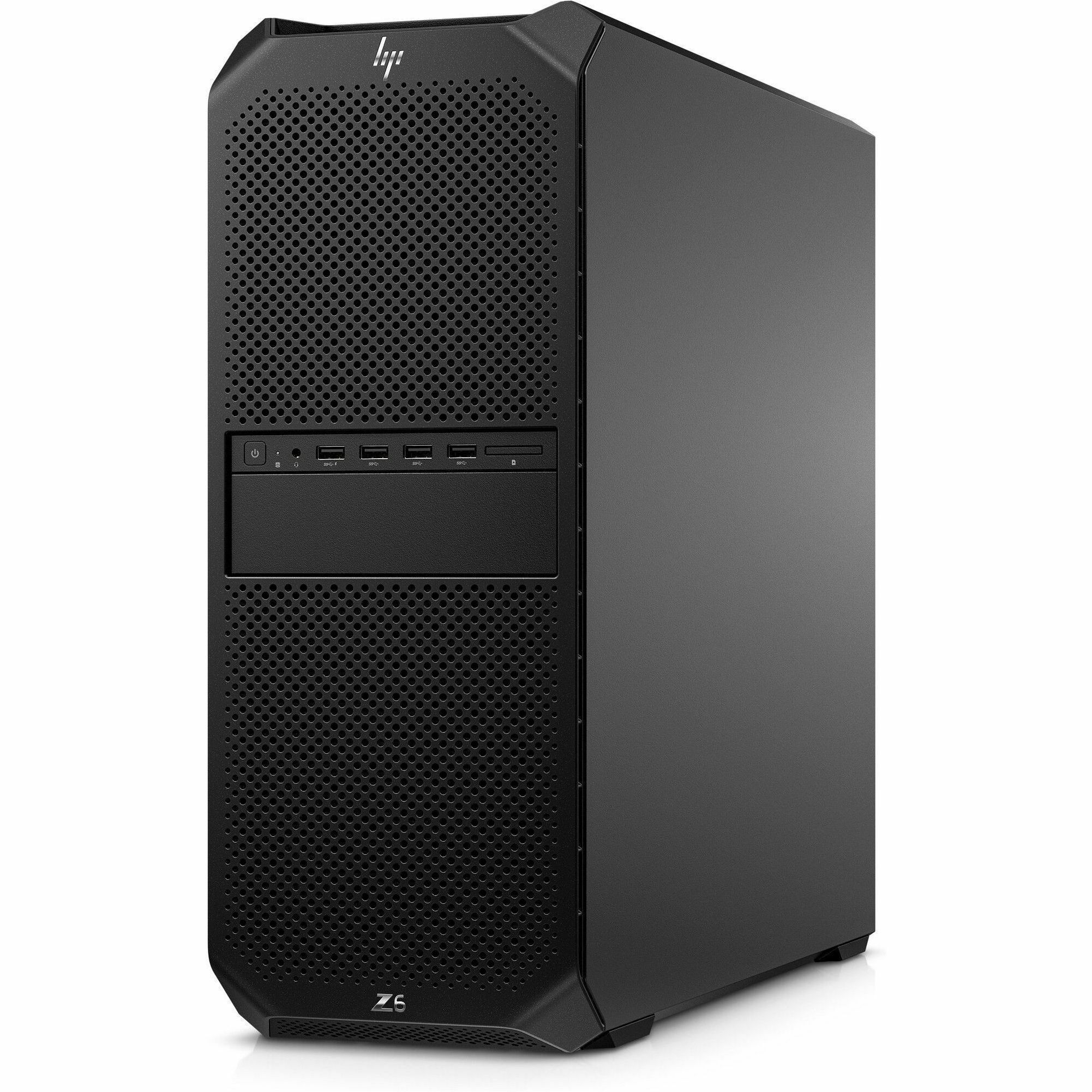

Product Name	Z6 G5 A Workstation
Product Type	Workstation
Processor
Number of Processors Supported	1
Number of Processors Installed	1
Processor Type	Ryzen Threadripper PRO
Processor Model	7945WX
Processor Core	Dodeca-core (12 Core)
Processor Speed	4.70 GHz
L3 Cache	64 MB
Processor Socket	Socket SP6 LGA-4844
Chipset
Chipset Manufacturer	AMD
Chipset Model	PRO 695
Memory
Standard Memory	16 GB
Maximum Memory Supported	1 TB
Memory Technology	DDR5 SDRAM
Total Number of Memory Slots	8
Error Checking	ECC
Memory Clock Speed	5.60 GHz
Memory Configuration	1 x 16GB
Signal Processing	Registered
Storage
Drive Type	SSD
Total Solid State Drive Capacity	512 GB
Solid State Drive Interface	PCI Express NVMe 4.0 x4
Solid State Drive Configuration	1 x 512GB
Controllers
Controller Type	Serial ATA/600
RAID Supported	Yes
Display & Graphics
Graphics Controller Model	Radeon Pro W7500
Graphics Memory Capacity	8 GB
Graphics Memory Accessibility	Dedicated
Maximum Memory Bandwidth	173 GB/s
Network & Communication
Ethernet Technology	Gigabit Ethernet
Wireless LAN	No
Bluetooth	No
Interfaces/Ports
Total Number of USB Ports	12
Number of Onboard USB 2.0 Ports	1
Number of USB 3.2 Gen 1 Ports	11
DisplayPort	Yes
Number Of Ethernet Ports	1
Number of DisplayPort Outputs	4
Input Devices
Keyboard Localization	English
Operating System
Operating System Platform	Windows
Operating System	Windows 11 Pro for Workstations
Operating System Language	English
Operating System Architecture	64-bit
Power Description
Input Voltage	120 V AC
Input Voltage	230 V AC
Maximum Power Supply Wattage	775 W
Physical Characteristics
Color Family	Black
Product Color	Black
Form Factor	Tower
Height	17.5"
Width	6.7"
Depth	18.3"
Weight (Approximate)	29.10 lb
Miscellaneous
Package Contents	Z6 G5 A Workstation Keyboard Mouse
Energy Star	Yes
TCO Certified	Yes
Environmentally Friendly	Yes
Energy Efficiency Certification	China Energy Conservation Program (CECP)
Energy Efficiency Compliance	Energy-related Products Directive (ErP)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	1 Year
Additional Warranty Information	Support Service Included: HP 3y Onsite Care WS Bundle HW Supp Manufacturer Warranty: 1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
