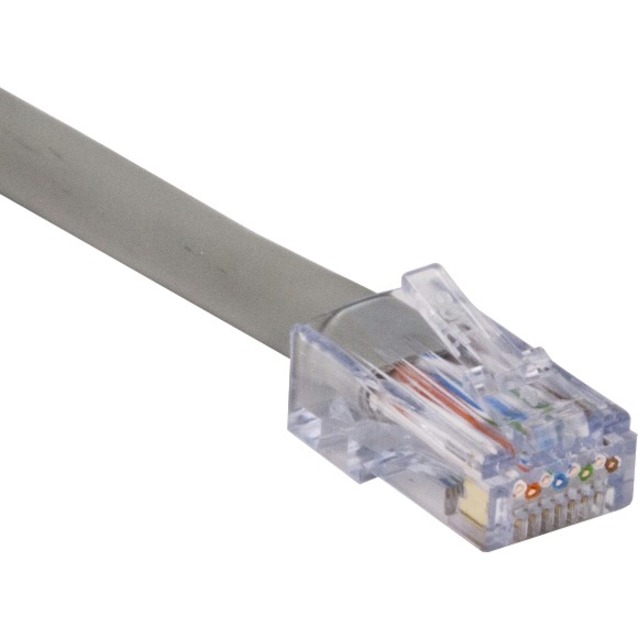

PLATINUM TOOLS 105024 EZEX44 CONNECTORS. 500/BAG
Mfg Part Number: 105024 , Item #: 5216372
Image may not reflect the actual item.
Price: $332.53
Quantity:
More to Come
Last Updated: Oct 30, 2025
No Sales Tax except these states
, PO and Wire.

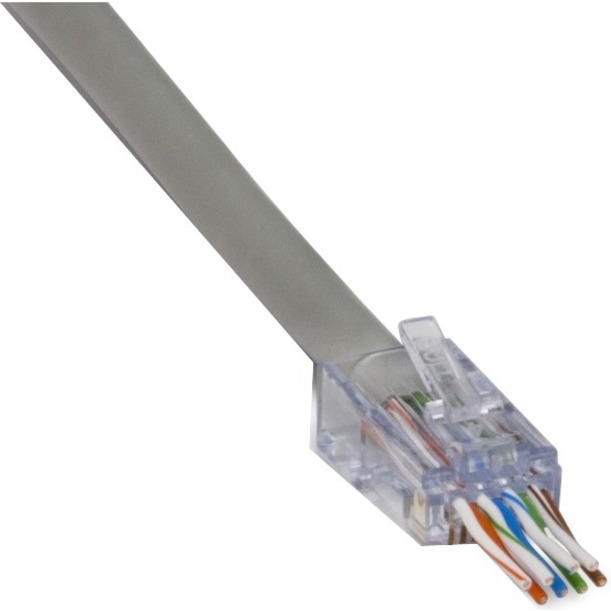

The patented ezEX44 connectors feature a unique integrated Hi-Lo stagger load bar and allows 'big' conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6 (Sm. Cat6A) cabling and is recommended for PoE/PoE+ and Data applications. The termination tool for these connectors is the EXO Crimp Frame and EXO-EX Die (100061C).
- Hi-Lo stagger to isolate each conductor
- Simple one piece/pass through design, no bars or liners
- Insulation Diameter (Conductor) Size range: .039" - .044" (1.0 -1.12mm)
- Max Outer Diameter: .290" (7.36mm)
- 50 micron gold plated contacts
- 5e/6/6A compliant
- Solid or Stranded 24-22 AWG
- TIA, TAA, RoHS, UL & FCC compliant
- Typically used with Cat6 (Sm. Cat6A)
- Made in the USA
- US Patents 9,543,729 B2; 10,116,082 B2; & 10,573,990 B2. Foreign patents.
Main Specification
| General Information | |
| Manufacturer | NSI Industries |
| Manufacturer Part Number | 105024 |
| Manufacturer Website Address | http://www.platinumtools.com |
| Brand Name | Platinum Tools |
| Product Line | ezEX44 |
| Product Name | ezEX44 - ezEX-RJ45 Cat6 Connector |
| Packaged Quantity | 500 |
| Packing | Bag |
| Package Type | Bulk |
| Product Type | Network Connector |
| Technical Information | |
| Connector Type | RJ-45 Network - Male |
| Connector Details | 1 x RJ-45 Network - Male |
| Contact Plating | Gold |
| Features | PoE+ |
| Features | PoE |
| Features | Stranded |
| Features | Pass-thru |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
