THERMALTAKE CA-1Y8-00S6WN-01 Versa H16 White
Mfg Part Number: CA-1Y8-00S6WN-01 , Item #: 5214571
, PO and Wire.

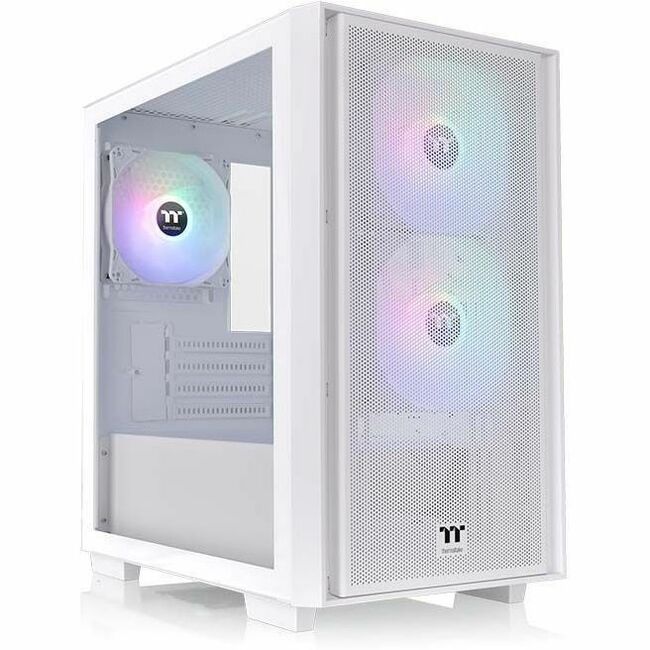

Versa H16 TG ARGB Micro Tower Chassis
Versa H16 TG ARGB Snow Micro Tower Chassis is an m-ATX case with a tempered class left panel and a mesh front panel, and comes with three hydraulic bearing 120mm ARGB Lite Fans at the front and rear. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Moreover, up to five 120mm fans can be installed inside the chassis, and up to a 280mm radiator can be placed at the front of the chassis.

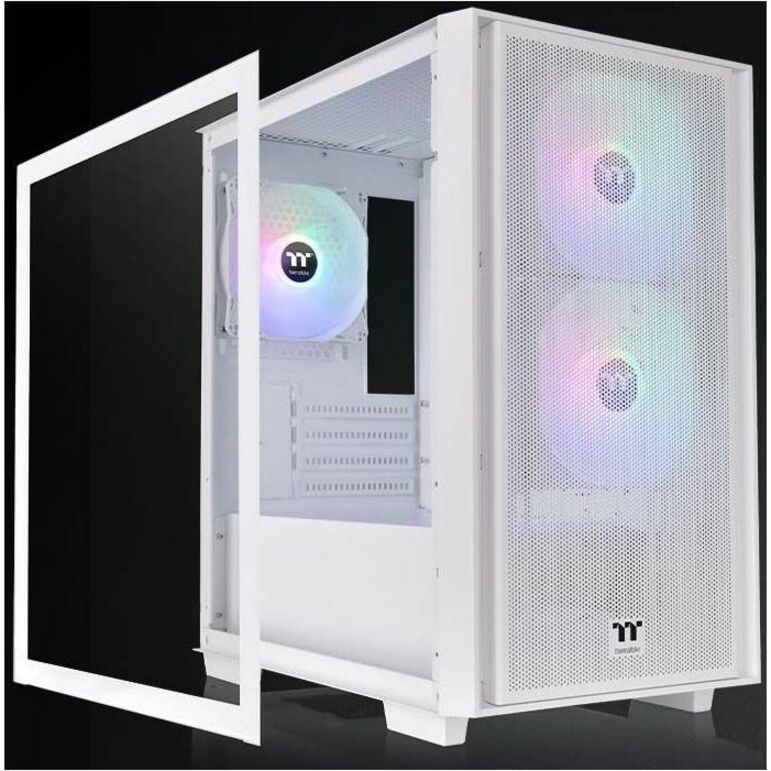

Tempered Glass Left Panel and Mesh Front Panel

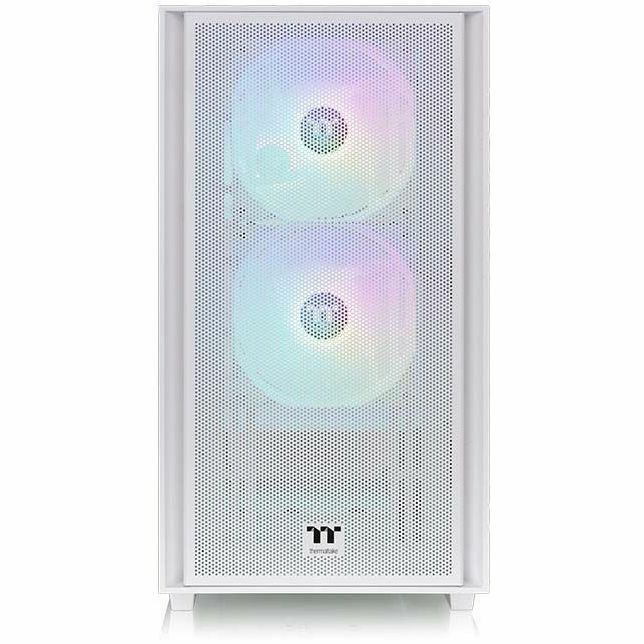

The Versa H16 TG ARGB Snow Micro Tower Chassis features a tempered glass left panel and a mesh front panel. The former provides a nice view of the internal components and the latter provides adequate airflow.

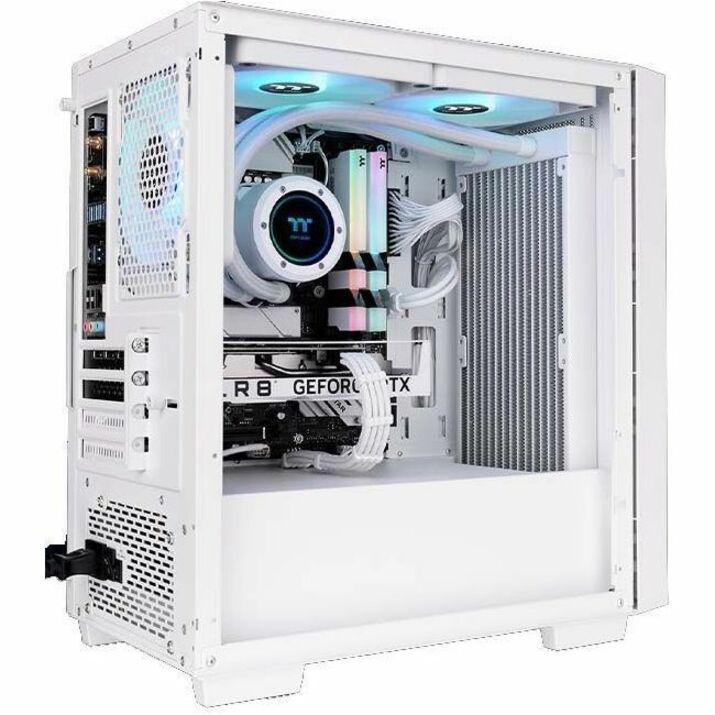

Supports up to a 280mm Radiator on the Front
Providing good cooling support, users can choose to place a 280mm radiator on the front of the Versa H16 TG ARGB Snow Micro Tower Chassis.

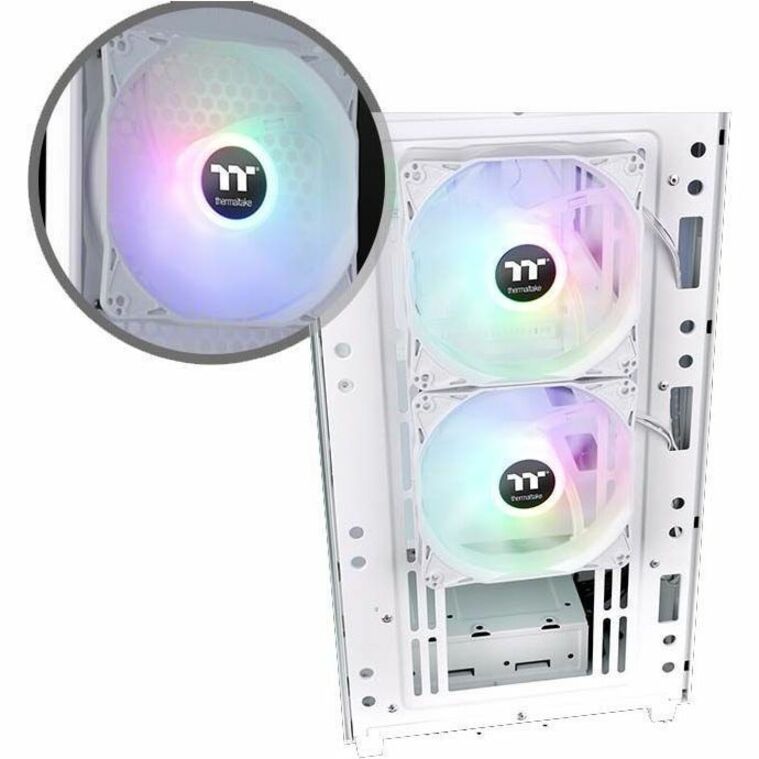

Three Hydraulic Bearing 120mm ARGB Lite Fans Pre-installed
The Versa H16 TG ARGB Snow Micro Tower Chassis comes with three Hydraulic Bearing 120mm ARGB Lite Fans at the front and the rear. It's fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Built-in PSU Cover

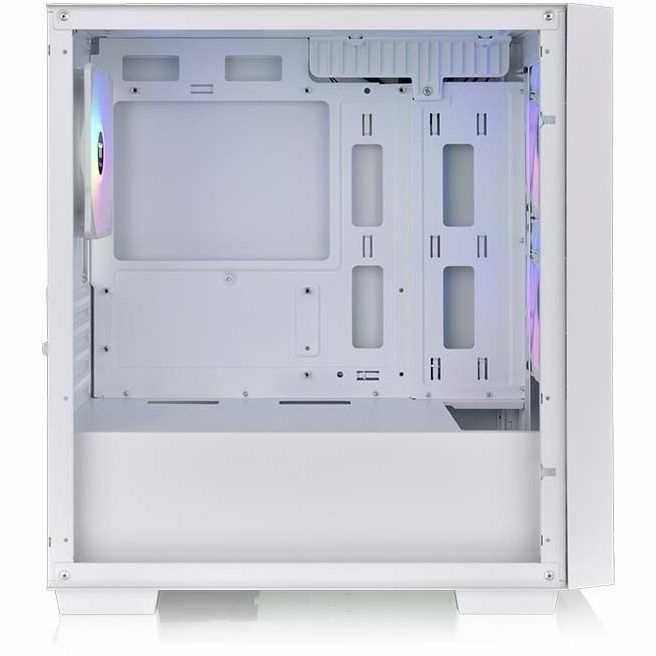

The Versa H16 TG ARGB Snow Micro Tower Chassis features a full length power supply cover providing plenty of space to tuck away cables, while keeping airflow clear for your hard drives and PSU.

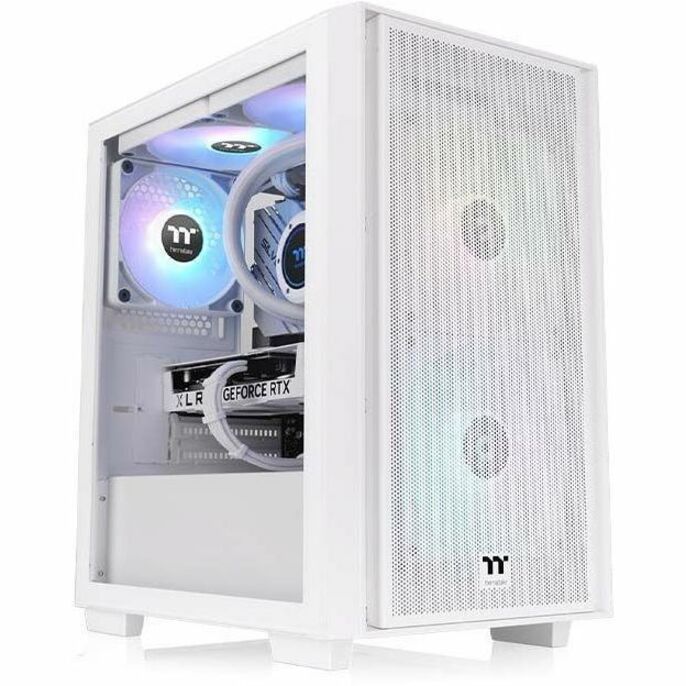

Hardware and Cooling Support
The Versa H16 TG ARGB Micro Tower Chassis offers good expandability. It can support a CPU cooler with a maximum height of 175mm, GPU placement up to 330mm in length, a power supply up to 170mm in length. Optimized for excellent cooling performance, the case comes with three Hydraulic Bearing 120mm ARGB Lite Fans, and up to five 120mm fans can be installed. For radiator compatibility, it can support up to 280mm on the front, giving more options for expansion.
How Much Storage Is Totally Up To You
For storage compatibility, the Versa H16 TG ARGB Micro Tower Chassis gives maximum support of up to three 2.5'' SSDs or two 3.5'' HDDs in total.

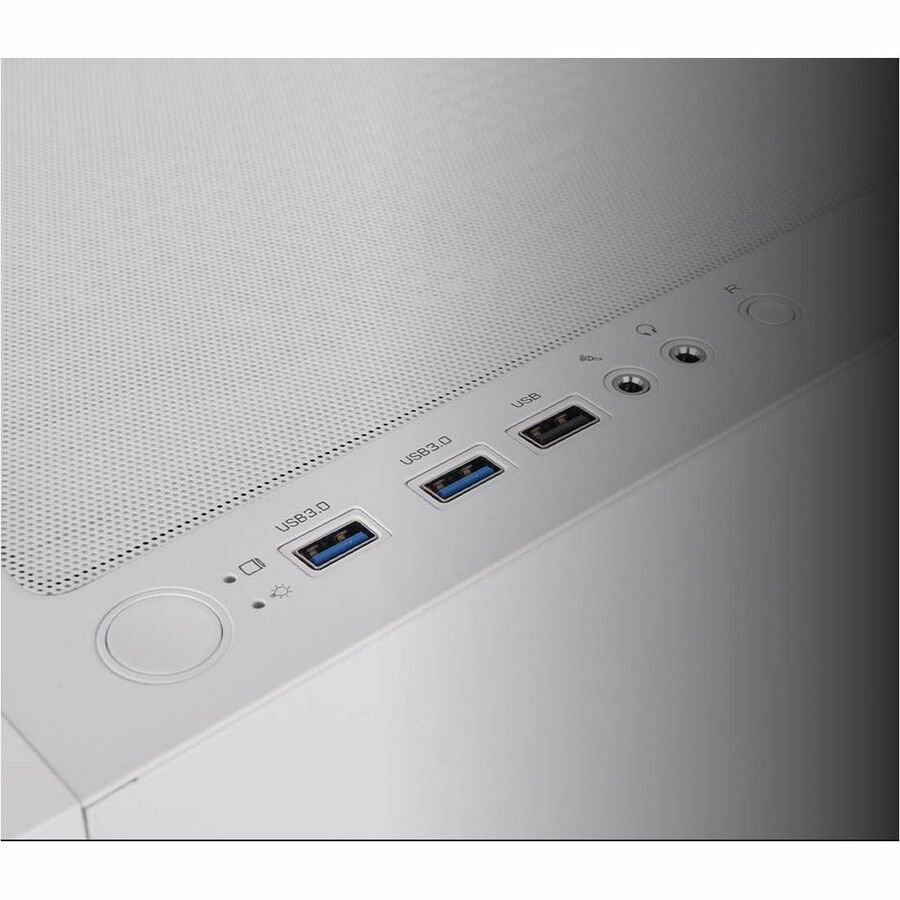

Handy I/O Ports
Two USB 3.0, one USB 2.0 and HD Audio ports are placed on the top panel to grant direct access when needed.
| General Information | |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Manufacturer Part Number | CA-1Y8-00S6WN-01 |
| Manufacturer Website Address | http://www.thermaltakeusa.com |
| Brand Name | Thermaltake |
| Product Line | Versa H16 |
| Product Model | Versa H16 TG ARGB |
| Product Name | Versa H16 TG ARGB Snow Micro Tower Chassis |
| Product Type | Computer Case |
| Technical Information | |
| Motherboard Supported | Mini ITX |
| Motherboard Supported | Micro ATX |
| Number of Fans Supported | 5 |
| Number of Fans Installed | 3 |
| Fan Size Supported | 4.72" |
| Fan Size Supported | 5.51" |
| Installed Fan Size | 4.72" |
| Installed Fan Size Details | 3 × 120mm |
| Bays | |
| Number of Internal 3.5" Bays | 2 |
| Number of Internal 2.5" Bays | 2 |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| USB Port Details | 2 x USB 3.0 |
| USB Port Details | 1 x USB 2.0 |
| Front USB | Yes |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Total Number of Audio Out Ports | 1 |
| Front Audio Out | Yes |
| Microphone | Yes |
| Physical Characteristics | |
| Color Family | White |
| Product Color | Snow |
| Product Material | Tempered Glass |
| Product Material | Mesh |
| Product Material | SPCC |
| Cooler Type | Fan Cooler |
| Form Factor | Micro Tower |
| Maximum CPU Cooler Height | 6.89" |
| Maximum PSU Length | 6.69" |
| Maximum GPU Length | 12.99" |
| Height | 15.9" |
| Width | 8.5" |
| Depth | 14.9" |
| Weight (Approximate) | 10.38 lb |
| Warranty | |
| Limited Warranty | 3 Year |
