BLACK BOX

BLACK BOX KVXLCDPF-200-SFPBN3 KVM EXTENDER KIT OVER FIBER BUNDLE - DUAL-MONITOR, DISPLAYPORT 4K30, USB 2.0, AU

Mfg Part Number:  KVXLCDPF-200-SFPBN3
Image may not reflect the actual item.
Price: $1,532.78
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Sep 23, 2025
No Sales Tax except these states
, PO and Wire.

The KVXLCDPF-100 DisplayPort KVM Console Extender lets you control a server, or computer over single-mode fiber at distances of up to 30 km. PC connection cables are included with this product making it a solution that is ready right out of the box.

You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console. KVX is the perfect low-cost solution for transportation control centers, medical facilities, industrial warehouses, and extended workstations.

KVX Series Extenders also include local video allowing access to an additional monitor at the Transmitter side. Perfect for any situation that requires monitoring of connected PCs.

KVX Series Extenders are a perfect fit for cost-conscious users in search of a feature-rich solution that allows them to operate servers or PCs from remote locations. Or, customers who require control of physically inaccessible systems, placed in secure locations, or otherwise harsh environments. This can include command and control operations, server management, distribution monitoring, or utilities process control centers.


Main Specification
General Information
Manufacturer Black Box Corporation
Manufacturer Part Number KVXLCDPF-200-SFPBN3
Manufacturer Website Address http://www.blackbox.com
Brand Name Black Box
Product Series KVX
Product Name KVX Series KVM Extender Kit over Fiber - 4K, DisplayPort, USB 2.0 Hub, Serial, Audio, Local Video
Product Type KVM Extender
Technical Information
Connectivity Technology Wired
Maximum Operating Distance 65616.80 ft
Device Type KVM Extender
Video
Graphic Mode 4K
Maximum Video Resolution 3840 x 2160

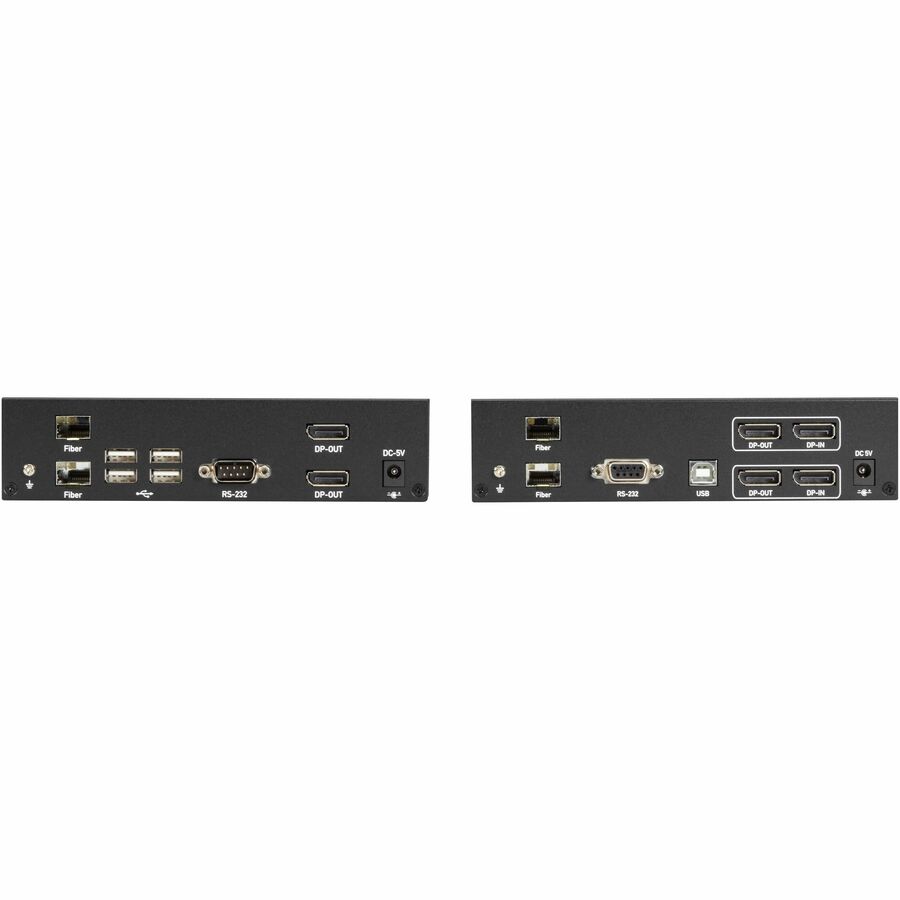

Interfaces/Ports
Host Interface DisplayPort
USB Yes
DisplayPort Yes
Number of USB Ports 5
Power Description
Input Voltage 5 V DC
Physical Characteristics
Form Factor Desktop
Miscellaneous

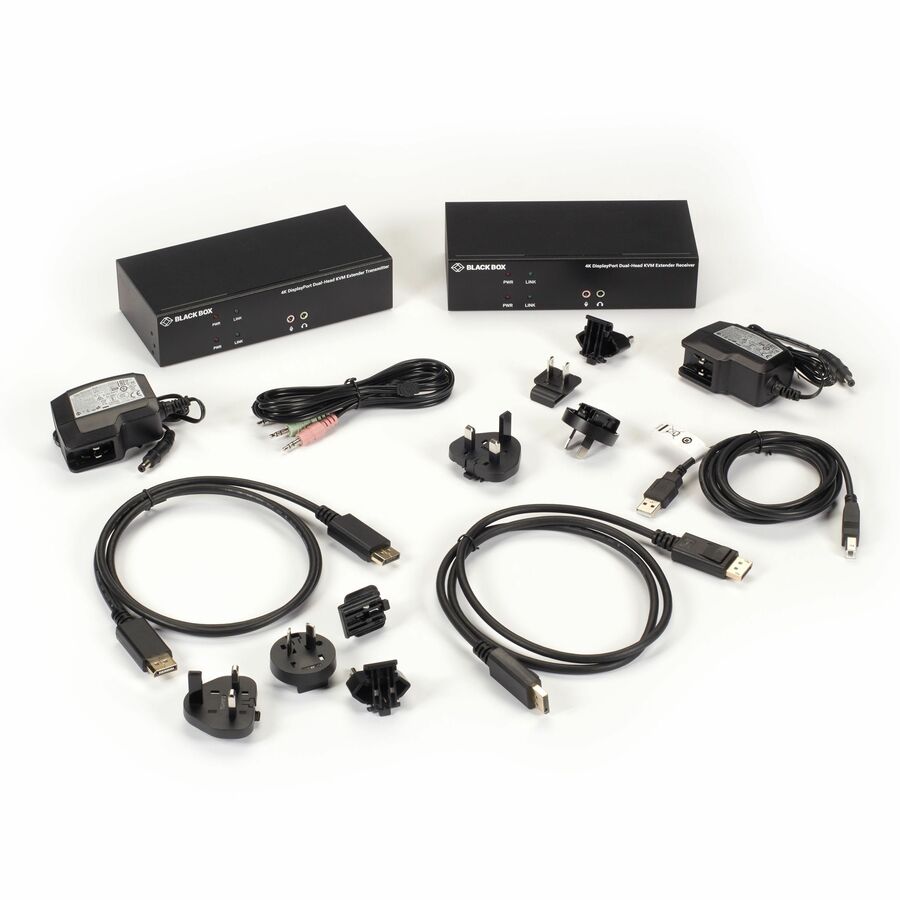

Package Contents
  • (1) Transmitter
  • (1) Receiver
  • (2) 5V, 2A Power Supplies (includes US, EU, AU & UK Plug types)
  • (1) or (2) DisplayPort Cables 1.2m (4 ft.)
  • (1) USB Type A To B Cable, Male/Male 1.8m (6 ft.)
  • (1) 3.5-mm Dual Audio/Mic Cable, Male/Male 1.8m (6 ft.)
  • (2) Deskmounting Brackets (with Screws)
