DATALOGIC

PM9600-DHP910RBK10 DATALOGIC, 9600, POWERSCAN PM9600, HIGH

Mfg Part Number:  PM9600-DHP910RBK10
Image may not reflect the actual item.
Price: $1,698.76
Quantity:
More to Come
Last Updated: Sep 25, 2025
No Sales Tax except these states
, PO and Wire.

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

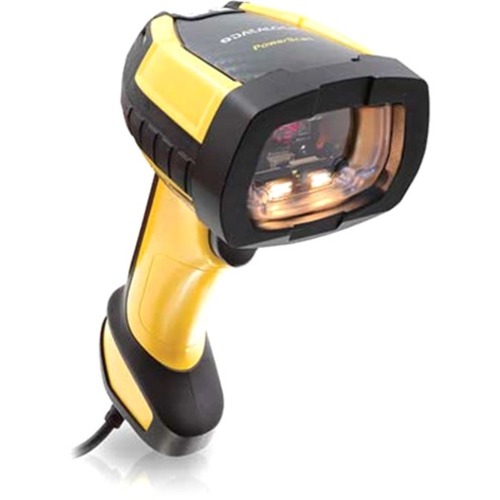

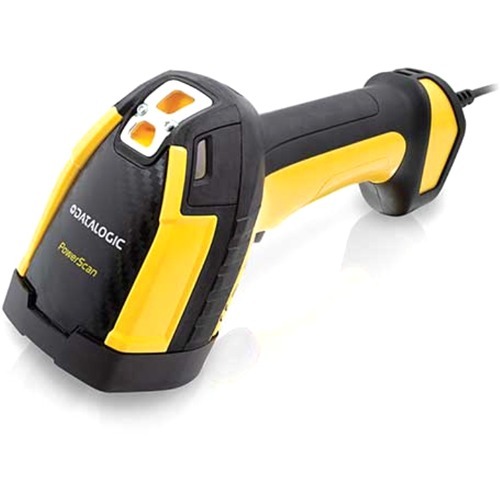

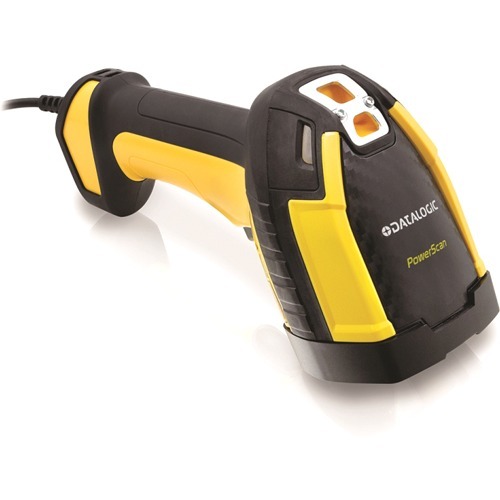

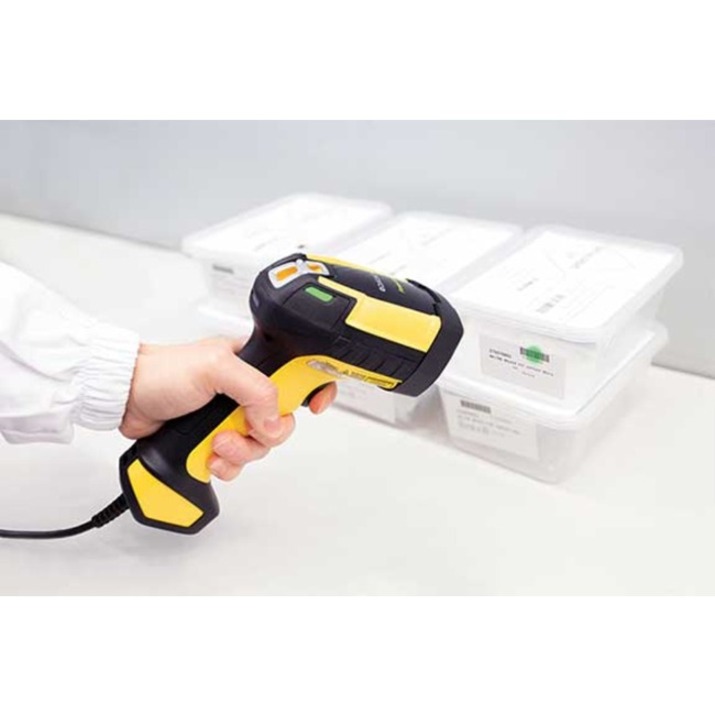

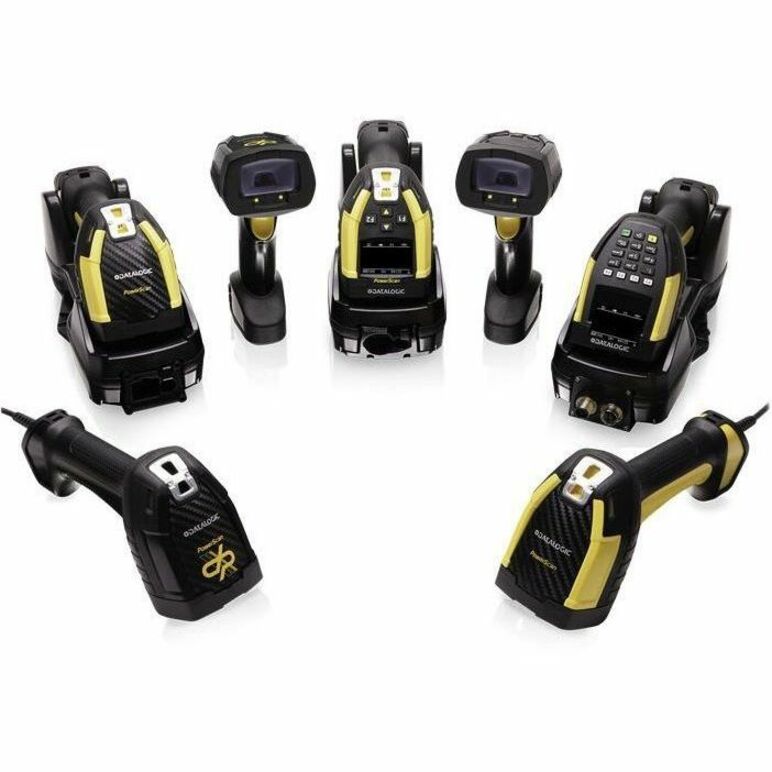

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities.

MOBILITY ENHANCES PRODUCTIVITY

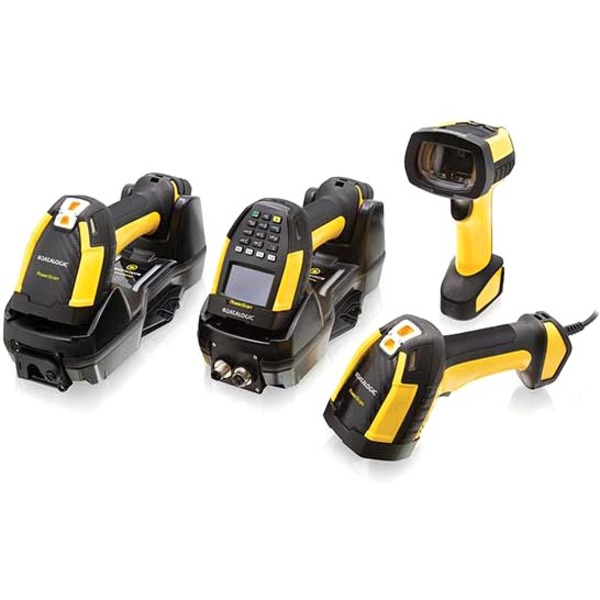

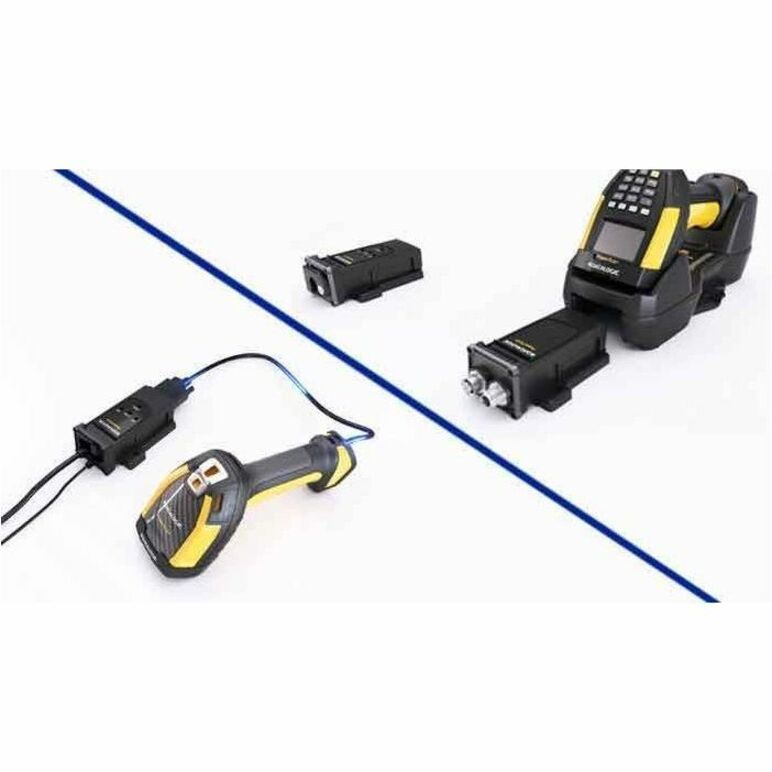

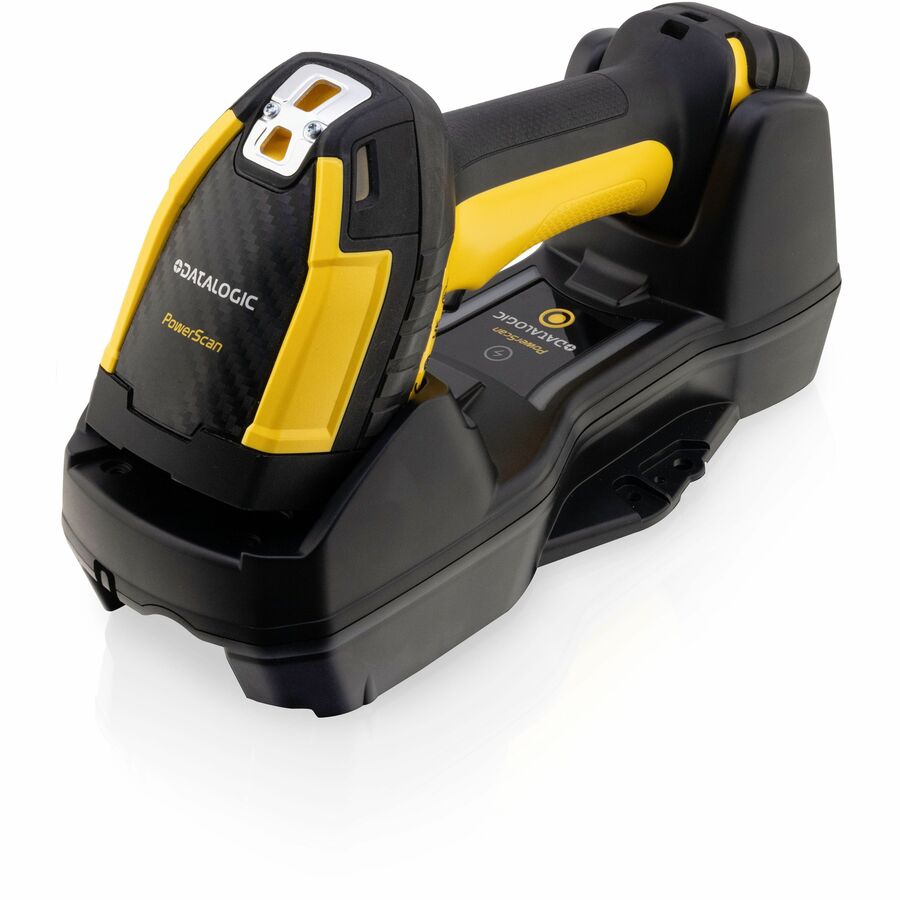

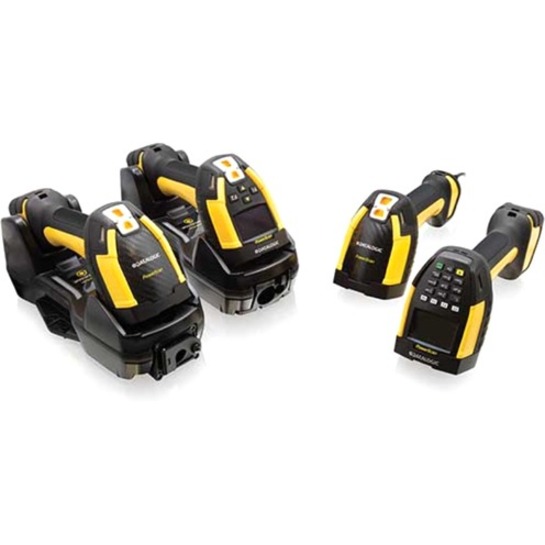

The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System™. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes. The PowerScan PBT9600 cordless model is enriched with Bluetooth® 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station. The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.

WIRELESS CHARGING

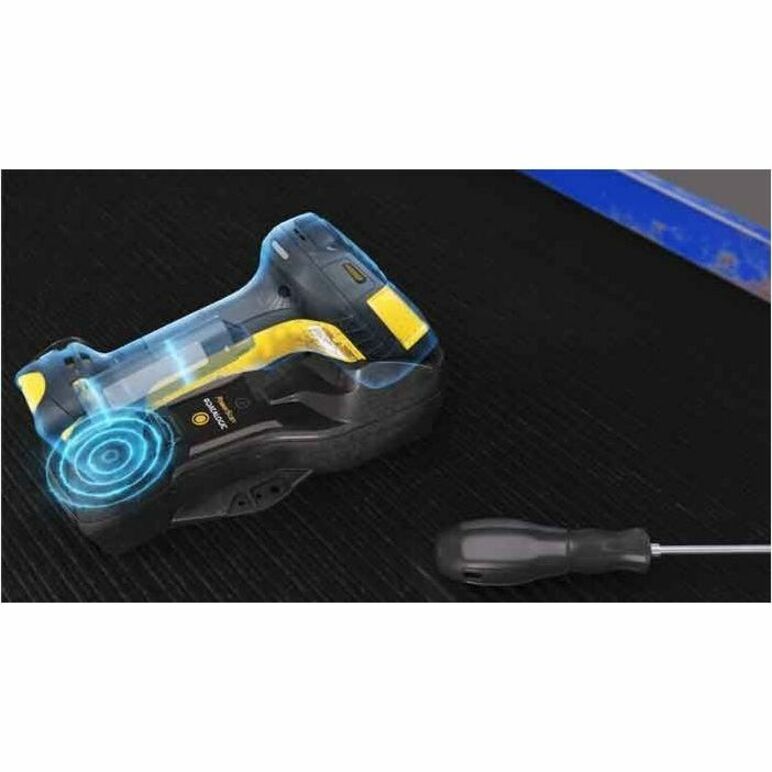

The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.

THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED

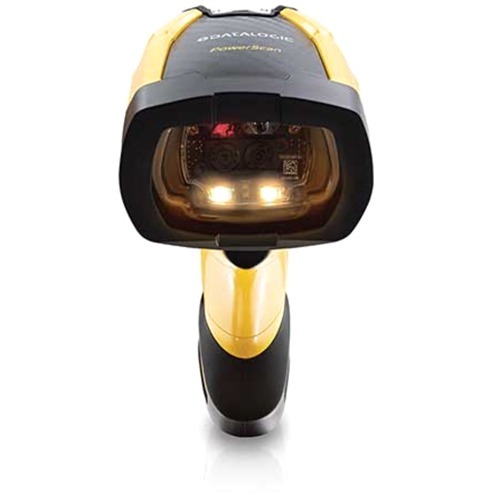

The PowerScan 9600 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.

Main Specification
General Information
Manufacturer Datalogic S.p.A
Manufacturer Part Number PM9600DHP910RBK10
Manufacturer Website Address http://www.datalogic.com
Brand Name Datalogic
Product Line PowerScan
Product Series 9600
Product Model PM9600
Product Name PowerScan 9600 PM9600 Barcode Scanner Kit
Product Type Barcode Scanner Kit
Technical Information
Connectivity Technology Wireless
Scanning Capability 2D
Scanning Capability 1D
Barcode Symbology Supported

1D:

  • Auto discriminates all standard 1D codes including GS1 DataBar linear codes

2D:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot Code

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes (HP and DC models)
Light Source LED
Image Sensor Type Imager
Scan Mode Trigger
Scan Pattern Area
Scan Pattern Omni-directional
Scanner Range Short Range
Scanning Distance 95.60"
Features Beep
Features LCD Display
Features Vibration
Features Ergonomic Design
Features 3GL
Features Notification LED
Display Screen Yes
Number of Keys 4
Cable Type Included Serial
Field of View (Horizontal) 38°
Field of View (Vertical) 24°
Reading Angle (Skew) 52°
Reading Angle (Pitch) 52°
Reading Angle (Roll) 360°
Maximum Ambient Light 100000 lux
Drop Specification
  • Drop Resistance Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Minimum Print Contrast 15%
Minimum Element Resolution (DataMatrix) 10 mil
Minimum Element Resolution (PDF417) 10 mil
Image Sensor Resolution 1280 x 800
Illumination Type LED
Illumination Color White
Air Electrostatic Discharge (+/-) 20kV
Network & Communication
Bluetooth Yes
Radio Frequency Yes
Interfaces/Ports
Host Interface Multi-interface
Host Interface USB
Host Interface Serial
Host Interface Ethernet
Power Description
Power Supply Included Yes
Battery Information
Battery Included Yes
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3350 mAh
Maximum Battery Recharge Time 3.20 Hour
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Rugged Yes
Color Family Dual Color
Product Color Black
Product Color Yellow
Durability Water Resistant
Durability Dust Resistant
Height 7.8"
Width 3.1"
Length 5.5"
Weight (Approximate) 15.70 oz
Miscellaneous
Package Contents
  • 1 x PowerScan 9600 PM9600 Barcode Scanner Kit

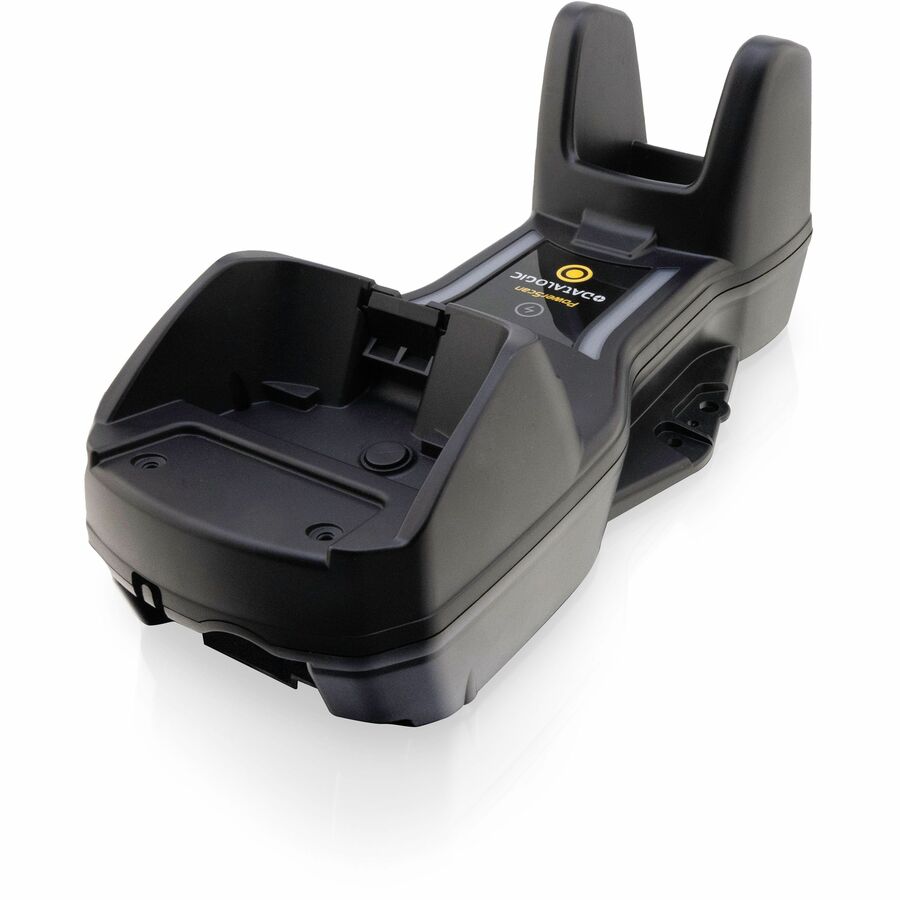

  • 1 x Cradle BC9630-910
  • 1 x Cable CAB-552
  • 1 x Power Supply 8-0935
  • 1 x Power Cord 6003-0941
Ingress Protection (IP) Rating IP67
Ingress Protection (IP) Rating IP65
Application/Usage Assembly Line
Application/Usage Sorting
Application/Usage Picking
Application/Usage Warehouse
Application/Usage Packing
Application/Usage Manufacturing
Application/Usage Component Tracking
Application/Usage Inventory
Application/Usage Logistics
Application/Usage Industrial
Application/Usage Asset Tracking
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance China Restriction of Hazardous Substances (China RoHS)
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty 3 Year
