Elo TouchSystems

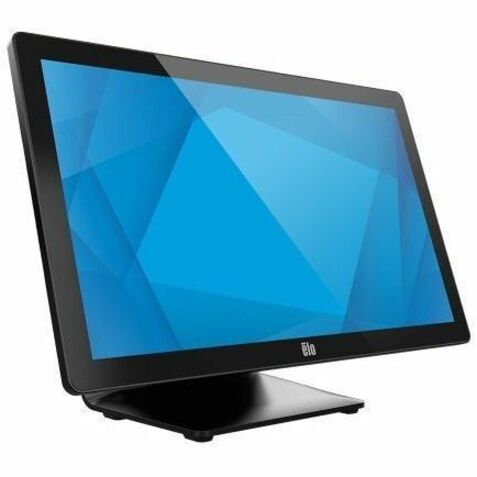

Elo TouchSystems E457084 ESY22I5-2UWA-1-MT-6G-2S-N0-00-BK
Mfg Part Number: E457084 , Item #: 5203931
Image may not reflect the actual item.
Price: $3,099.70
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jun 24, 2025
No Sales Tax except these states
, PO and Wire.
Modular design.| Endless versatility.

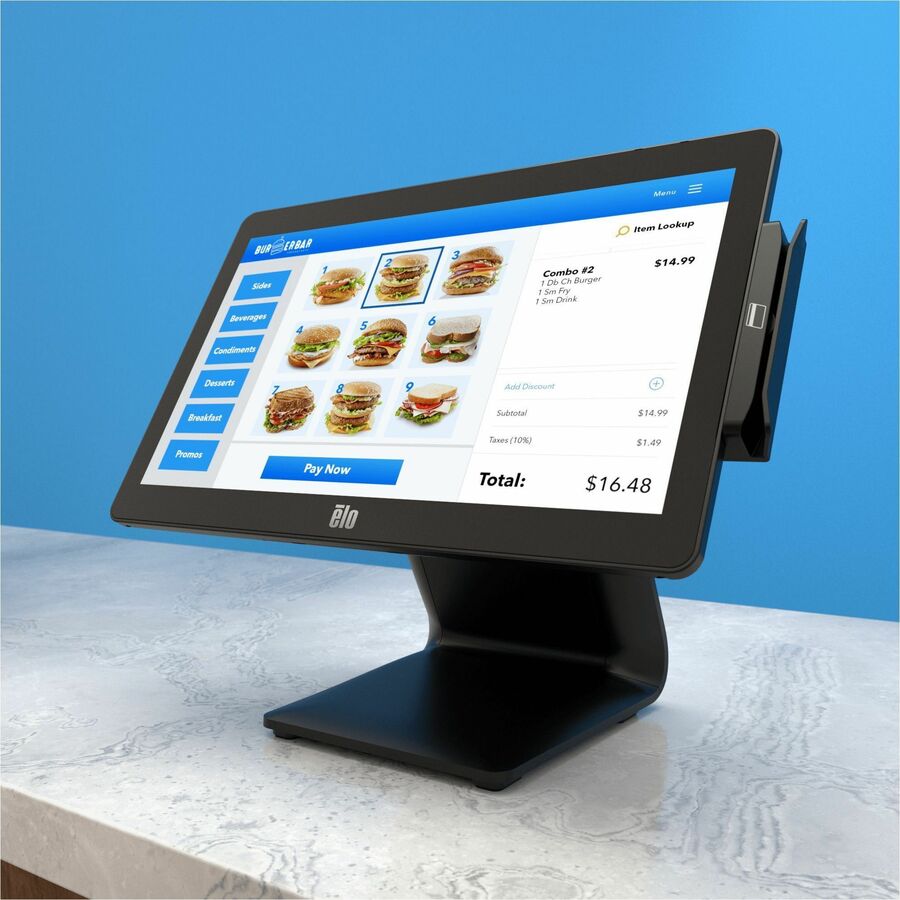

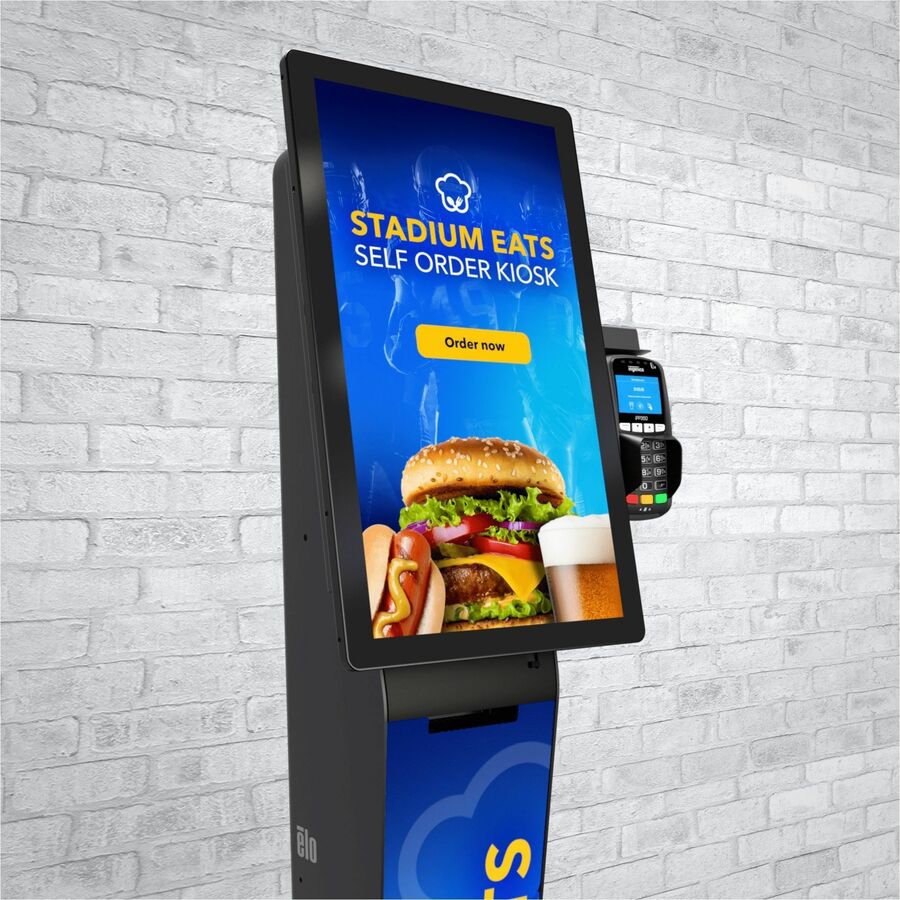

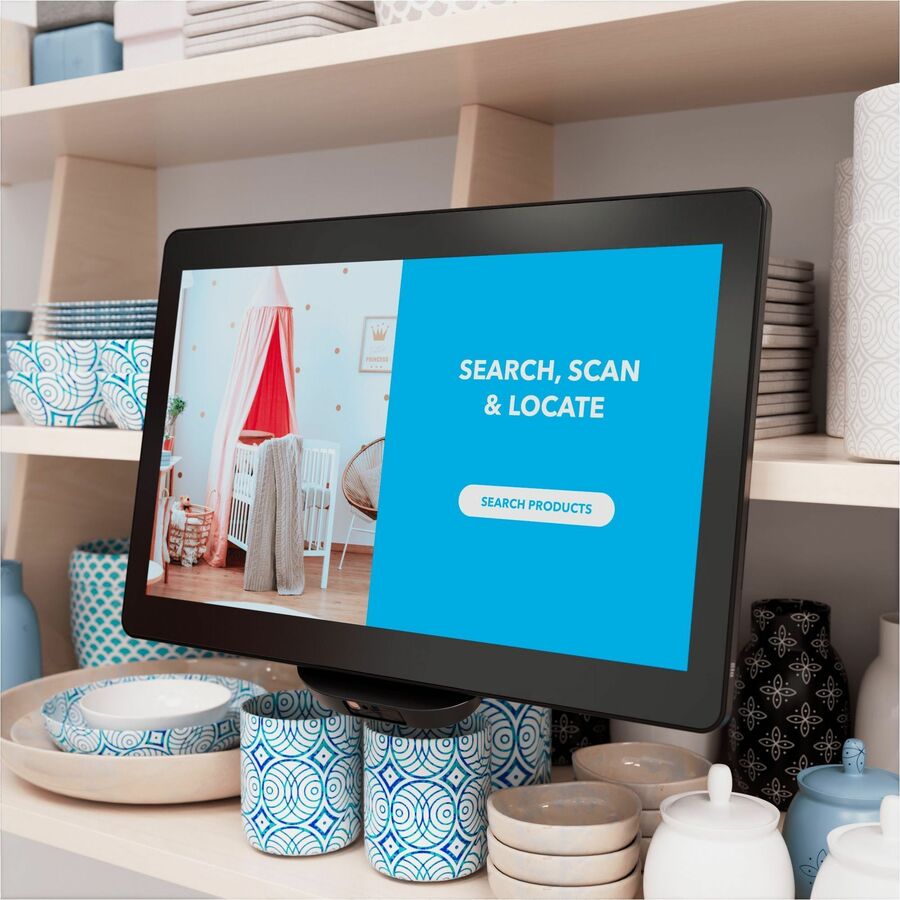

Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I-Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

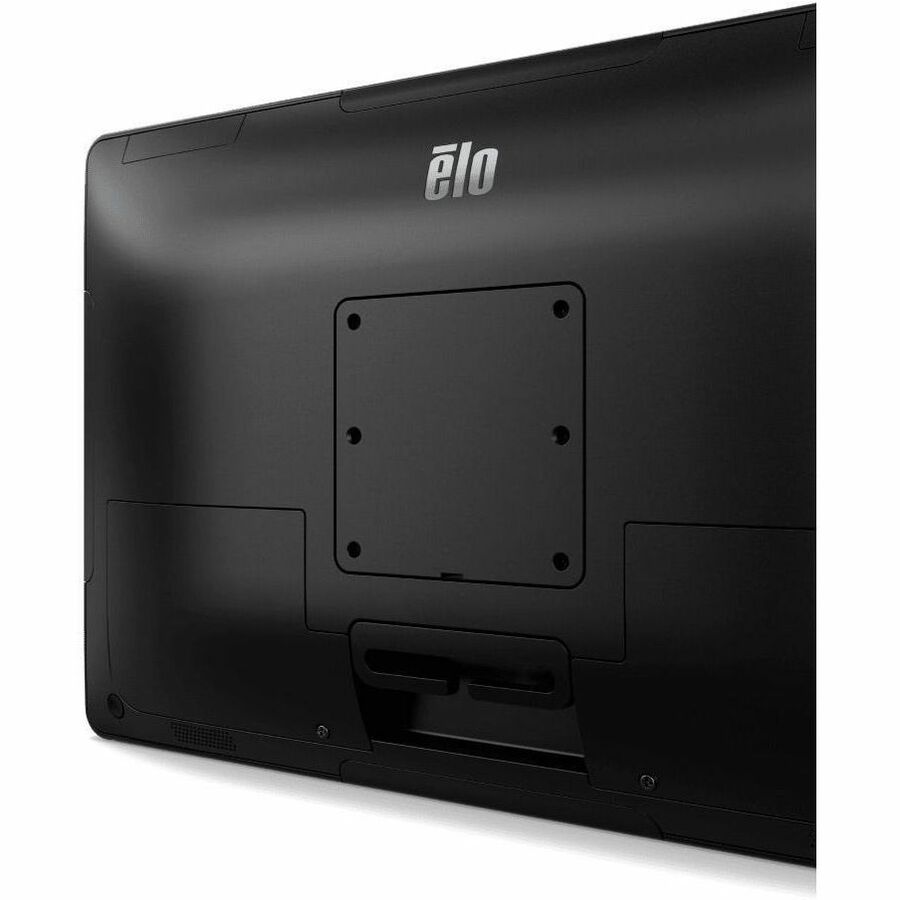

Universal VESA Mount
Conveniently mount the I-Series with the built-in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro and the Windows 10 operating system, the I-Series 3 delivers the dependability businesses need.
Main Specification
| General Information | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E457084 |
| Manufacturer Website Address | http://www.elotouch.com |
| Brand Name | Elo |
| Product Line | I-Series 3 |
| Product Name | I-Series 3 POS Terminal |
| Product Type | POS Terminal |
| Technical Information | |
| Cooling Fan | Fanless |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Form Factor | All-in-One |
| Features | Edge-to-Edge Glass Design |
| Features | Anti-glare |
| Processor & Chipset | |
| Processor Type | Core i5 |
| Processor Speed | 4.40 GHz |
| Processor Model | i5-1245UL |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Storage | |
| Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | M.2/PCI Express |
| Display & Graphics | |
| Screen Size | 21.5" |
| Active Display Size (Horizontal) | 18.74" |
| Active Display Size (Vertical) | 10.54" |
| Display Screen Type | LED |
| Screen Mode | Full HD |
| Panel Technology | In-plane Switching Technology (IPS) |
| Touchscreen | Yes |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touch Points | 10 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,000:1 |
| Response Time | 14 ms |
| Color Supported | 16.7 Million Colors |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Graphics Controller Model | Iris Xe Graphics |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| USB | Yes |
| Powered USB | Yes |
| Network (RJ-45) | Yes |
| Cash Drawer Port | Yes |
| Serial Port | Yes |
| RJ-50 | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Power Description | |
| Power Source | DC Power |
| Power Source | AC Power |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 8.1" |
| Width | 20.7" |
| Depth | 14.5" |
| Weight (Approximate) | 22.30 lb |
| Miscellaneous | |
| Package Contents | |
| Ingress Protection (IP) Rating | IP54 |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Warranty | |
| Limited Warranty | 3 Year |
