GIGABYTE

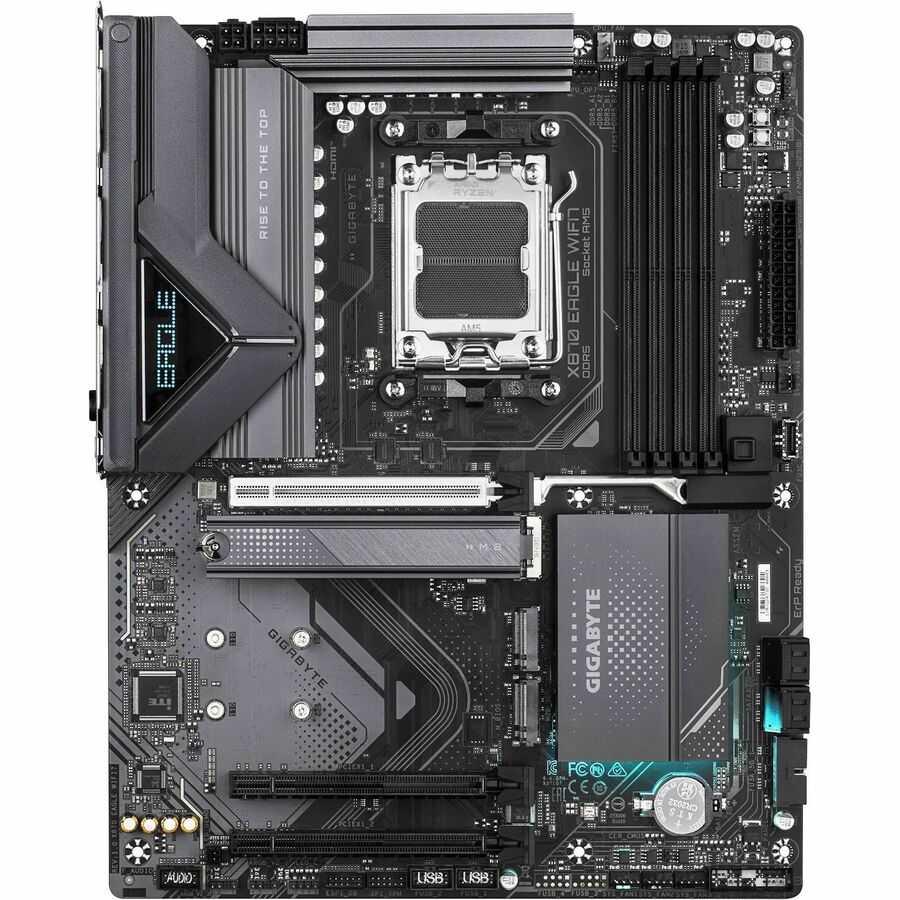

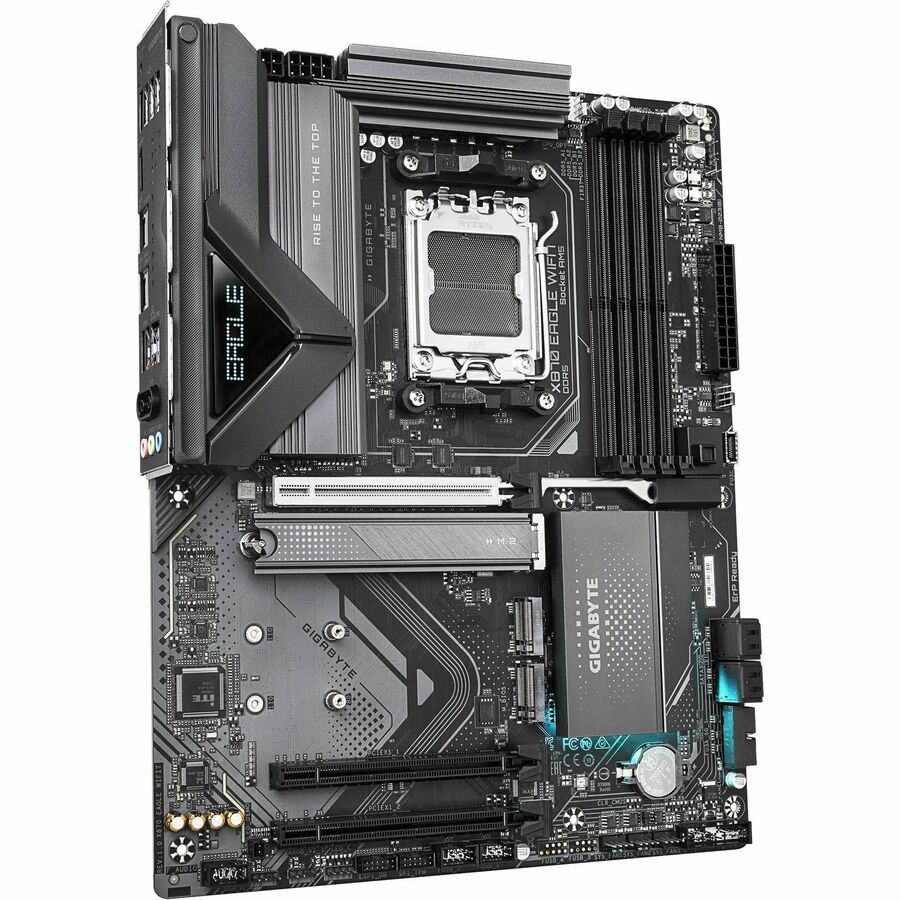

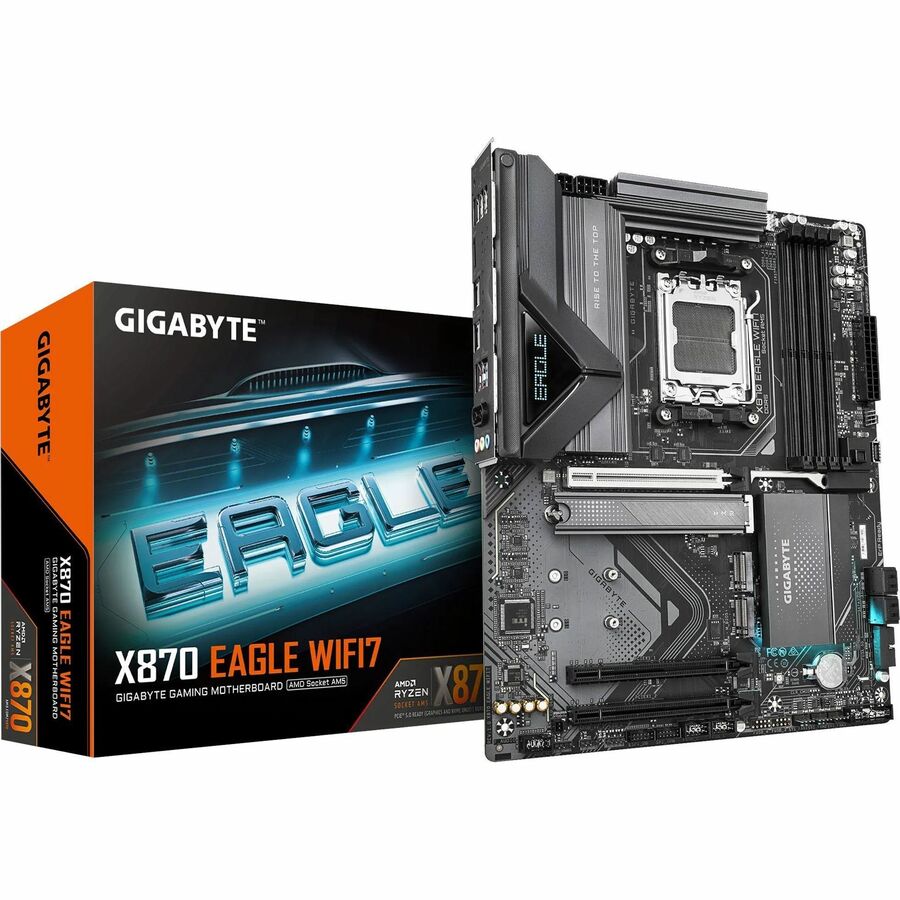

Gigabyte MB X870 EAGLE WIFI7 X870 AM5 Max256GB DDR5 ATX Retail
Mfg Part Number: X870 EAGLE WIFI7 , Item #: 5199470
, PO and Wire.
Auto DDR5 Memory Boost
With just a single click, unleash the full potential of DDR5 memory, instantly boosting your gaming and work efficiency.
One-Click Acceleration:
Enhance DDR5 speeds with a single click.
- Real time Analyze
- OC accuracy UP
- EZ to Pro
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital Twin VRM Design
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
Zenith of the Memory
GIGABYTE Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Comprehensive Thermal
EAGLE motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
4X
larger surface area for enhanced heat dissipation
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
Dual 40Gbps USB4 with DP-Alt
The dual latest USB4 Type-C ports provide blistering fast and reliable transfer speed up to 40 Gbps of each. Featuring extensive comparability, efficient charging, and ultra-HD displayport connectivity, USB4 is beneficial to video editing, large file transfers, and data-intensive tasks.
Wi-Fi 7 brings you the Ultimate VR experience
Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience.
2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
PCIe 5.0/4.0 Hardware Design
Featuring PCIe 5.0 x16 slot and PCIe 5.0/4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0/ 4.0 devices to provide the superior performance.
Hi-Fi Audio
High-End Audio CapacitorsAudio Noise Guard
| General Information | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | X870 EAGLE WIFI7 |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | Gigabyte |
| Product Line | Ultra Durable |
| Product Model | X870 EAGLE WIFI7 |
| Product Name | Ultra Durable X870 EAGLE WIFI7 Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | X870 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 5 |
| Processor Supported | Ryzen 9 |
| Processor Supported | Ryzen 7 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4400 MHz |
| Memory Speed Supported | 7600 MHz |
| Memory Speed Supported | 8000 MHz |
| Memory Speed Supported | 6666 MHz |
| Memory Speed Supported | 7200 MHz |
| Memory Speed Supported | 6400 MHz |
| Memory Speed Supported | 6000 MHz |
| Memory Speed Supported | 6600 MHz |
| Memory Speed Supported | 7800 MHz |
| Memory Speed Supported | 5600 MHz |
| Memory Speed Supported | 6200 MHz |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 7000 MHz |
| Memory Speed Supported | 6800 MHz |
| Memory Speed Supported | 5200 MHz |
| Error Checking | ECC |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 1 |
| RAID Levels | 0 |
| RAID Levels | 10 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Model | Radeon Graphics |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax/be |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| PCI Express Standard | PCI Express 3.0 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express Standard | PCI Express 5.0 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 3 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
