P77249-005 HPE DL365 G11 9354 2P 384G 8SF

Overview | HPE ProLiant DL365 Gen11

Are you looking for a scalable, compute-dense solution for high-performance workloads such as VDI, EDA, or CAD?

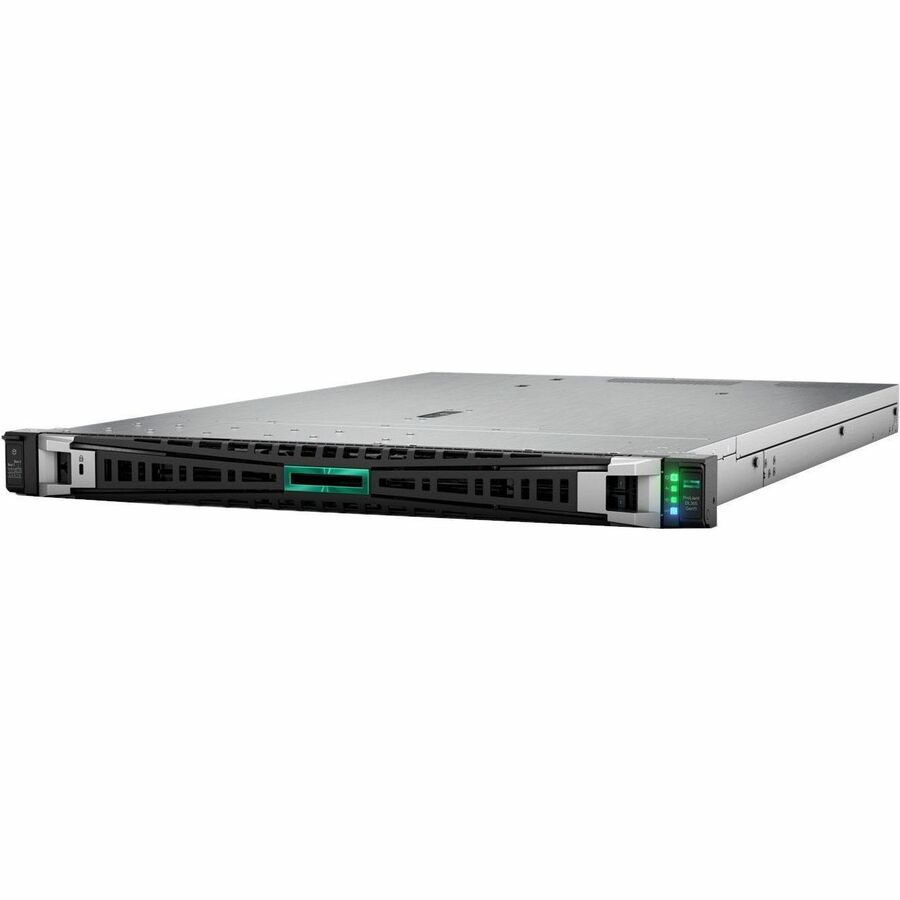

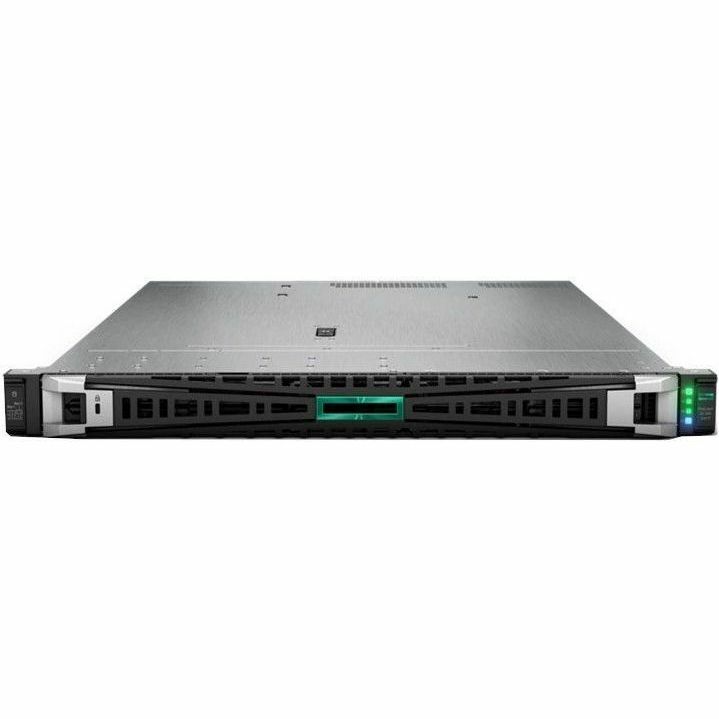

The new HPE ProLiant DL365 Gen11 server is a rack-optimized 1U 2P dense solution that delivers exceptional compute performance, upgraded high-speed data transfer rate and memory depth at 2P compute capability. Powered by 4th Generation AMD EPYC™ Processors with up to 96 cores, increased memory bandwidth (up to 6 TB), and high-speed PCIe Gen5 I/O, the HPE ProLiant DL365 Gen11 server is a superb rack-optimized, 1U 2P, dense solution.
The silicon root of trust anchors the server firmware to an HPE-exclusive ASIC, creating an immutable fingerprint for the AMD Secure Processor that must be matched exactly before the server boots.
The HPE ProLiant DL365 Gen11 server is an excellent choice for those who require increased compute density with built-in security and flexibility.

General Information
Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	P77249-005
Manufacturer Website Address	http://www.hpe.com
Brand Name	HPE
Product Line	ProLiant
Product Series	DL365 G11
Product Name	ProLiant DL365 G11 Server
Product Type	Server
Processor
Number of Processors Supported	2
Number of Processors Installed	2
Processor Type	EPYC
Processor Generation	4th Gen
Processor Model	9354
Processor Core	Dotriaconta-core (32 Core)
Processor Speed	3.25 GHz
Cache	256 MB
Chipset
Chipset Manufacturer	AMD
Memory
Standard Memory	384 GB
Maximum Memory Supported	6 TB
Memory Technology	DDR5 SDRAM
Error Checking	ECC
Total Number of Memory Slots	24
Number of Occupied Memory Slots	24
Signal Processing	Registered (Buffered)
Controllers
Controller Type	NVMe
Controller Model	NS204i-u
RAID Supported	Yes
RAID Levels	1
I/O Expansions
Number of Total Expansion Bays	8
Number of Internal 2.5" Bays	8
Number of SFF Bays	8
Hot Swappable Bays	Yes
Total Number of Expansion Slots	1
PCI Express Details	1 x PCIe 5.0 X16 Full-height, full-length
Display & Graphics
Graphics Memory Capacity	16 MB
Network & Communication
Ethernet Technology	25 Gigabit Ethernet
Ethernet Technology	Gigabit Ethernet
Ethernet Technology	10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports	5
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	4
VGA	Yes
Number of VGA Ports	1
Remote Management	Yes
Remote Management Controller	HPE iLO 6
Operating System
Operating System Supported	Red Hat Enterprise Linux 9.0
Operating System Supported	SUSE Linux Enterprise Server 15 SP4
Operating System Supported	Windows Server 2019
Operating System Supported	Windows Server 2022
Operating System Supported	Red Hat Enterprise Linux 8.6
Power Description
Input Voltage	230 V AC
Input Voltage	120 V AC
Number of Power Supplies Supported	2
Number of Power Supplies Installed	2
Plug/Connector Type	C13/C14
Maximum Power Supply Wattage	1000 W
Redundant Power Supply	Yes
Hot Swappable Power Supply	Yes
Power Source	Power Supply
Physical Characteristics
Form Factor	Rack
Rack Height	1U
Height	1.7"
Width	17.7"
Depth	25.6"
Weight (Approximate)	40.54 lb
Miscellaneous
Package Contents	ProLiant DL365 G11 Server 6-foot IEC C-13/C-14 Jumper Cord ProLiant DL3XX Gen11 Easy Install Rail 2 Kit
Security Features	UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-3 validation (iLO 6 certification in progress) Common Criteria certification (iLO 6 certification in progress) Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Tamper-free updates - components digitally signed and verified Secure Recovery - recover critical firmware to known good state on detection of compromised firmware Ability to rollback firmware Secure erase of NAND/User data
Energy Star	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty	3 Year
Additional Warranty Information	Server warranty includes 3-year parts, 3-year labor, 3-year onsite support with next business day response.
