NZXT CS CC-H52FB-R1 H5 FLOW RGB Mid Tower Dark Tinted TG Black Ratail
Mfg Part Number: CC-H52FB-R1 , Item #: 5194172
, PO and Wire.
H5 Flow RGB
Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.

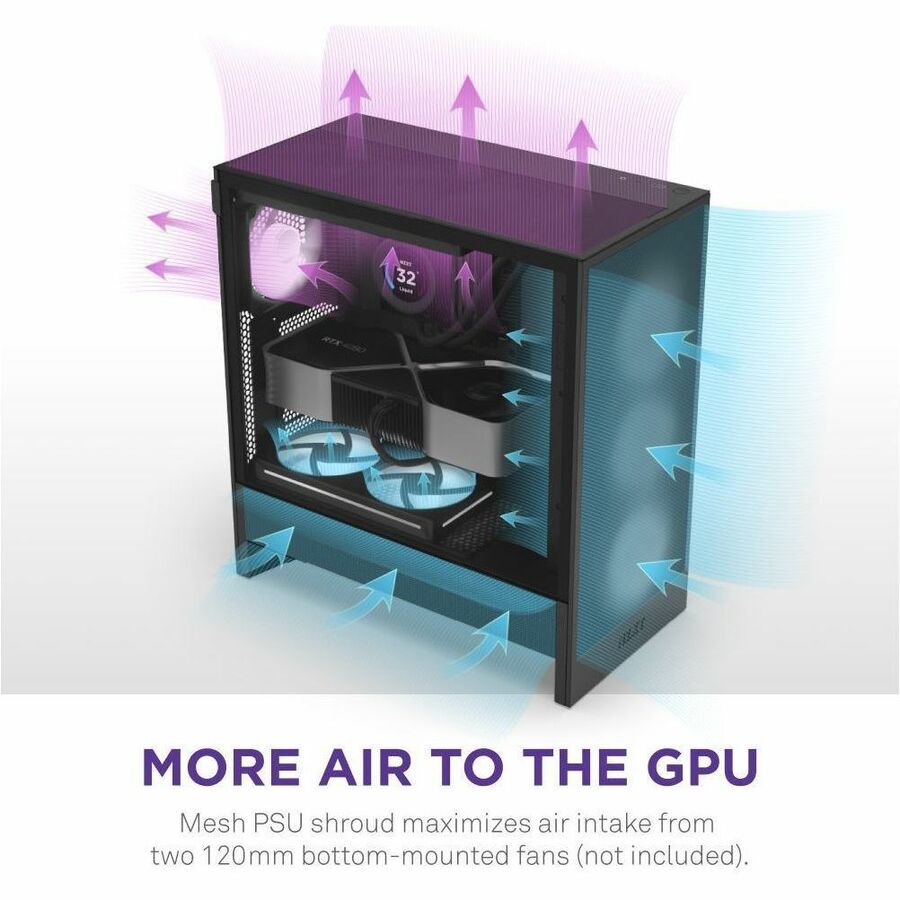

More Air to the GPU
Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).

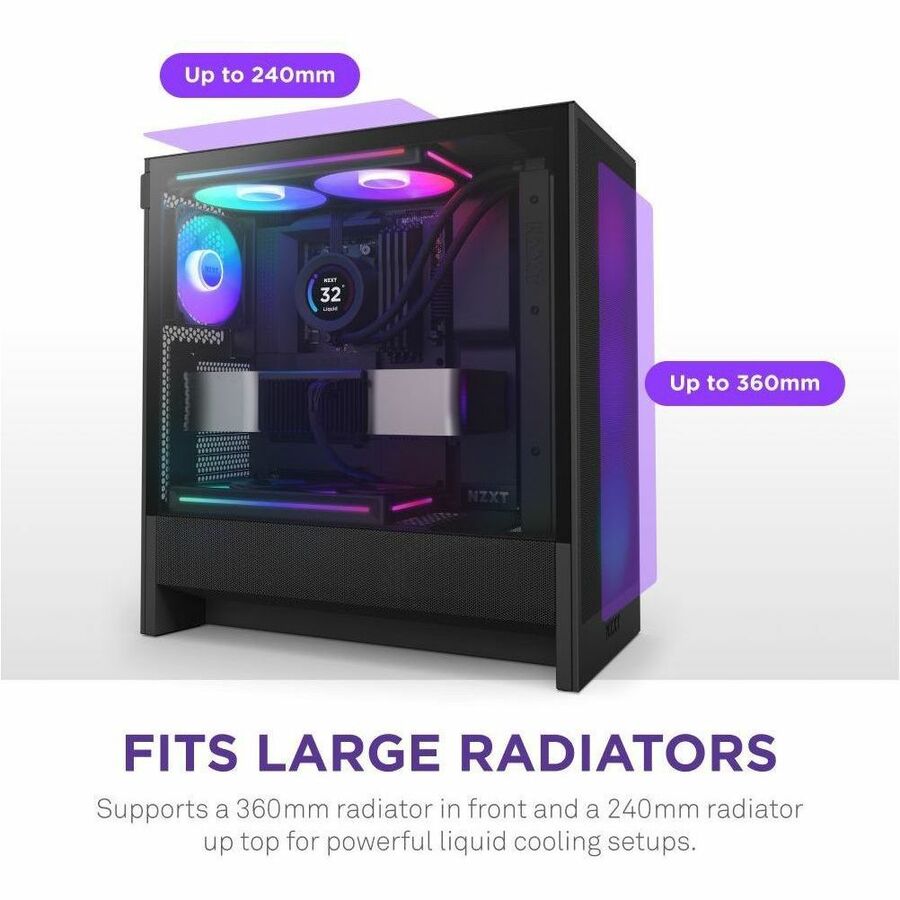

Fits Large Radiators
Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.

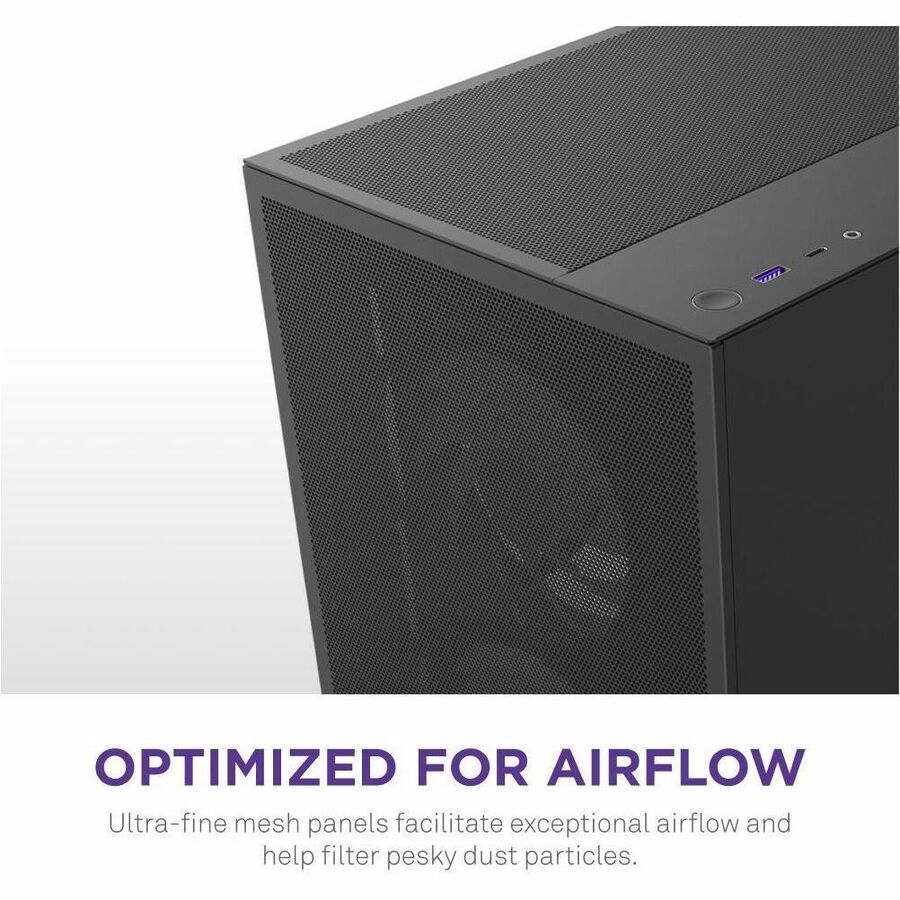

Optimized for Airflow
Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.

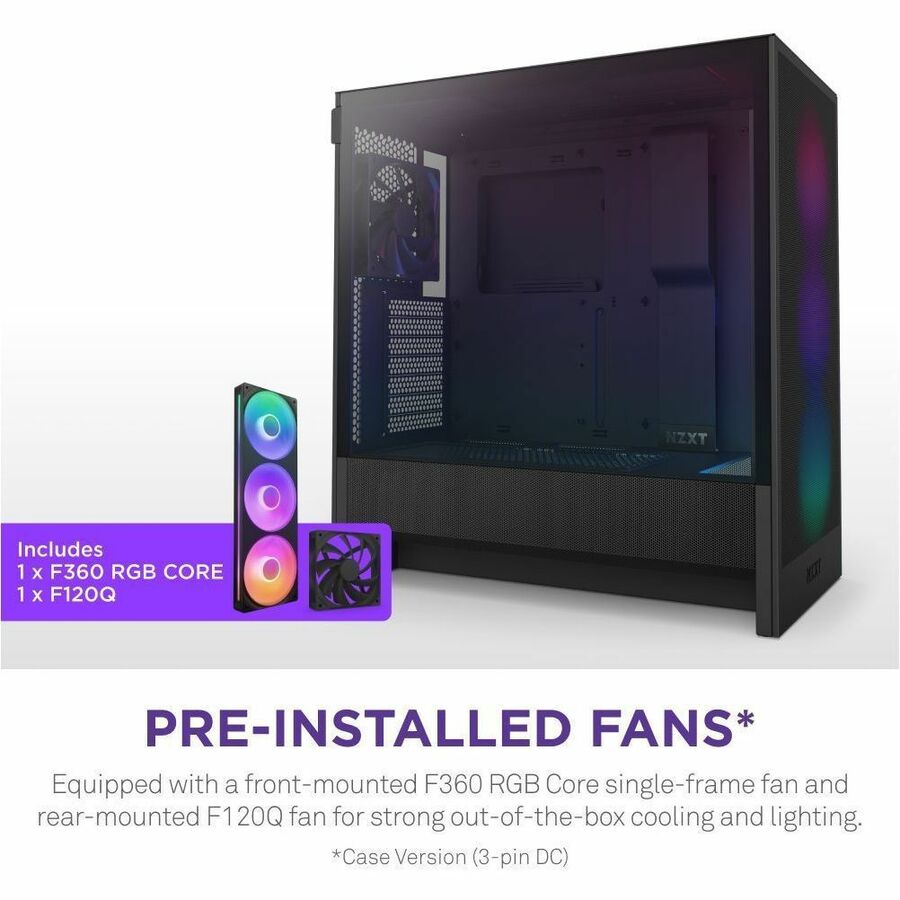

Pre-Installed Fans
Front-mounted F360 RGB Core fan and rear F120Q fan for out-of-the-box cooling and lighting.
Case Version (3-pin DC)

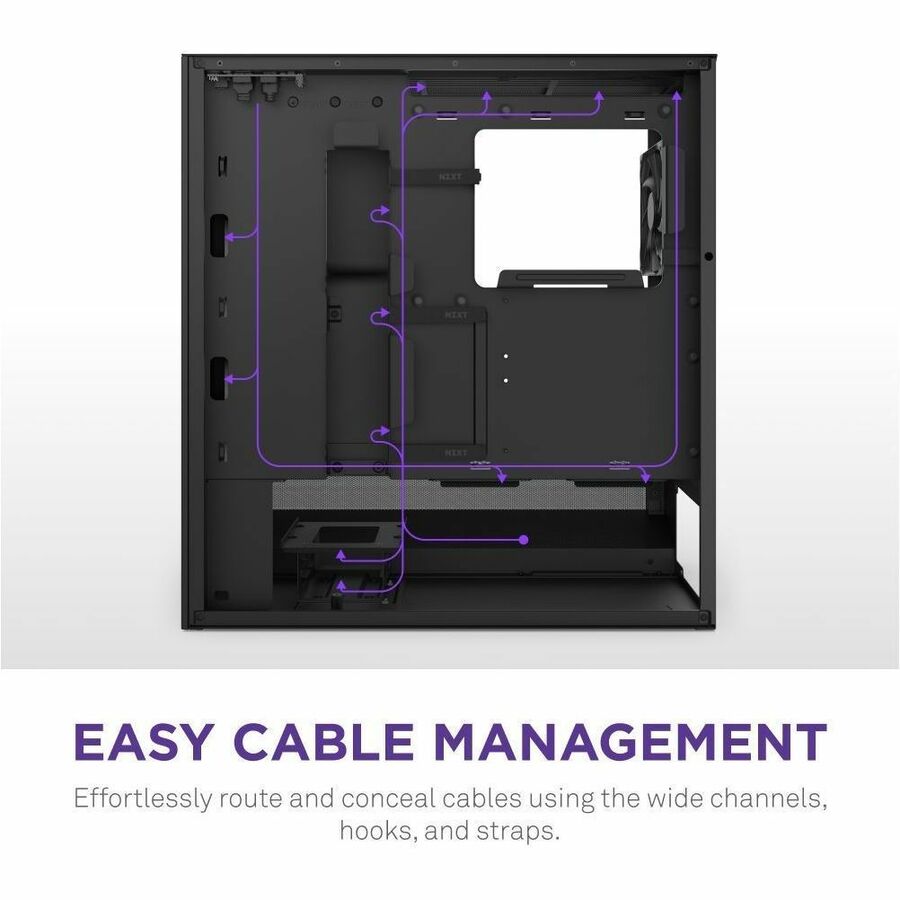

Easy Cable Management
Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Tool-less Access
Easily open up the front, side, and top panels without any tools.

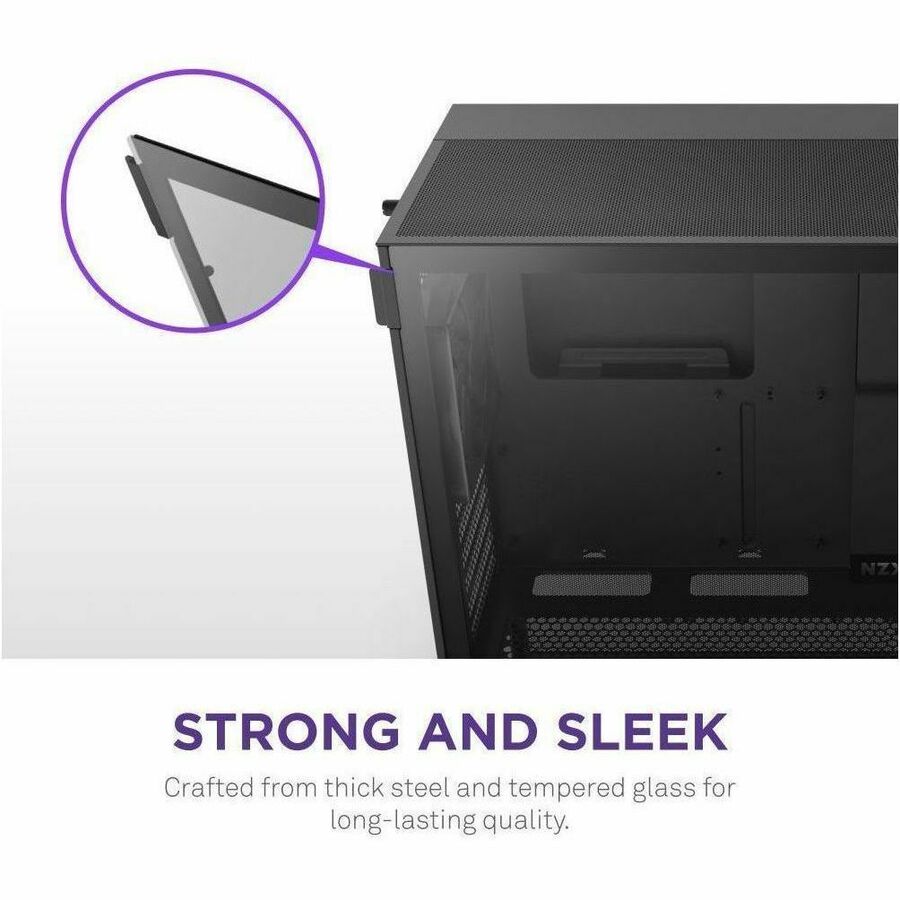

Strong and Sleek
Crafted from thick steel and tempered glass for long-lasting quality.
| General Information | |
| Manufacturer | NZXT Corporation |
| Manufacturer Part Number | CC-H52FB-R1 |
| Manufacturer Website Address | http://www.nzxt.com |
| Brand Name | NZXT |
| Product Line | H5 Flow |
| Product Model | CC-H52FB-R1 |
| Product Name | H5 Flow RGB |
| Packaged Quantity | 1 |
| Product Type | Computer Case |
| Technical Information | |
| Motherboard Supported | Micro ATX |
| Motherboard Supported | EATX |
| Motherboard Supported | ATX |
| Motherboard Supported | Mini ITX |
| Number of Fans Supported | 4 |
| Number of Fans Installed | 3 |
| Fan Size Supported | 5.51" |
| Fan Size Supported | 4.72" |
| Installed Fan Size | 5.51" |
| Installed Fan Size | 4.72" |
| Installed Fan Size Details | 1 x 140mm |
| Installed Fan Size Details | 2 x 120mm |
| Features | Dust Filter |
| Features | Cable Management |
| Bays | |
| Number of Internal 3.5" Bays | 1 |
| Number of Internal 2.5" Bays | 2 |
| I/O Expansions | |
| Total Number of Expansion Slots | 7 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| USB Port Details | 1 x USB 3.2 Type-A |
| USB Port Details | 1 x USB 3.2 Type-C |
| Front USB | Yes |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Total Number of Audio Out Ports | 1 |
| Front Audio Out | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Galvanized Cold Rolled Steel (SGCC) |
| Product Material | Tempered Glass |
| Product Material | Mesh |
| Cooler Type | Fan/Liquid Cooler |
| Form Factor | Mid-tower |
| Maximum CPU Cooler Height | 6.69" |
| Maximum PSU Length | 7.87" |
| Maximum GPU Length | 16.14" |
| Height | 18.3" |
| Width | 8.9" |
| Depth | 16.9" |
| Weight (Approximate) | 16.82 lb |
