TRIPP LITE

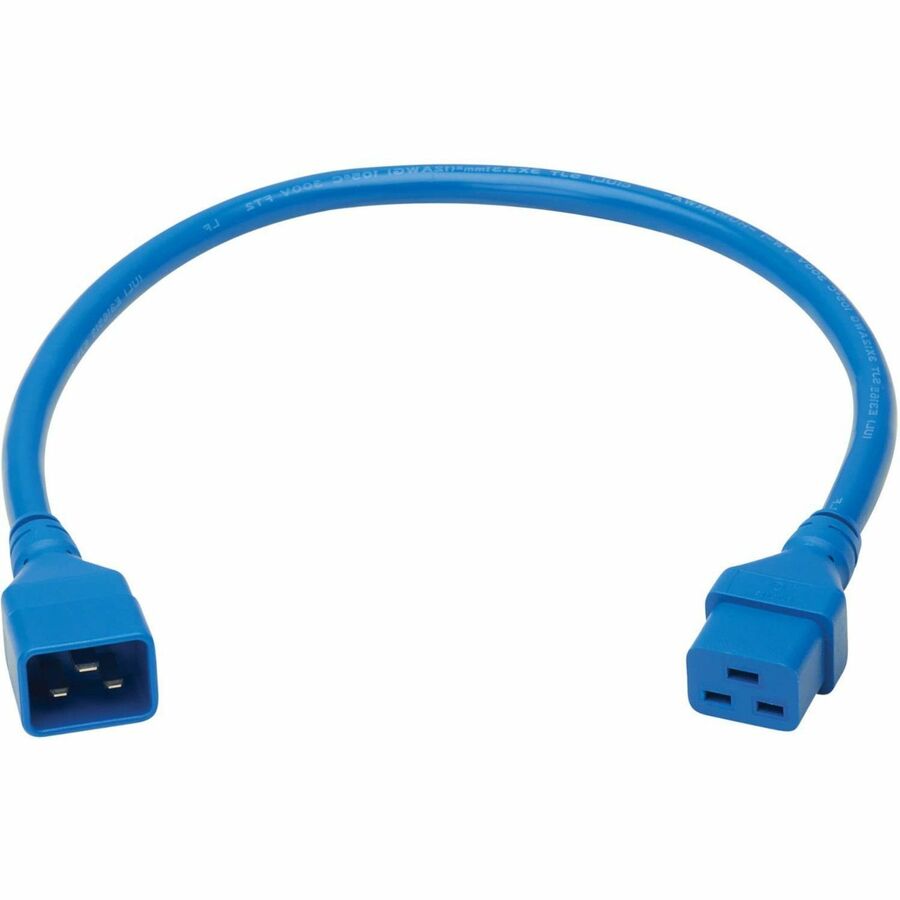

TRIPP LITE P036-002-ABL EXT CORD C20 C19 20A BLUE 2FT
Mfg Part Number: P036-002-ABL , Item #: 5194020
, PO and Wire.
Features | 20A C20-to-C19 Power Cable for Network Devices That Require a Heavy-Gauge Connection
This heavy-duty extension cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable. This cord can be used to connect a server, router, network switch or blade server enclosure to a UPS system or PDU. It can also replace or upgrade the standard power cord provided by the device's manufacturer. The two-foot (0.6-meter) length helps reduce cable clutter and minimize the risk of tripping.
Blue Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The UL-listed cable has a blue PVC jacket, which is easy to identify quickly in a crowded PDU or UPS system and helps prevent the cable from becoming accidentally disconnected.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | P036-002-ABL |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | P036-002-ABL |
| Product Name | P036-002-ABL Power Extension Cord |
| Product Type | Power Extension Cord |
| Technical Information | |
| First End Connector Type | IEC 60320 C20 |
| First End Connector Detail | 1 x 3-pin IEC 60320 C20 Male |
| Second End Connector Type | IEC 60320 C19 |
| Second End Connector Detail | 1 x 3-pin IEC 60320 C19 Female |
| Device Supported | Network Device |
| Device Supported | PDU |
| Device Supported | Server |
| Device Supported | Server Chassis |
| Device Supported | Network Switch |
| Device Supported | UPS |
| Device Supported | Router |
| Localization | North America |
| Gauge | 12 |
| Number of Conductors | 3 |
| Features | Heavy Duty |
| Power Description | |
| Voltage Rating | 250 V AC |
| Current Rating | 20 A |
| Physical Characteristics | |
| Color Family | Blue |
| Product Color | Blue |
| Jacket Material | Service Junior Thermoplastic (SJT) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Height | 10" |
| Width | 7.9" |
| Depth | 0.5" |
| Cord Length | 2 ft |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Miscellaneous | |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
