TP LINK

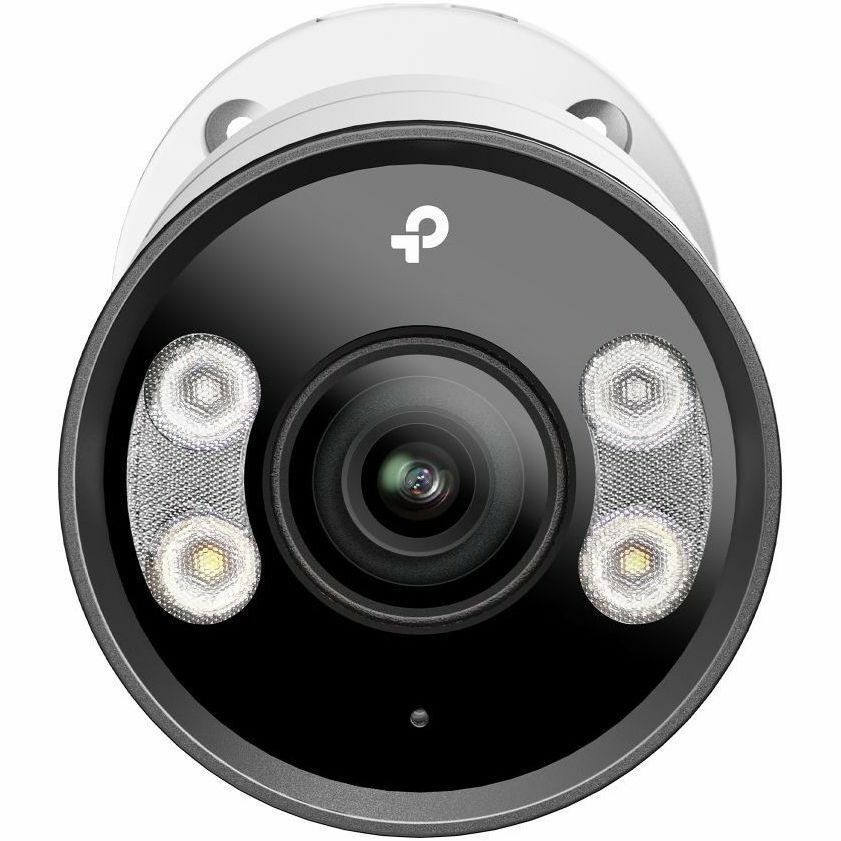

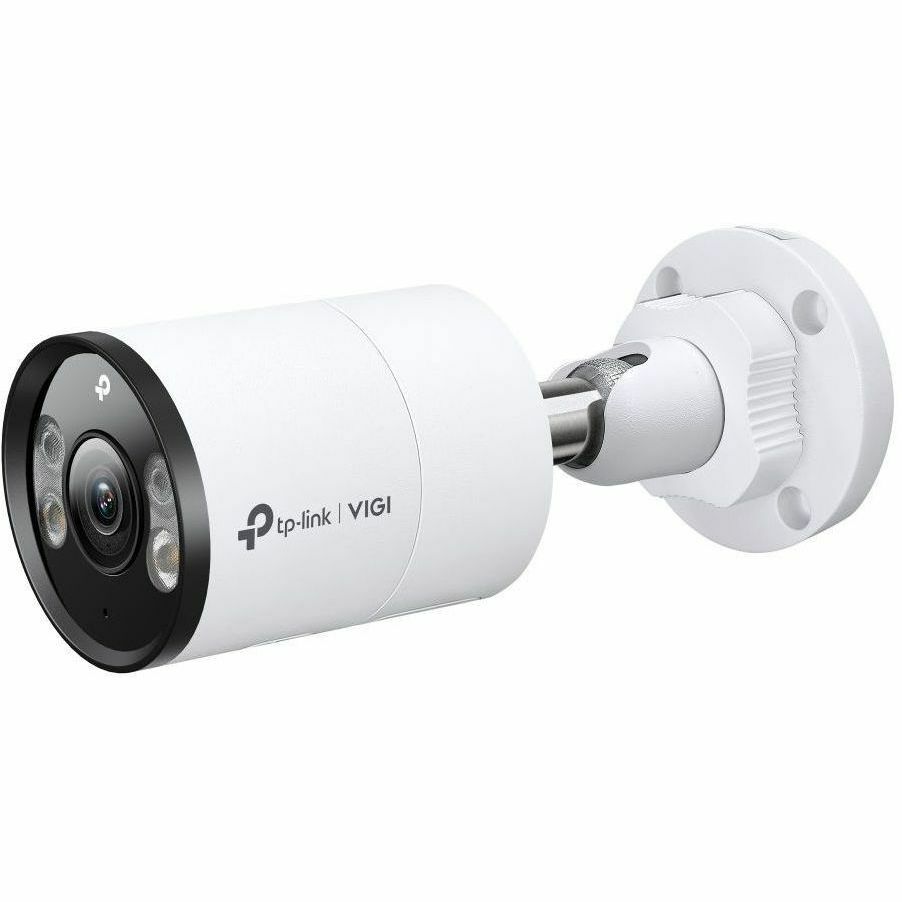

TP LINK TP-Link CM InSight S345(2.8mm) 4MP Full-Color Bullet Network Camera Retail
Mfg Part Number: INSIGHT S345(2.8MM) , Item #: 5193986
Image may not reflect the actual item.
Price: $140.39
Quantity:
More to Come
Last Updated: Nov 23, 2025
No Sales Tax except these states
, PO and Wire.
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Smart Video Enhancement Technology
- True WDR:By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.?
- Smart IR:Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
- 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
- White Balance:White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
Main Specification
| General Information | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | INSIGHT S345(2.8MM) |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Brand Name | TP-Link |
| Product Line | InSight |
| Product Model | InSight S345 |
| Product Name | VIGI 4MP Outdoor Full-Color Bullet Network Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 98 ft |
| Night Vision Type | Infrared/Color |
| Number of IR LEDs | 2 |
| Infrared (IR) Cut-off Filter | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.7" |
| Color Supported | Color |
| Field of View | Horizontal FOV: 100°, Vertical FOV: 54°, Diagonal FOV: 118° |
| Effective Camera Resolution | 4 Megapixel |
| Video | |
| Video Formats | H.265+ |
| Video Formats | H.265M |
| Video Formats | H.264H |
| Video Formats | H.264 |
| Video Formats | H.265 |
| Video Formats | H.264+ |
| Maximum Video Resolution | 2688 x 1520 |
| Maximum Frame Rate | 30 fps |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 2.80 mm |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Aperture | f/1.6 |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/3 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Ethernet Technology | Fast Ethernet |
| Protocols | UPnP |
| Protocols | SFTP |
| Protocols | IPv4 |
| Protocols | ARP |
| Protocols | NTP |
| Protocols | IPv6 |
| Protocols | RTP |
| Protocols | TCP/IP |
| Protocols | HTTP |
| Protocols | FTP |
| Protocols | DNS |
| Protocols | UDP |
| Protocols | RTSP |
| Protocols | ICMP |
| Protocols | HTTPS |
| Protocols | DHCP |
| Protocols | SSL/TLS |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 10.70 W |
| Input Voltage | 12 V DC |
| Power Source Type | PoE |
| Power Source Type | DC |
| Physical Characteristics | |
| Mount Type | Pole Mount |
| Mount Type | Ceiling Mount |
| Mount Type | Wall Mount |
| Form Factor | Bullet |
| Durability | Weather Proof |
| Durability | Water Proof |
| Product Material | Metal |
| Height | 2.9" |
| Width | 2.9" |
| Length | 7.2" |
| Diameter | 2.9" |
| Weight (Approximate) | 1.15 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Maximum Operating Humidity (Non-condensing) | 95% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| Miscellaneous | |
| Features | 3D Digital Noise Reduction |
| Features | Wide Dynamic Range |
| Features | Noise Reduction |
| Features | Mirror |
| Features | Alarm Triggering |
| Features | Day/Night |
| Features | Built-in Microphone |
| Features | Human Detection |
| Features | Vehicle Detection |
| Features | White Balance |
| Indoor/Outdoor | Outdoor |

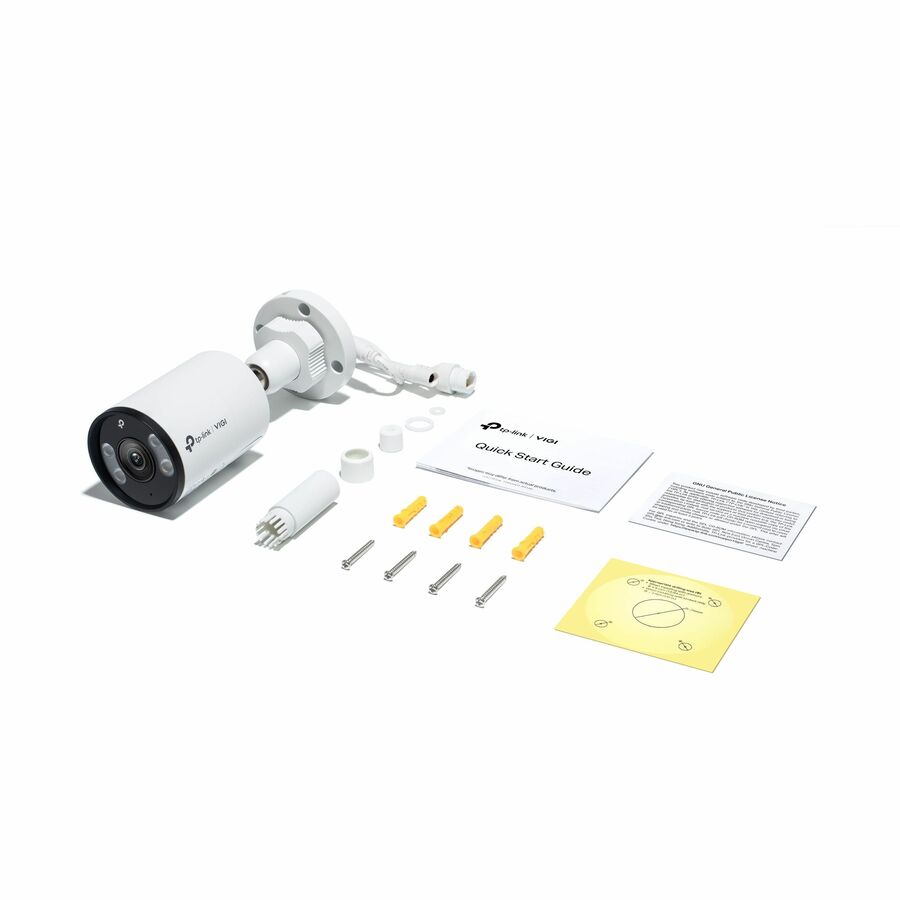

| Package Contents |
|
| Ingress Protection Rating | IP67 |
