The Cisco UCS X-Series Modular System simplifies your data center, adapting to the unpredictable needs of modern applications while also providing for traditional scale-out and enterprise workloads. It reduces the number of server types to maintain, helping to improve operational efficiency and agility as it helps reduce complexity. Powered by the Cisco Intersight™ cloud operations platform, it shifts your thinking from administrative details to business outcomes with hybrid cloud infrastructure that is assembled from the cloud, shaped to your workloads, and continuously optimized.

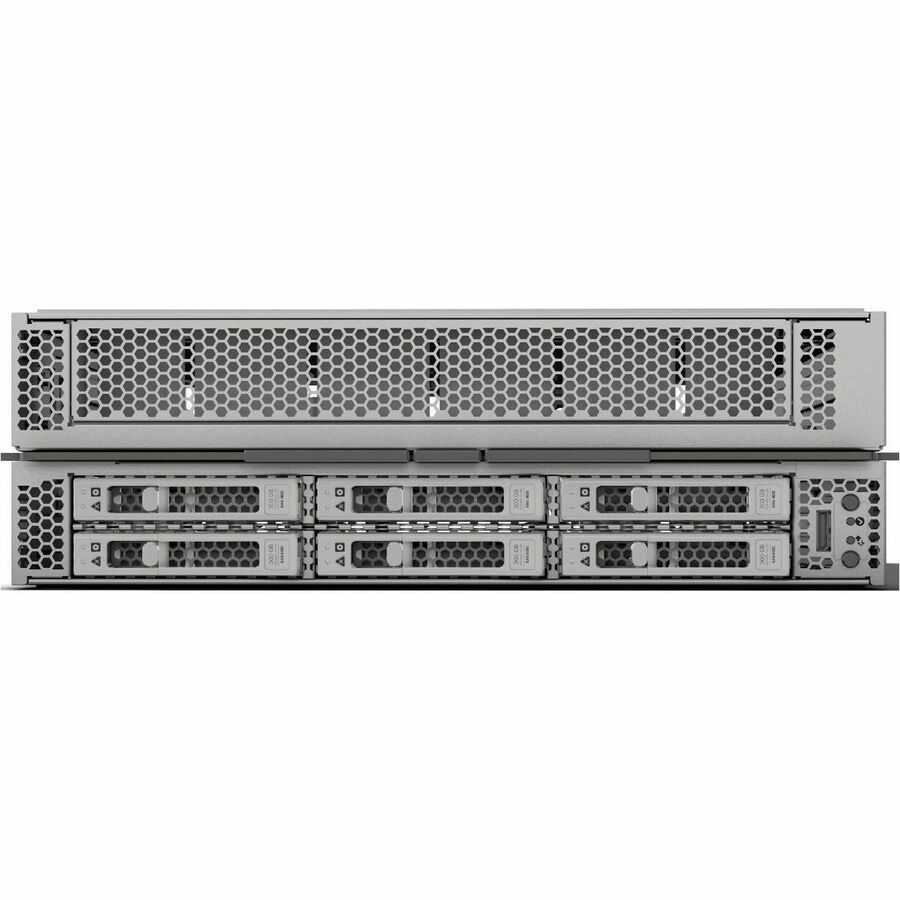

The Cisco UCS X410c M7 Compute Node is the computing device to integrate into the Cisco UCS X-Series Modular System. Up to four compute nodes or two compute nodes and two GPU nodes can reside in the 7-rack-unit (7RU) Cisco UCS X9508 Server Chassis, offering high performance and efficiency gains for a wide range of mission-critical enterprise applications, memory-intensive applications and bare-metal and virtualized workloads.
General Information | |
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | UCSX-410C-M7 |
Manufacturer Website Address | http://www.cisco.com |
Brand Name | Cisco |
Product Series | X410c M7 |
Product Model | UCSX-410C-M7 |
Product Name | UCSX-410C-M7 Barebone System |
Product Type | Barebone System |
Processor | |
Processor Supported | Xeon Bronze |
Processor Supported | Xeon Gold |
Processor Supported | Xeon Silver |
Processor Supported | Xeon Platinum |
64-bit Processing | Yes |
Chipset | |
Chipset Manufacturer | Intel |
Chipset Model | C741 |
Memory | |
Maximum Memory Supported | 16 TB |
Memory Technology | DDR5 SDRAM |
Total Number of Memory Slots | 64 |
Intel Optane Memory Ready | Yes |
Storage | |
Supported Storage Drive Interfaces | Serial ATA |
Supported Storage Drive Interfaces | SAS |
Controllers | |
Controller Type | Serial Attached SCSI (SAS) |
Controller Type | Serial ATA |
Controller Type | NVMe |
RAID Supported | Yes |
Display & Graphics | |
Graphics Controller Model | G200e |
Graphics Memory Capacity | 16 MB |
Network & Communication | |
Ethernet Technology | Ethernet |
I/O Expansions | |
Number of Total Expansion Bays | 6 |
Number of 2.5" Bays | 6 |
Number of M.2 Interfaces | 2 |
Operating System | |
Operating System Supported | Windows Server 2022 Datacenter |
Operating System Supported | Windows Server 2019 Standard |
Operating System Supported | Red Hat Enterprise Linux |
Operating System Supported | Windows Server 2022 Standard |
Operating System Supported | Windows Server 2019 Datacenter |
Operating System Supported | SuSE Linux Enterprise Server |
Physical Characteristics | |
Height | 3.7" |
Width | 11.3" |
Depth | 23.8" |
Weight (Approximate) | 42 lb |
