| General Information | |
| Manufacturer | Seiko Instruments USA, Inc |
| Manufacturer Part Number | MP-B21L-W46JK1-E9 |
| Manufacturer Website Address | http://www.siiprinters.com |
| Brand Name | Seiko |
| Product Model | MP-B21L |

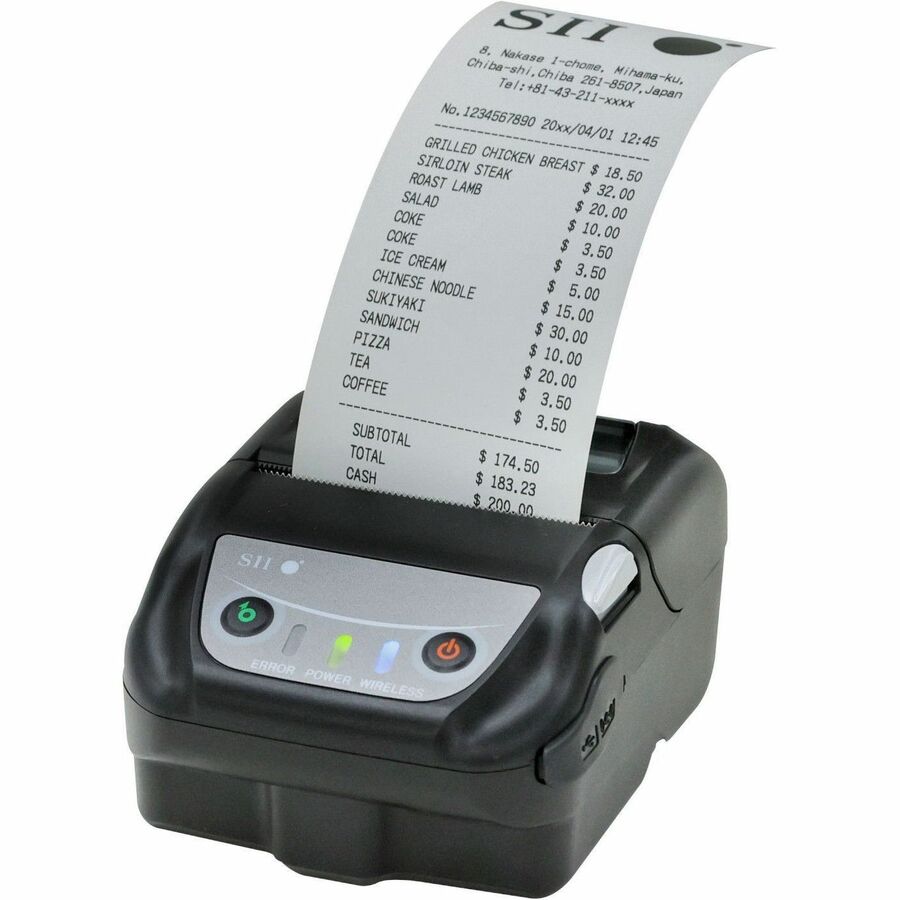

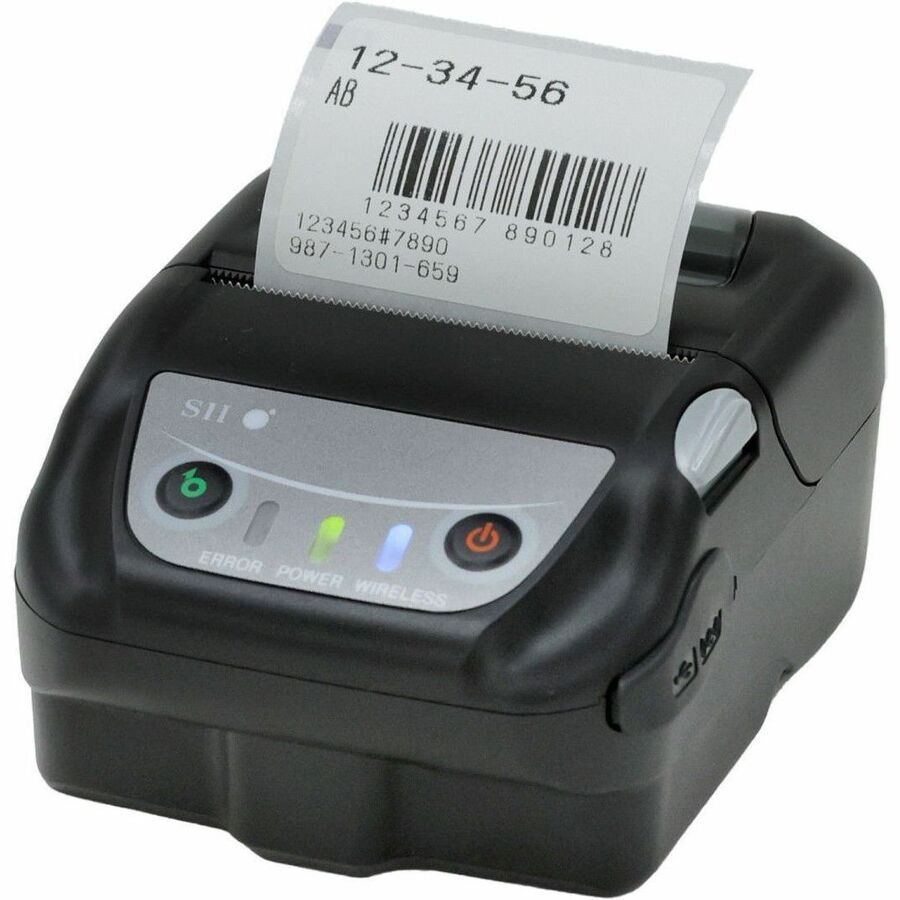

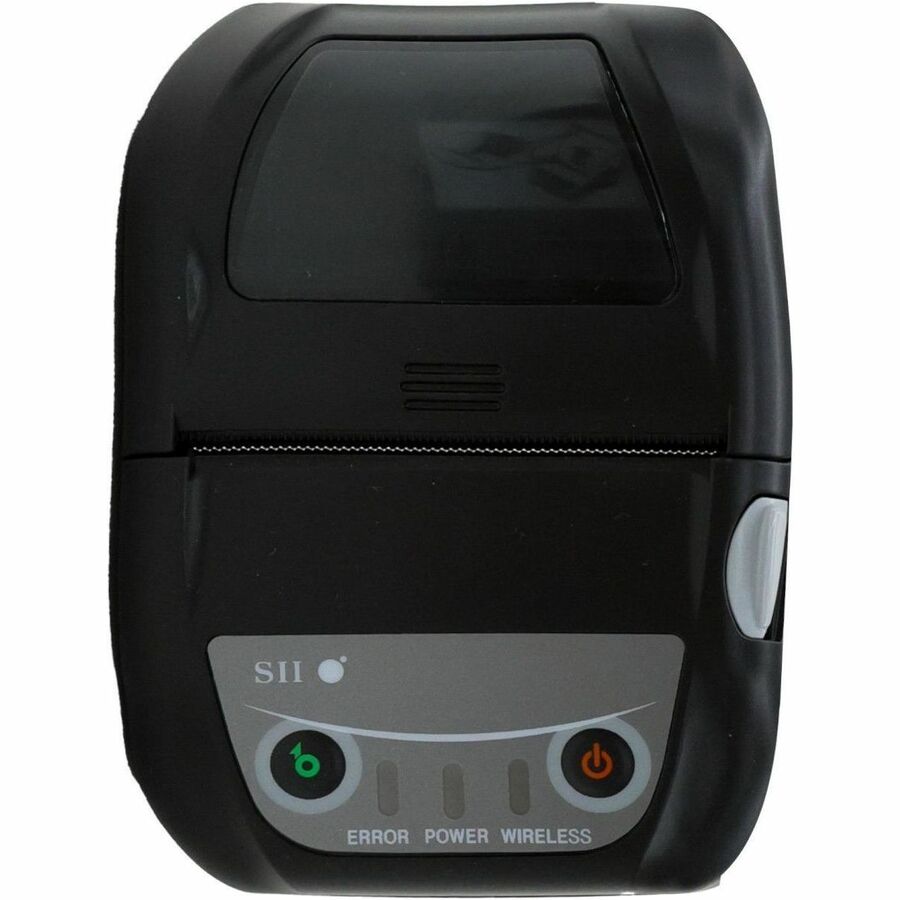

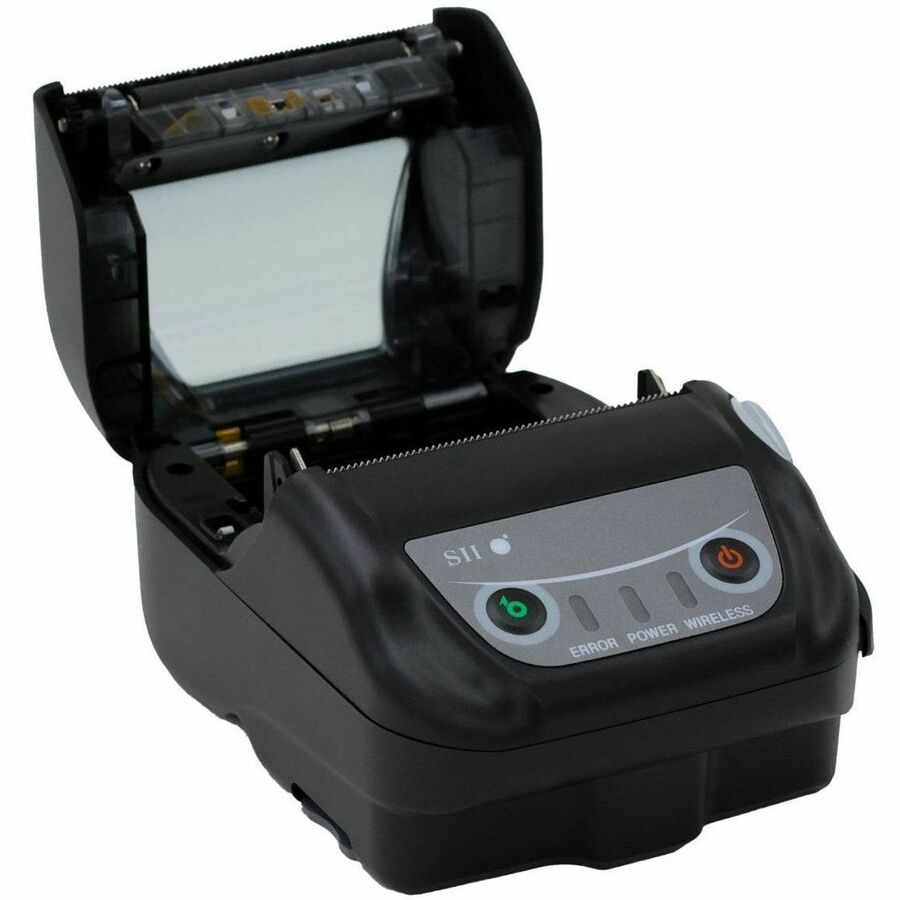

| Product Name | MP-B21L Rugged 2" Mobile Label Printer |
| Product Type | Direct Thermal Printer |
| Technical Information | |
| Recommended Use | Label/Receipt Print |
| Print Color Capability | Monochrome |
| Maximum Mono Print Speed | 6.02 in/s |
| Maximum Print Width | 1.89" |
| Barcode Symbology Supported | Code 93 |
| Barcode Symbology Supported | PDF417 |
| Barcode Symbology Supported | QR Code |
| Barcode Symbology Supported | Code 39 |
| Barcode Symbology Supported | EAN/JAN-13 |
| Barcode Symbology Supported | Code 128 |
| Barcode Symbology Supported | EAN/JAN-8 |
| Barcode Symbology Supported | GS1 DataBar |
| Barcode Symbology Supported | Aztec Code |
| Barcode Symbology Supported | Maxi Code |
| Barcode Symbology Supported | ITF |
| Barcode Symbology Supported | UPC-A/E |
| Barcode Symbology Supported | Codabar |
| Barcode Symbology Supported | Data Matrix |
| Application/Usage | Healthcare |
| Application/Usage | Mobile |
| Application/Usage | Measuring Device |
| Application/Usage | Medical Equipment |
| Application/Usage | PDA |
| Application/Usage | Food Service |
| Features | Rugged |
| Features | Compact |
| Features | Lightweight |
| Ingress Protection (IP) Rating | IP54 |
| Connectivity Technology | Wireless |
| Print Technology | Direct Thermal |
| Interfaces/Ports | |
| USB | Yes |
| Network & Communication | |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Display & Graphics | |
| Display Screen | Yes |
| Screen Size | 2" |
| Display Screen Type | LCD |
| Cutter | |
| Cutter | Yes |
| Cutter Type | Tear Bar |
| Media Types & Handling | |
| Media Type | Roll Paper |
| Media Type | Receipt |
| Media Type | Label |
| Maximum Roll Diameter | 2.01" |
| Maximum Label Width | 2.28" |
| Fonts & Emulation | |
| Language Emulation | ESC/POS |
| Language Emulation | CPCL |
| Language Emulation | ZPL II |
| Power Description | |
| Power Source | Power Adapter |
| Power Source | Battery |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Included | Yes |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) - 131°F (55°C) |
| Physical Characteristics | |
| Form Factor | Portable |
| Height | 2.3" |
| Width | 3.5" |
| Depth | 5" |
| Weight (Approximate) | 13.05 oz |
| Miscellaneous | |
| Package Contents |
|
| Cables Included | USB |
