CISCO

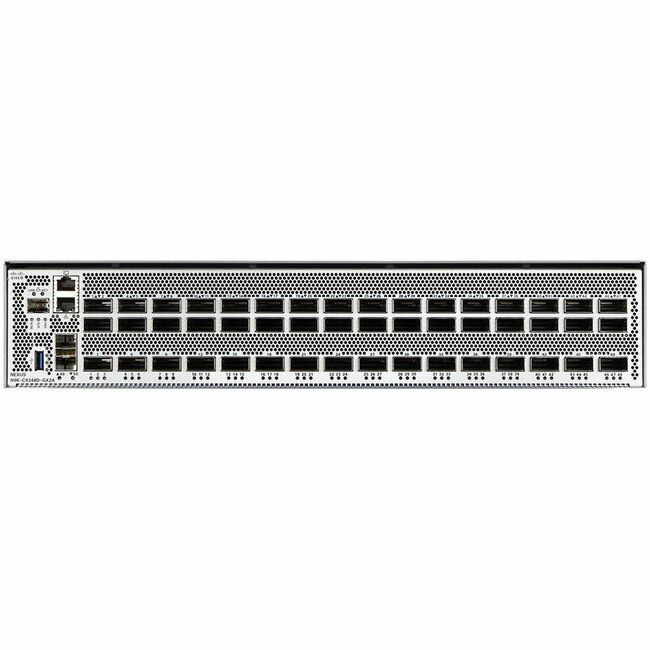

CISCO N9K-C9348D-GX2A= NEXUS 9300 SERIES, 48P 400G SWITCH, MACSEC CAPABLE

Mfg Part Number:  N9K-C9348D-GX2A=
Image may not reflect the actual item.
Price: $132,338.99
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jun 09, 2025
No Sales Tax except these states
, PO and Wire.

In the evolving landscape of applications, there is an increased bandwidth requirement due to emergence of AIpowered applications. Large cloud and data-center networking teams require a flexible, reliable solution that efficiently manages, troubleshoots, and analyzes their IT infrastructure. They need security, automation, visibility, analytics, and assurance. Equipped to support this next-generation cloud architecture, the Cisco Nexus® 9300-GX2 series switches are based on Cisco Cloud Scale technology. The Cisco Nexus 9300-GX2 series addresses the need for high-performance, power-efficient, compact switches in the networking infrastructure. These switches are designed to support 50G, 100G, 200G, and 400G fabrics for next-generation leaf and spine designs and IP storage fabrics. The platform is built with backwardcompatible 400G optical interface Quad Small Form-Factor Pluggable-Double Density (QSFP-DD) to transparently migrate existing data center fabrics from 40-Gbps and 100-Gbps speeds to 400 Gbps; it also offers various lower port speeds and densities, including 10, 25, 50, and 200 Gbps, using breakouts. Cisco provides two modes of operation for Cisco Nexus 9000 Series Switches. Organizations can deploy Cisco® Application Centric Infrastructure (Cisco ACI® ) or Cisco NX-OS mode.

Main Specification
General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number N9KC9348DGX2A
Manufacturer Website Address http://www.cisco.com
Brand Name Cisco
Product Line Nexus
Product Series 9300
Product Model 9348D-GX2A
Product Name Nexus 9348D-GX2A Ethernet Switch
Product Type Ethernet Switch
Interfaces/Ports
Total Number of Network Ports 48
Modular Yes
Port/Expansion Slot Details 48 x 400 Gigabit Ethernet Expansion Slot
Port/Expansion Slot Details 2 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported Optical Fiber
Ethernet Technology 400 Gigabit Ethernet
Ethernet Technology 10 Gigabit Ethernet
Network Technology 10GBase-X
I/O Expansions
Total Number of Expansion Slots 50
Expansion Slot Type QSFP-DD
Expansion Slot Type SFP+
Number of SFP+ Slots 2
Network & Communication
Layer Supported 3
Networking Standards IEEE 802.1ae
Management & Protocols
Manageable Yes
Power Description
Input Voltage 120 V AC
Input Voltage 230 V AC
Frequency 60 Hz
Frequency 50 Hz
Power Source Power Supply
Power Source AC
Redundant Power Supply Supported Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 3.5"
Width 17.4"
Depth 29.8"
Weight (Approximate) 51.15 lb
Miscellaneous
Application/Usage Network
Application/Usage Data Center
Application/Usage Business
Environmentally Friendly Yes
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 1 Year
