Best choice in balanced and dense compute for the most popular IT applications | Buy the performance and density you need

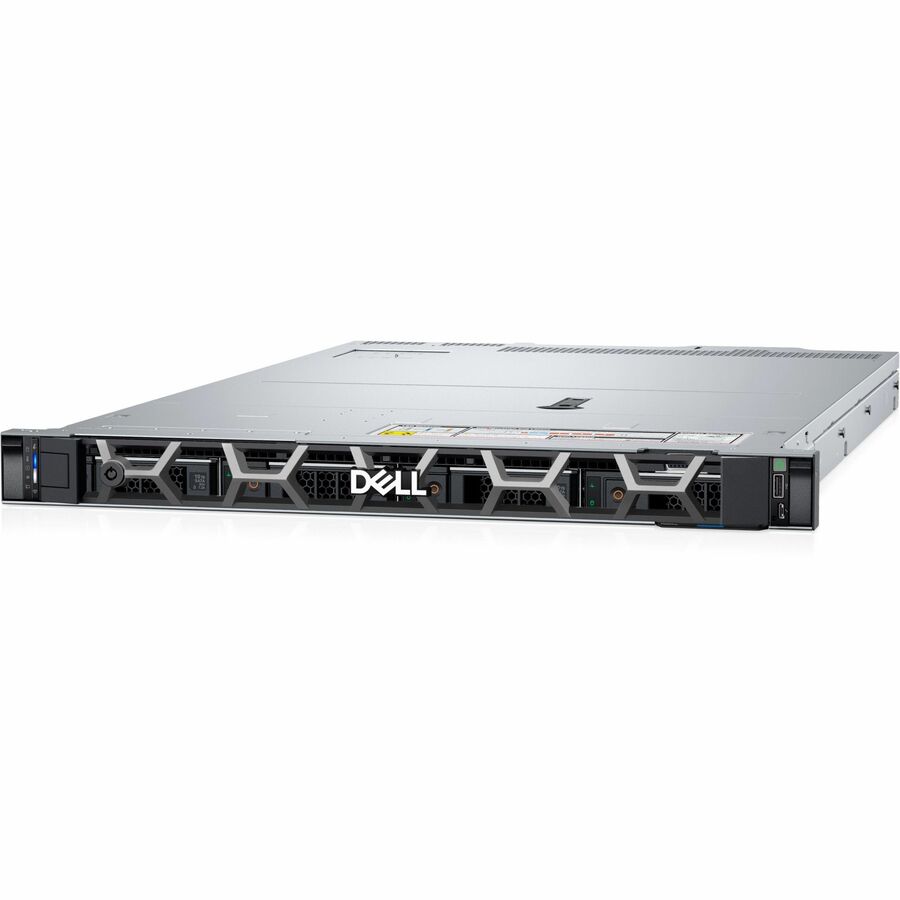

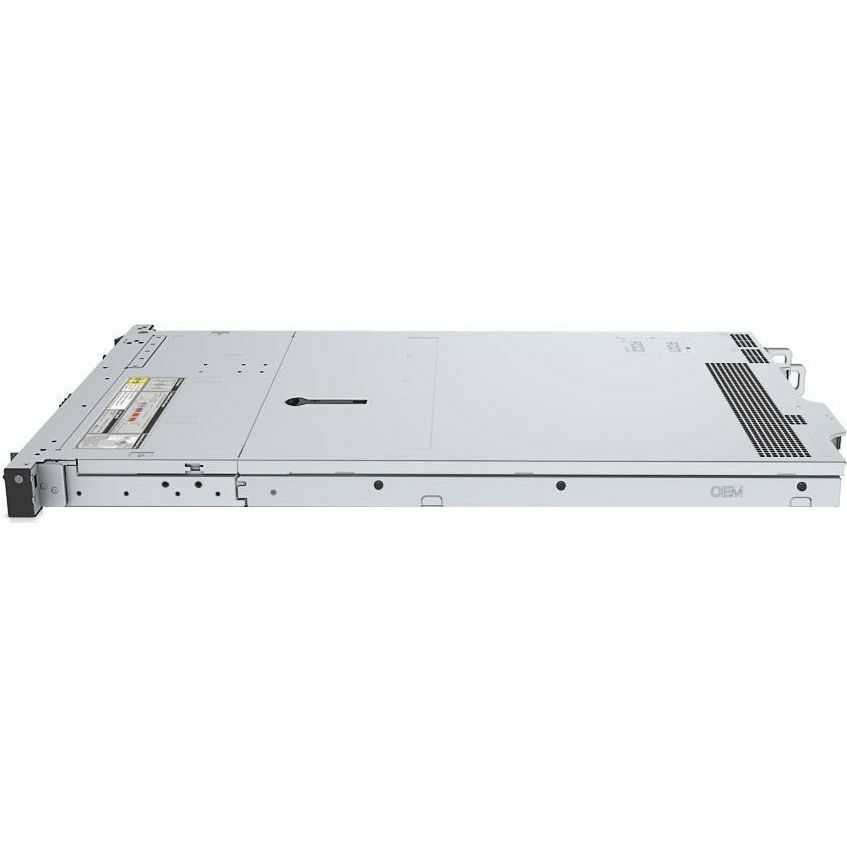

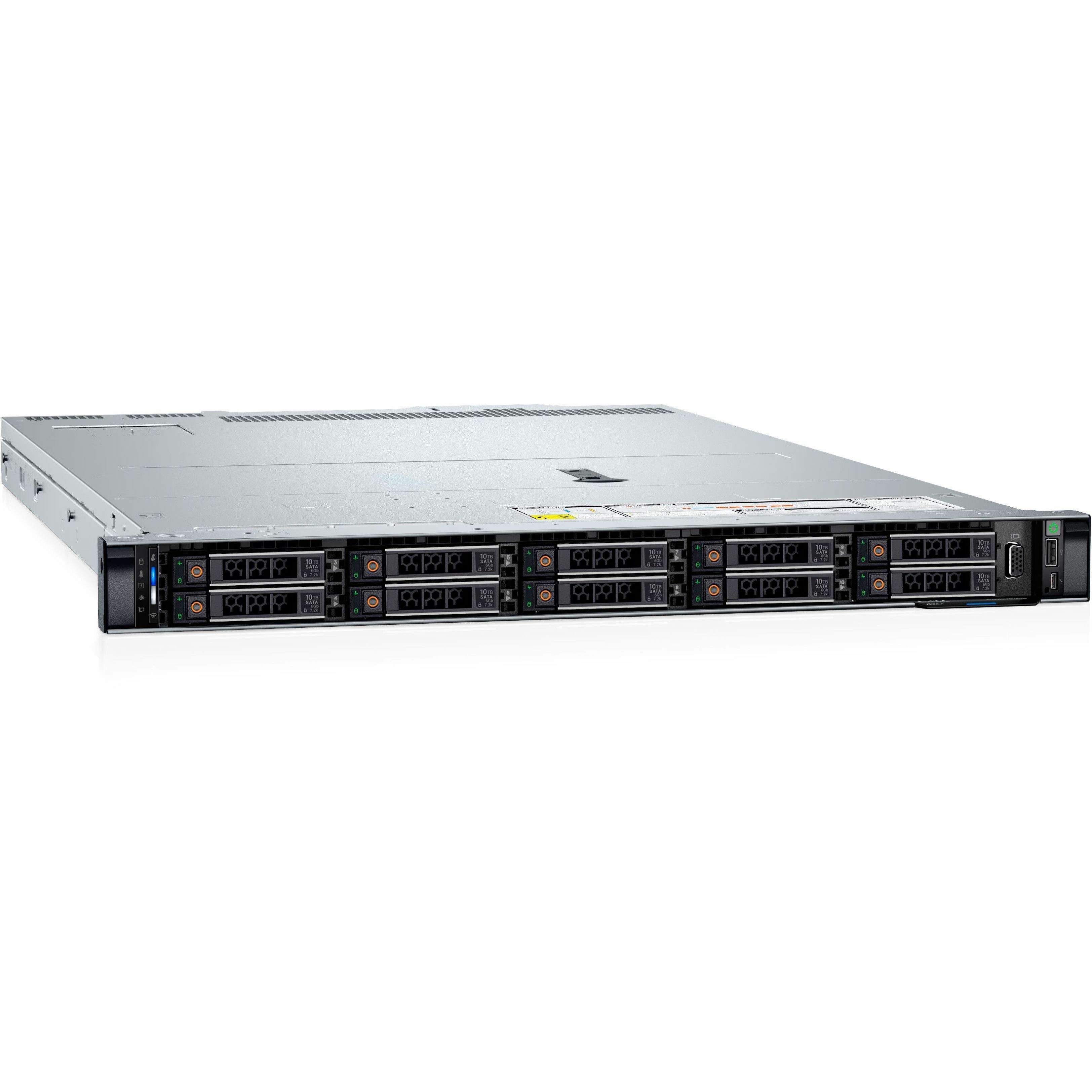

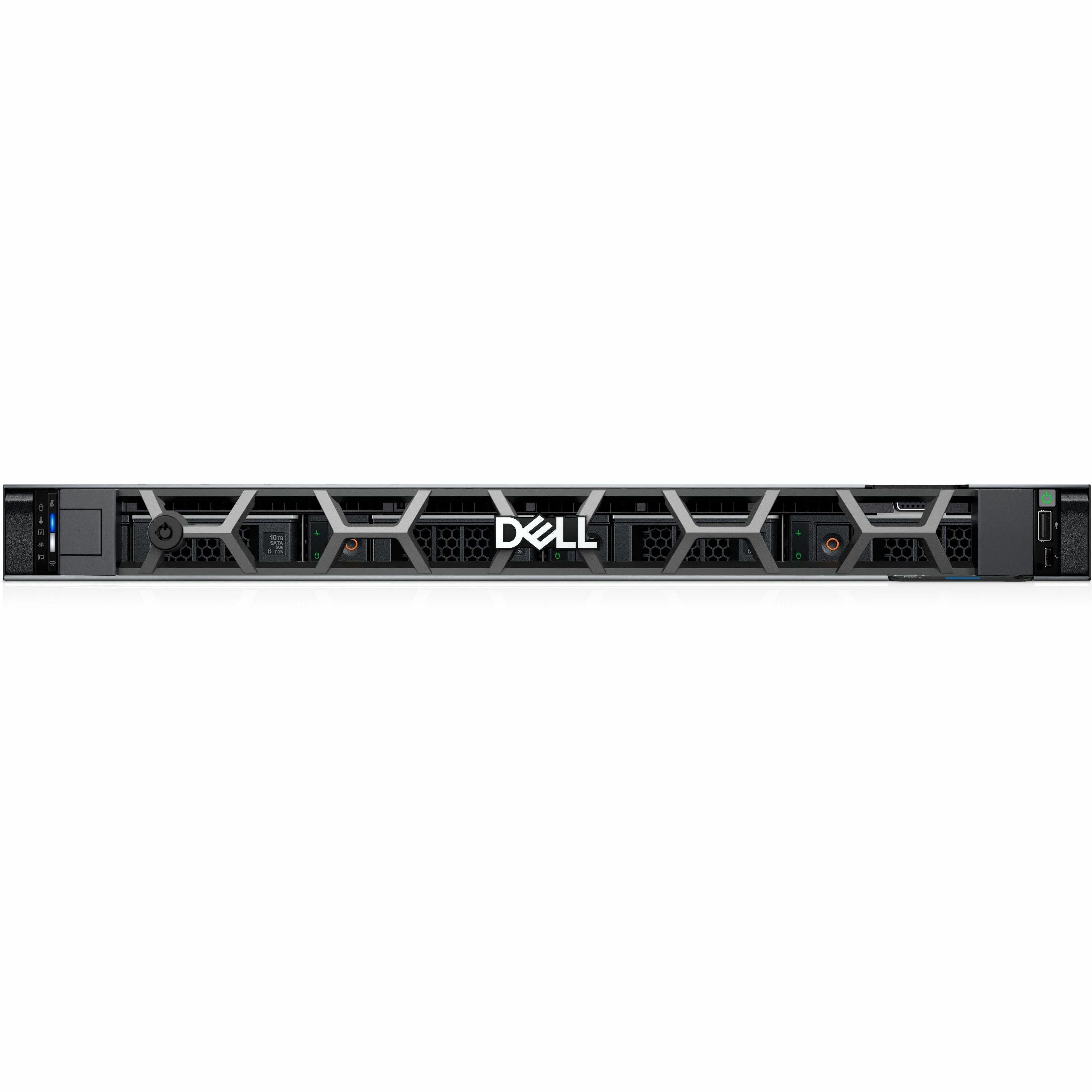

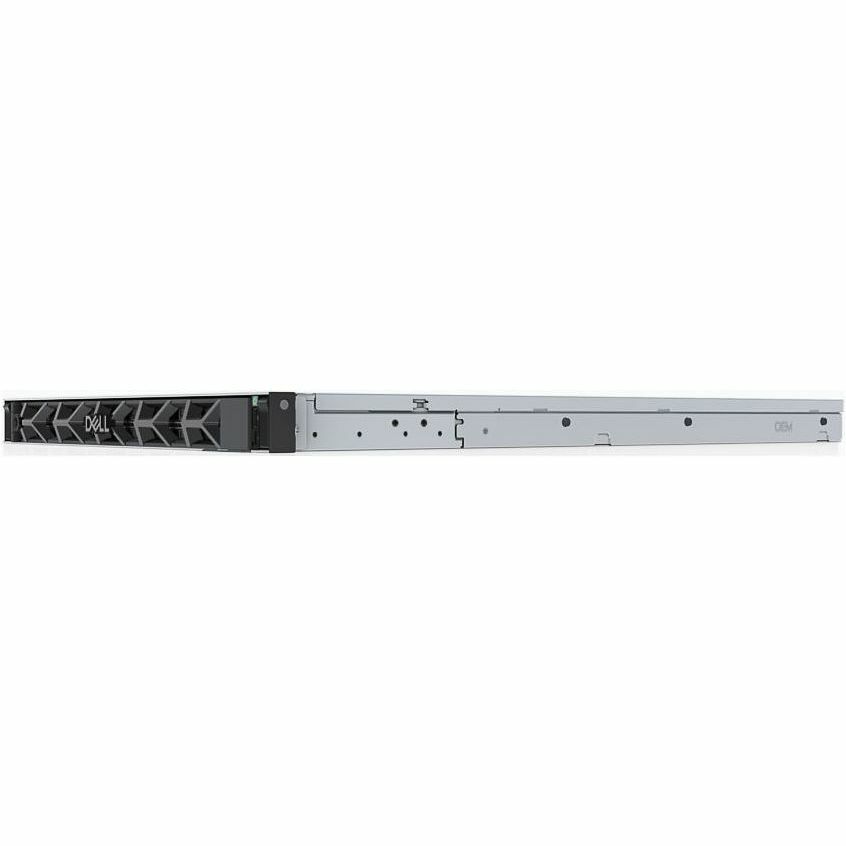

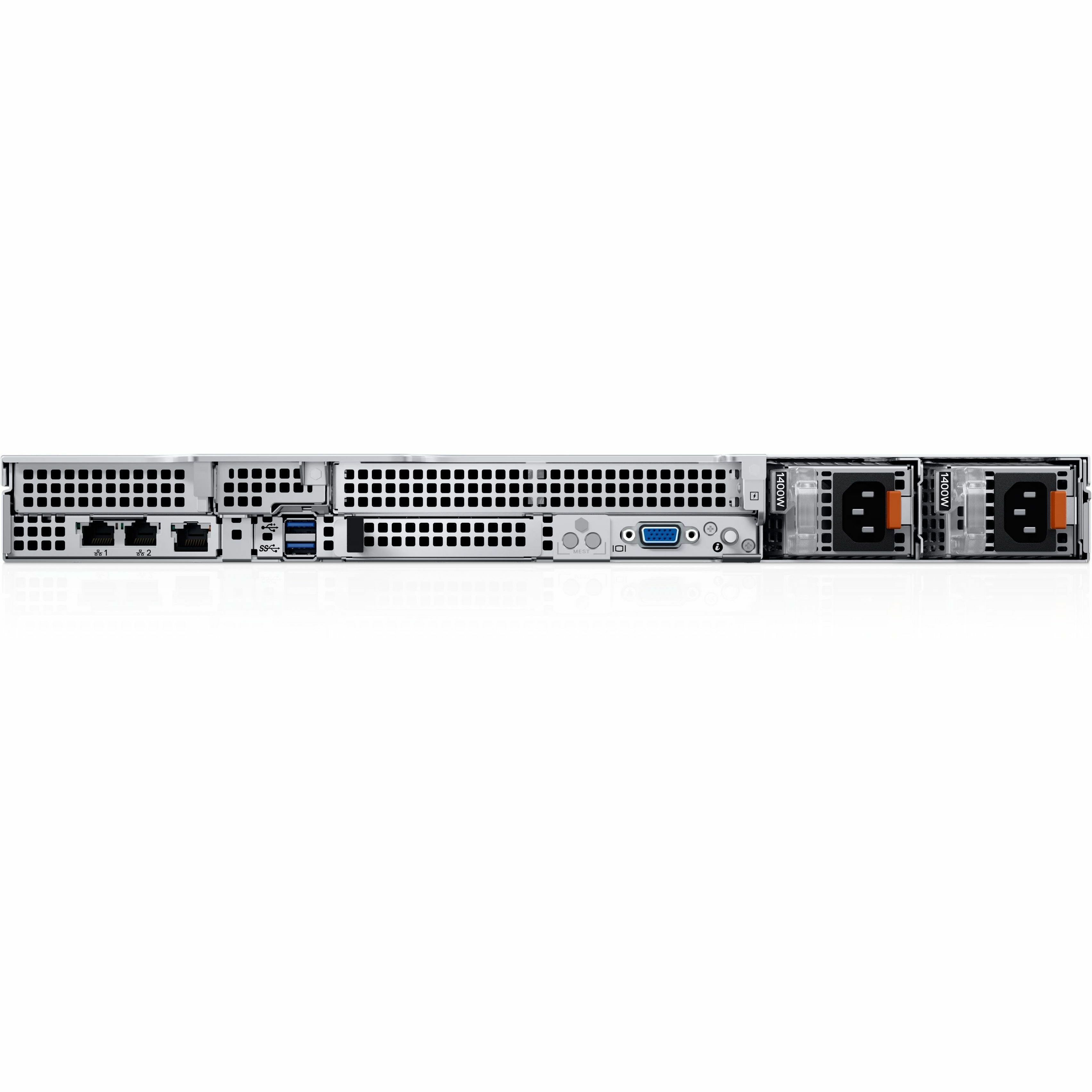

The new Dell PowerEdge R660xs is a 1U, two-socket rack server. Buy the best fit in dense performance with this purpose-built 1U system. Focused on delivering the latest technology to power the most popular applications and workloads used by businesses today, including virtualization, scale out-database and high performance compute. All delivered in a thoughtfully crafted platform that will provide dense compute that fits in your current infrastructure.
Easily configurable
- Add up to two 5th generation Intel® Xeon® Scalable processors with up to 28 cores and 4th generation Intel® Xeon® Scalable processors with up to 32 cores per socket for faster performance
- Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 5200 MT/sec
- Improve data throughput and reduce latency with support up to 5 I/O devices (up to 3 PCIe slots, 1 OCP 3.0 networking slot, and 1 dedicated PERC slot)
- Storage options include up to 4x 3.5" HDDs/SSDs; or up to 10x 2.5" HDDs/SSDs/NVMe
A breeze to cool
- Thoughtfully designed to fit in your current air-cooled infrastructure
- Alleviate the worry about expensive liquid cooling retrofitting to your data center
- Sychronize your workload needs with a tailored performance configuration that is air-cooled
- Minimize the carbon footprint of your data center by better matching the system power consumption with anticipated workload requirements
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations.
Increase efficiency and accelerate operations with autonomous collaboration
The Dell OpenManage™ systems management portfolio delivers a secure, efficient, and comprehensive solution for PowerEdge servers. Simplify, automate and centralize one-to-many management with the OpenManage Enterprise console and iDRAC.
Sustainability
From recycled materials in our products and packaging, to thoughtful, innovative options for energy efficiency, the PowerEdge portfolio is designed to make, deliver, and recycle products to help reduce the carbon footprint and lower your operation costs. We even make it easy to retire legacy systems responsibly with Dell Technologies Services.
Rest easier with Dell Technologies Services
Maximize your PowerEdge Servers with comprehensive services ranging from Consulting, to ProDeploy and ProSupport suites, Data Migration and more - available across 170 locations and backed by our 60K+employees and partners.
| General Information | |
| Manufacturer | Dell Technologies |
| Manufacturer Part Number | 8GP0F |
| Manufacturer Website Address | http://www.delltechnologies.com |
| Brand Name | Dell |
| Product Line | PowerEdge |
| Product Model | R660xs |
| Product Name | PowerEdge R660xs Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon Silver |
| Processor Model | 4410Y |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 2 GHz |
| Cache | 30 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 1.50 TB |
| Memory Technology | DDR5 SDRAM |
| Error Checking | ECC |
| Number of Occupied Memory Slots | 2 |
| Signal Processing | Registered (Buffered) |
| Storage | |
| Total Solid State Drive Capacity | 480 GB |
| Solid State Drive Interface | Serial ATA/600 |
| Controllers | |
| Controller Model | Front PERC H755 Front Load |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| PCI Express Details | 1 CPU Configuration: Up to 2 PCIe slots (1 x16 Gen4 + 1 x8 Gen5); 2 CPU configuration: Up to 3 PCIe Gen4 slots (1 x16 Gen4 + 2 x8 Gen4) or up to 2 PCIe Gen5 slots (1 x16 Gen5 + 1 x8 Gen5) |
| Riser Card | Riser Config 3, Low Profile, 1x16 LP Slots (Gen4) |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 1 |
| Network (RJ-45) | Yes |
| VGA | Yes |
| Number of VGA Ports | 2 |
| Remote Management | Yes |
| Remote Management Controller | iDRAC9, Datacenter 16G |
| Operating System | |
| Operating System Supported | Ubuntu Server |
| Operating System Supported | Red Hat Enterprise Linux |
| Operating System Supported | Windows Server |
| Operating System Supported | SuSE Linux Enterprise Server |
| Operating System Supported | Hyper-V |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Number of Power Supplies Installed | 2 |
| Plug/Connector Type | NEMA 5-15P to C13 |
| Maximum Power Supply Wattage | 800 W |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 19" |
| Depth | 29.5" |
| Weight (Approximate) | 42.88 lb |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Warranty | |
| Limited Warranty | 40 Month |
| Additional Warranty Information |
|
