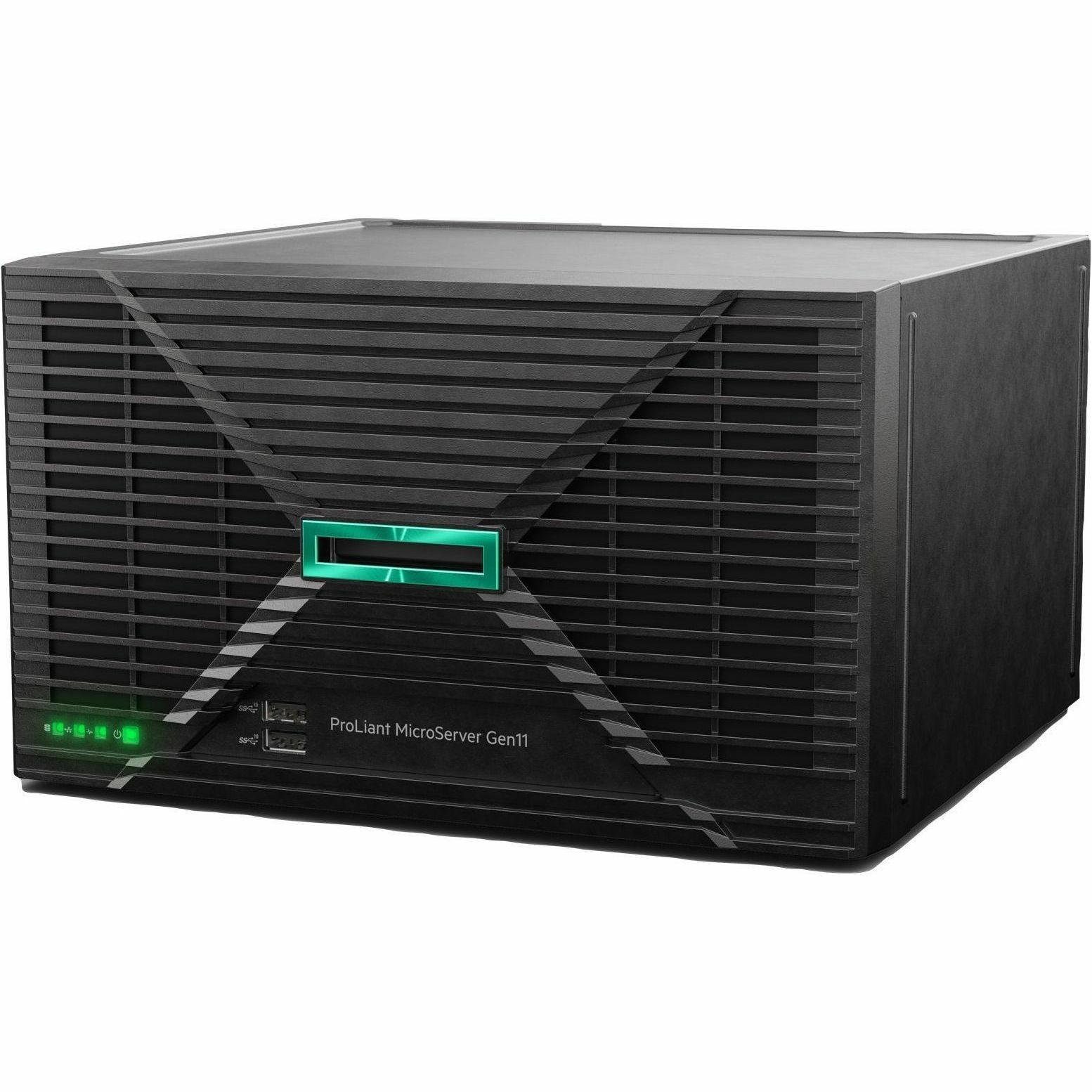

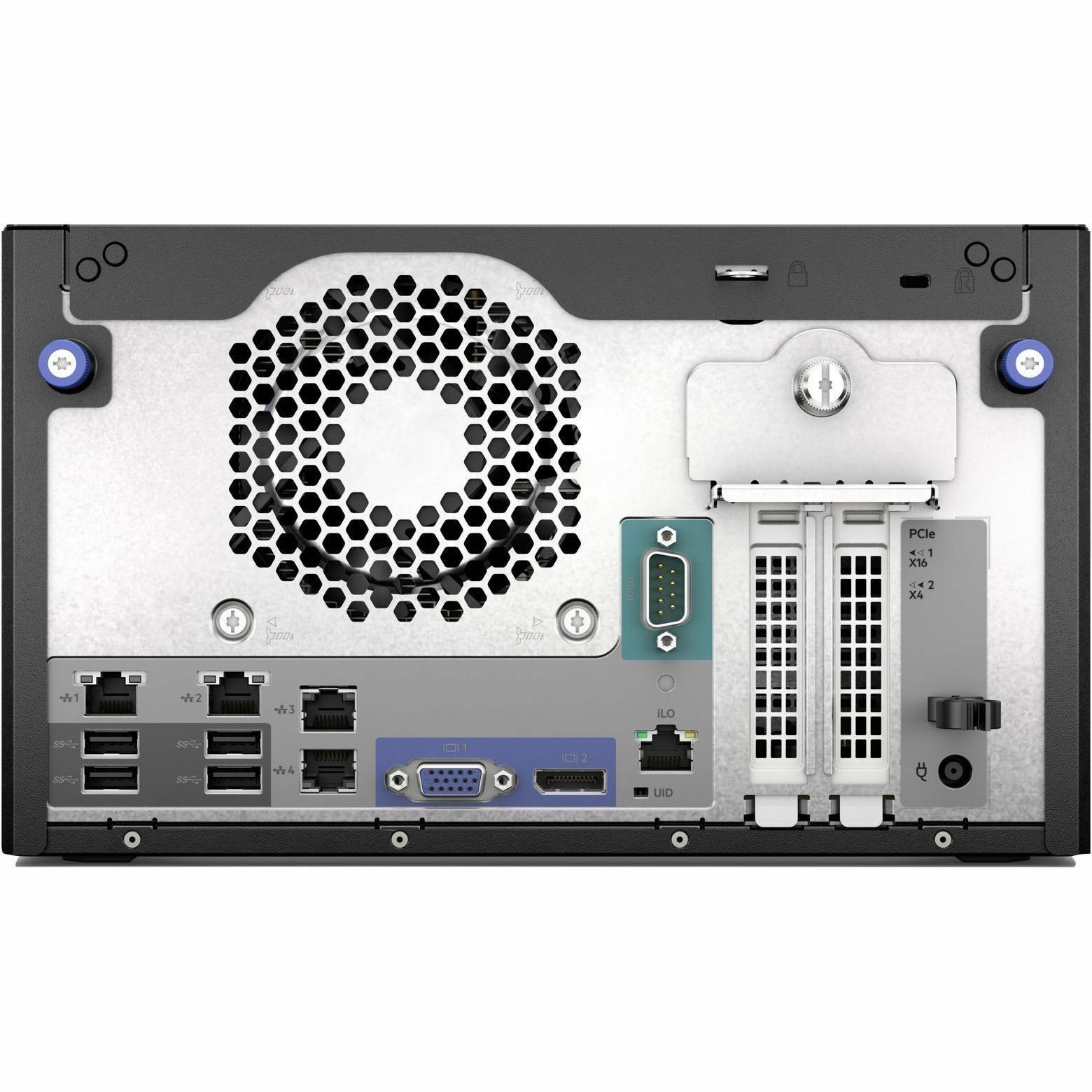

HPE ProLiant MicroServer Gen11
HPE ProLiant MicroServer Gen11 delivers an affordable compact yet powerful entry level server that you can customize for onpremises, edge, hybrid cloud, or even workloads demanding datacenter performance. It has the ultra mini tower form factor and can be placed flat or vertically or wall-mounted depending on the customer environment. The latest Intel Xeon® E and Pentium® supported processors deliver compute performance as well as security and remote management into the server with HPE iLO silicon root of trust. Along with other enhancements such as 4 DIMM slots for DDR5 memory and 2 PCIe slots, whether you want a general-purpose server, NAS or even a virtualization server, you will be surprised at how much you can get out of this small and affordable server.
| General Information | |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P74440-005 |
| Manufacturer Website Address | http://www.hpe.com |
| Brand Name | HPE |
| Product Line | ProLiant |
| Product Series | MicroServer Gen11 |
| Product Name | ProLiant MicroServer Gen11 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | E-2434 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 3.40 GHz |
| Cache | 12 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C262 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Error Checking | ECC |
| Total Number of Memory Slots | 4 |
| Number of Occupied Memory Slots | 1 |
| Signal Processing | Unregistered (Unbuffered) |
| Storage | |
| Total Hard Drive Capacity | 4 TB |
| Hard Drive Interface | Serial ATA/600 |
| Hard Drive RPM | 7200 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| Controller Model | Intel VROC |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Number of LFF Bays | 4 |
| Hot Swappable Bays | No |
| Total Number of Expansion Slots | 2 |
| PCI Express Details | (1) PCIe Gen4 low-profile slot (PCIe4 x8) Low Profile |
| PCI Express Details | (1) PCIe Gen5 low-profile slot (PCIe5 x16) Low Profile |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 3.2 Gen 1 Type-A Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| VGA | Yes |
| Number of VGA Ports | 1 |
| DisplayPort | Yes |
| Number of DisplayPorts | 1 |
| Operating System | |
| Operating System Supported | Windows Server |
| Operating System Supported | Linux |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C5 |
| Maximum Power Supply Wattage | 180 W |
| Redundant Power Supply | No |
| Power Source | AC Adapter |
| Physical Characteristics | |
| Form Factor | Ultra Micro Tower |
| Height | 6.1" |
| Width | 10.3" |
| Depth | 9.8" |
| Weight (Approximate) | 17.57 lb |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 1 Year |
| Additional Warranty Information | Server warranty includes 1-year parts, 1-year labor, and 1-year onsite support with next business day response. Warranty repairs may be accomplished using Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part, 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. 3) A trained, authorized service engineer must service non-CSR parts. |
