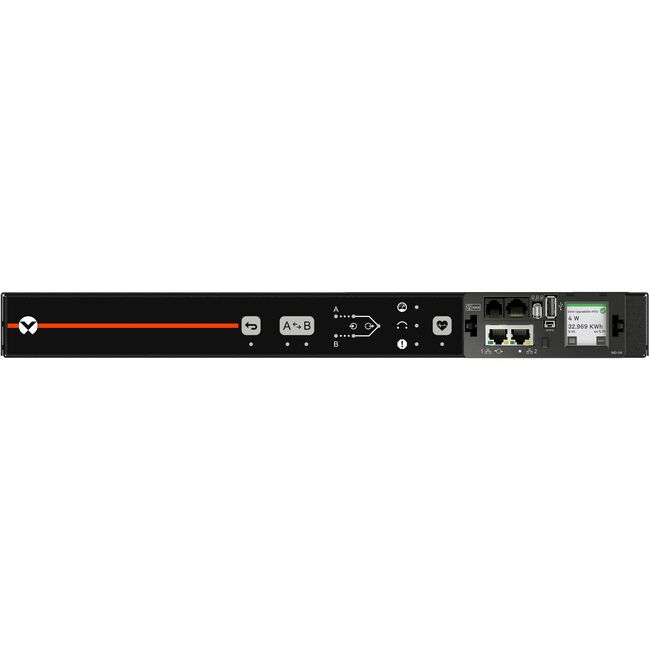

VERTIV VA4N21A0 RPDU, RACK TRANSFER SWITCH MONITORED UNIT LEVEL, 20A, 120V, 1.9KW, HORIZONTAL, (

The Vertiv Geist Rack Transfer Switch VA4N21A0 is a 20A, 120V, single phase unit level monitored rPDU with (10) NEMA 5-20R receptacles and (2) NEMA 5-20P plug that provides 1.9kW of power capacity. This unit provides backup power to single-corded devices and helps ensure continuity in the event of power loss. It quickly detects power loss on the main source and automatically switches to the secondary source within less than 4 to 8 milliseconds. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.

More from the Manufacturer

General Information
Manufacturer	Vertiv
Manufacturer Part Number	VA4N21A0
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv Geist
Product Line	Geist Upgradeable
Product Series	N
Product Model	AN03E1R5-10S203-2ST5ST5A011-D
Product Name	GU VA4N21A0 PDU
Product Type	PDU
Technical Information
PDU Type	Monitored
Phase	Single Phase
Plug/Connector Type	NEMA 5-20P
Plug/Connector Detail	2 x NEMA 5-20P
Receptacle Type	NEMA 5-20R
Receptacle Detail	10 x NEMA 5-20R
Features	LCD Display
Features	Touch Screen Display
Power Description
Input Voltage	120 V AC
Input Voltage Range	100 V AC - 120 V AC
Output Voltage Range	100 V AC - 120 V AC
Power Rating (Watt)	1900 W
Input Current	20 A
Management
Management	DHCP HTTP HTTPS IPv4 IPv6 LDAP NTP RADIUS RSTP SSH SMTP SNMP (v1/v2c/v3) Modbus TCP/IP Syslog TACACS+
Remote Outlet Switching	No
Interfaces/Ports
Serial Port	Yes
Modem (RJ-11)	No
Modem (RJ-12)	Yes
Modem (RJ-22)	No
Network (RJ-45)	Yes
USB	Yes
Physical Characteristics
Color Family	Black
Product Color	Black
Mounting Orientation	Horizontal
Mount Type	Rack-mountable
Form Factor	Rack
Rack Height	1U
Cord Length	20 ft
Height	1.7"
Width	17"
Depth	18"
Weight (Approximate)	19 lb
Miscellaneous
Certifications & Standards	UL c-UL Listed 62368
Country of Origin	United States
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS)
Warranty
Limited Warranty	5 Year
Additional Warranty Information	5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
