Limitless Options with No Trade-offs

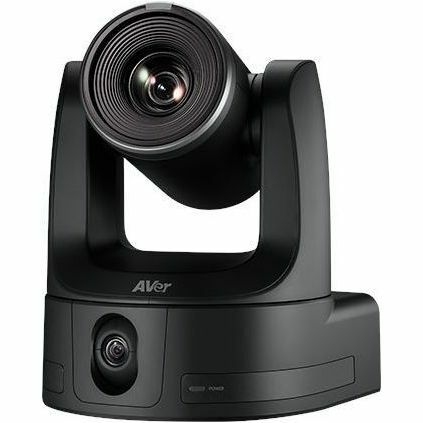

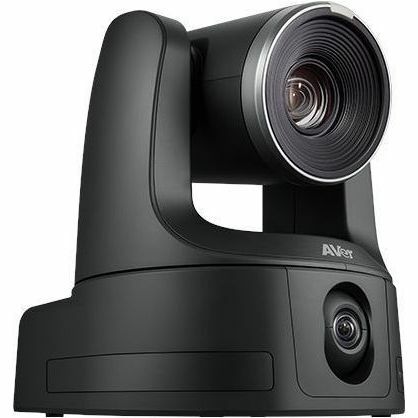

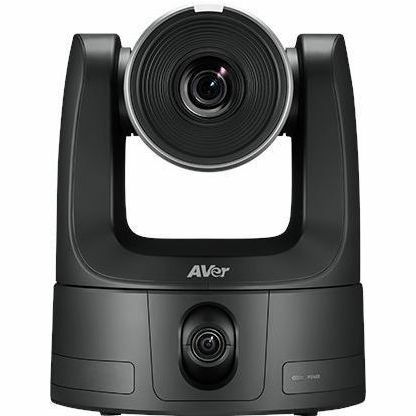

The AVer TR535N 30X 4K NDI® Dual Lens Auto Tracking Camera is built for enterprise, government, higher education, and other organizations with similar collaboration needs, offering professional-quality videos without needing a videographer. Its 30X optical zoom, 8MP camera, and 4K60 resolution deliver outstanding range and clarity, while advanced AI and dual lenses ensure reliable tracking in any setting. The camera's innovative dual-camera design allows flexible installation, including wall and ceiling mounts. Ideal for collaboration spaces, broadcasting, streaming, and video distribution, it features dual HDMI, USB, 3G-SDI, IP, and NDI® connectivity for low-latency video. PoE++ support simplifies power and control through a single CAT cable
| General Information | |
| Manufacturer | AVer Information Inc |
| Manufacturer Part Number | PTR535NV1 |
| Manufacturer Website Address | http://www.averusa.com |
| Brand Name | AVer |
| Product Line | Professional |
| Product Model | TR535N |
| Product Name | 30X 4K NDI Dual Lens Auto Tracking |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | 4K |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | Exmor CMOS |
| Image Sensor Size | 1/2.8" |
| Color Supported | Color |
| Field of View | 69.2° (wide) ~ 2.8° (Tele)/62.3° (wide) ~ 2.5° (Tele)/37.3° (wide) ~ 1.4° (Tele) |
| Effective Camera Resolution | 8 Megapixel |
| Video | |
| Video Formats | MJPEG |
| Video Formats | H.264 |
| Video Formats | H.265 |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | NDI |
| Analog Video Signal Format | 3G-SDI |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.50 mm |
| Maximum Focal Length | 135 mm |
| Lens Included | Yes |
| Minimum Aperture | f/4.7 |
| Maximum Aperture | f/1.8 |
| Optical Zoom | 30x |
| Exposure | |
| Shortest Shutter Speed | 1/10000 Second |
| Longest Shutter Speed | 1/1 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Ethernet Technology | Gigabit Ethernet |
| Protocols | ARP |
| Protocols | RTMP |
| Protocols | VISCA over IP |
| Protocols | TCP |
| Protocols | SRT |
| Protocols | RTP |
| Protocols | LLDP |
| Protocols | IPv4 |
| Protocols | UDP |
| Protocols | RTSP |
| Protocols | IGMP |
| Protocols | HTTP |
| Protocols | RTCP |
| Protocols | ICMP |
| Protocols | HTTPS |
| Protocols | DHCP |
| Remote Management | Yes |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 29 W |
| Input Voltage | 12 V DC |
| Input Voltage | 240 V AC |
| Input Voltage | 100 V AC |
| Power Source Type | AC |
| Power Source Type | DC |
| Power Source Type | PoE++ |
| Physical Characteristics | |
| Mount Type | Wall Mount |
| Mount Type | Ceiling Mount |
| Height | 8.6" |
| Width | 8" |
| Depth | 9.9" |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Minimum Operating Humidity | 20% |
| Maximum Operating Humidity | 80% |
| Minimum Storage Humidity | 20% |
| Maximum Storage Humidity | 95% |
| Miscellaneous | |
| Features | Microphone In |
| Features | Mirror |
| Features | PTZ |
| Features | 2D Noise Reduction |
| Features | Wide Dynamic Range |
| Features | Automatic White Balance |
| Features | Audio Compression |
| Features | 3D Noise Reduction |
| Features | Auto Gain Control |
| Features | Back Light Compensation (BLC) |
| Indoor/Outdoor | Indoor |
| Package Contents |
|
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | Accessories 1 Year |
