GIGABYTE

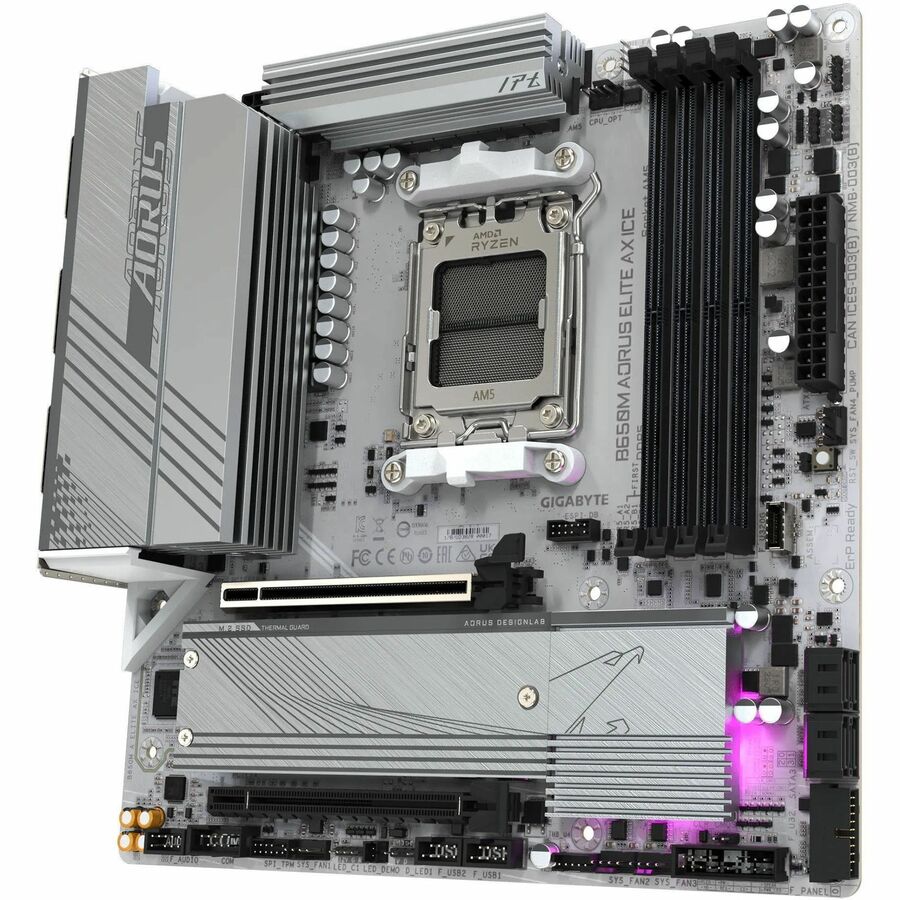

Gigabyte MB B650M AORUS ELITE AX ICE B650 Socket AM5 B650 Max192G DDR5 MATX
Mfg Part Number: B650M AORUS ELITE AX ICE , Item #: 5175821
Image may not reflect the actual item.
Price: $277.91
Quantity:
More to Come
Last Updated: May 04, 2025
No Sales Tax except these states
, PO and Wire.

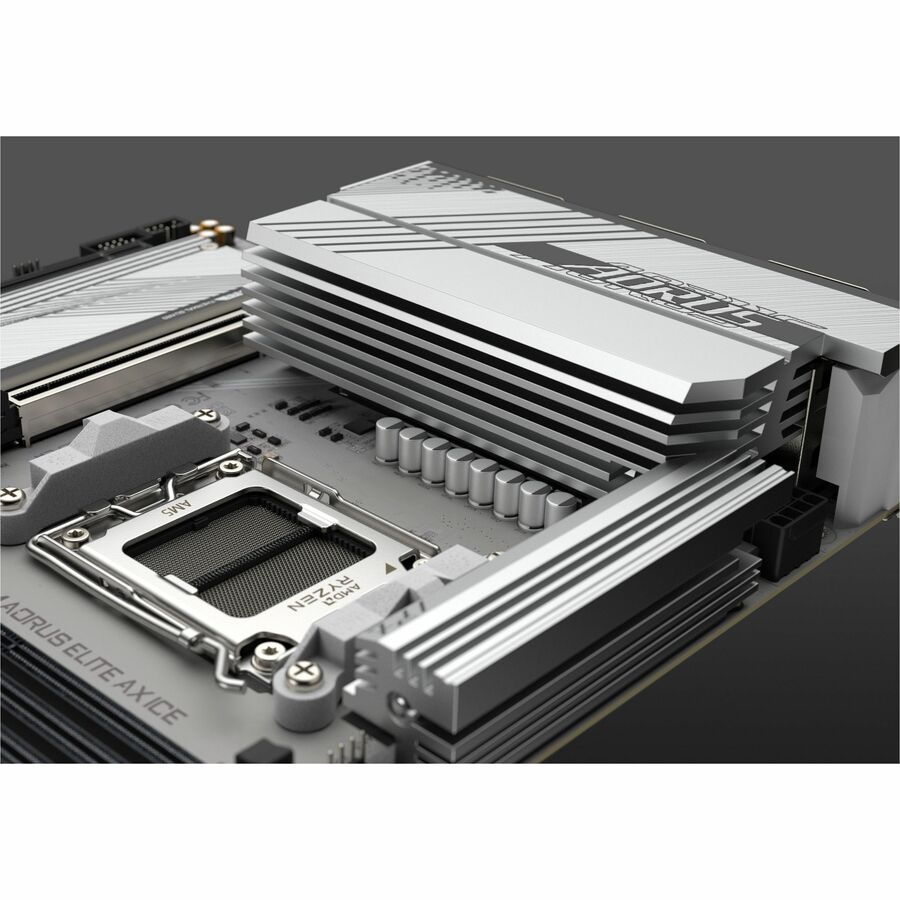

OVERVIEW | Robust VRM Design | Power in number
All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads.
Digital Twin VRM Design
Ensures stable high-power delivery for advanced overclocking.
12 VCORE Phases
to unleash the full potential of multi-core CPU performance.
2 SOC Phases
for CPU integrated GPU performance and memory control.
2 MISC Phases
provide stable power for CPU-connected PCIe lanes.
Memory | Memory, to the future
All AORUS series gaming motherboards feature multiple techniques to enhance the performance of DDR5 memory with the best compatibility.
Main Specification
| General Information | |
| Manufacturer | GIGABYTE Technology, Inc |
| Manufacturer Part Number | B650MAORUSELITEAXICE |
| Manufacturer Website Address | http://www.gigabyte.us |
| Brand Name | Aorus |
| Product Line | Ultra Durable |
| Product Model | B650M AORUS ELITE AX ICE |
| Product Name | Ultra Durable B650M AORUS ELITE AX ICE Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | B650 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 9 |
| Processor Supported | Ryzen 8 |
| Processor Supported | Ryzen 7 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM |
| Memory Form Factor | UDIMM |
| Maximum Memory Supported | 256 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4800 MHz |
| Memory Speed Supported | 7200 MHz |
| Memory Speed Supported | 6400 MHz |
| Memory Speed Supported | 5600 MHz |
| Memory Speed Supported | 7800 MHz |
| Memory Speed Supported | 6600 MHz |
| Memory Speed Supported | 6000 MHz |
| Memory Speed Supported | 6666 MHz |
| Memory Speed Supported | 8000 MHz |
| Memory Speed Supported | 7600 MHz |
| Memory Speed Supported | 4400 MHz |
| Memory Speed Supported | 7000 MHz |
| Memory Speed Supported | 6800 MHz |
| Memory Speed Supported | 5200 MHz |
| Memory Speed Supported | 6200 MHz |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Model | Radeon Graphics |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express Standard | PCI Express 5.0 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x16 Slots | 2 |

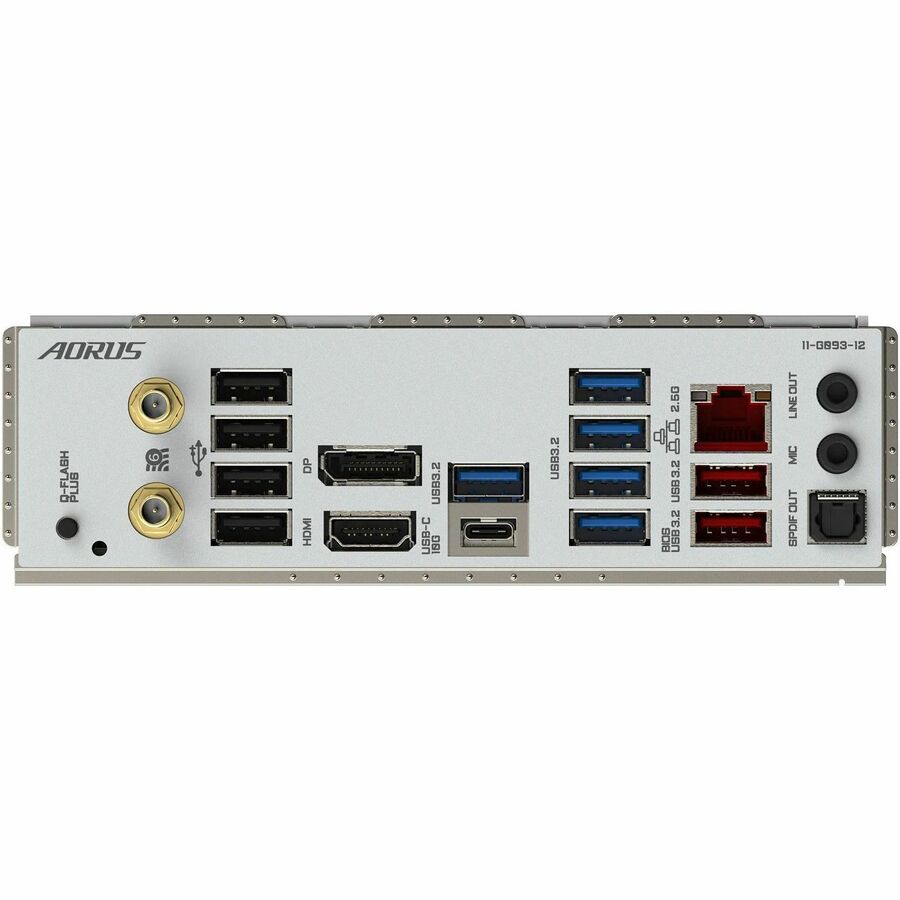

| Interfaces/Ports | |
| Total Number of USB Ports | 12 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 5 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.6" |
| Depth | 9.6" |
| Miscellaneous | |
| Brand Compatibility | AMD |
