Elo TouchSystems

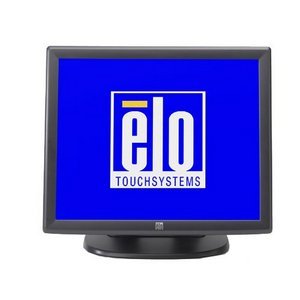

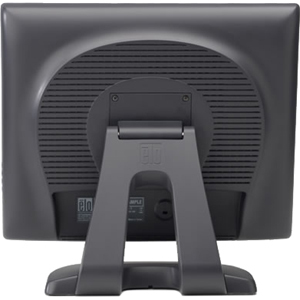

Elo TouchSystems E266835 Elo 1000 Series 1915L Touch Screen Monitor
Mfg Part Number: E266835 , Item #: 517202
Image may not reflect the actual item.
Price: $834.02
Quantity:
In Stock: 5
Last Updated: May 14, 2025
No Sales Tax except these states
, PO and Wire.
The 1915L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo's quality and reliability into an integrated, affordable touchmonitor.
Main Specification
| General Information | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E266835 |
| Manufacturer Website Address | http://www.elotouch.com |
| Brand Name | Elo |
| Product Series | 1000 |
| Product Model | 1915L |
| Product Name | 1000 Series 1915L Touch Screen Monitor |
| Product Type | LCD Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 19" |
| Viewable Screen Size | 19" |
| Screen Mode | SXGA |
| Screen Surface | Anti-glare |
| Response Time | 8 ms |
| Aspect Ratio | 4:3 |
| Mount Type | Wall Mountable |
| Mount Type | Desk Mountable |
| Video | |
| Maximum Resolution | 1280 x 1024 |
| Contrast Ratio | 550:1 |
| Brightness | 248 Nit |
| Touchscreen Information | |
| Touchscreen | Yes |
| Touchscreen Type | Surface Acoustic Wave |
| Interfaces/Ports | |
| USB | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Input Voltage | 265 V AC |
| Physical Characteristics | |
| Product Color | Dark Gray |
| Height | 15.2" |
| Width | 16.9" |
| Depth | 8.2" |
| Weight (Approximate) | 17.42 lb |
| Miscellaneous | |
| Package Contents |
|
| Additional Information | Security lock receptacle |
Features
- Entry-level monitor with Elo quality
- "Designed for touch" features such as a stable tilt base
- Long-lasting product cycle
- Available with IntelliTouch Surface Wave Technology or AccuTouch Five-Wire Resistive Technology
- Sealed touchscreen
- Dual serial/USB interface
- Removable base and VESA mounting option
- Mounting holes on base bottom for tabletop security
- Controls on the side rather than the front, plus lockout function for public use
- Digital on-screen display (OSD)
- Worldwide agency approvals
| Model | 1915L |
| Series | 1000 |
| Availability | Worldwide |
| Case/bezel color | Dark gray |
| Display | Size: 19.0" diagonal Type: Active matrix TFT LCD Aspect ratio: 4 x 3 |
| Useful screen area | Horizontal: 14.82" (376.32 mm) Vertical: 11.85" (301.06 mm) |
| Monitor dimensions | Width: 16.9" (429 mm) Height: 14.92" (379 mm) Depth: 8.15" (207 mm) |
| Optimal (native) resolution | 1280 x 1024 |
| Other supported resolutions | 1280 x 1024 at 60 or 75 Hz 1152 x 864 at 75 Hz 1024 x 768 at 60, 65, 70 or 75 Hz 832 x 624 at 75 Hz (Mac) 800 x 600 at 56, 60, 72 or 75 Hz 720 x 400 at 70 Hz 720 x 350 at 70 Hz 640 x 480 at 60, 66, 72 or 75 Hz |
| Colors | 16.7 million with dithering |
| Brightness | LCD panel: 300 cd/m2 (typical) with AccuTouch: 276 cd/m2 (typical) with IntelliTouch: 240 cd/m2 (typical) |
| Response time | 5 msec (typical) |
| Viewing angle (typical, from center) |
Horizontal (left/right): ±80° or
160° total Vertical (up/down): ±80° or 160° total |
| Contrast ratio | 800:1 (typical) |
| Input video format | Analog (no proprietary video card needed) |
| Input sync format | Separate horizontal and vertical sync, composite sync and sync-on-green |
| Input video signal connector | Mini D-Sub 15-Pin VGA type |
| Input frequency | Horizontal: 31.5-80 kHz Vertical: 56.3-75 Hz |
| Power supply | Type: Internal, with jack to accept power
from optional external brick AC input (line) voltage: 85-265 VAC, 47–63 Hz DC input (line) voltage: 12.0 VDC ±0.75V |
| Power dissipation | 50 W max. |
| Temperature | Operating: 0oC to 40oC Storage: -20oC to 60oC |
| Humidity | Operating: 20%-80% Storage: 10%-90% noncondensing |
| Warranty | Monitor: 3 years Backlight lamp life: minimum 40,000 hours to half brightness MTBF: 50,000 hours minimum demonstrated |
| Agency approvals | UL/cUL, TÜV-GS, CE, FCC/IC/VCCI/C-Tick Class B |
| On-screen display (OSD) | Digital OSD |
| User's controls | OSD buttons: menu, up, down, select, power OSD: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall, language (English, German, Spanish, Japanese, French) OSD disable/enable: power, OSD menu |
| Mounting options | Threaded-through mounting holes, under base Removable base 100 mm VESA mount |
| Other features | Security lock receptacle |
Accessories
AC Power Cable: North American and European AC power cables are included. For touchmonitors being shipped to the United Kingdom, add a UK AC power cable at no cost by specifying part number E540272.
IntelliTouch Stylus Pen: Stylus pen with rubber tip, designed specifically for use with IntelliTouch surface wave touch technology. Part number D82064-000, available at additional cost.
Optional DC Power Supply Brick: The monitor may also be powered with DC voltage. An optional 12V DC power brick, part number E785134, is available at additional cost. AC power cables for power brick are also available at additional cost:
- United States: part number E042259
- Europe: part number E690013
- United Kingdom: part number E235317
Touch/Video Cables: Detachable touch and video cables are included.
