SHURE

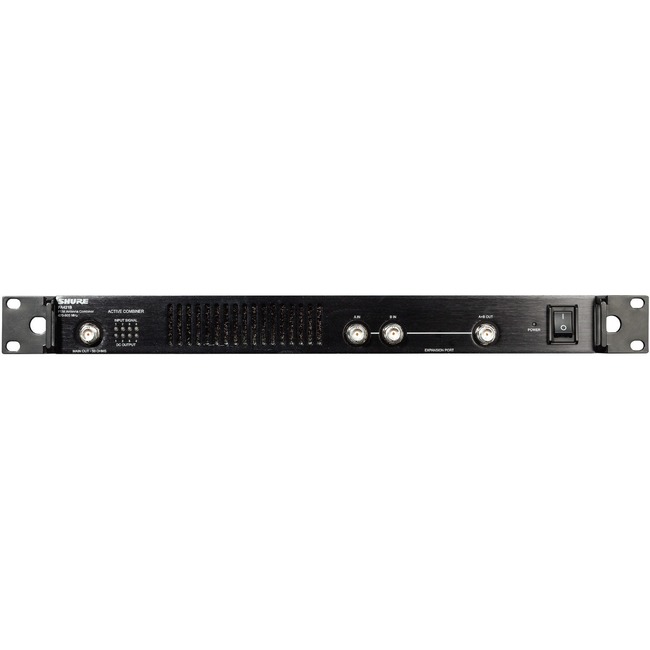

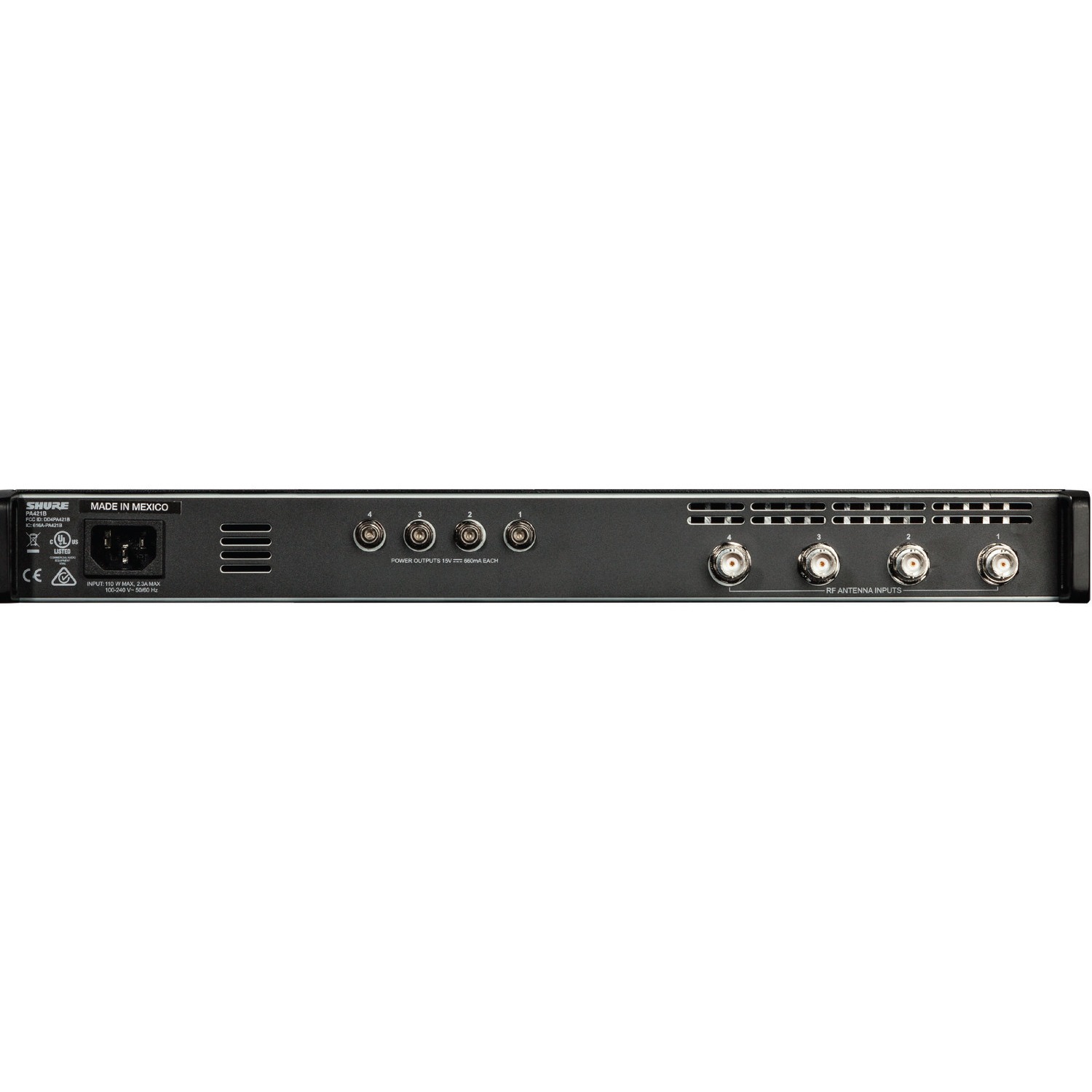

SHURE PA421B FOUR-CHANNEL ANTENNA COMBINER, 470-865 MHZ
Mfg Part Number: PA421B , Item #: 5171603
Image may not reflect the actual item.
Price: $2,108.77
Quantity:
More to Come
Last Updated: Jun 28, 2025
No Sales Tax except these states
, PO and Wire.
Shure PA421B Antenna Combiners are complementary accessories for Shure PSM® Personal Stereo Monitor systems. When multiple systems are required for monitoring applications, the PA421B combiners quietly and efficiently optimize RF management for up to four PSM® transmitter, while also reducing rack clutter. (Directly replaces PA421A.)
Features
Features
- Combines up to four PSM® transmitters to a single antenna set
- Improved intermodulation artifacts for cleaner RF environment
- Reduces rack clutter
- Wideband operation (470-865 MHz or 865-960 MHz)
- Daisy-chain up to 2 combiners with the expansion port
- LED indications of signal presence, signal overload
- Improved fan design significantly improves thermal efficiency and ambient noise
- Optional modification to enable combining of microphone receiver antennas (contact Shure Service Department for more details)
- Provides +15V bias on RF inputs to power antennas
- Requires modification of unit by qualified service technician
Main Specification
| General Information | |
| Manufacturer | Shure, Inc |
| Manufacturer Part Number | PA421B |
| Manufacturer Website Address | http://www.shure.com |
| Brand Name | Shure |
| Product Model | PA421B |
| Product Name | PA421B Four-channel Antenna Combiner, 470-865 MHz |
| Product Type | RF Combiner |
| Technical Information | |
| Minimum Frequency | 470 MHz |
| Maximum Frequency | 865 MHz |
| Interfaces/Ports | |
| BNC In | Yes |
| BNC Out | Yes |
| Number of BNC Inputs | 4 |
| Number of BNC Outputs | 2 |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Mexico |
| Environmentally Friendly | Yes |
