HONEYWELL

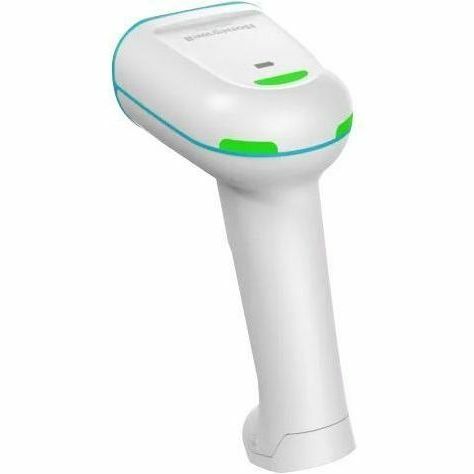

1962HSR-5USB-WC-N HONEYWELL 1962HC USB KIT: WHITE ANTI-MICROBIAL HOUSING, SR FOCUS, USB

Mfg Part Number:  1962HSR-5USB-WC-N
Image may not reflect the actual item.
Price: $1,493.44
Quantity:
More to Come
Last Updated: Sep 01, 2025
No Sales Tax except these states
, PO and Wire.

Continuing the legacy of barcode technology, Honeywell's Xenon Ultra helps to ensure clinicians are delivering fast, accurate and reliable patient care.

The Xenon Ultra 1962h incorporates Honeywell's next generation of scanning capability- allowing patient care to stay top priority for clinicians, helping improve retention of employees and helping lower the total cost of ownership for hospitals.

Developed with the healthcare environment in mind, the Xenon Ultra offers an improved design which reduces the amount of nooks or crannies, helping to limit areas where germs could linger and hide.

Freedom of movement around patients, family members, and expensive equipment - particularly in congested patient rooms or ICUs - is a continued challenge for today's clinician. As more and more technology is packed into the modern-day patient room, free space comes at a premium. The Xenon Ultra 1962h scanner takes up minimal space, can be mounted or stored in a variety of different places, ensuring nurses' focus is on patient safety and comfort. One scanner can now accept multiple power sources. Available with a battery-free supercapacitor or standard lithium-ion battery, both power options are also available in contactless orientations.

The battery-free technology runs on supercapacitors versus a battery and is capable of achieving a full charge in less than four minutes via the USB Port (under 60 seconds when using a powered USB port or external wall adapter). The Xenon Ultra 1962h scanner typically provides at least 450 scans of UPC/EAN Codes without recharging. This makes the scanner ideal for scanning applications at the bedside such as medicines administration or specimen collection.

Main Specification
General Information
Manufacturer Honeywell International, Inc
Manufacturer Part Number 1962HSR5USBWCN
Manufacturer Website Address http://www.honeywell.com
Brand Name Honeywell
Product Line Xenon Ultra
Product Model 1962h
Product Name Xenon Ultra 1962h Barcode Scanner Kit
Product Type Barcode Scanner Kit
Technical Information
Connectivity Technology Wireless
Scanning Capability 1D
Scanning Capability 2D
Barcode Symbology Supported

Decode Capabilities:

  • Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies
Light Source LED
Image Sensor Type Imager
Scanner Range Standard Range
Scanning Distance 28.66"
Cable Type Included USB
Field of View (Horizontal) 42°
Field of View (Vertical) 36°
Reading Angle (Skew) 65°
Reading Angle (Pitch) 65°
Reading Angle (Roll) 360°
Motion Tolerance 157.48 in/s
Maximum Ambient Light 100000 lux
Drop Specification

Engineered to withstand 50 drops at 1.8 m (6 ft) to concrete across operating temp range

Minimum Print Contrast 15%
Minimum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (Code 39) 20 mil
Minimum Element Resolution (DataMatrix) 5 mil
Maximum Element Resolution (DataMatrix) 10 mil
Minimum Element Resolution (PDF417) 5 mil
Maximum Element Resolution (PDF417) 6.7 mil
Image Sensor Resolution 1280 x 1080
Illumination Type LED
Illumination Color White
Network & Communication
Bluetooth Yes
Interfaces/Ports
Host Interface USB
Battery Information
Battery Included Yes
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3300 mAh
Maximum Battery Run Time 22 Hour
Maximum Battery Recharge Time 4.50 Hour
Environmental Conditions
Operating Temperature 41°F (5°C) to 95°F (35°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Color Family White
Product Color White
Height 4.8"
Width 3.6"
Length 3.3"
Weight (Approximate) 7.76 oz
Miscellaneous
Ingress Protection (IP) Rating IP52
Ingress Protection (IP) Rating IP41
Application/Usage Healthcare
Application/Usage Hospitality
Warranty
Limited Warranty 3 Year
