P75332-005 HPE DL345 G11 9354P 256G 8SFF NA SVR

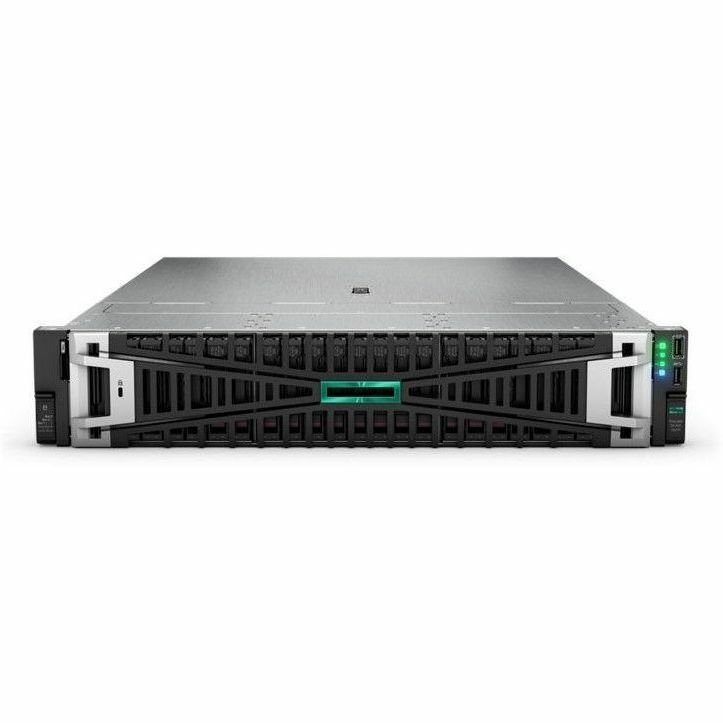

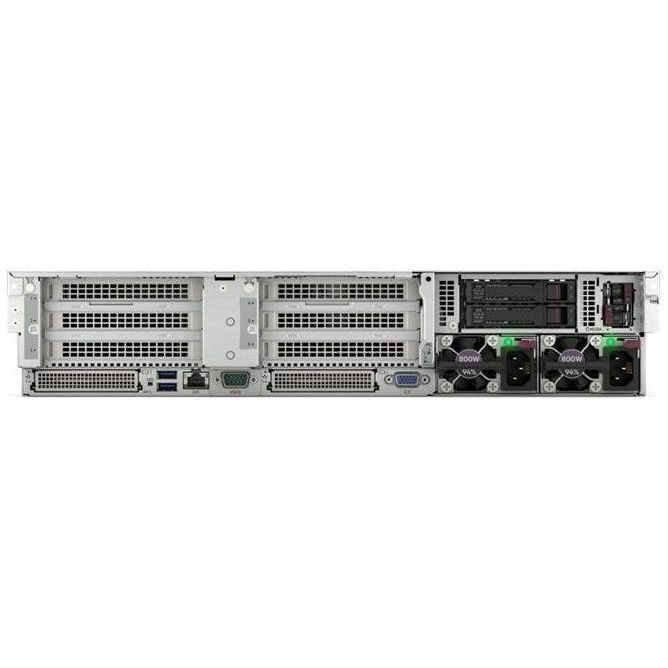

Are you looking for a single-socket scalable server solution to power your virtualized data-intense, large-capacity storage workloads? The HPE ProLiant DL345 Gen11 server is a scalable 2U 1P solution that delivers exceptional compute performance and large capacity storage options at 1P economics. Powered by 4th Generation AMD EPYC™ Processors with up to 96 cores, increased memory bandwidth (up to 3 TB), high-speed PCIe Gen5 I/O and EDSFF storage, up to 20LFF/ 34SFF, and up to 4 GPUs at the front, this server is a superb single-socket 2U solution for your data-intensive workloads. Enhanced security features with the HPE silicon root of trust are built into the firmware, creating a digital fingerprint for the AMD Secure Processor to validate safe operation prior to boot. The HPE DL345 Gen11 server provides impressive storage performance and options for data-intensive workloads like software-defined storage, video transcoding, and virtualized apps.

General Information
Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	P75332-005
Manufacturer Website Address	http://www.hpe.com
Brand Name	HPE
Product Line	ProLiant
Product Series	DL345 G11
Product Name	ProLiant DL345 G11 Server
Product Type	Server
Processor
Number of Processors Supported	1
Number of Processors Installed	1
Processor Type	EPYC
Processor Generation	4th Gen
Processor Model	9354P
Processor Core	Dotriaconta-core (32 Core)
Processor Speed	3.25 GHz
Cache	256 MB
Chipset
Chipset Manufacturer	AMD
Memory
Standard Memory	256 GB
Maximum Memory Supported	3 TB
Memory Technology	DDR5 SDRAM
Number of Occupied Memory Slots	4
Signal Processing	Registered (Buffered)
Storage
Number of Solid State Drives	2
Total Solid State Drive Capacity	3.84 TB
Solid State Drive Interface	Serial ATA/600
Solid State Drive Configuration	2 x 1.92TB
Controllers
Controller Type	Serial ATA/600
Controller Model	MR416i-p
RAID Supported	Yes
I/O Expansions
Number of Total Expansion Bays	8
Number of Internal 2.5" Bays	8
Number of SFF Bays	8
Hot Swappable Bays	Yes
Total Number of Expansion Slots	3
PCI Express Details	PCIe 5.0 X16 Full-height,Half-length slot
Riser Card	2 PCIe x16 Riser
Display & Graphics
Graphics Memory Capacity	16 MB
Network & Communication
Ethernet Technology	Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports	5
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	4
VGA	Yes
Number of VGA Ports	1
Remote Management	Yes
Remote Management Controller	HPE iLO
Operating System
Operating System Supported	Windows Server 2019
Operating System Supported	Windows Server 2022
Operating System Supported	Red Hat Enterprise Linux 9.0
Operating System Supported	SUSE Linux Enterprise Server 15 SP4
Operating System Supported	Red Hat Enterprise Linux 8.6
Power Description
Number of Power Supplies Supported	2
Number of Power Supplies Installed	2
Plug/Connector Type	C13/C14
Maximum Power Supply Wattage	800 W
Redundant Power Supply	Yes
Hot Swappable Power Supply	Yes
Power Source	Power Supply
Physical Characteristics
Form Factor	Rack
Rack Height	2U
Height	3.4"
Width	17.6"
Depth	25.4"
Miscellaneous
Package Contents	ProLiant DL345 G11 Server Easy Install Rail Kit 6-foot IEC C-13/C-14 Jumper Cord
Security Features	UEFI Secure Boot and Secure Start support Immutable Silicon Root of Trust FIPS 140-3 validation (iLO 6 certification in progress) Common Criteria certification (iLO 6 certification in progress) Configurable for PCI DSS compliance Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser Support for Commercial National Security Algorithms (CNSA) Tamper-free updates - components digitally signed and verified Secure Recovery - recover critical firmware to known good state on detection of compromised firmware Ability to rollback firmware Secure erase of NAND/User data TPM (Trusted Platform Module) 2.0 option Bezel Locking Kit option Chassis Intrusion detection option
Energy Star	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
