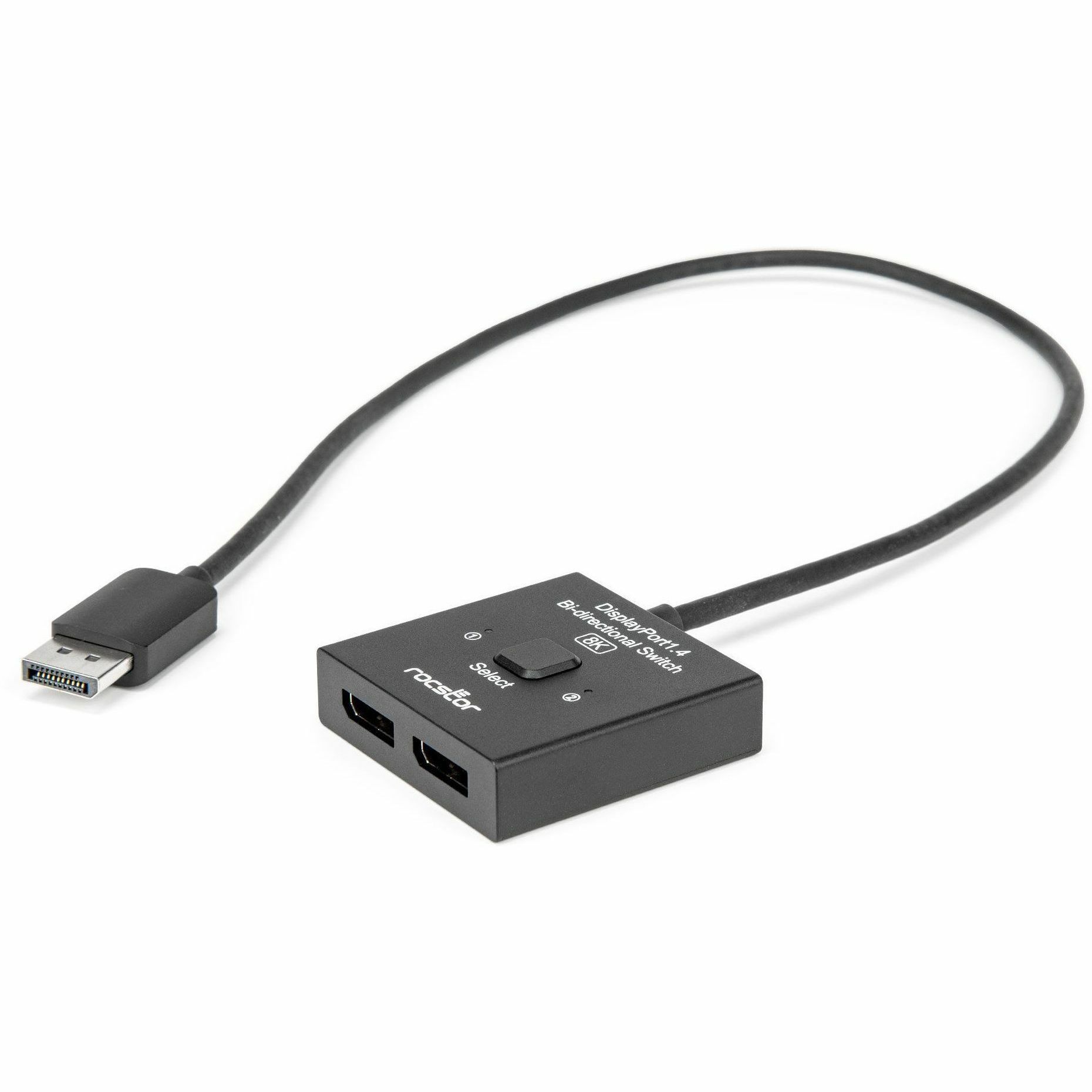

Rocstor's DisplayPort 1.4 2-in-1 Bi-directional Switcher is designed for seamless 8K resolution switching. This versatile device allows you to switch between two sources to one display or one source to two displays effortlessly by pressing the switch button. Equipped with a 50cm fixed DP cable (pigtail), it not only reduces costs but also simplifies the setup process for users. The switcher supports high-definition video across various resolutions, including up to 8K, and handles digital audio efficiently. Power can be supplied through the DP male connector, with an optional Type-C female port available as a backup power supply to deliver 5V power when needed.
This premium 2x1 DisplayPort 1.4 Bi-Directional KVM Switch offers robust functionality, making it an ideal solution for high-resolution displays and multiple source management. Whether you need to toggle between two video sources or switch one source to two different displays, this switcher provides the flexibility and reliability required for seamless connectivity. Backed by Rocstor 2-year limited warranty and lifetime free technical support.
| General Information | |
| Manufacturer | Rocstor |
| Manufacturer Part Number | Y10A336B1 |
| Manufacturer Website Address | http://www.rocstor.com |
| Brand Name | Rocstor |
| Product Name | Premium DisplayPort1.4 Bi-directional Switcher for 8K |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Connectivity Technology | Wired |
| Features | LED Indicator |
| Video | |
| Graphic Mode | 4K |
| Graphic Mode | 8K |
| Maximum Video Resolution | 7680 x 4320 |
| Interfaces/Ports | |
| DisplayPort | Yes |
| Number of DisplayPorts | 3 |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Physical Characteristics | |
| Height | 0.5" |
| Width | 2.1" |
| Length | 2.10" |
| Weight (Approximate) | 2.20 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Vietnam |
| Warranty | |
| Limited Warranty | 2 Year |
