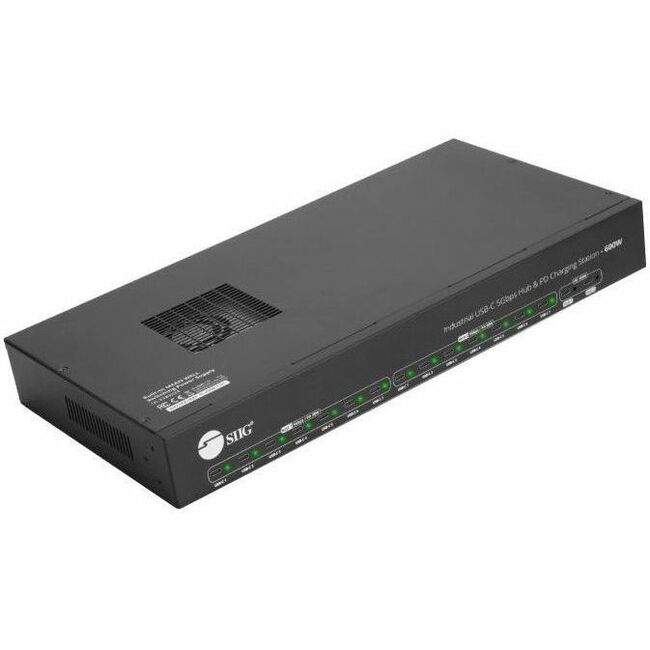

SIIG ID-US0B11-S2 INDUSTRIAL USB-C 5GBPS HUB PD CHARGING STATION - 600W
Mfg Part Number: ID-US0B11-S2 , Item #: 5166893
, PO and Wire.
Power Saving
Industrial Grade USB-C 5Gbps Hub & PD Charging Station - 600W, Adds 16 USB-C Charging Ports, 2-port 100W & 14-port Charging up to 30W; 14 Port USB Hub, Data Transfer up to 5Gbps, PD 2.0 & 3.0 for 5V/3A, 9V/3A and 12V/2.5A, Over Current, Over Voltage, Over Heating, Short Circut, ESD Protection, Metal Housing, UL Certification
Features | Unrivaled Charging Capability
- 600W total power output ensures sufficient power for all connected devices
- 16 USB-C charging ports
- 2 ports deliver up to 100W for fast charging laptops and tablets
- 14 ports offer up to 30W for charging smartphones, wearables, and other devices
- Supports PD 2.0 & 3.0 ensuring compatibility with a wide range of devices
- Multiple voltage outputs: 5V/3A, 9V/3A, and 12V/2.5A for flexible charging options
- Built-in Meanwell brand power IC with UL certification
USB 5Gbps Data Transfer
- Delivers 14-port USB-C data port via one system or Dual system share the dual USB-C input port
- Support data transfer up to 5Gbps and PD charging back to system up to 100W
- Effortlessly handle large files, backups, and data-intensive tasks
Includes USB-C to A+C Adapter Cables
This cable use for iPhone 15, Plus / Pro / Pro Max, iPad Pro, iPad Mini when using data sync on USB-C 1 to 7 port and not compatible with "Host" port
Please plug the USB-A to C adapter to ID-US0B11-S2 USB-C 1 to 7 port, and then plug the USB-C connector of the cable to iPhone 15 or iPad Pro / iPad Mini device. This can let the iPhone 15 or iPad Pro / iPad Mini device charging and do the data sync simultaneously, not just charging
Robust Safety Features
- Over Current Protection: Guard against excessive current and potential damage
- Over Voltage Protection: Ensure safe voltage levels for all connected devices
- Over Heating Protection: Smart temperature control to prevent overheating
- Short Circuit Protection: Instant response to protect your devices from electrical mishaps
- ESD Protection: Safeguard against electrostatic discharge for longevity
- Ensures charging station and the connected devices safe
Multiple Connectivity Ports
- 2x USB-C Input: Host 1&2, PD 100W
- 14x USB-C Output: Data transfer up to 5Gbps, PD 30W
19" Rack Mountable Metal Housing
Heat dissipation and durable metal shell rack, can be mounted into a standard 1U of EIA-standard 19-inch rack using ear-mounts (included)
Industrial Grade Durability
Withstands wear and tear in various harsh environments
Power Saving
It is designed with a power switch to allow users to conserve energy when the hub is not in use. There is also a built-in LED to indicate power status
Automatic Temperature Control
Enables to turn on/off the fans automatically according to the temperature setup
- >55°C: Start the fans automatically
- <55°C: Cut off the fans automatically
| General Information | |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | ID-US0B11-S2 |
| Manufacturer Website Address | http://www.siig.com |
| Brand Name | SIIG |
| Product Name | 16-port Industrial 600W USB-C PD Charging Station with 5Gbps USB Hub |
| Packaged Quantity | 1 |
| Product Type | AC Adapter |
| Technical Information | |
| Device Supported | iPhone |
| Device Supported | Portable Gaming Console |
| Device Supported | AirPod |
| Device Supported | iPad |
| Device Supported | Hard Disk Drive |
| Device Supported | Tablet PC |
| Device Supported | Notebook |
| Device Supported | USB Type C Device |
| Device Supported | Smartphone |
| Device Supported | MacBook |
| Device Supported | iPad mini |
| Device Supported | iPad Pro |
| Universal Adapter | Yes |
| Cable Length | 3.28 ft |
| Features | Overcurrent Protection |
| Features | Overvoltage Protection |
| Features | Short Circuit Protection |
| Features | LED Indicator |
| Features | Overheat Protection |
| Cables Included Detail | 2 x USB-C to C Cable (1m) |
| Cables Included Detail | 3 x USB-C to A + C adapter Cable |
| Interfaces/Ports | |
| USB Type-C | Yes |
| Number of USB Type-C Ports | 16 |
| USB Power Delivery | 2 x Type-C 100W |
| Power Description | |
| Input Voltage | 120 V AC |
| Frequency | 60 Hz |
| Frequency | 50 Hz |
| Output Voltage | 5 V DC |
| Output Voltage | 9 V DC |
| Output Voltage | 12 V DC |
| Maximum Output Power | 600 W |
| Maximum Input Current | 12 A |
| Maximum Output Current | 3 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 2.2" |
| Width | 17.3" |
| Depth | 8.1" |
| Weight (Approximate) | 6.38 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 158°F (70°C) |
| Miscellaneous | |
| Package Contents |
|
| Compatibility |
Apple Products:
|
| Certifications & Standards |
|
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
