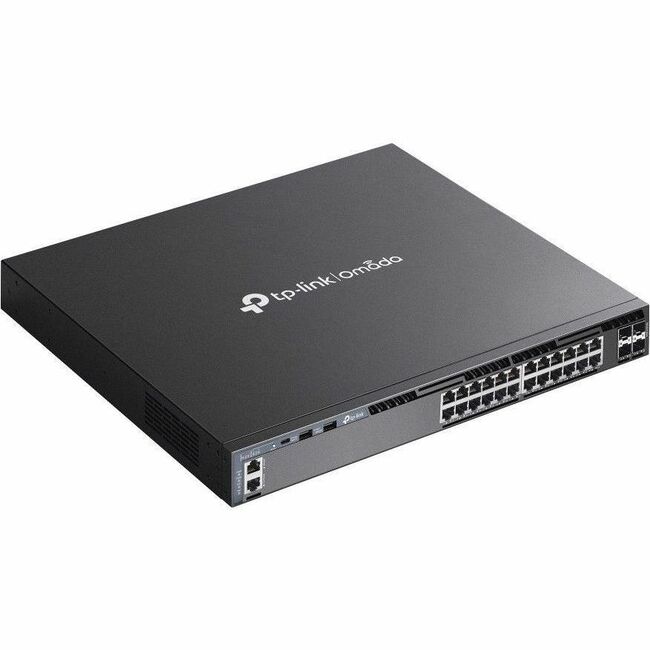

TP LINK TP-Link SWT SG6428X Omada 24-Port Gigabit Stackable L3 Managed Switch Retail
Mfg Part Number: SG6428X , Item #: 5166642
Image may not reflect the actual item.
Price: $1,131.47
Quantity:
More to Come
Last Updated: Sep 07, 2025
No Sales Tax except these states
, PO and Wire.
- 24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots
- 128 Gbps switching capacity per unit
- Physical stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two internal fixed power supplies, VRRP, and ERPS
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
Main Specification
| General Information | |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | SG6428X |
| Manufacturer Website Address | http://www.tp-link.com/us |
| Brand Name | TP-Link |
| Product Line | Omada |
| Product Model | SG6428X |
| Product Name | Omada 24-Port Gigabit Stackable L3 Managed Switch with 4 10G Slots |
| Product Type | Layer 3 Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Stack Port | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 1 × RJ45 Console Port |
| Port/Expansion Slot Details | 2 × USB 2.0 Ports |
| Port/Expansion Slot Details | 4 × 10G SFP+ Expansion Port |
| Port/Expansion Slot Details | 24 × 10/100/1000BASE-T RJ45 Network Ports |
| Port/Expansion Slot Details | 1 × RJ45 Management Port |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | Ethernet |
| Network Technology | 10GBase-X |
| Network Technology | 10/100/1000Base-T |
| Maximum Data Transfer Rate | 1.25 GB/s |
| I/O Expansions | |
| Total Number of Expansion Slots | 4.0 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Network & Communication | |
| Networking Standards | IEEE 802.1p |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Power Source | Power Supply |
| Number of Power Supplies Installed | 2 |
| Power Consumption | 28.40 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 17.3" |
| Depth | 15" |
| Miscellaneous | |
| Application/Usage | Enterprise |
| Application/Usage | Business |
