SILVERSTONE

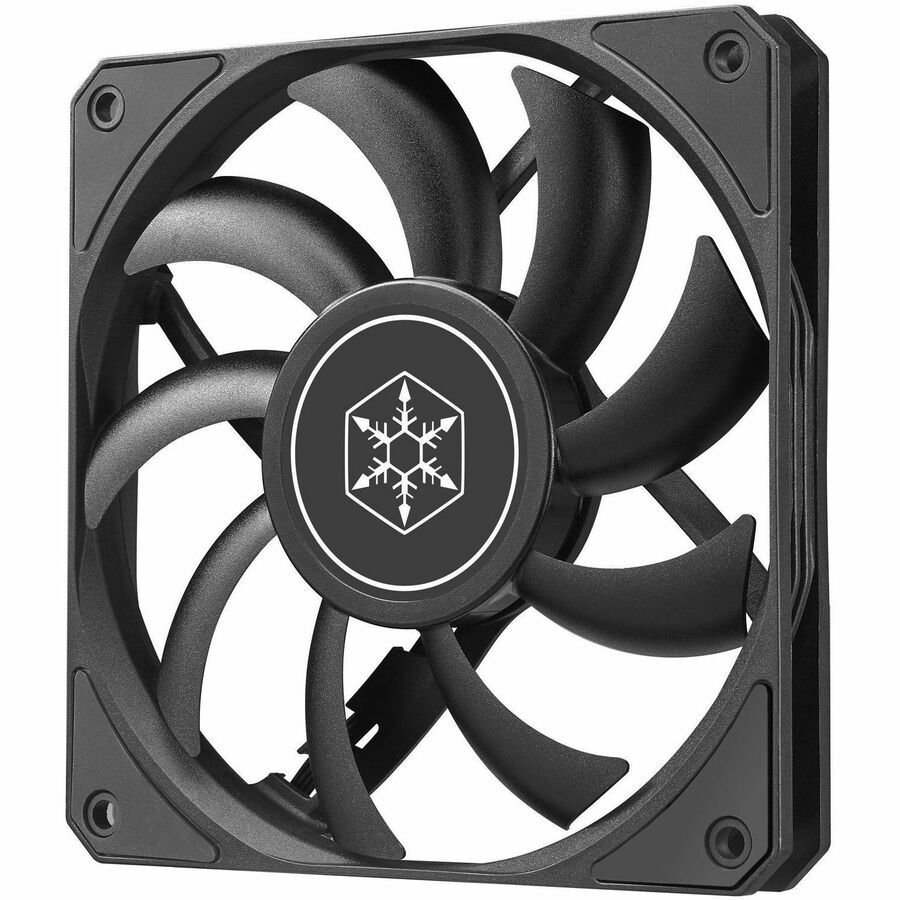

SST-AS120B SilverStone Air Slimmer 120 - case fan - slim
Mfg Part Number: SST-AS120B , Item #: 5166585
, PO and Wire.
Slimmer in size but statistically significant

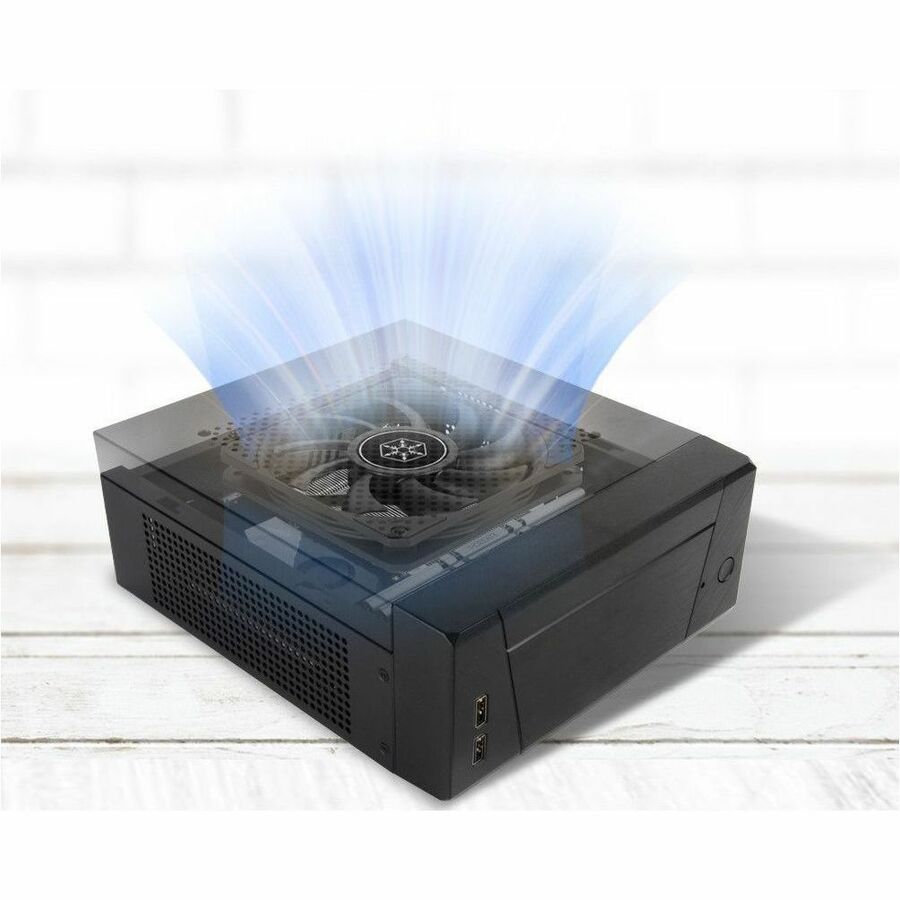

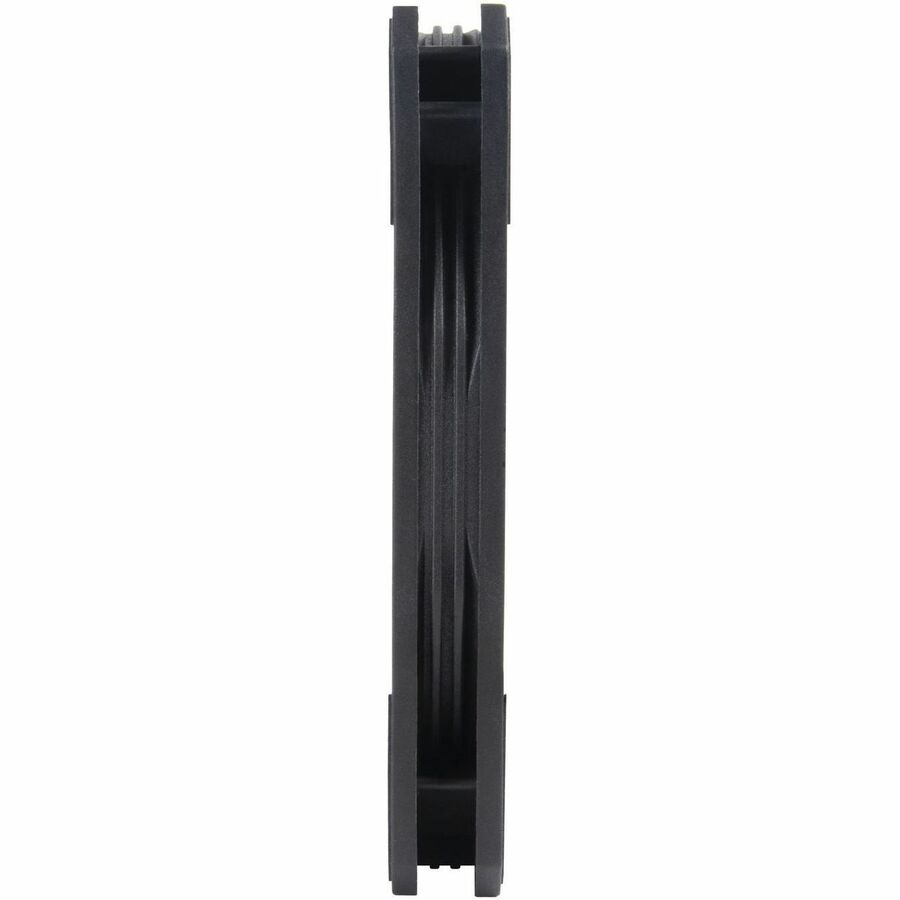

Air Slimmer 120 is a 15.6mm thick slim fan engineered to achieve maximum performance in space-limited systems

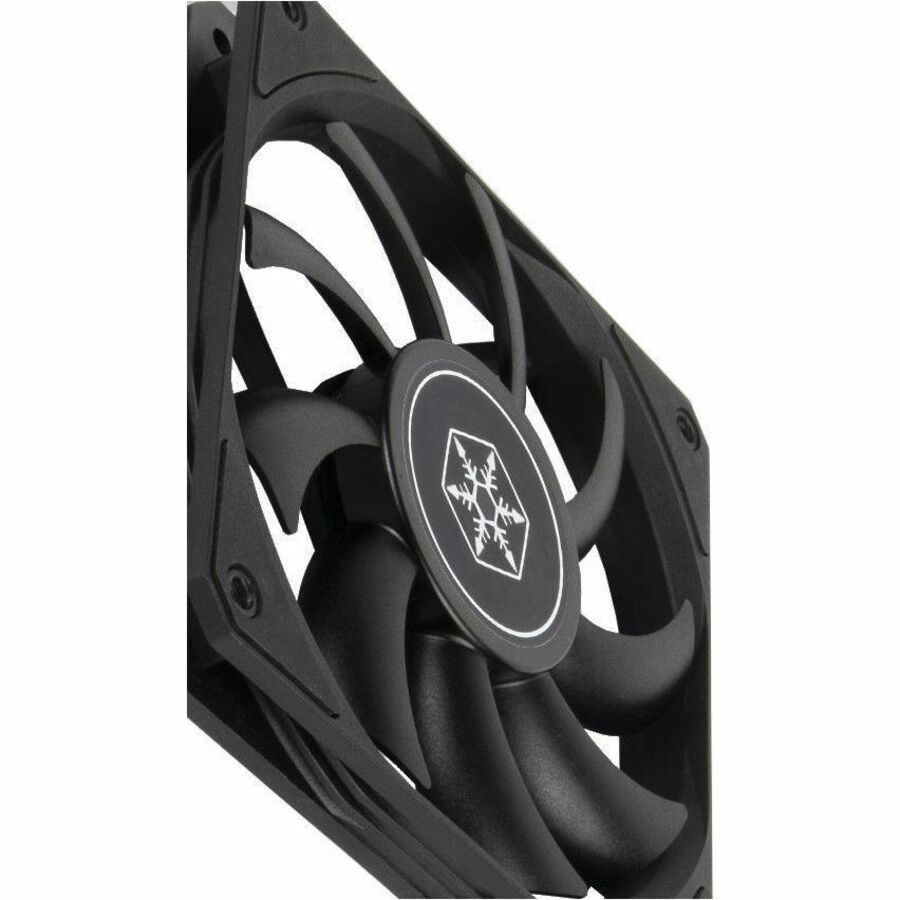

Scimitar fan blade design
Air Slimmer 120 features 9 scimitar fan blade designed for increased air pressure and high airflow rate, enabling quick heat dissipation through radiators or heatsinks

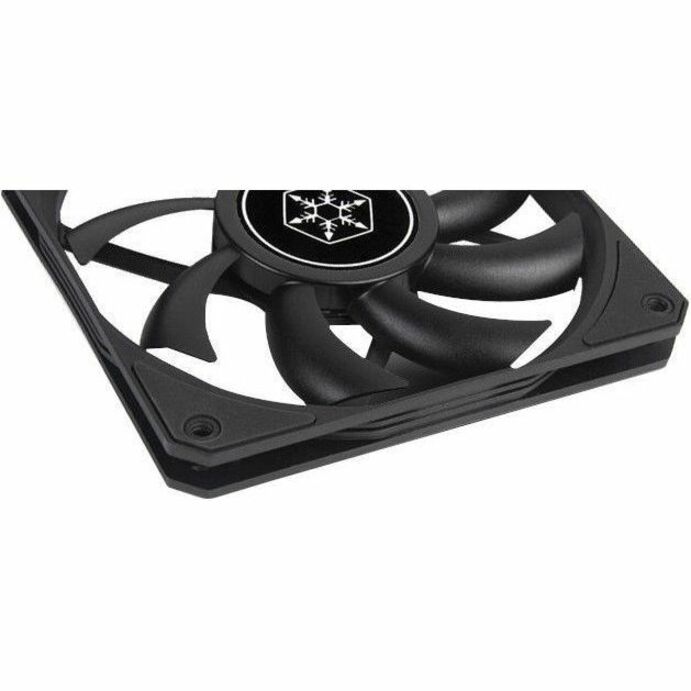

Unique design meets precision engineering

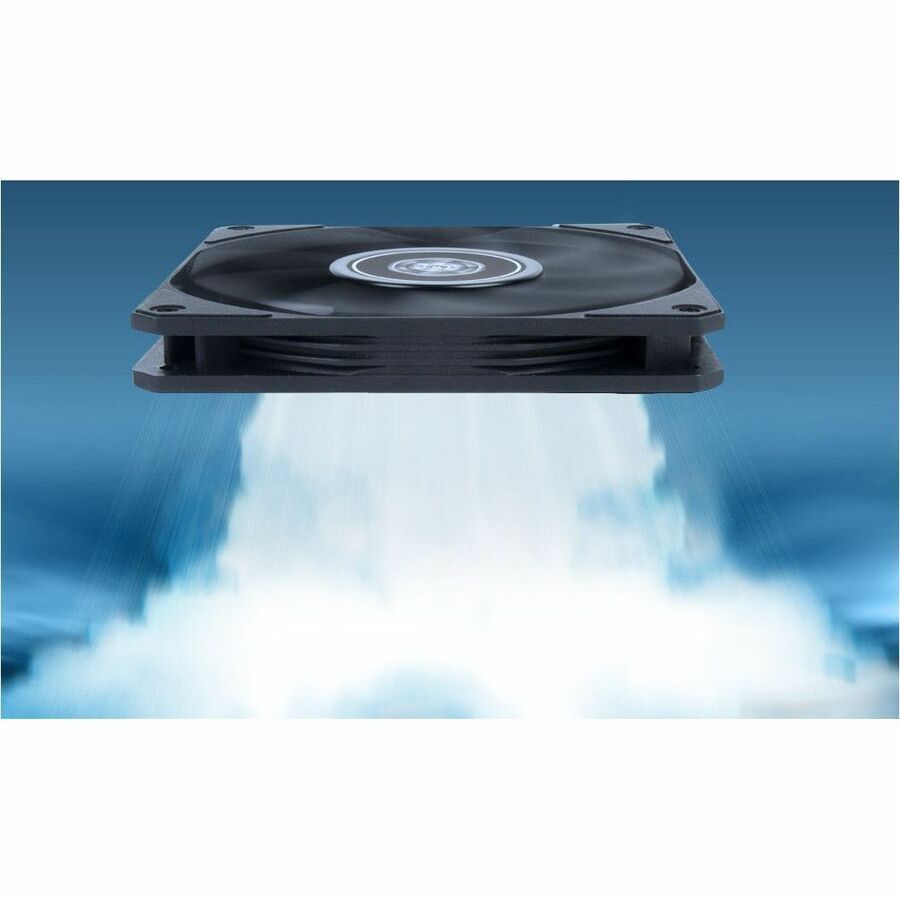

With the high efficiency fan blades, complemented by a specially designed grille with beveled intake edge, Air Slimmer 120 provides rapid exhaust efficiency where it's designed to perform best in
Premium motor & bearing construction
Equipped with superior all-copper FDB and actively-cooled motor which allows Air Slimmer 120 to exhibit a low level of friction with high durability and operational efficiency
| General Information | |
| Manufacturer | SilverStone Technology, Inc |
| Manufacturer Part Number | SST-AS120B |
| Manufacturer Website Address | http://www.silverstonetek.com |
| Brand Name | SilverStone |
| Product Line | Air Slimmer 120 |
| Product Model | SST-AS120B |
| Product Name | Air Slimmer 120 Cooling Fan |
| Packaged Quantity | 1 |
| Product Type | Cooling Fan |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Fan Speed (Min) | 0 rpm |
| Fan Speed (Max) | 1800 rpm |
| Minimum Airflow | 0 CFM |
| Maximum Airflow | 63.67 CFM |
| Noise Levels (A-Weighted) | 31.7 dB(A) |
| Maximum Air Pressure | 2.42mmH2O |
| Interfaces/Ports | |
| Connectors | 4 pin PWM |
| Power Description | |
| Rated Current | 320 mA |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Plastic |
| Maximum Fan Diameter | 4.72" |
| Fan Height | 0.61" |
| Fan Width | 4.72" |
| Fan Depth | 4.72" |
| Miscellaneous | |
| Application/Usage | Heatsink |
| Application/Usage | Radiator |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
