Do you need to accelerate the performance of your mixed use applications?
HPE NVMe Mainstream Performance Mixed Use (MU) Enterprise and Datacenter Standard Form Factor (EDSFF) E3.S Solid State Drives are well suited for high I/O applications that require a balanced performance between reads and writes to deliver high performance and endurance for data intensive applications. NVMe SSDs communicate directly to applications via the PCIe bus to boost I/O bandwidth and reduce latency.
HPE NVMe Mainstream Performance MU EDSFF E3.S SSDs are advanced data center drives customized for greater performance and endurance in a cost-effective design. It is designed to utilize the high bandwidth of PCIe Gen 5 in select servers for mixed use workloads requiring outstanding IOPS per watt and cost per IOPS as an upgrade from SATA SSDs.
Features | High Performance, Exceptional Reliability, and Efficiency for Faster Business Results
HPE NVMe Mainstream Performance Mixed Use Enterprise and Datacenter Standard Form Factor (EDSFF) E3.S Solid State Drives are ideal for Big Data analytics, cloud computing, high performance compute, business intelligence, database applications and virtualization.
Achieve higher IOPS to enhance the performance of your enterprise servers while maintaining data accuracy with full data-path error detection.
Improved thermals, power, and scalability provide better system efficiency for high I/O applications.
Faster PCIe Gen 5 technology is available with EDSFF E3.S SSDs.
Improved Design and Efficiency for Increased Performance on Gen 11 Servers
Dramatically increase density with a 1U server that can fit 20 E3.S or 10 E3.S 2T drives, or a 2U server that can fit 36 E3.S or 18 E3.S 2T drives.
Improve power management and density while utilizing less power.
| General Information | |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | P69243-B21 |
| Manufacturer Website Address | http://www.hpe.com |
| Brand Name | HPE |

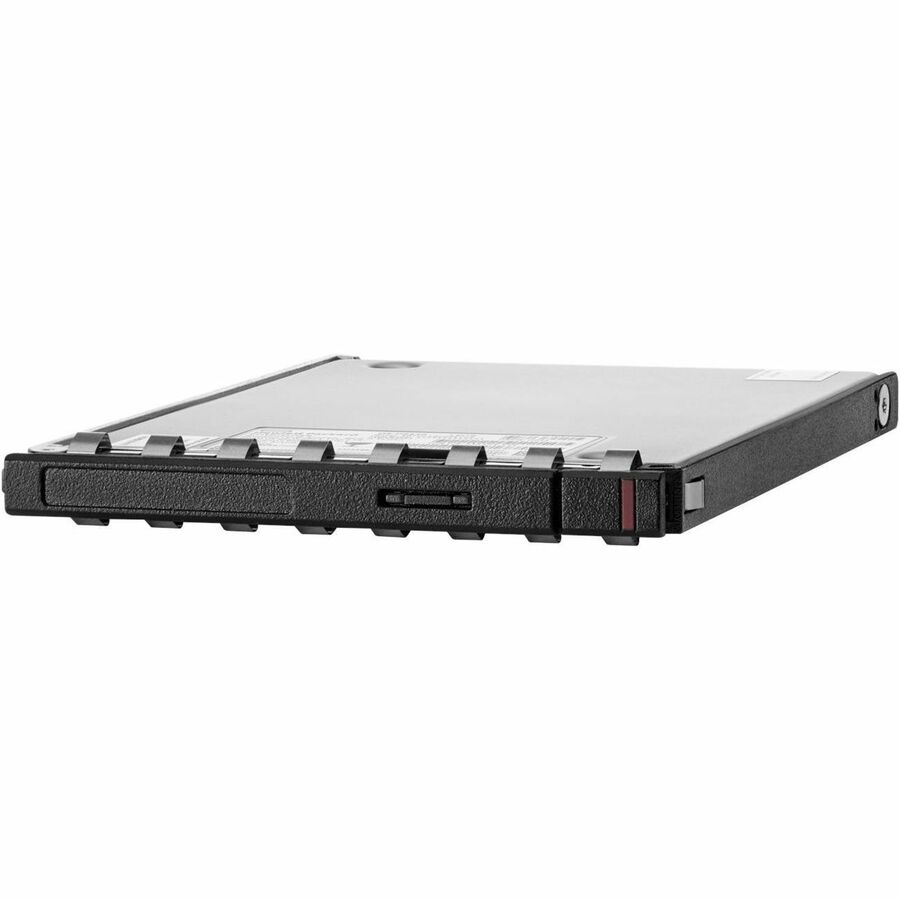

| Product Name | 3.2TB NVMe Gen5 Mainstream Performance Mixed Use E3S EC1 CD8P SSD |
| Product Type | Solid State Drive |
| Technical Information | |
| Storage Capacity | 3.20 TB |
| Drive Performance | |
| Random 4KB Read | 1262557IOPS |
| Random 4KB Write | 423326IOPS |
| Endurance (DWPD) | 3 |
| Endurance Type | Mixed Use |
| Interfaces/Ports | |
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 5.0 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | E3.S |
| Hot Pluggable | Yes |
| Height | 4.6" |
| Width | 7.9" |
| Depth | 10" |
| Weight (Approximate) | 1.19 lb |
| Miscellaneous | |
| Compatibility | HPE Gen 11 Servers |
| Device Supported | Server |
| Device Supported | Cloud Computing |
| Device Supported | Data Center |
