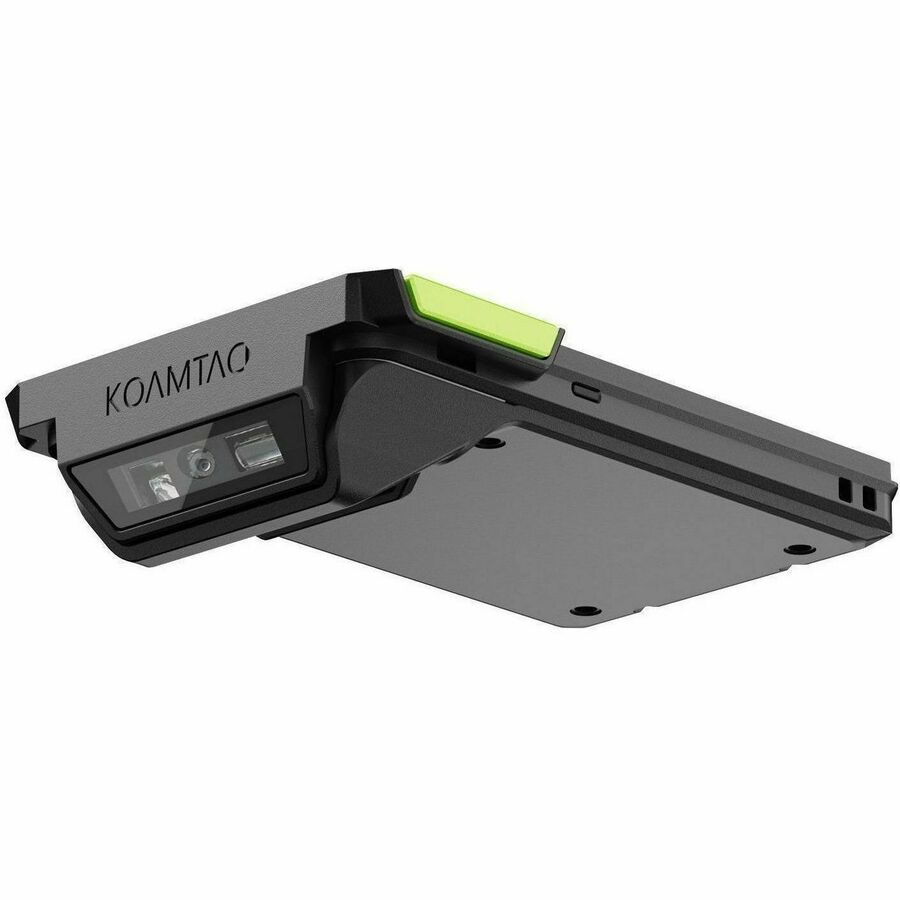

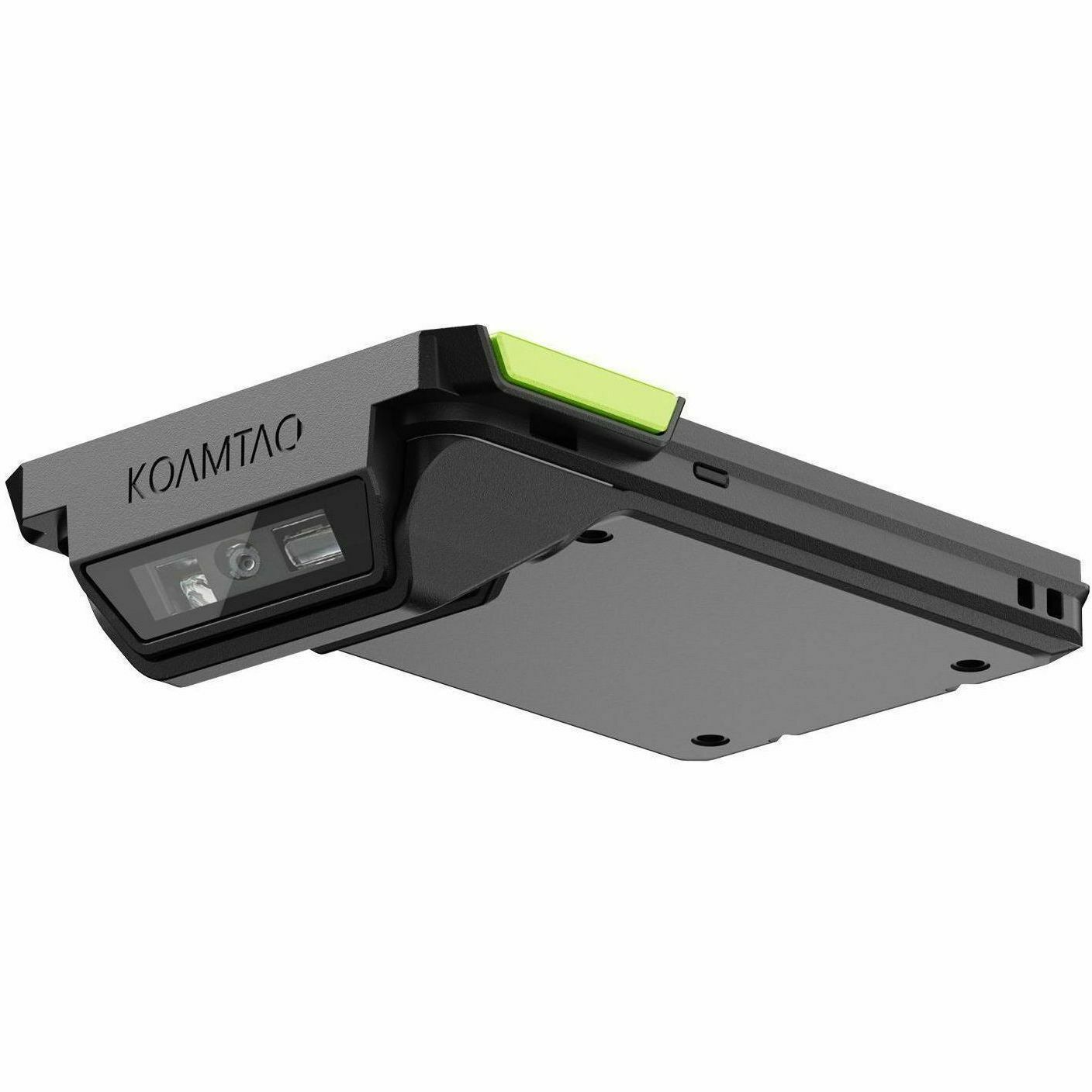

KOAMTAC 512980 KDC1100-ER-AIP14 SMARTSLED SCANNER FOR IPHONE14

Mfg Part Number:  512980
Image may not reflect the actual item.
Price: $724.74
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 07, 2025
No Sales Tax except these states
, PO and Wire.

Innovative leap forward in SmartSled technology.

KDC1100 SmartSled features a sleek design and premium components for superior scanning. It connects to Android and iOS devices via a Custom Case, ensuring future readiness. With 1D/2D scanning and an IP65 rating, it delivers an outstanding experience.

Well-Equipped

KDC1100 SmartSled features a downward-angled scan engine for exceptional performance. With standard, medium, and extended-range 2D imager options, it offers flexibility for near- and long-distance tasks. Contact us for details on a flat-angled scan engine variant.

Future-Ready

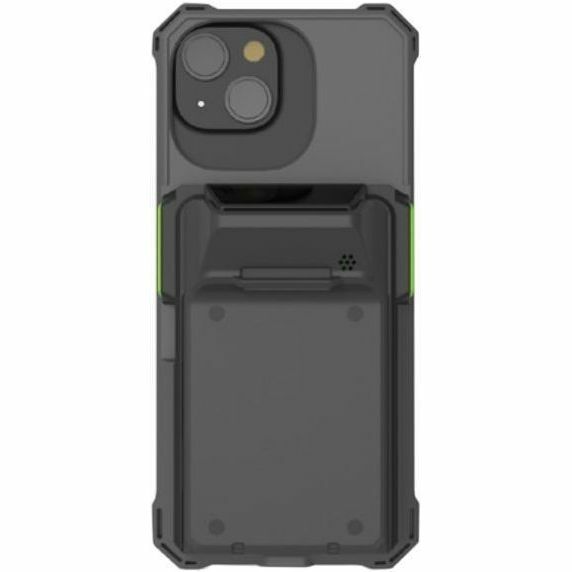

KDC1100 SmartSled effortlessly connects to Android and iOS devices via its Custom Case. It supports USB (for Android & iPhone 15), Lightning (for iPhone 13 & 14), and Bluetooth 5.0. Upgrading to a new device is simple with a Custom Case replacement, and its spacer system allows continued use during device changes.

Modular Design for Added Functionality

KDC1100 SmartSled offers a modular design, enabling users to attach various companions for enhanced functionality. Options include UHF Readers, an HF Reader, a 2,000mAh Extended Battery, and a Pistol Grip with a 6,000mAh Extended Battery.

Compatibility

Available for Apple iPhone 13/Pro/Pro Max, iPhone 14/Pro/Plus/Pro Max, iPhone 15/Pro/Plus/Pro Max models, and iPhone 16/Pro/Plus/Pro Max models; and Samsung Galaxy A35 and XCover7.

Main Specification
General Information
Manufacturer KoamTac, Inc
Manufacturer Part Number 512980
Manufacturer Website Address http://www.koamtac.com
Brand Name KoamTac
Product Model KDC1100
Product Name KDC1100 Barcode SmartSled
Product Type Barcode Scanner
Technical Information
Connectivity Technology Cable/Wireless
Scanning Capability 1D
Scanning Capability 2D
Barcode Symbology Supported

1D:

  • Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of 5, MSI, Plessey, PosiCode, GS1 Omni, GS1 Limited, GS1 Expanded, Straight 2 of 5 Industrial, Straight 2 of 5 IATA, TCL39, Telepen, Tri-Optic, UPC-A, UPC-E0, UPC-E1

2D:

  • Aztec Code, Aztec Runes, Codablock F, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, Han Xin Code

Postal Codes:

  • POSTNET, Planet Code, British Post, Canadian Post, Netherlands (KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post
Image Sensor Type Imager
Scanner Range Extended Range
Scanning Distance 112.10"
Drop Specification
  • 5' (1.5 m)
Minimum Element Resolution (Code 39) 20 mil
Network & Communication
Bluetooth Yes
Interfaces/Ports
Host Interface USB
Battery Information
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 750 mAh
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -4°F (-20°C) to 140°F (60°C)
Humidity (Non-condensing) 5% to 95%
Miscellaneous
Compatibility
  • APPLE iPhone14
Ingress Protection (IP) Rating IP65
Platform Supported Android
Platform Supported Windows
Platform Supported iOS
Platform Supported Mac
Environmental Compliance Restriction of Hazardous Substances (RoHS)
