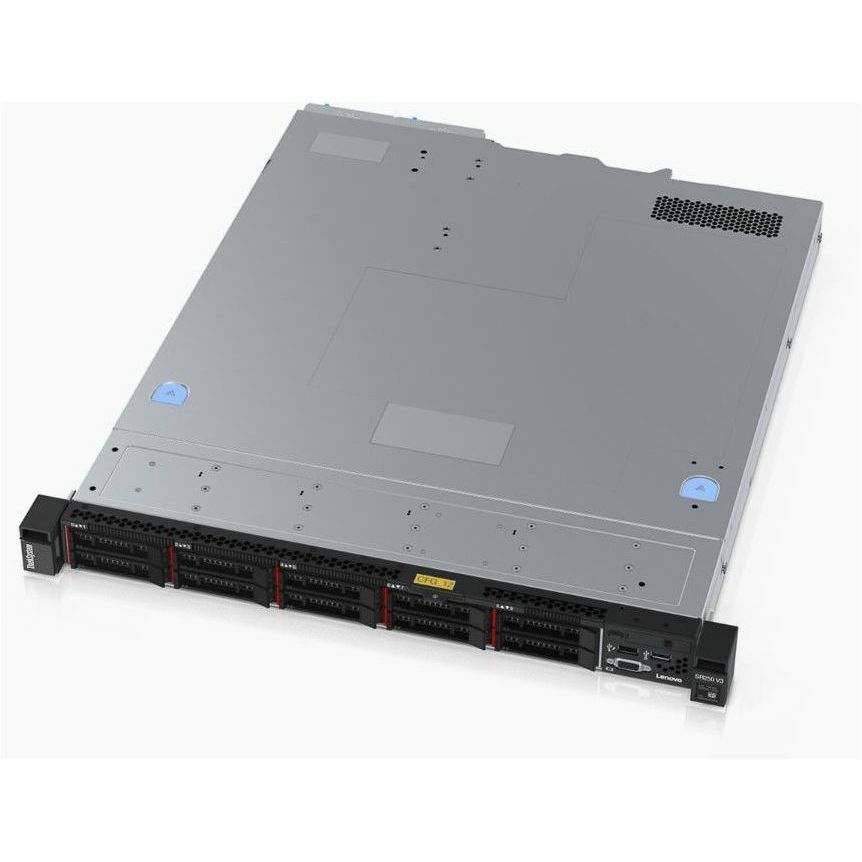

LENOVO 7DCLA01XNA THINKSYSTEM SR250 V3 80W 16G

The Lenovo ThinkSystem SR250 V3 is a high-value single-socket 1U rack server for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security. The server supports one Intel Xeon E-2400 Series processor (formerly codenamed "Raptor Lake-E (RPL-E)") or Intel Pentium ("Alder Lake (ADL)") and up to 128 GB of 4800 MHz TruDDR5 ECC memory.

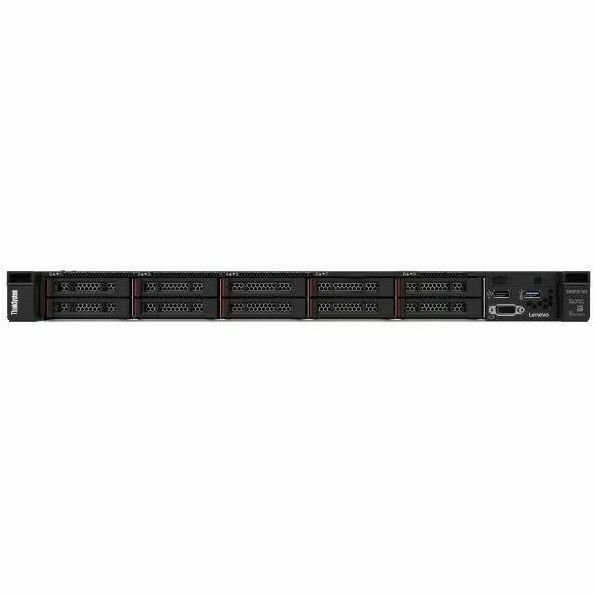

Flexible and scalable internal storage configurations include up to ten 2.5-inch or four 3.5-inch drives with affordable software RAID or advanced hardware RAID protection and a wide selection of drive sizes and types, including NVMe PCIe SSDs, SATA SSDs, and SAS/SATA HDDs. Also, it features integrated dual-port 1 Gb Ethernet NIC and additional PCIe expansion slots for hardware RAID protection, network scalability, and external storage connectivity.

General Information
Manufacturer	Lenovo Group Limited
Manufacturer Part Number	7DCLA01XNA
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Line	ThinkSystem
Product Series	SR250 V3
Product Model	7DCLA01XNA
Product Name	ThinkSystem SR250 V3 7DCLA01XNA Server
Product Type	Server
Processor
Number of Processors Supported	1
Number of Processors Installed	1
Processor Type	Xeon
Processor Model	E-2456
Processor Core	Hexa-core (6 Core)
Processor Speed	3.30 GHz
Cache	12 MB
Chipset
Chipset Manufacturer	Intel
Chipset Model	C266
Memory
Standard Memory	16 GB
Maximum Memory Supported	128 GB
Memory Technology	TruDDR5
Memory Clock Speed	4.80 GHz
Error Checking	ECC
Total Number of Memory Slots	4
Number of Occupied Memory Slots	1
Controllers
Controller Type	Serial ATA
I/O Expansions
Number of Total Expansion Bays	8
Number of Internal 2.5" Bays	8
Number of SFF Bays	8
Total Number of Expansion Slots	3
PCI Express Details	x8 LP, x8 LP, x8 Int
Riser Card	slot1: PCIe Gen4 x8 in x8 (LP); slot2: PCIe Gen4 x8 in x16 slot (LP)
Display & Graphics
Graphics Controller Model	G200
Graphics Memory Capacity	16 MB
Network & Communication
Ethernet Technology	Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports	4
Number of USB 2.0 Ports	1
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
VGA	Yes
Number of VGA Ports	1
Remote Management	Yes
Remote Management Controller	XClarity Controller (XCC2) Standard
Operating System
Operating System Supported	Red Hat Enterprise Linux 9.4
Operating System Supported	Red Hat Enterprise Linux 9.3
Operating System Supported	Red Hat Enterprise Linux 9.2
Operating System Supported	Red Hat Enterprise Linux 8.8
Operating System Supported	Windows Server 2022
Operating System Supported	Red Hat Enterprise Linux 8.10
Operating System Supported	Red Hat Enterprise Linux 8.9
Operating System Supported	SUSE Linux Enterprise Server 15 SP5
Operating System Supported	Ubuntu 22.04 LTS x64
Power Description
Input Voltage	230 V AC
Input Voltage	120 V AC
Number of Power Supplies Supported	2
Number of Power Supplies Installed	1
Plug/Connector Type	C13
Maximum Power Supply Wattage	800 W
Power Source	Power Supply
Physical Characteristics
Form Factor	Rack
Rack Height	1U
Height	1.7"
Width	17.1"
Depth	22.1"
Weight (Approximate)	25.22 lb
Miscellaneous
Package Contents	ThinkSystem SR250 V3 7DCLA01XNA Server Documentation flyer Toolless Friction Rail v2 1 x Power Cord
Security Features	Power-on password Administrator's Password Trusted Platform Module ,supporting TPM 2.0.
Energy Star	Yes
Environmentally Friendly	Yes
Environmental Certification	Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)
Energy Efficiency Certification	ENERGY STAR 4.0
Energy Efficiency Certification	China Energy Conservation Program (CECP)
Energy Efficiency Compliance	Energy-related Products Directive Lot 9 (ErP Lot 9)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	3 Year
Additional Warranty Information	Three-year customer-replaceable unit (CRU) and onsite limited warranty with next business day response.
