Elo TouchSystems
Elo TouchSystems E708162 ESY22I7-2UWA-1-MT-6G-2S-WN-64-BK
Mfg Part Number: E708162 , Item #: 5163759
, PO and Wire.

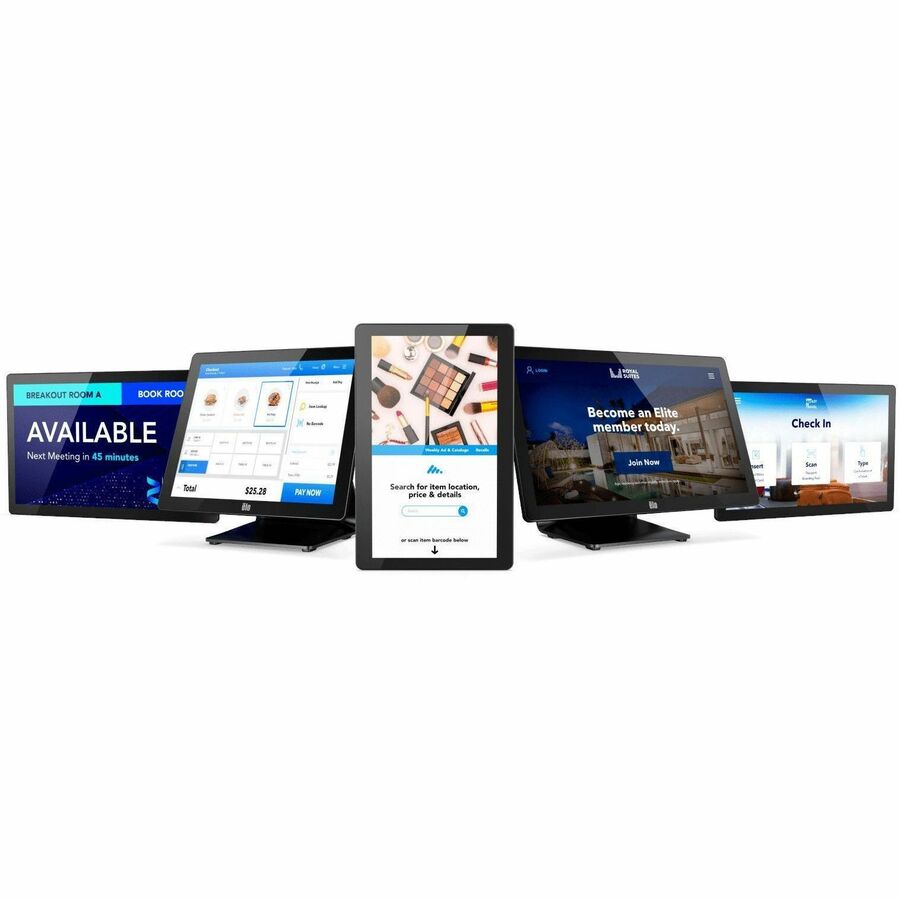

Modular design.Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with
and without stand options, you can easily configure the I-Series
to fit the needs of your business - from signage and point-of-sale
to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the
I-Series with the built-in
VESA mount.
Expand with Edge Connect
Seamlessly attach a variety
of peripherals to the edge of
the touchscreen.
Reliable, securityand performance.
Built with the reliability-tested performance and security of Intel 12thGeneration processors, integrated Trusted Platform Modules, IntelvPro™ and the Windows 10 operating system, the I-Series 3 deliversthe dependability businesses need.
Supportfor Linux.
For added flexibility, the I-Series 3 offers no
OS models, all pretested with Linux SuSE,
Ubuntu and Red Hat operating systems.
Bridge the gap betweenWindows and Android.
Transitioning to Android in the future? Elo Bridgeis the perfect solution. Simply choose the EloWindows device that fits your needs today, andwhen you are ready to transition to Android, youcan use Elo Bridge to migrate your fleet of devices.
| General Information | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E708162 |
| Manufacturer Website Address | http://www.elotouch.com |
| Brand Name | Elo |
| Product Series | I-Series |
| Product Name | I-Series POS Terminal |
| Product Type | POS Terminal |
| Technical Information | |
| Cooling Fan | Fanless |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Form Factor | All-in-One |
| Features | Edge-to-Edge Glass Design |
| Features | Anti-glare |
| Processor & Chipset | |
| Processor Type | Core i7 |
| Processor Speed | 4.40 GHz |
| Processor Cache | 10 MB |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR5 SDRAM |
| Storage | |
| Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | M.2 |
| Display & Graphics | |
| Screen Size | 21.5" |
| Active Display Size (Horizontal) | 18.74" |
| Active Display Size (Vertical) | 10.54" |
| Display Screen Type | LED |
| Panel Technology | In-plane Switching Technology (IPS) |
| Touchscreen | Yes |
| Touchscreen Technology | Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touch Points | 10 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1,000:1 |
| Response Time | 14 ms |
| Color Supported | 16.7 Million Colors |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Graphics Controller Model | Intel UHD Graphics |
| Network & Communication | |
| Wireless LAN | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| USB | Yes |
| Powered USB | Yes |
| USB Type-C | Yes |
| Network (RJ-45) | Yes |
| Cash Drawer Port | Yes |
| Serial Port | Yes |
| RJ-50 | Yes |
| Number of Micro USB 2.0 Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Number of USB Type C Ports | 1 |
| Built-in Devices | |
| Number of Speakers | 2 |
| Speaker Power | 2 W |
| Software | |
| Operating System | Windows 10 IoT Enterprise LTSC (64-bit) |
| Power Description | |
| Power Source | AC Power |
| Power Source | DC Power |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Weight (Approximate) | 22.30 lb |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP54 |
| Energy Star | Yes |
