LENOVO 7DCLA01WNA THINKSYSTEM SR250 V3 55W 16G
Mfg Part Number: 7DCLA01WNA , Item #: 5163376
Image may not reflect the actual item.
Price: $4,283.88
Quantity:
More to Come
Last Updated: Jun 10, 2025
No Sales Tax except these states
, PO and Wire.

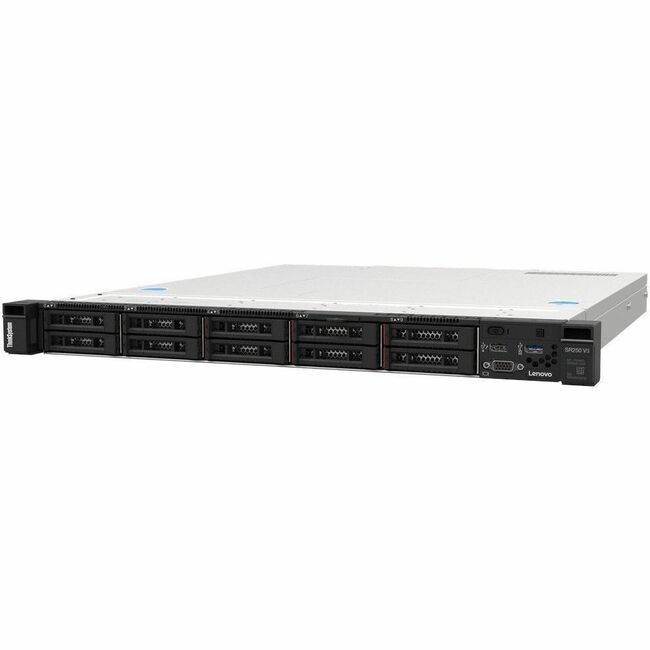

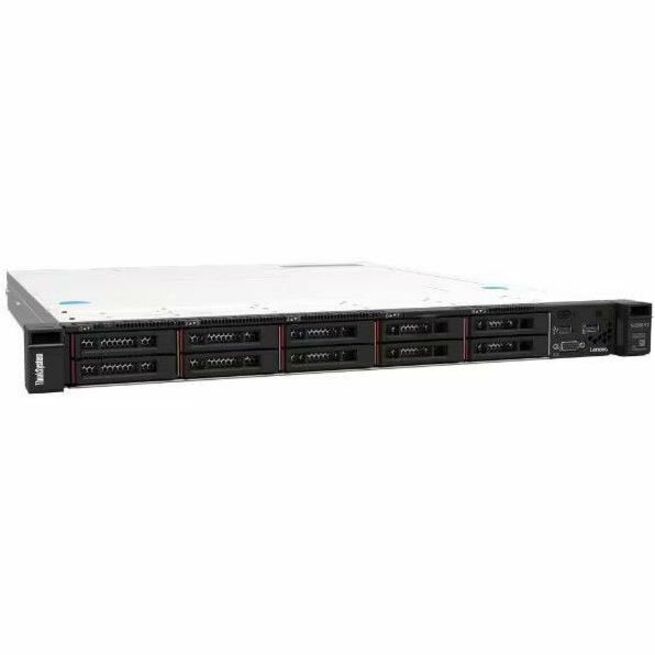

The Lenovo ThinkSystem SR250 V3 is a high-value single-socket 1U rack server for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake-E".
This product guide provides essential presales information to understand the ThinkSystem SR250 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR250 V3 and consider its use in IT solutions.
Main Specification
| General Information | |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7DCLA01WNA |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Brand Name | Lenovo |
| Product Line | ThinkSystem |
| Product Series | SR250 V3 |
| Product Model | 7DCLA01WNA |
| Product Name | ThinkSystem SR250 V3 7DCLA01WNA Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | E-2434 |
| Processor Core | Quad-core (4 Core) |
| Processor Speed | 3.40 GHz |
| Cache | 8 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C266 |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | TruDDR5 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Total Number of Memory Slots | 4 |
| Number of Occupied Memory Slots | 1 |
| Signal Processing | Unregistered (Unbuffered) |
| Controllers | |
| Controller Type | Serial ATA |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Number of SFF Bays | 8 |
| Total Number of Expansion Slots | 3 |
| PCI Express Details | x8 LP, x8 LP, x8 Int |
| Riser Card | slot1: PCIe Gen4 x8 in x8 (LP); slot2: PCIe Gen4 x8 in x16 slot (LP) |
| Display & Graphics | |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| VGA | Yes |
| Number of VGA Ports | 1 |
| Remote Management | Yes |
| Remote Management Controller | XClarity Controller (XCC2) Platinum |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 8.8 |
| Operating System Supported | Red Hat Enterprise Linux 9.2 |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP5 |
| Operating System Supported | Ubuntu 22.04 LTS x64 |
| Operating System Supported | Red Hat Enterprise Linux 9.4 |
| Operating System Supported | Red Hat Enterprise Linux 8.9 |
| Operating System Supported | Red Hat Enterprise Linux 8.10 |
| Operating System Supported | Windows Server 2022 |
| Operating System Supported | Red Hat Enterprise Linux 9.3 |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Plug/Connector Type | C13 |
| Maximum Power Supply Wattage | 300 W |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.1" |
| Depth | 22.1" |
| Weight (Approximate) | 25.22 lb |
| Miscellaneous | |
| Package Contents |
|
| Security Features |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| Environmental Certification | China Environmental Labeling Program (CELP) |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Energy Efficiency Certification | ENERGY STAR 4.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
