SILVERSTONE

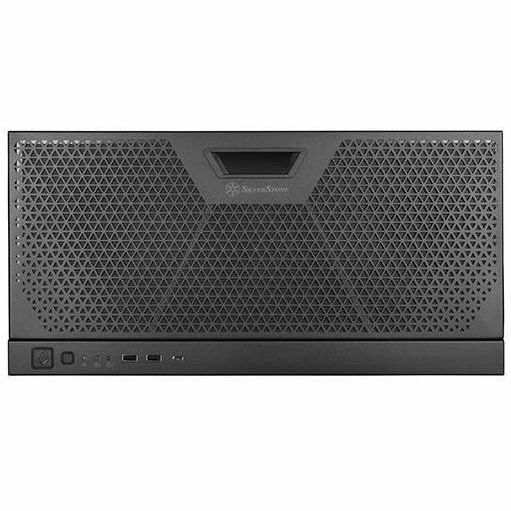

SST-RM51 SilverStone RM51 - rack-mountable - 5U - SSI EEB
Mfg Part Number: SST-RM51 , Item #: 5162951
, PO and Wire.
Dual-purpose chassis - Industrial / Home

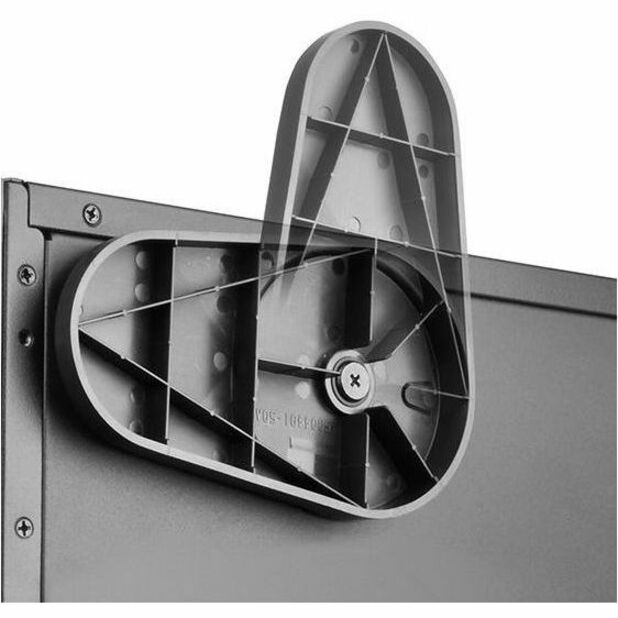

Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal orientations.
Unparalleled rackmount cooling performance

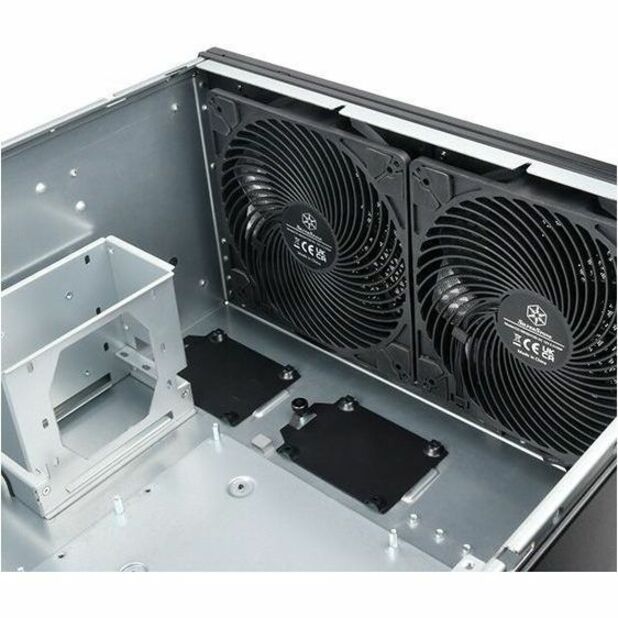

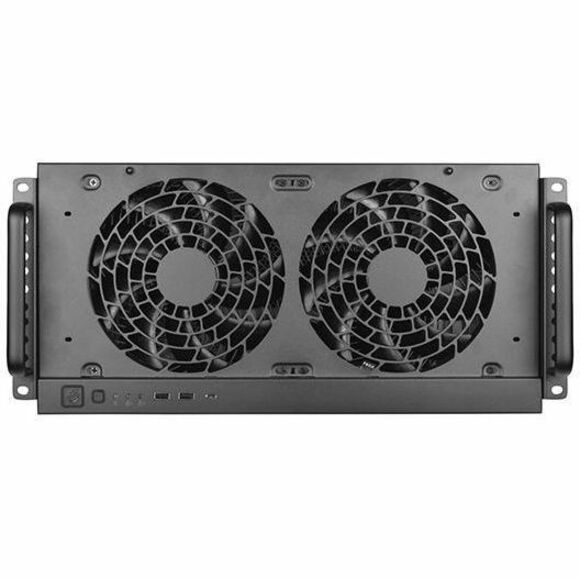

2 x Air Penetrator 184i PRO fans pre-installed to provide excellent system cooling.

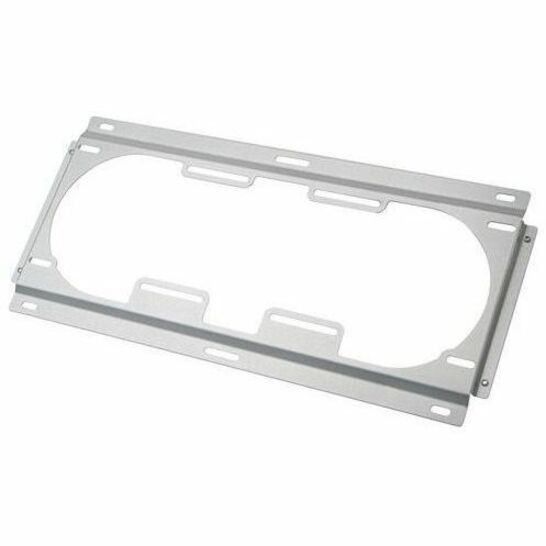

Downward compatible with 3 x 120mm fans which also allows for triple 120mm or dual 180mm liquid cooling radiator.
Tremendous hardware versatility

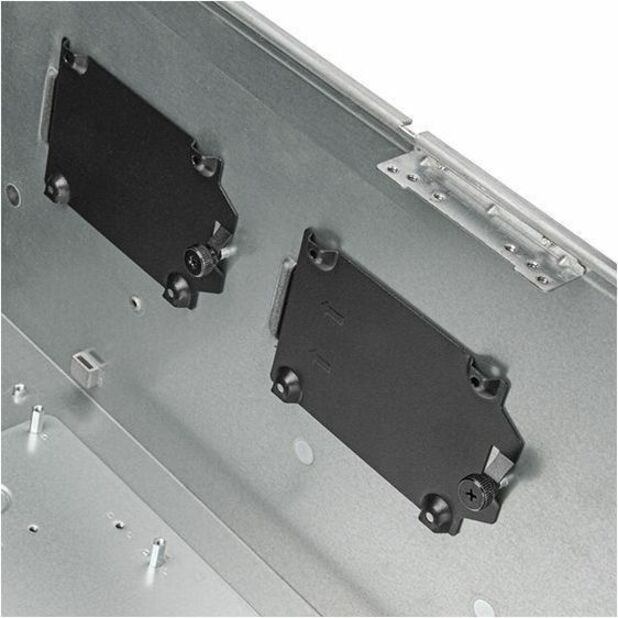

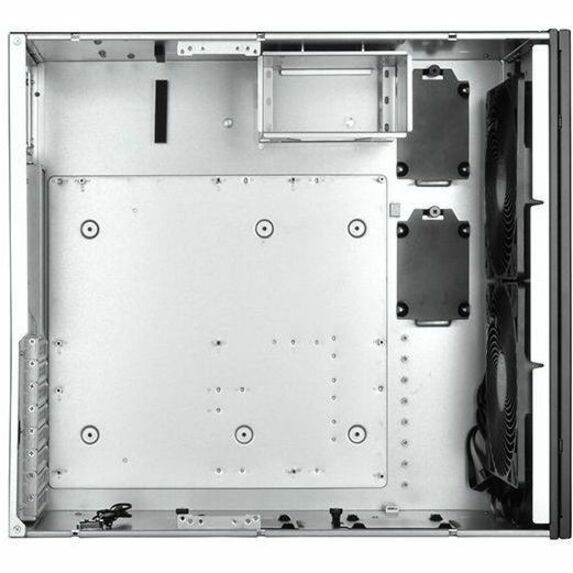

An internal 3.5" drive cage allows installation of 2 x 3.5" HDDs. If it's to be left unoccupied, enables the option of installing a secondary PSU in SFX form factor
Excellent space maximization
To avoid any unforeseen damages to either the motherboard or the graphics cards, an expansion card retainer with storage drive mounting holes is included to prevent sagging of graphics cards while maximizing space utilization

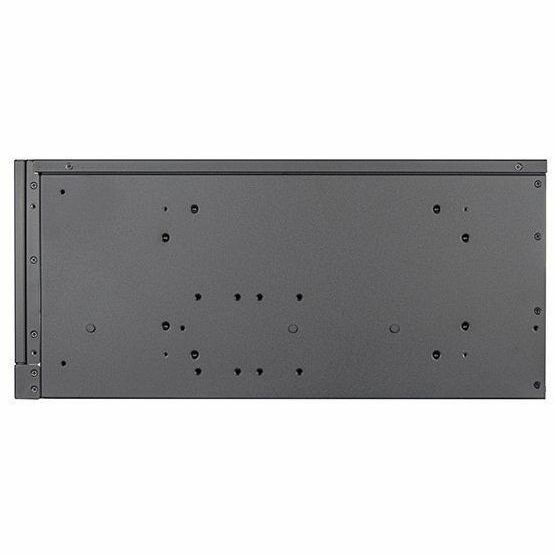

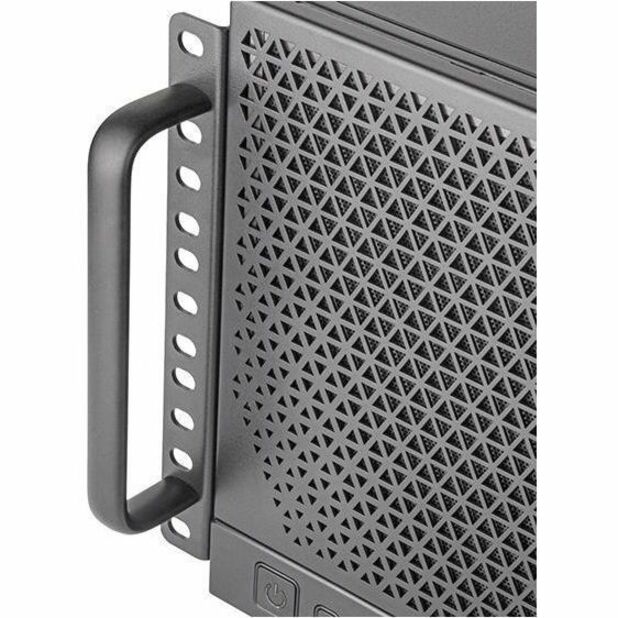

Server rack sliding rails can be easily fitted onto the chassis with the reserved mounting holes.
| General Information | |
| Manufacturer | SilverStone Technology, Inc |
| Manufacturer Part Number | SST-RM51 |
| Manufacturer Website Address | http://www.silverstonetek.com |
| Brand Name | SilverStone |
| Product Model | SST-RM51 |
| Product Name | SST-RM51 Server Case |
| Product Type | Server Case |
| Technical Information | |
| Motherboard Supported | EATX |
| Motherboard Supported | Micro ATX |
| Motherboard Supported | SSI EEB |
| Motherboard Supported | Mini ITX |
| Motherboard Supported | ATX |
| Motherboard Supported | SSI CEB |
| Number of Fans Supported | 1 |
| Number of Fans Installed | 2 |
| Fan Size Supported | 5.51" |
| Fan Size Supported | 4.72" |
| Fan Size Supported | 3.15" |
| Fan Size Supported | 7.09" |
| Installed Fan Size | 7.09" |
| Installed Fan Size Details | 2 x 180mm |
| Bays | |
| Number of Internal 3.5" Bays | 4 |
| Number of Internal 2.5" Bays | 7 |
| I/O Expansions | |

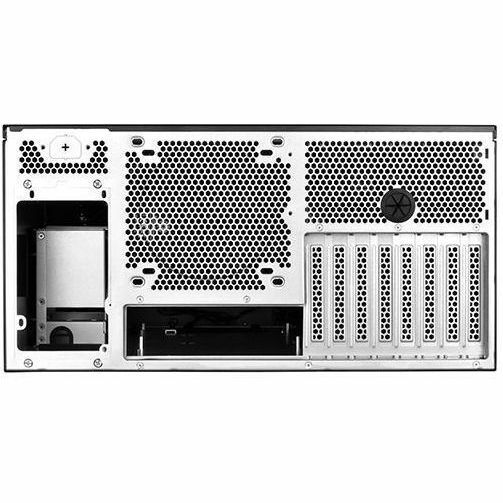

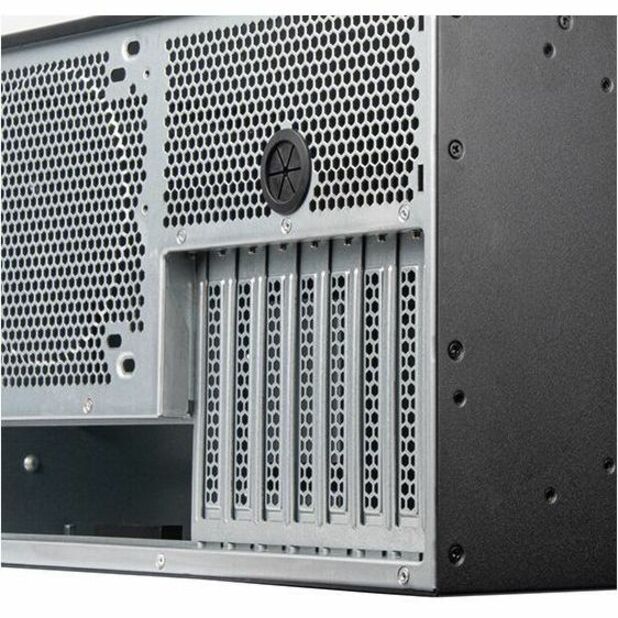

| Total Number of Expansion Slots | 8 |
| Interfaces/Ports | |

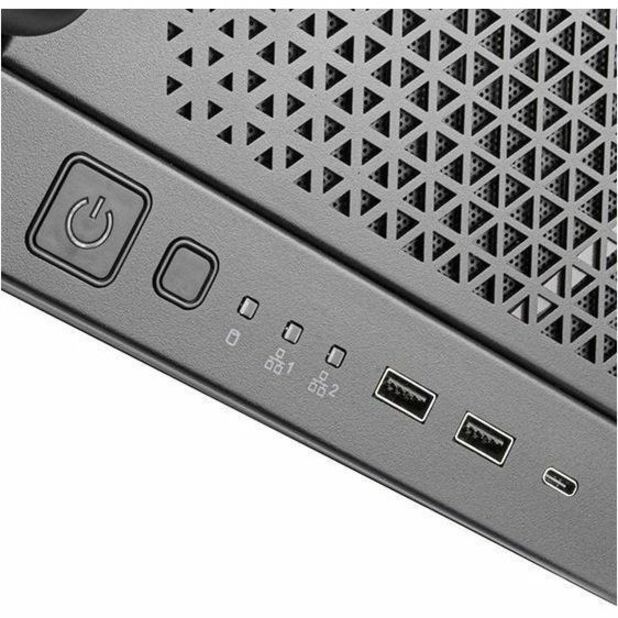

| Total Number of USB Ports | 3 |
| USB Port Details | 1 x USB Type C |
| USB Port Details | 2 x USB 3.0 |
| Front USB | Yes |
| Power Description | |
| Power Supply Installed | No |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Cooler Type | Fan/Liquid Cooler |
| Compatible Rack Unit | 5U |
| Form Factor | Rack-mountable |
| Maximum CPU Cooler Height | 7.56" |
| Maximum PSU Length | 7.48" |
| Maximum GPU Length | 17.91" |
| Height | 8.7" |
| Width | 17.3" |
| Depth | 20.9" |
| Weight (Approximate) | 23.37 lb |
