SILVERSTONE
SST-RM52 SilverStone RM52 - rack-mountable - 5U - SSI EEB
Mfg Part Number: SST-RM52 , Item #: 5162919
, PO and Wire.
Dual-purpose chassis - Industrial / Home

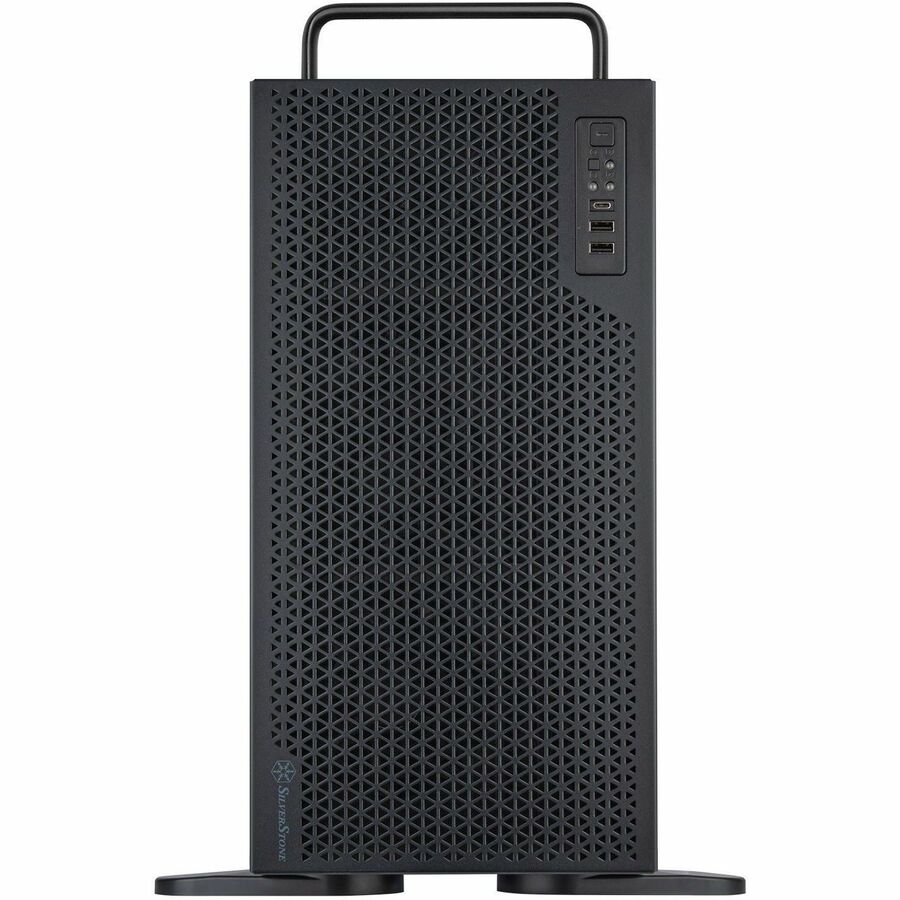

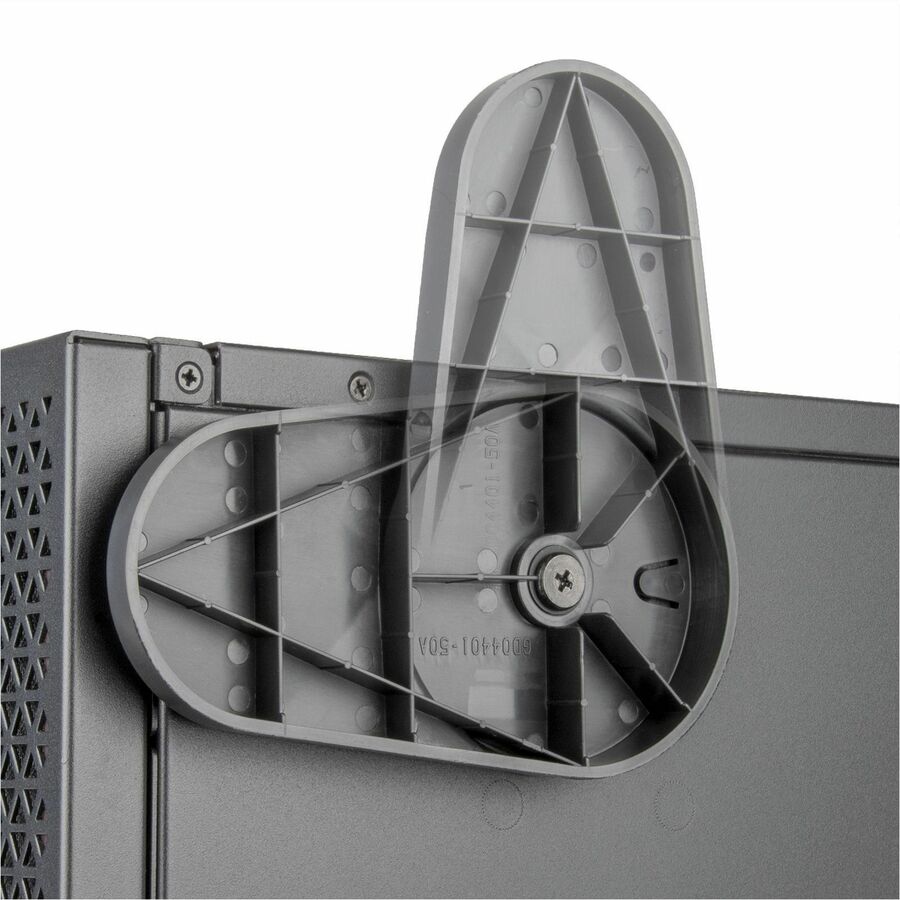

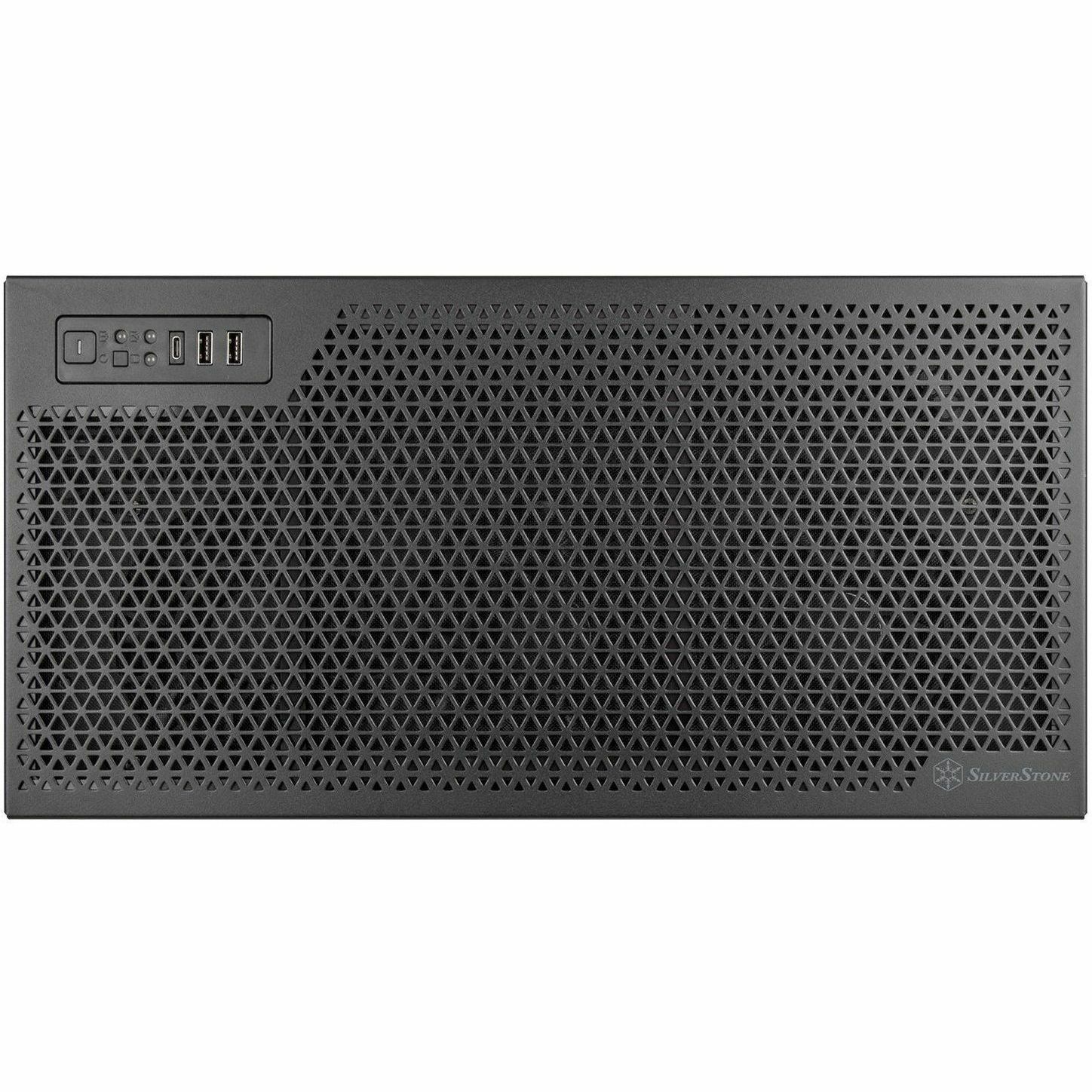

Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal orientations.
Unparalleled cooling performance
Cooling performance up another notch!

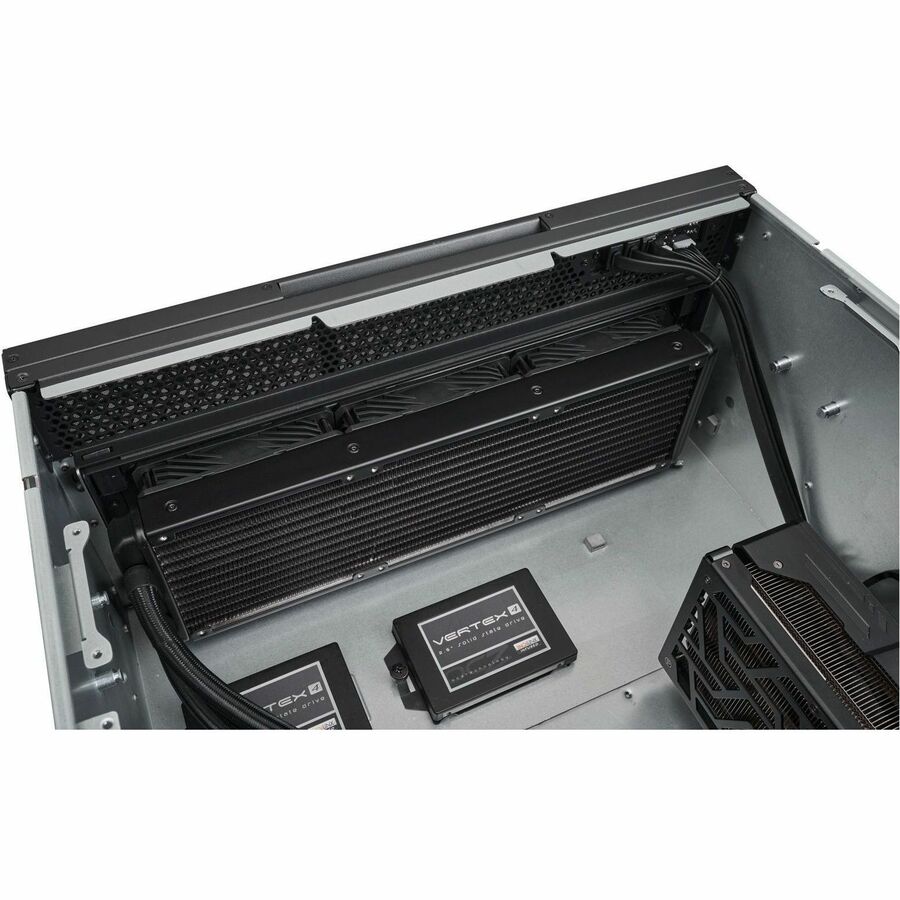

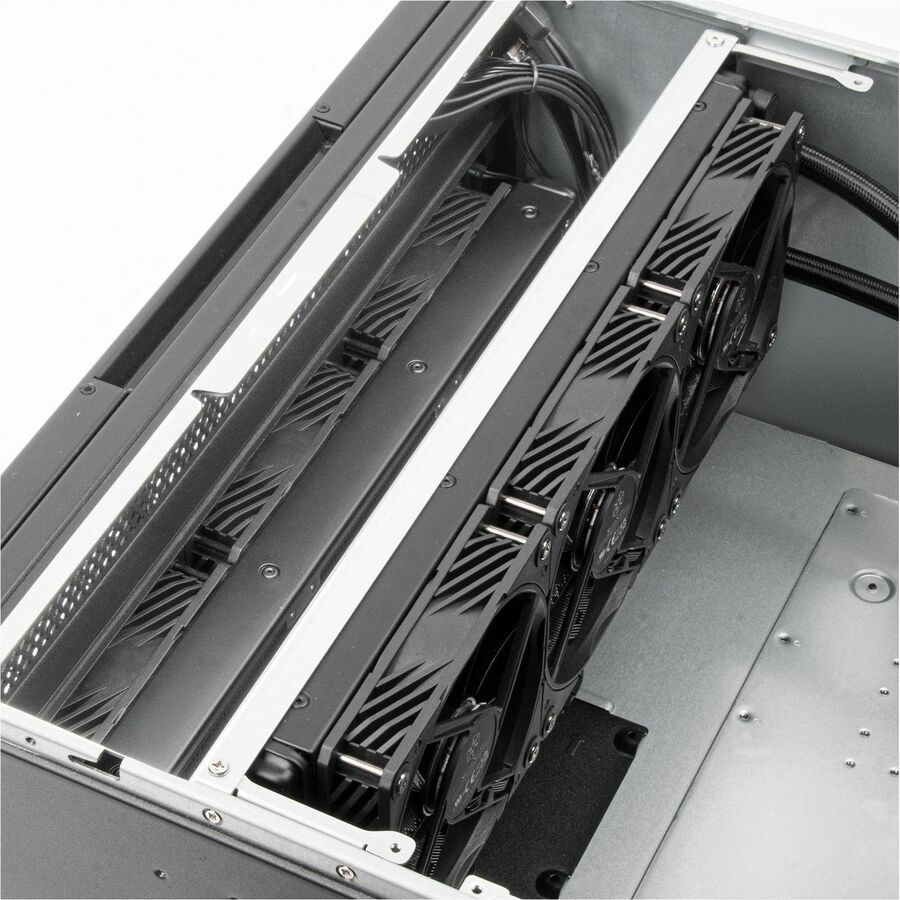

SilverStone's unwavering commitment to achieving superior cooling performance is evident in the RM52, which boasts dual 360mm radiator compatibility, a notable improvement over the single 360mm radiator featured in its predecessor.
Unparalleled cooling performance
Tremendous hardware versatility
An internal 3.5" drive cage allows the installation of 2 x 3.5" HDDs. If it's to be left unoccupied, enables the option of installing a secondary PSU in SFX form factor
Unparalleled cooling performance

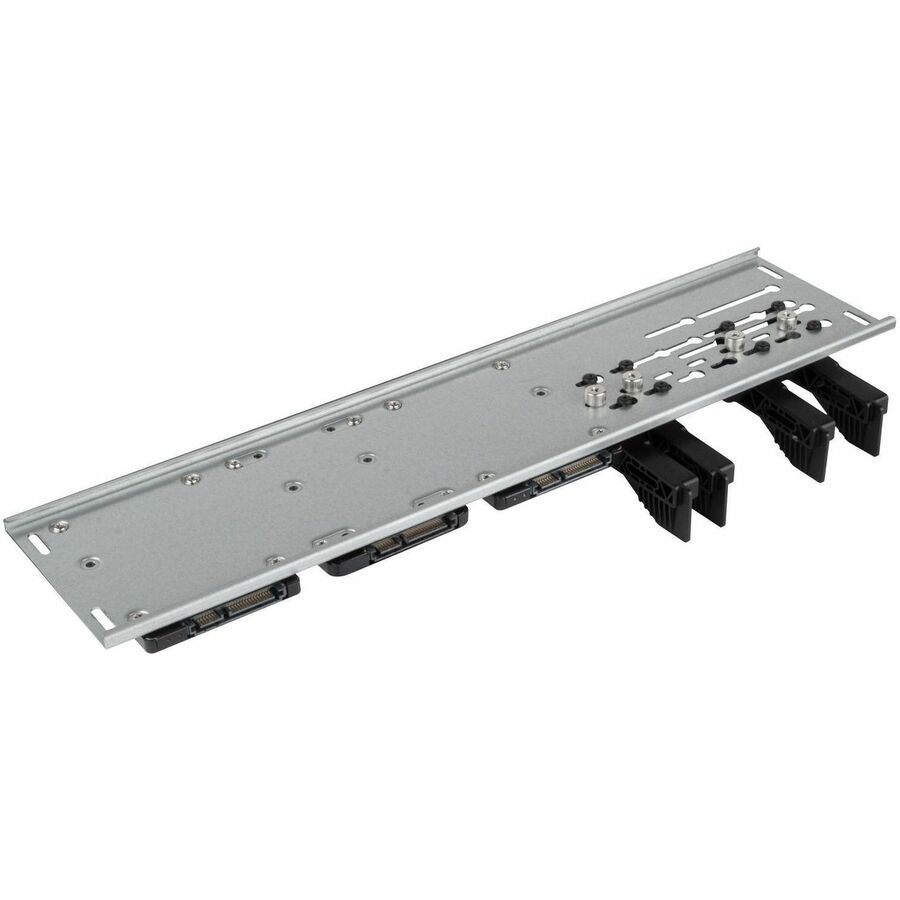

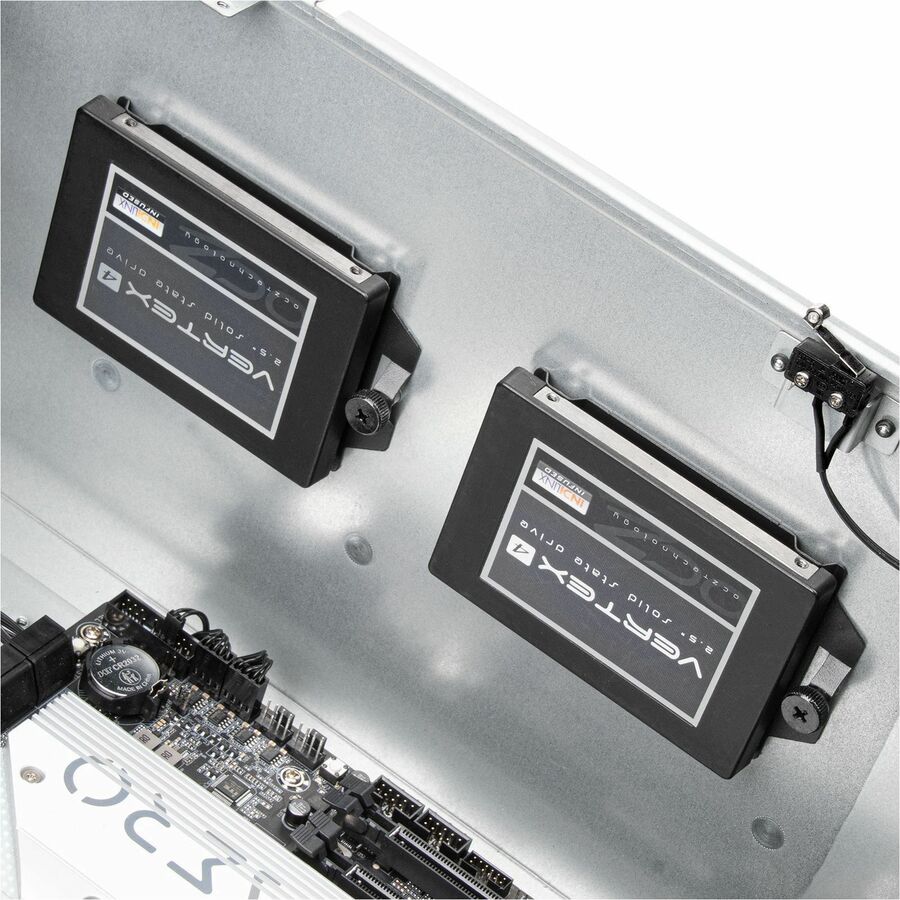

Excellent space maximization To avoid any unforeseen damages to either the motherboard or the graphics cards, an expansion card retainer with storage drive mounting holes is included to prevent sagging of graphics cards while maximizing space utilization

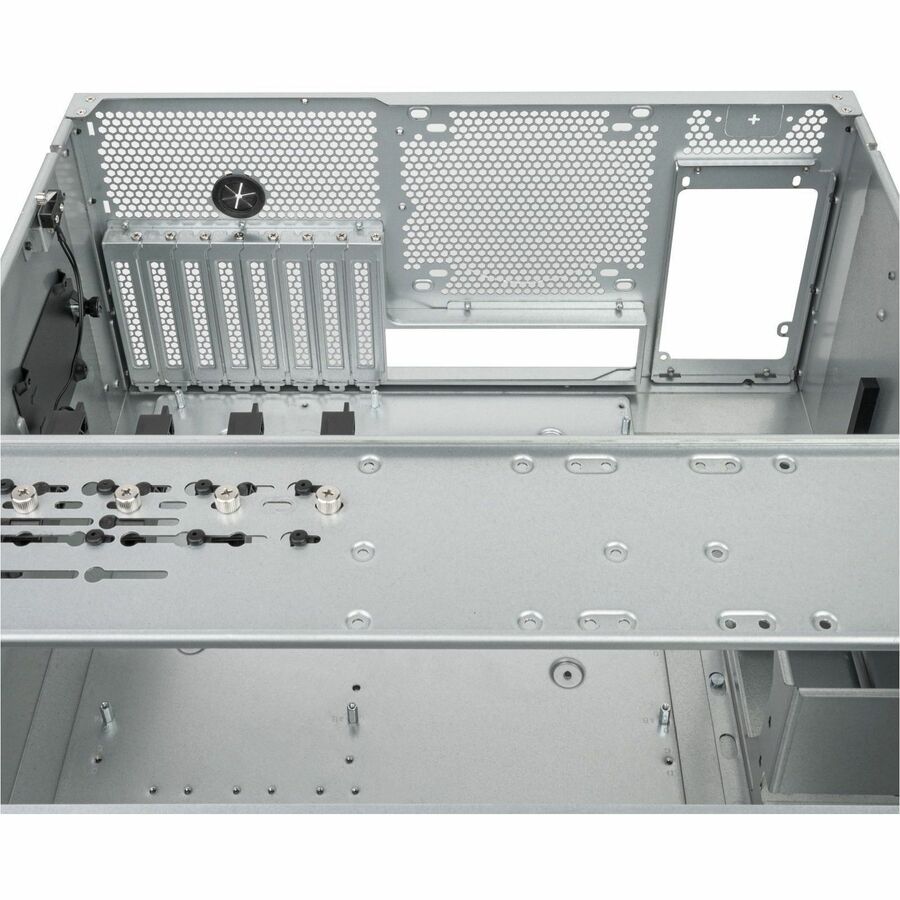

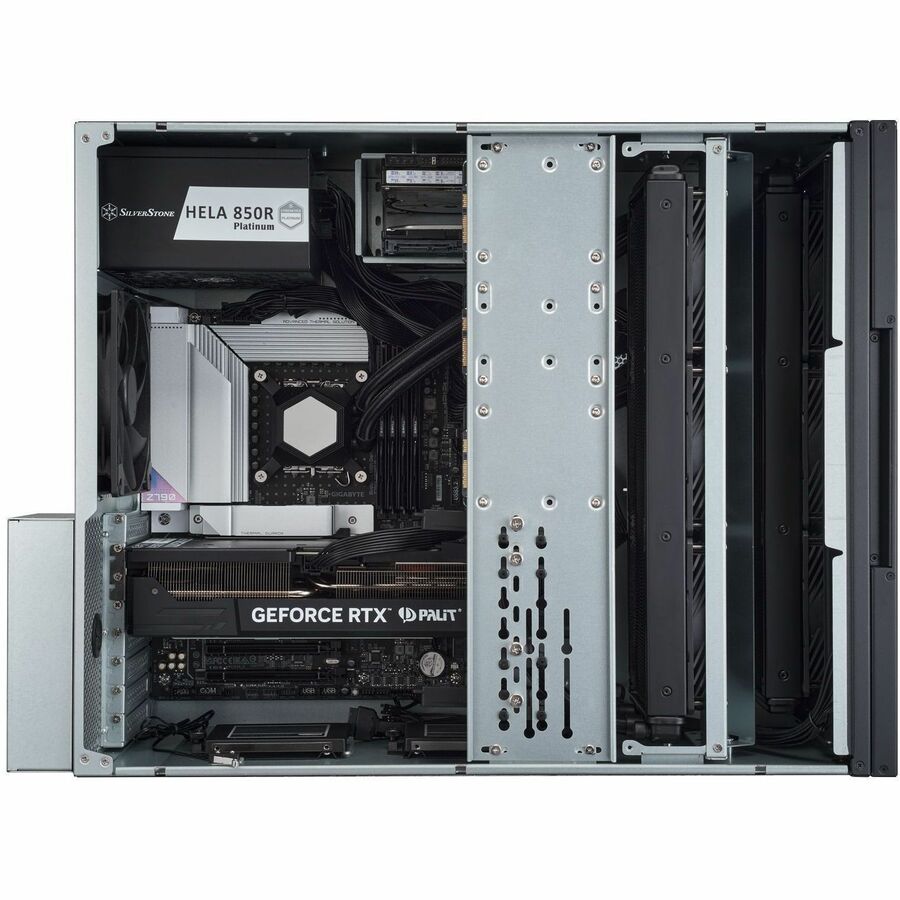

Highly versatile internal layout

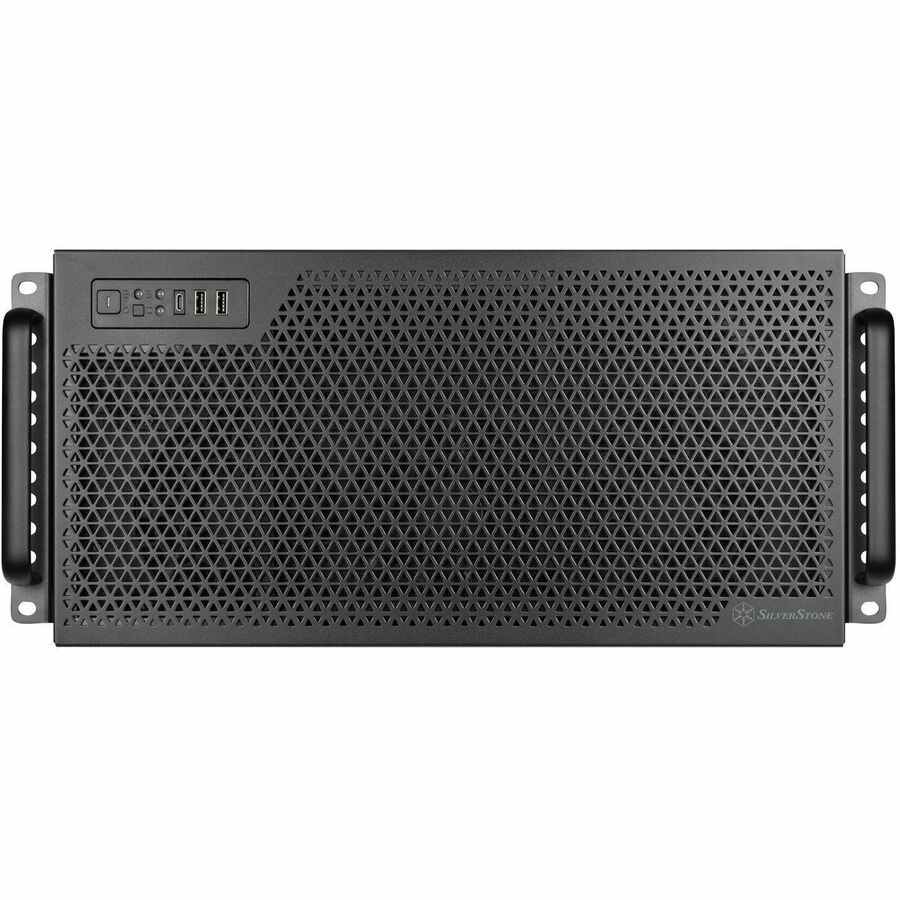

Easy rack accessibility

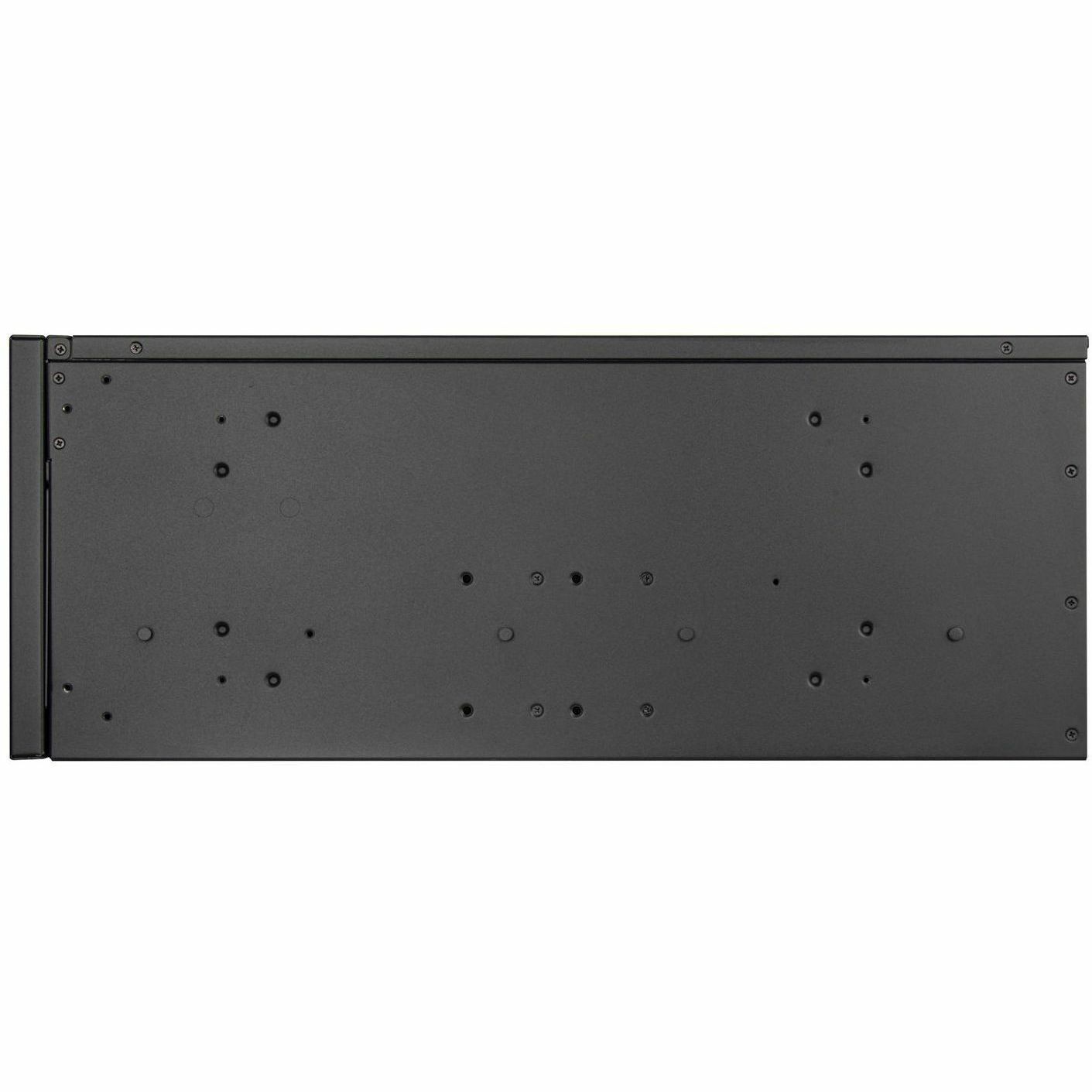

Server rack sliding rails can be easily fitted onto the chassis with the reserved mounting holes.
SST-RMS05-22(sold separately)
| General Information | |
| Manufacturer | SilverStone Technology, Inc |
| Manufacturer Part Number | SST-RM52 |
| Manufacturer Website Address | http://www.silverstonetek.com |
| Brand Name | SilverStone |
| Product Model | SST-RM52 |
| Product Name | 5U Rackmount Server Chassis with Dual 360mm Liquid Cooling Compatibility |
| Product Type | Server Case |
| Technical Information | |
| Motherboard Supported | EATX |
| Motherboard Supported | SSI EEB |
| Motherboard Supported | Micro ATX |
| Motherboard Supported | Mini ITX |
| Motherboard Supported | ATX |
| Motherboard Supported | SSI CEB |
| Number of Fans Supported | 2 |
| Number of Fans Installed | 3 |
| Fan Size Supported | 3.15" |
| Fan Size Supported | 4.72" |
| Fan Size Supported | 5.51" |
| Installed Fan Size | 3.15" |
| Installed Fan Size | 5.51" |

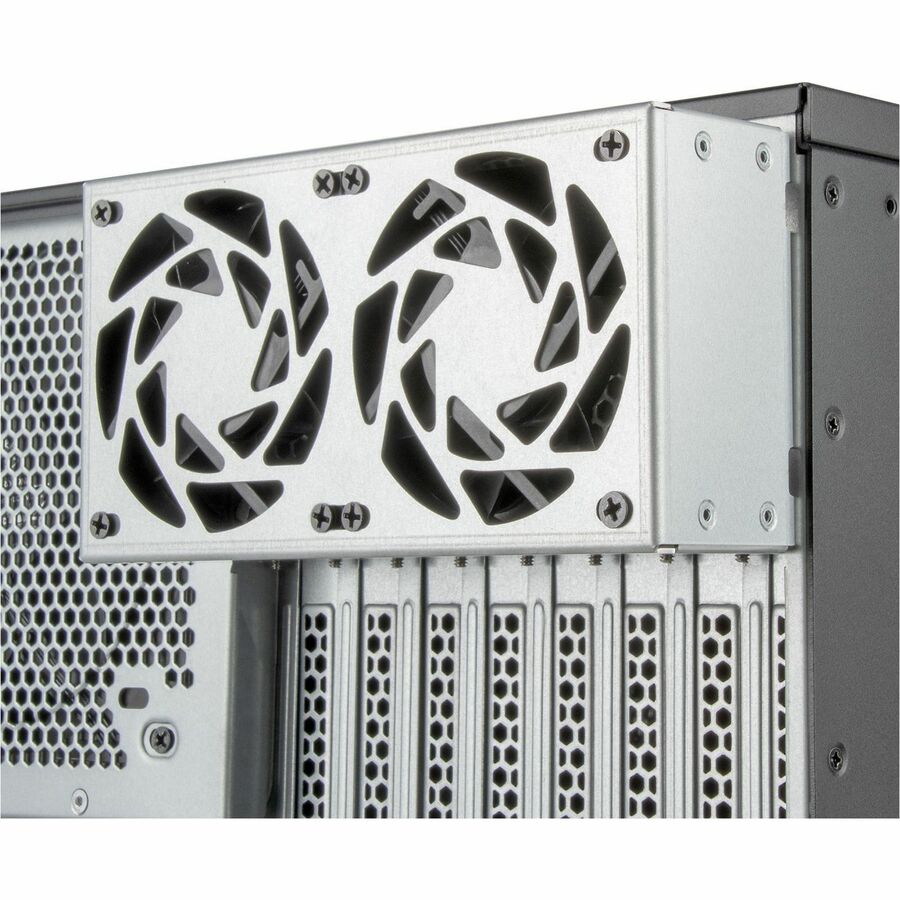

| Installed Fan Size Details | 1 x 80mm |
| Installed Fan Size Details | 2 × 140mm |
| Bays | |
| Number of Internal 3.5" Bays | 2 |
| Number of Internal 2.5" Bays | 7 |
| I/O Expansions | |

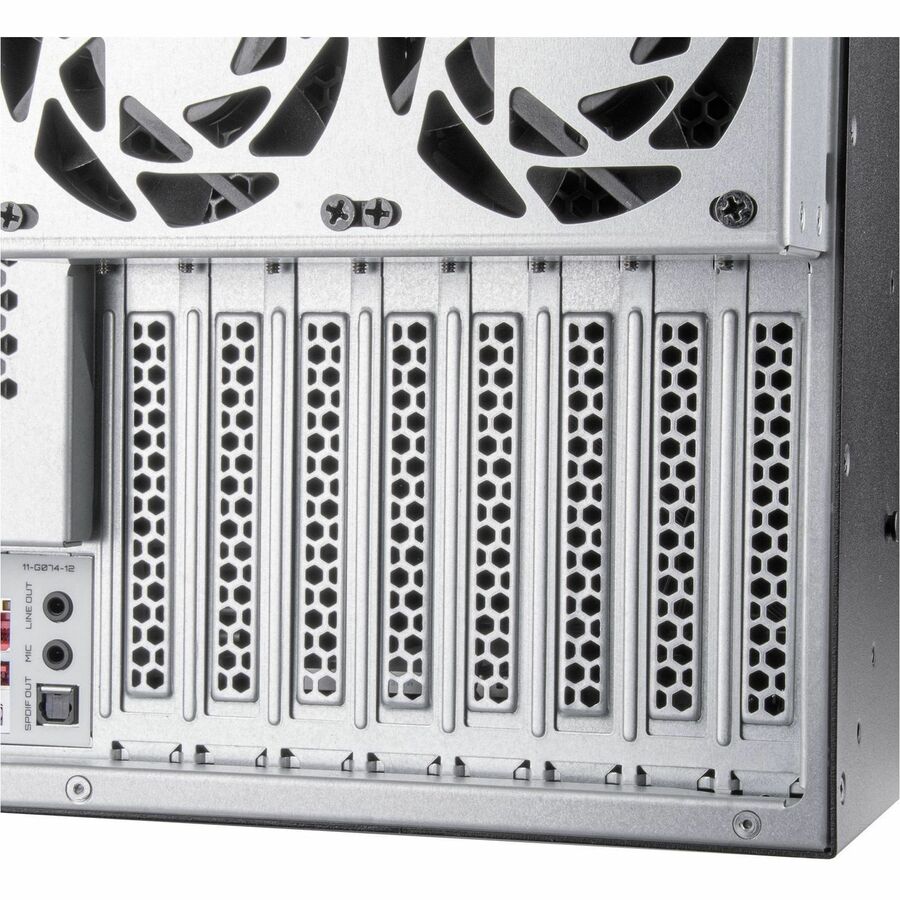

| Total Number of Expansion Slots | 8 |
| Interfaces/Ports | |

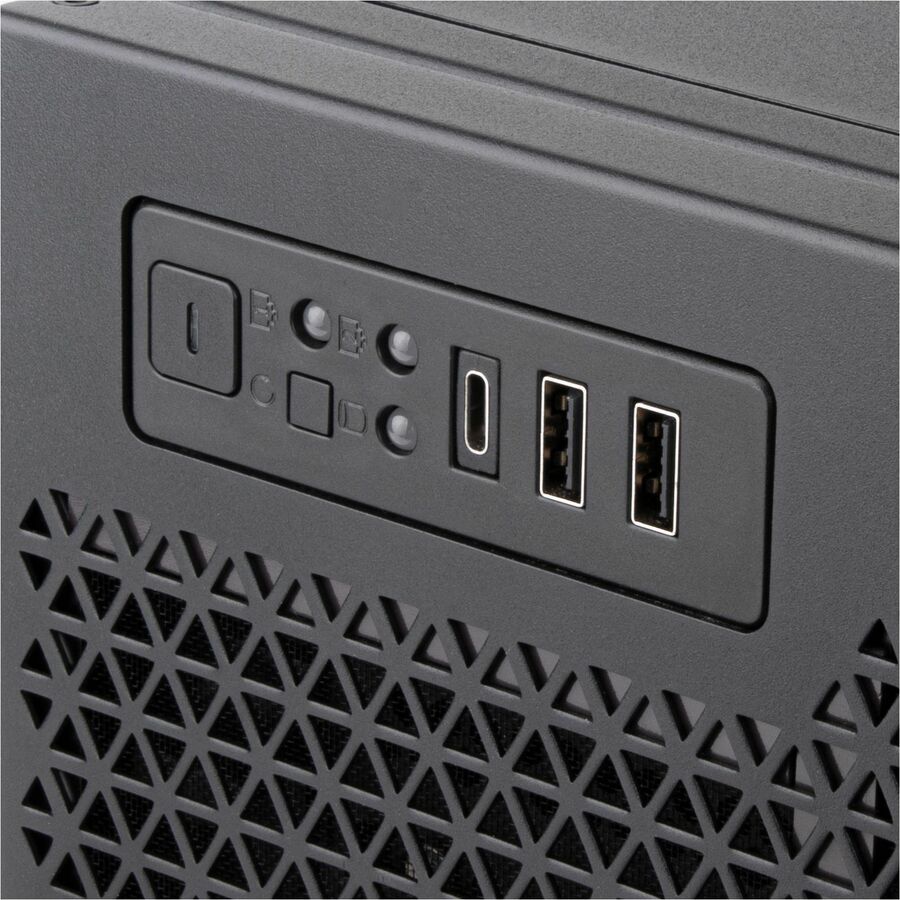

| Total Number of USB Ports | 3 |
| USB Port Details | 1 x USB Type C |
| USB Port Details | 2 x USB 3.0 |
| Front USB | Yes |
| Power Description | |
| Power Supply Installed | No |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Cooler Type | Fan/Liquid Cooler |
| Compatible Rack Unit | 5U |
| Form Factor | Rack-mountable |
| Maximum CPU Cooler Height | 7.56" |
| Maximum PSU Length | 7.48" |
| Maximum GPU Length | 14.37" |
| Height | 8.7" |
| Width | 17.3" |
| Depth | 23.8" |
| Weight (Approximate) | 25.24 lb |
