DATALOGIC

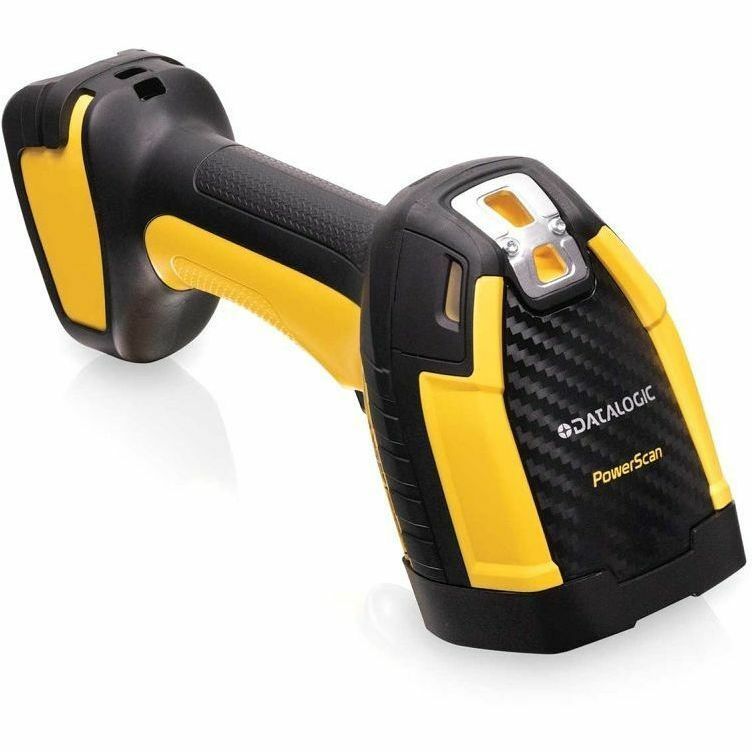

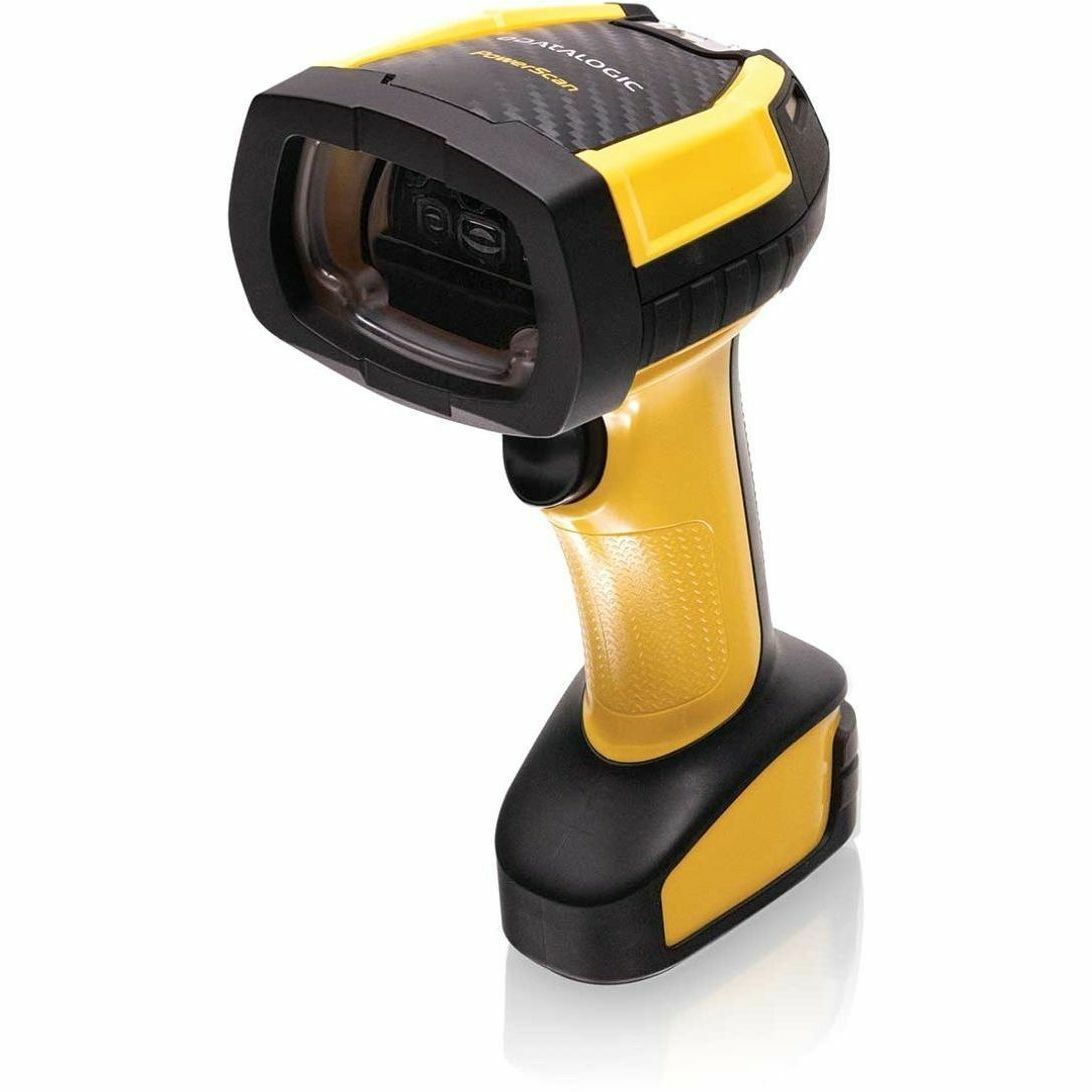

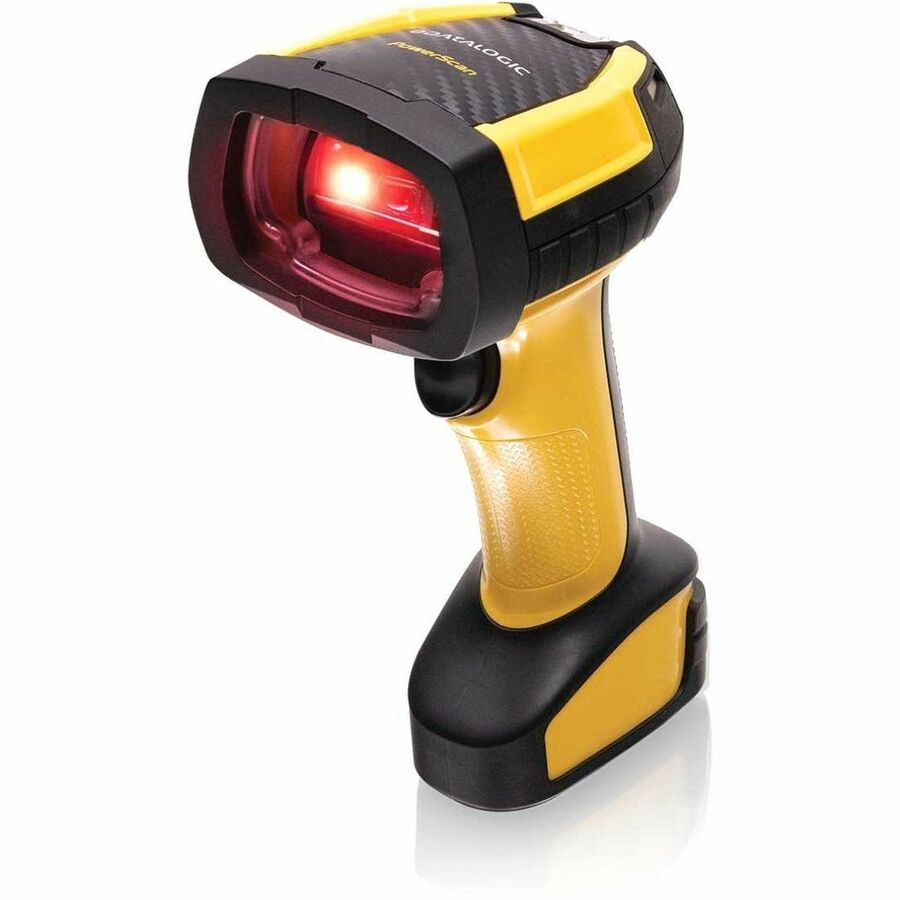

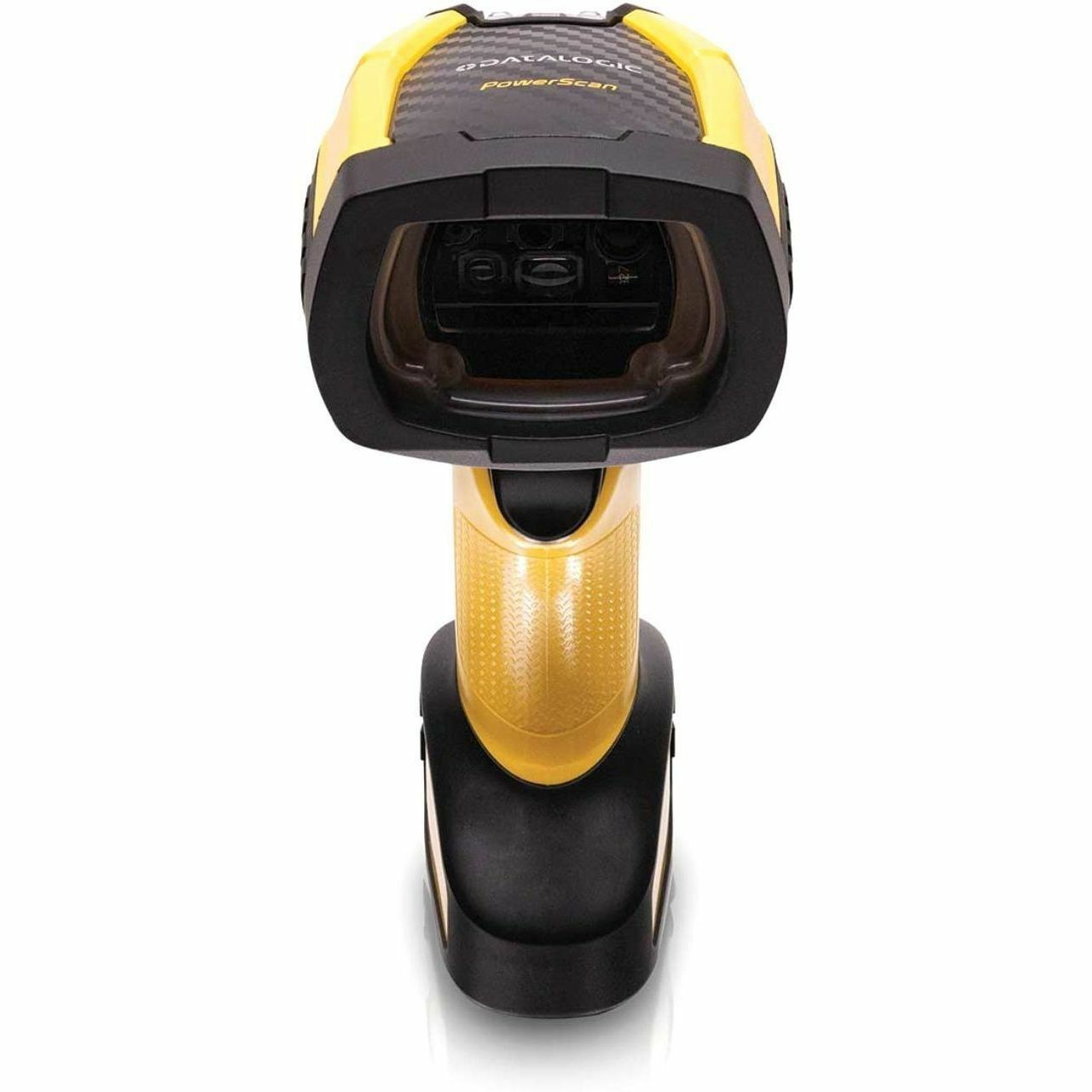

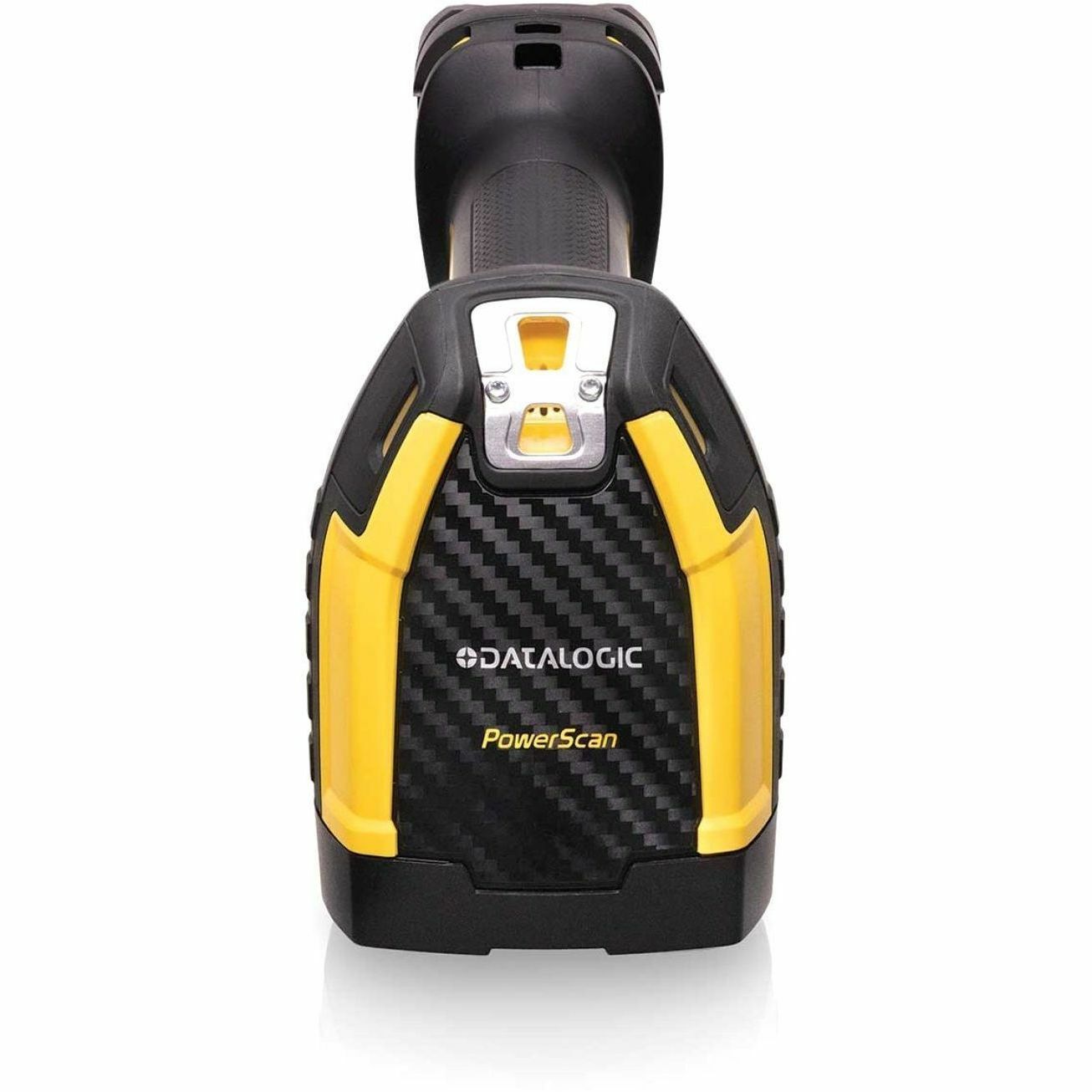

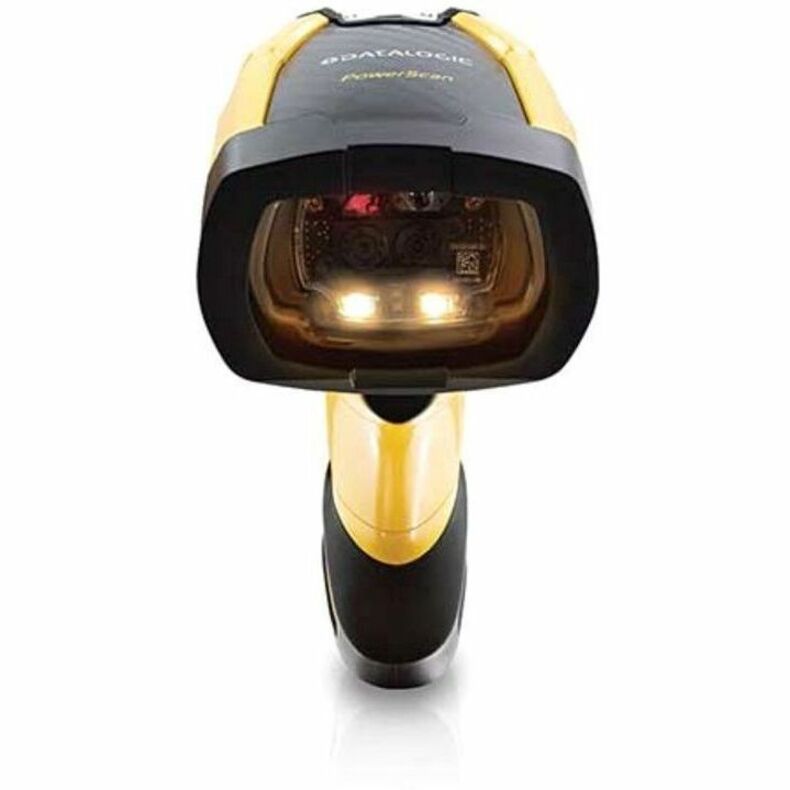

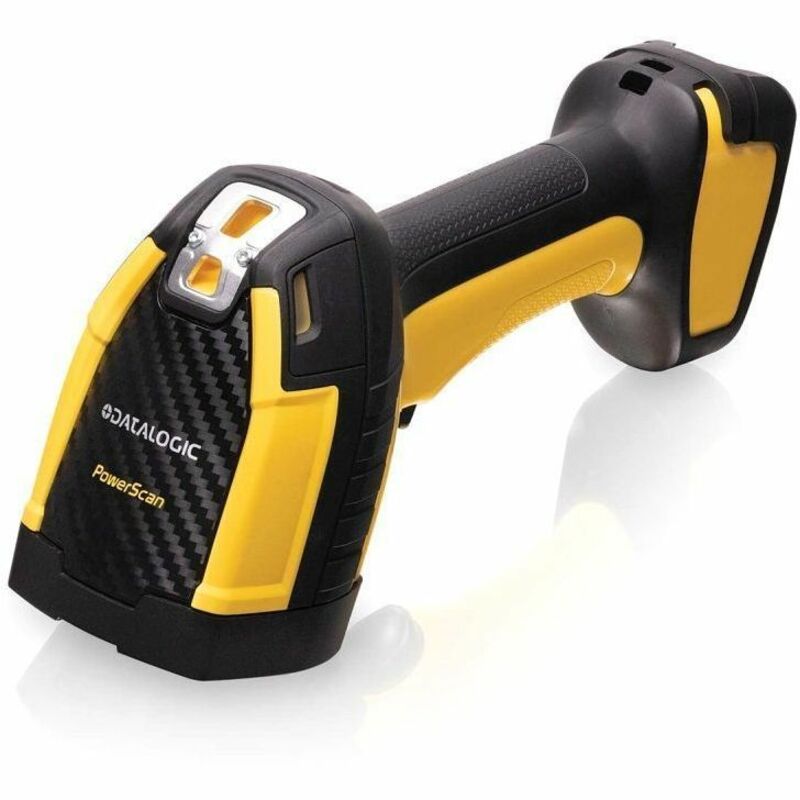

PBT9600-ARRBK10US DATALOGIC POWERSCAN PBT9600-AR, AUTO RANGE, BLUETOOTH, REMOVABLE BATTERY, USB KI

Mfg Part Number:  PBT9600-ARRBK10US
Image may not reflect the actual item.
Price: $1,729.21
Quantity:
In Stock: 11
Last Updated: Feb 07, 2026
No Sales Tax except these states
, PO and Wire.

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System™. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes. The PowerScan PBT9600 cordless model is enriched with Bluetooth® 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station. The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.

WIRELESS CHARGING

The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.

THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED

The PowerScan 9600 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.

Main Specification
General Information
Manufacturer Datalogic S.p.A
Manufacturer Part Number PBT9600ARRBK10US
Manufacturer Website Address http://www.datalogic.com
Brand Name Datalogic
Product Line PowerScan
Product Model PBT9600
Product Name PowerScan PBT9600 Barcode Scanner KIt
Product Type Barcode Scanner Kit
Technical Information
Connectivity Technology Wireless
Scanning Capability 1D
Scanning Capability 2D
Barcode Symbology Supported

1D:

  • Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes

2D:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • Micro QR Code
  • QR Code
  • Dot Code

Postal Codes:

  • Australian Post
  • British Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes (HP and DC model
Image Sensor Type Imager
Scan Mode Trigger
Scan Pattern Omni-directional
Scanner Range Auto Range
Cable Type Included Serial
Field of View (Horizontal) 38°
Field of View (Vertical) 24°
Reading Angle (Skew) 60°
Reading Angle (Pitch) 60°
Reading Angle (Roll) 360°
Maximum Ambient Light 100000 lux
Drop Specification
  • Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Minimum Print Contrast 20%
Minimum Element Resolution (Code 39) 3 mil
Maximum Element Resolution (Code 39) 20 mil
Minimum Element Resolution (DataMatrix) 10 mil
Maximum Element Resolution (DataMatrix) 100 mil
Direct Part Marking (DPM) Decoding Yes
Image Sensor Resolution 1280 x 800

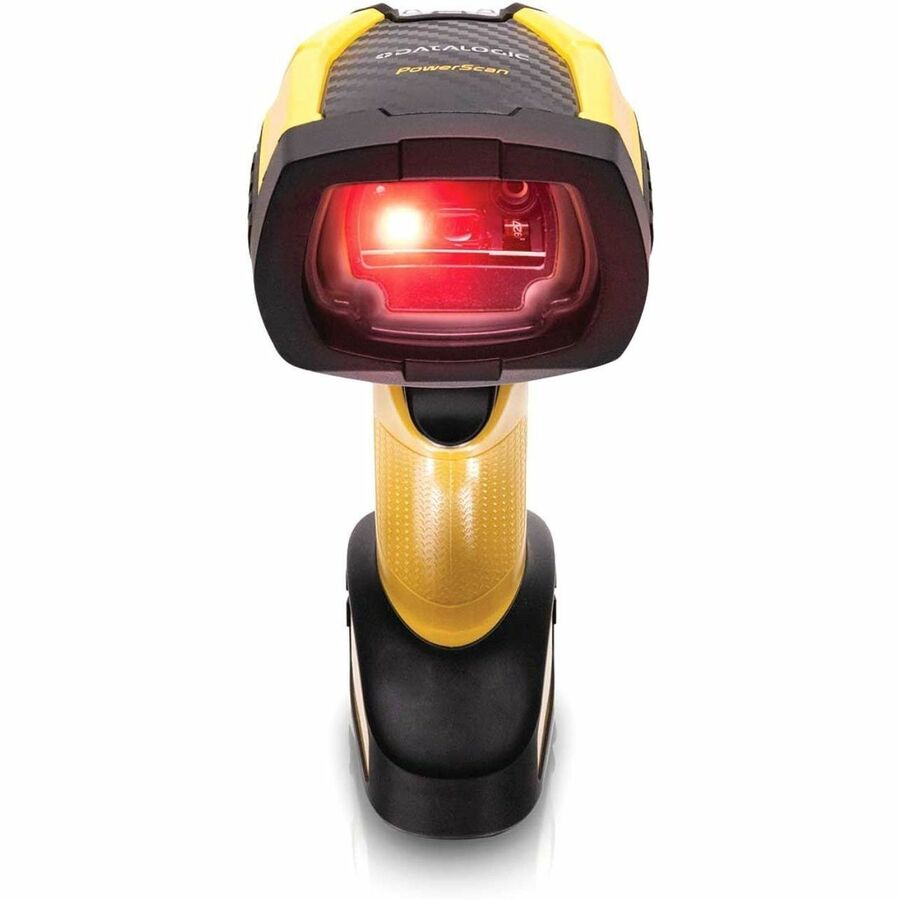

Illumination Type LED
Illumination Color Red
Network & Communication
Bluetooth Yes
Interfaces/Ports
Host Interface USB
Host Interface Serial
Power Description
Power Supply Included Yes
Battery Information
Battery Included Yes
Battery Chemistry Lithium Ion (Li-Ion)
Battery Capacity 3350 mAh
Maximum Battery Recharge Time 2.50 Hour
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Rugged Yes
Height 7.8"
Width 3.1"
Length 5.5"
Weight (Approximate) 15.70 oz
Miscellaneous

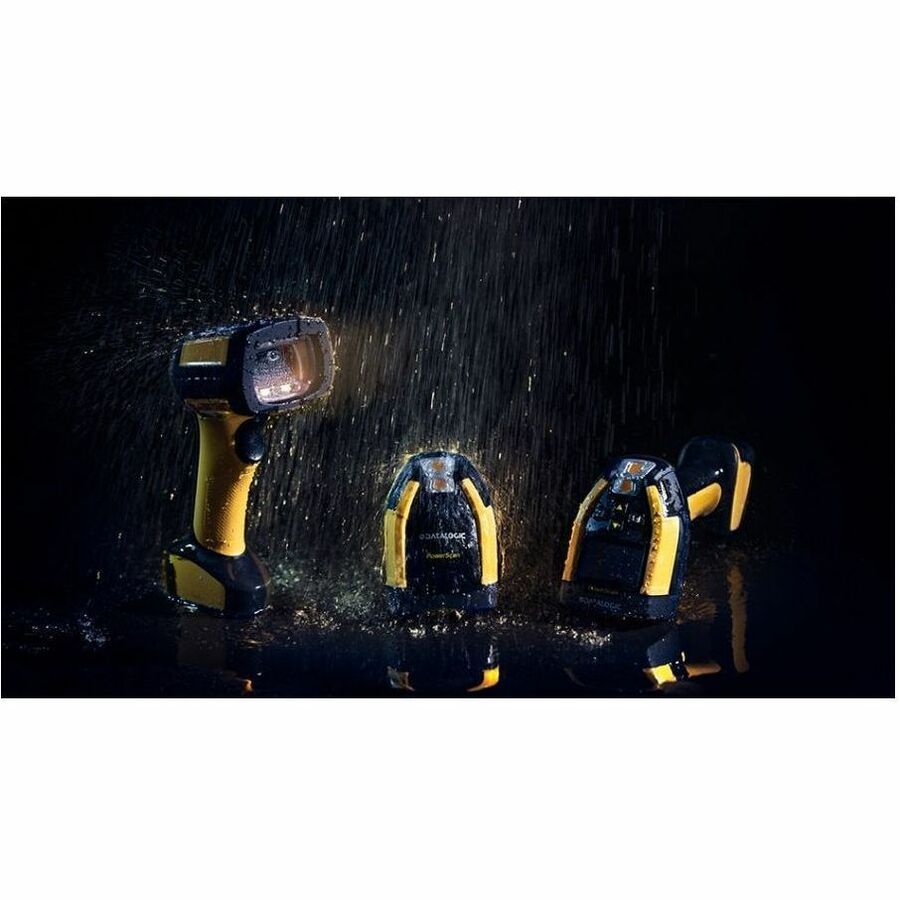

Ingress Protection (IP) Rating IP67
Ingress Protection (IP) Rating IP65
Application/Usage Inventory
Application/Usage Picking
Application/Usage Logistics
Application/Usage Warehouse
Application/Usage Manufacturing
Application/Usage Asset Tracking
