FORTINET

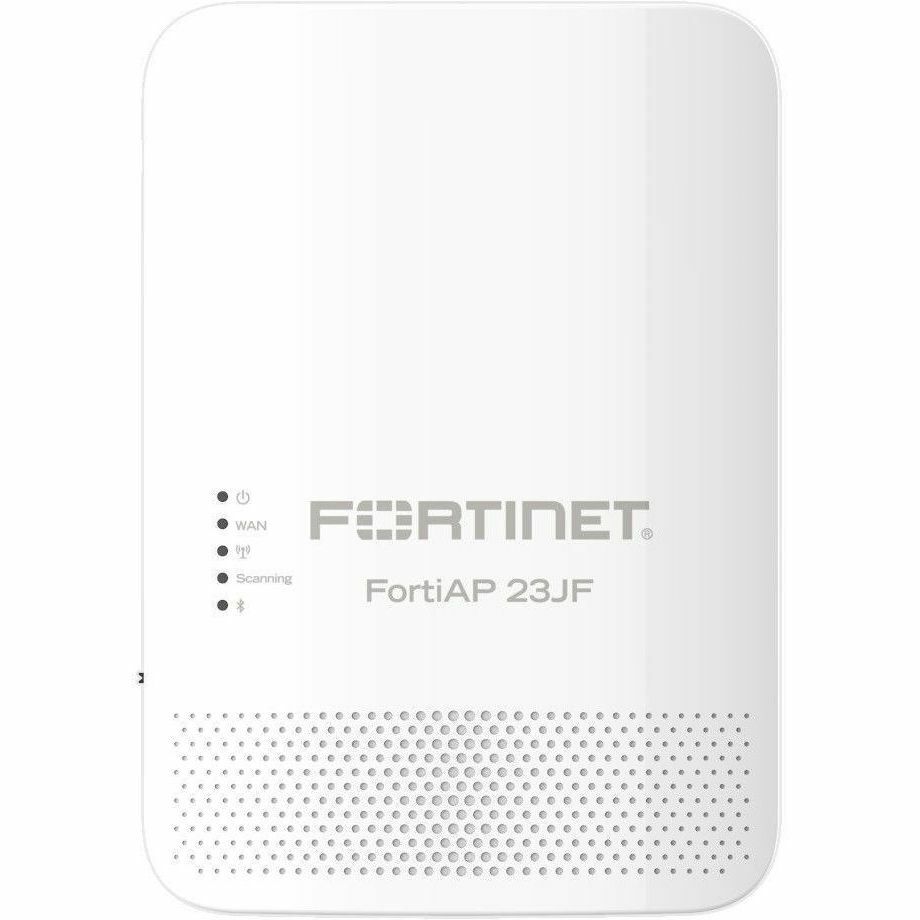

FORTINET FAP-23JF-U FORTIAP-23JF WALL PLATE AP TRI-RADIO INTERNAL ANTENNAS 4 X 10/
Mfg Part Number: FAP-23JF-U , Item #: 5158837
Image may not reflect the actual item.
Price: $398.72
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 02, 2025
No Sales Tax except these states
, PO and Wire.

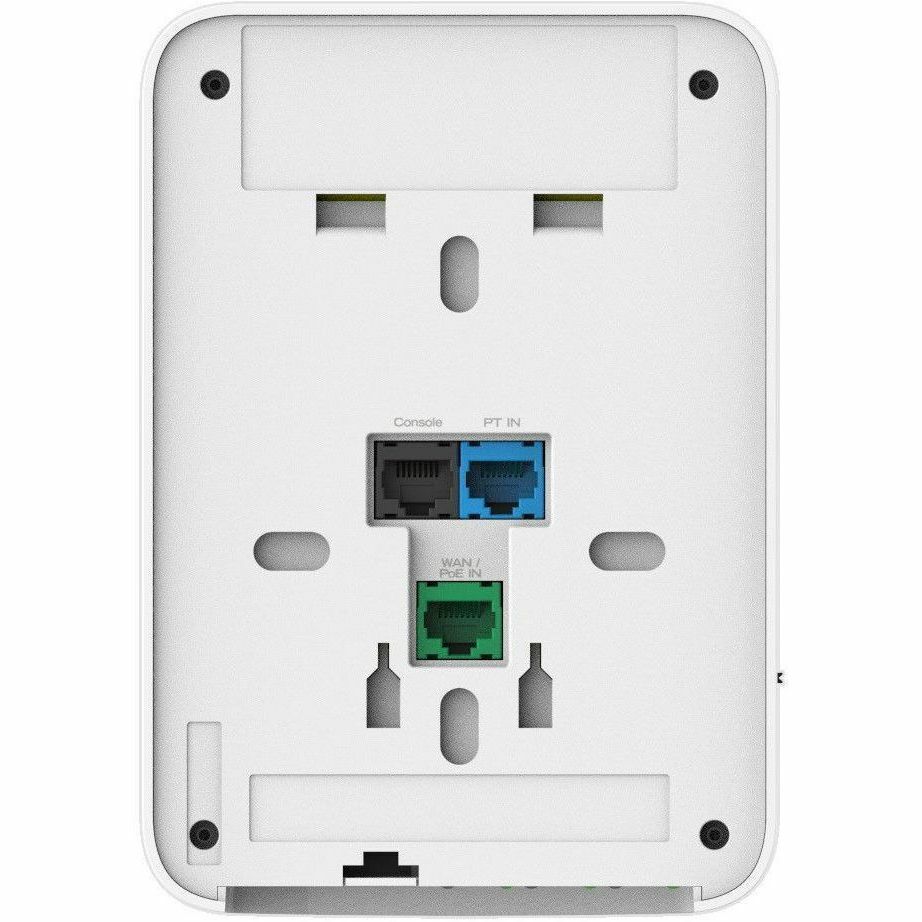

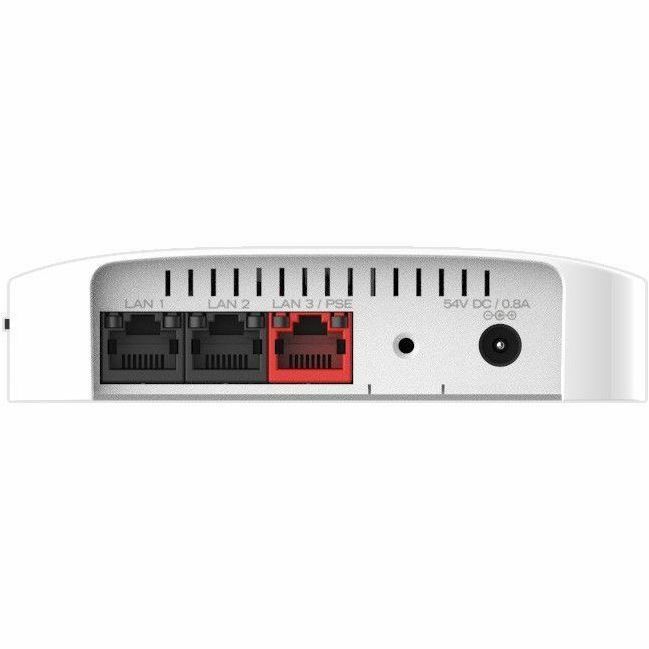

This enterprise class Wi-Fi 6 wall plate AP provides three radios with internal antennas as well as features such as OFDMA and is PSE-capable. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications. Additional features include PoE out for downstream devices and RJ45 passthrough. This access point can be installed in minutes, right over the existing wall plate.
Main Specification
| General Information | |
| Manufacturer | Fortinet, Inc |
| Manufacturer Part Number | FAP-23JF-U |
| Manufacturer Website Address | http://www.fortinet.com |
| Brand Name | Fortinet |
| Product Line | FortiAP |
| Product Model | 23JF |
| Product Name | FortiAP 23JF Wireless Access Point |
| Product Type | Wireless Access Point |
| Technical Information | |
| Wireless LAN Standard | IEEE 802.11 a/b/e/g/h/i/j/k/n/r/v/ac/ax |
| Network Band | Dual Band |
| Frequency Band | 2.40 GHz |
| Frequency Band | 5 GHz |
| Total Number of Antennas | 3 |
| Number of Internal Antennas | 3 |
| Indoor/Outdoor | Indoor |
| Wireless Transmission Speed | 1.73 Gbit/s |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Data Encryption | Yes |
| Encryption Standard | EAP-SIM |
| Encryption Standard | EAP-TLS |
| Encryption Standard | EAP-AKA |
| Encryption Standard | EAP-GTC |
| Encryption Standard | WPA2 |
| Encryption Standard | PEAPv1 |
| Encryption Standard | WPA |
| Encryption Standard | WPA3 |
| Encryption Standard | EAP-FAST |
| Encryption Standard | EAP-TTLS |
| Encryption Standard | MSCHAPv2 |
| Encryption Standard | WEP |
| Interfaces/Ports | |
| Ethernet Technology | Gigabit Ethernet |
| Number of Network (RJ-45) Ports | 7 |
| PoE (RJ-45) Port | Yes |
| PoE PD Port | Yes |
| Network & Communication | |
| Wi-Fi Generation | Wi-Fi 6 |
| Power Description | |
| Power Consumption | 17.50 W |
| Physical Characteristics | |
| Form Factor | Desktop |
| Form Factor | Wall Mountable |
| Form Factor | Ceiling Mountable |
| Form Factor | Rail-mountable |
| Form Factor | Wall Plate |
| Antenna Form Factor | Internal |
| Height | 1.1" |
| Width | 4.6" |
| Depth | 6.6" |
| Weight (Approximate) | 15.84 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
