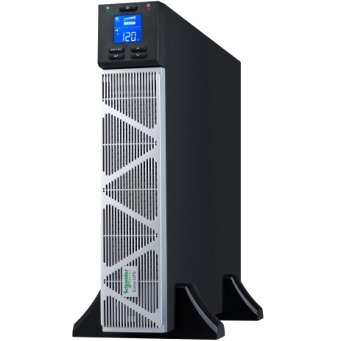

APC SRVSL1KRARK SCHNEIDER EASY UPS ON-LINE LI-ION SRVL RT 1000VA 120V, WITH RAIL KIT
Mfg Part Number: SRVSL1KRARK , Item #: 5157709
, PO and Wire.
Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 120V 1000VA Standard built-in runtime model with rail kit More real output power in watts 0.9 PF Up to 90.69% efficiency in on-line double conversion mode and up to 95% in ECO mode saves utility and cooling costs without compromising performance or reliability. Its dimensions are 438mm (width) x 452mm (depth) x 86mm (height) 2U in total. The net weighs is 13kg. It's ideal for Building, Electrical Distribution companies, Machine Automation, System Integrators, Equipment Manufacturers, Technology and Solution Partners. cTUVus, NOM, RETIE, UN38.3 Managemnt Card (Network Management card, Dry contact card, modbus Card) and RBC options are available. Rack/ Tower convertible design with default accessory kit.
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRVSL1KRARK |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | Schneider Electric |
| Product Line | Easy UPS On-Line |
| Product Series | SRVSL RT |
| Product Name | Easy UPS On-Line Li-Ion SRVSL RT 1000VA 120V, with Rail Kit |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Phase | Single Phase |
| Application/Usage | Manufacturing System |
| Application/Usage | Automation System |
| Application/Usage | Building System |
| Application/Usage | Distribution Center |
| Power Description | |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 80 V AC - 150 V AC |
| Input Voltage Range | 55 V AC - 150 V AC |
| Output Voltage | 115 V AC |
| Output Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 220 J |
| Display & Graphics | |
| Display | LCD |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Size | 38.4V |
| Backup/Run Time (Full Load) | 10.58 Minute |
| Backup/Run Time (Half Load) | 21.16 Minute |
| Battery Life | 10 Year |
| Typical Battery Recharge Time | 2 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 122°F (50°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 49212.60 ft |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 50 dB(A) |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Silver |
| Product Color | Black |
| Height | 3.4" |
| Width | 17.2" |
| Depth | 17.8" |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 28.66 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
