HANWHA TECHWIN

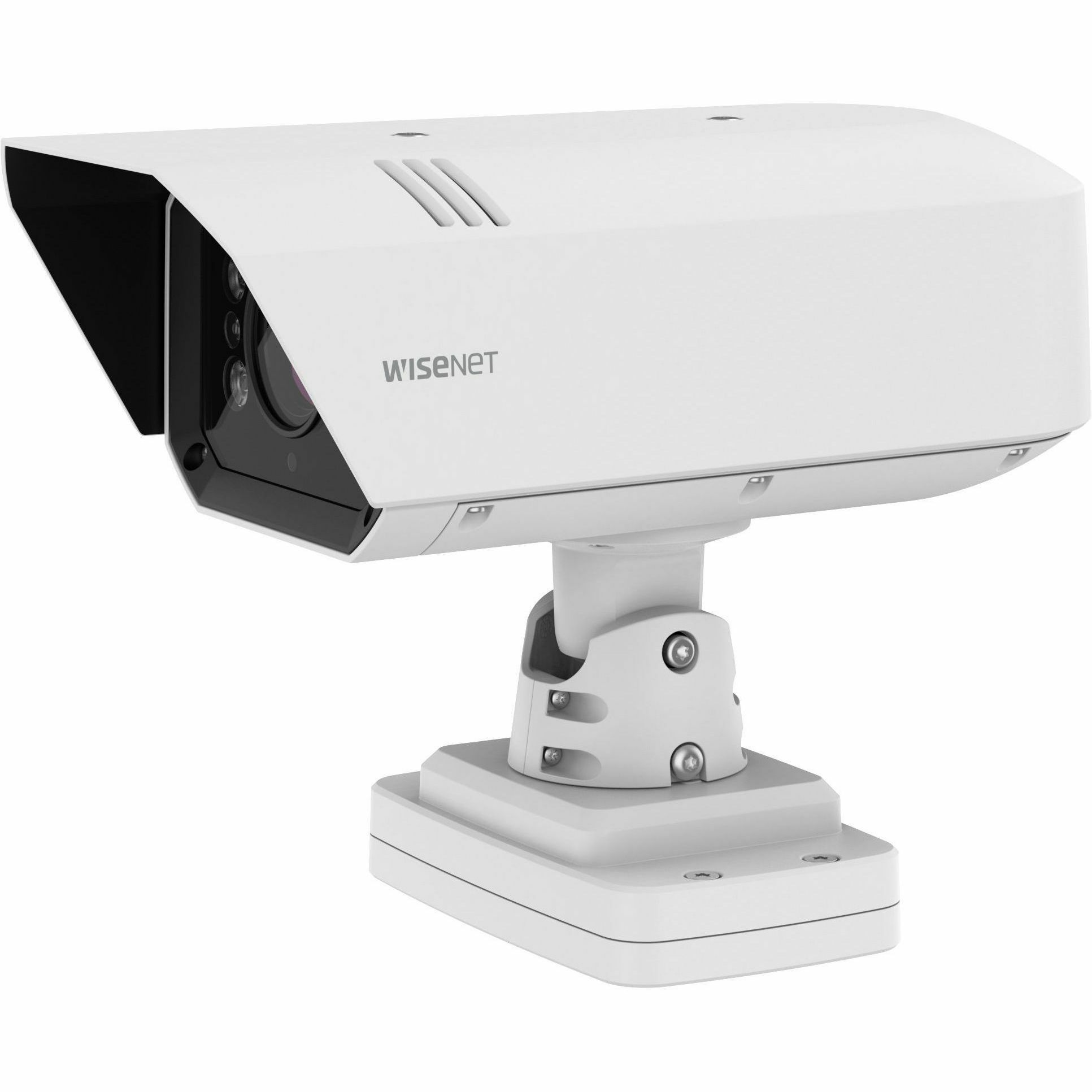

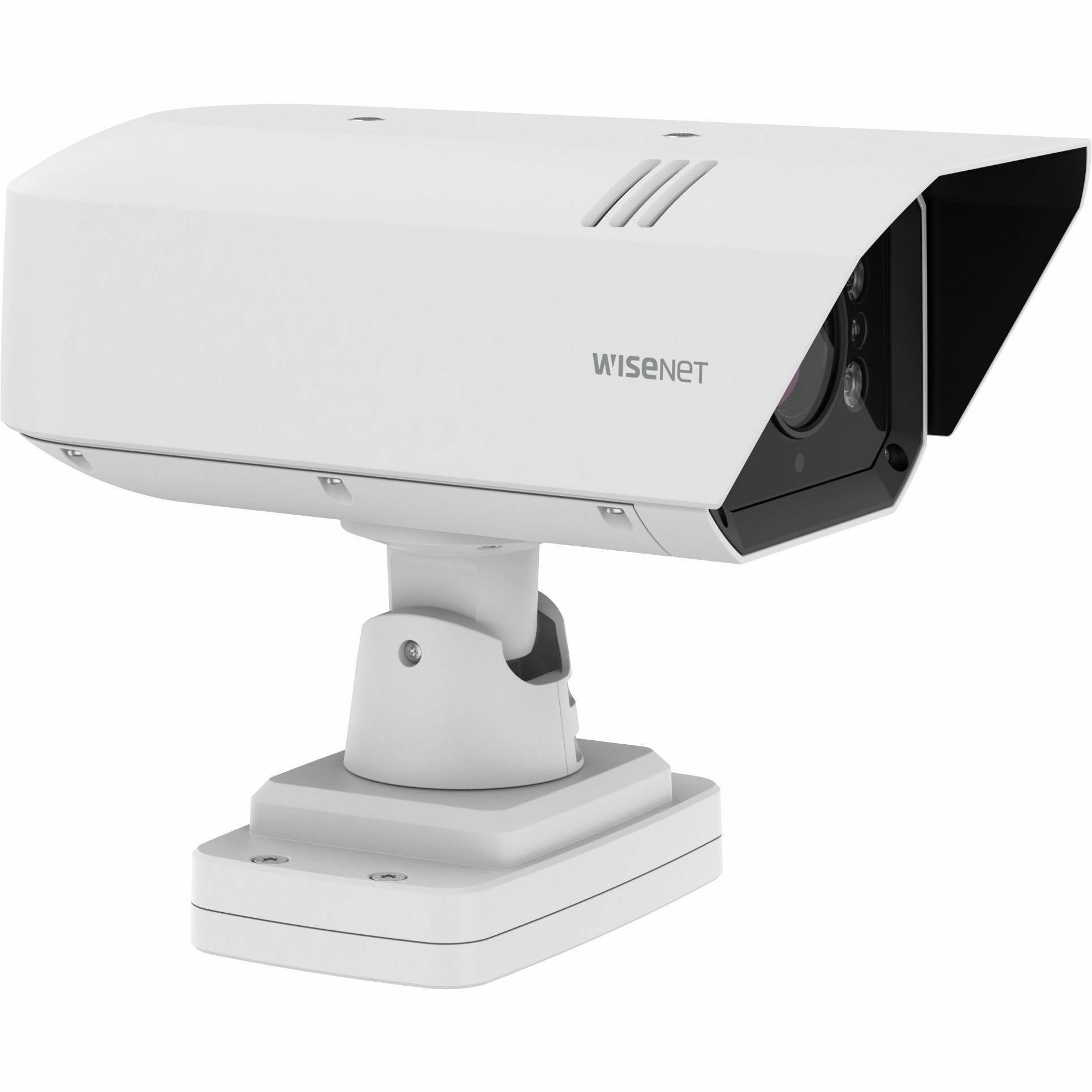

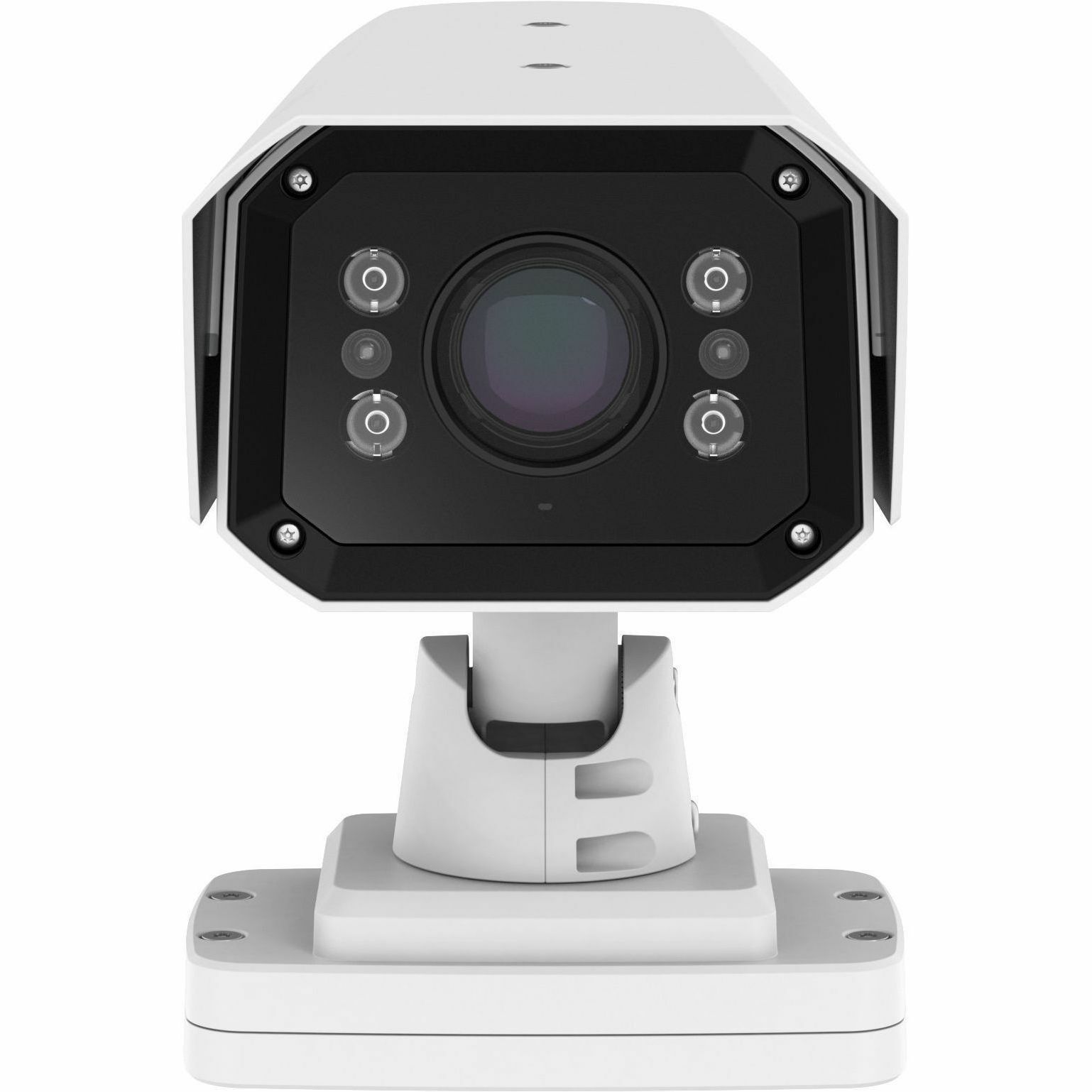

HANWHA TECHWIN TNO-7180RLP HIGH SPEED GLOBAL SHUTTER CAMERA WITH RO
Mfg Part Number: TNO-7180RLP , Item #: 5157574
Image may not reflect the actual item.
Price: $3,500.01
Quantity:
More to Come
Last Updated: Nov 20, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | TNO7180RLP |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | T |
| Product Model | TNO-7180RLP |
| Product Name | High-speed License Plate Capture Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Night Vision | Yes |
| Night Vision Distance | 164.04 ft |
| Night Vision Type | Infrared |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/1.8" |
| Color Supported | Color |
| Field of View | H: 54.5º(Wide)~3.4º(Tele), V: 42.3º(Wide)~2.5º(Tele) |
| Effective Camera Resolution | 3 Megapixel |
| Video | |
| Video Formats | H.265 (HP) |
| Video Formats | H.264 BP |
| Video Formats | H.264 HP |
| Video Formats | MJPEG |
| Video Formats | H.265 (MP) |
| Video Formats | H.264 |
| Video Formats | H.265 (BP) |
| Video Formats | H.265 |
| Video Formats | H.264 (MP) |
| Maximum Video Resolution | 2048 x 1536 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 6.80 mm |
| Maximum Focal Length | 120 mm |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 18x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 1/25 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Ethernet Technology | Gigabit Ethernet |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC |
| Power Source Type | PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Height | 10.2" |
| Width | 7.4" |
| Depth | 11.6" |
| Weight (Approximate) | 10.58 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Miscellaneous | |
| Features | Digital Noise Reduction |
| Features | Alarm Triggering |
| Features | Gain Control |
| Features | SD Card Local Storage |
| Features | Defog |
| Features | White Balance |
| Features | Privacy Masking |
| Features | Digital Image Stabilization |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
