CRESTRON ELECTRONICS SAROS IC6VLPT-W-T-EACH+ 6512986

The SAROS IC6VLPT-W-T-EACH+ is a 2-way in-ceiling speaker featuring a 6.5 in. woofer and wide dispersion, horn loaded 1 in. dome tweeter. Its low profile enclosure allows for installation in ceiling spaces as shallow as 4 in. (102 mm). A built-in 60 W multi-tap transformer allows for use with 70V and 100V distributed speaker systems. Power handling at 8 Ω is 50 W (program), with a frequency response from 65 Hz to 20 kHz (±3 dB).

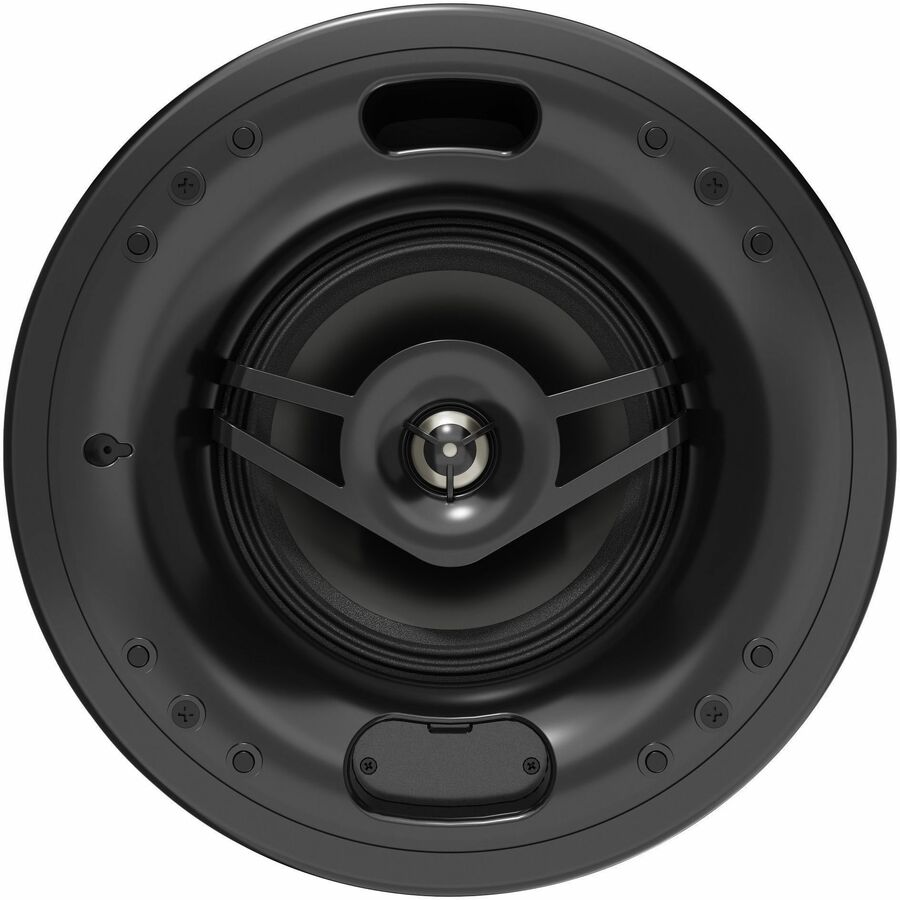

The SAROS IC6VLPT-W-T-EACH+ is designed for quick and easy installation and years of reliable performance. Its zero-bezel frameless grille achieves an unobtrusive and contemporary appearance well-suited for use in restaurants, retail spaces, houses of worship, universities, and office buildings. Installing the grille requires no hardware or tools, utilizing powerful magnets to hold it in place. A safety tether is included to prevent the grille from falling from the ceiling.

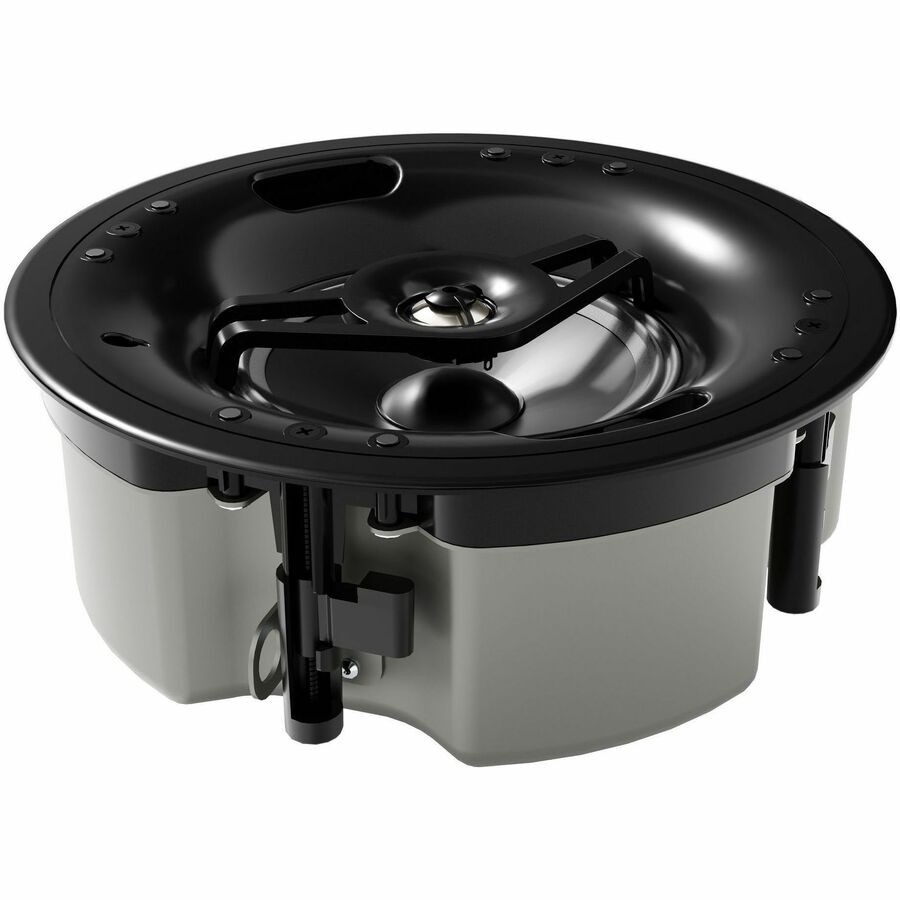

Mounting the speaker is facilitated using swiveling mounting dogs integrated into the enclosure. The mounting dogs feature two positions to accommodate standard and extra thick surfaces up to 2.4 in. (61 mm). A tile bridge is included to provide proper support when installed in a typical drop-tile ceiling. The tile bridge is adjustable to enable off-center speaker positioning, and can be folded to fit through the speaker cutout. A rigging point is also provided on the speaker enclosure for securing to the building structure using an optional safety tether kit (SPKA-ST-15, sold separately).

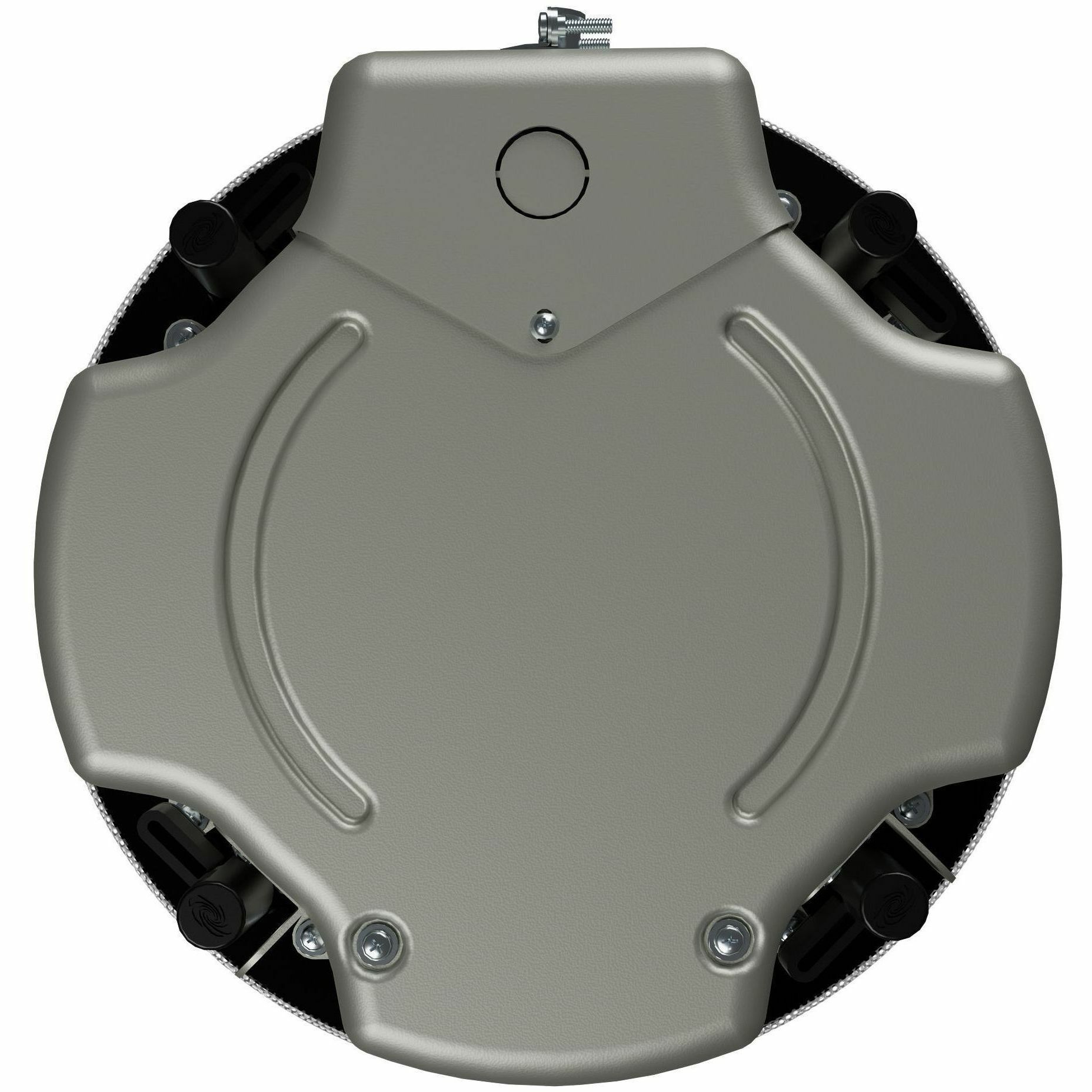

An integral metal back can is employed to meet the requirements of UL® 2043 for installation in a plenum space. The wiring connection is accessible behind a rear cover panel by removing a single screw. Setting the 70/100V transformer tap is performed via a screwdriver-adjustable control located on the front baffle, behind the grille.

SAROS IC6VLPT-W-T-EACH+ speaker grilles can be painted to blend with the ceiling surface. The speakers are priced individually, but must be ordered in pairs.

Key Features

• High-performance, very low profile 2-way in-ceiling speaker
• Requires only 4 in. mounting depth
• 6.5 in. polypropylene woofer with damped cloth surround for tight, controlled bass and clear midrange
• Wide-dispersion, horn-loaded titanium dome tweeter for crisp, clear high frequencies and enhanced pattern control
• Built-in 60 W 70/100V multi-tap transformer
• Zero-bezel frameless grille for a clean, contemporary appearance
• Two-step swiveling dog mounting system for quick and easy installation
• Includes tile bridge for installation in a drop-tile ceiling
• 50 W program power handling at 8 Ω
• 95° nominal coverage pattern
• Paintable to blend with surroundings
