SIMPLY NUC
SIMPLY NUC 910-FBG5-0A1 NUC14RVKU516GB512GBP4WIN 11 PRO
Mfg Part Number: 910-FBG5-0A1 , Item #: 5154314
, PO and Wire.
Smaller, Faster, Better, AI Ready
Revel Canyon (NUC 14 Pro) delivers best-in-class performance thanks to the all-new Intel® Core™ Ultra processor family. It is the most comprehensive mini-PC built with Intel vPro® Enterprise for exceptional security, manageability, and stability. Harness the prowess of Intel® Core™ Ultra processors' three AI engines - GPU, NPU, and CPU - for high throughput, low power, and fast response. Unleash your full potential with the ultimate compact computing solution today.
Stay Protected & Productive 24/7

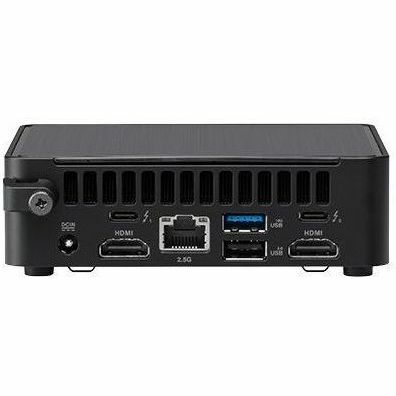

The NUC 14 Pro is a feature-rich device with a plethora of I/O options, equipped with dual HDMI 2.1 ports, dual Thunderbolt™ 4, four USB-A ports, and a USB-C port as standard. Select Revel Canyon SKUs come with Intel vPro® Enterprise, making it ideal for office deployments with its remote manageability and added hardware-level security features. From performing remote updates to securing your files from intrusion, the NUC 14 Pro will keep you protected and productive, 24/7.
Wireless Connectivity & Tooless Design
With certified Bluetooth® dongle-free connectivity and three AI engines for high throughput, low power, and fast response, NUC 14 Pro delivers robust computing capabilities. It is equipped with Wi-Fi sensing for intelligent energy efficiency, and its "tried and trusted" 4x4-inch chassis is designed for toolless access, making upgrades easy, safe, and fast.
| General Information | |
| Manufacturer | SimplyNUC |
| Manufacturer Part Number | 910-FBG5-0A1 |
| Manufacturer Website Address | http://www.simplynuc.co.uk |
| Brand Name | SimplyNUC |
| Product Line | Revel Canyon |
| Product Model | NUC14RVKu5 |
| Product Name | Revel Canyon NUC14RVKu5 Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core Ultra 5 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 96 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 2 |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | Arc Graphics |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 2.0 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB 3.2 Type-C |
| Number Of Ethernet Ports | 1 |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Power Description | |
| Maximum Power Supply Wattage | 120 W |
| Physical Characteristics | |
| Form Factor | Mini PC |
| Miscellaneous | |
| Package Contents |
|
| Features | Security Slot |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
