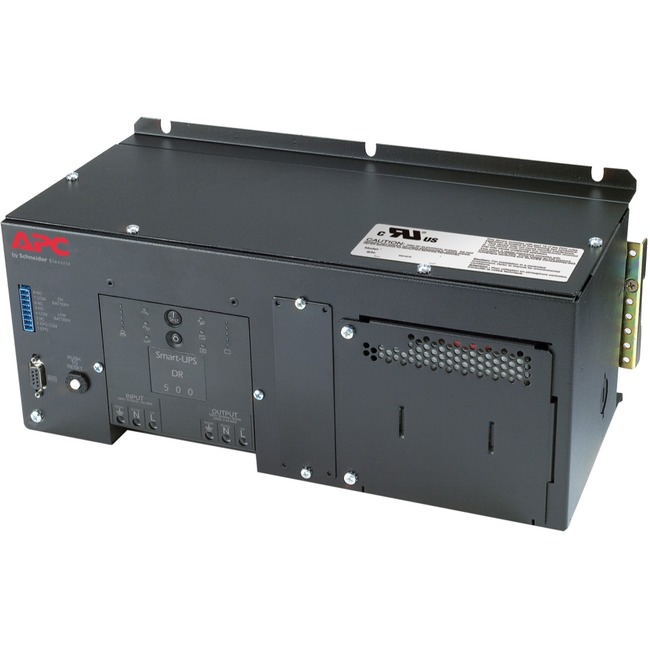

SCHNEIDER SUA500PDR-H UPS - Uninterruptible Power Supplies APC DIN Rail - Panel Mount UPS with High Temp Battery 500VA 120V
Mfg Part Number: SUA500PDR-H , Item #: 5154245
Image may not reflect the actual item.
Price: $2,201.50
Quantity:
In Stock: 1
Last Updated: Sep 21, 2025
No Sales Tax except these states
, PO and Wire.
Proven Industrial UPS power protection for control applications and harsh environments.
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SUA500PDR-H |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Name | 500VA Panel Mount UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | Hard Wire 3 wire (1PH+N+G) |
| Receptacle Type | Hard Wire 3-wire (H N + G) |
| Receptacle Detail | 1 x Hard Wire 3-wire (H N + G) |
| Number of Battery & Surge Outlets | 1 |
| Transfer Time | 0 ns |
| Application/Usage | Automotive |
| Application/Usage | Transportation |
| Application/Usage | Chemical |
| Application/Usage | Industry |
| Application/Usage | Pharmaceutical |
| Application/Usage | Mission Critical Equipment |
| Power Description | |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 325 W |
| Input Voltage | 120 V |
| Input Voltage Range | 82 V AC - 144 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 540 J |
| Management | |
| Network Management | DB9 RS-232/SmartSlot |
| Alarm | Low Battery |
| Alarm | On Battery |
| Alarm | Overload |
| Alarm | Configurable Delay |
| Controls/Indicators | |
| Status Indicators | LED Status Display:
|
| Interfaces/Ports | |
| Serial Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 1 |
| Battery Characteristics | Maintenance-free, Sealed, Leak-proof |
| Battery Chemistry | Lead Acid |
| Battery Energy | 432 kJ |
| Backup/Run Time (Full Load) | 8.10 Minute |
| Backup/Run Time (Half Load) | 24.40 Minute |
| Typical Battery Recharge Time | 2 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Storage Temperature | 23°F (-5°C) - 131°F (55°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 49212.60 ft |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 55 dB(A) |
| Thermal Dissipation | 26.38 W |
| Physical Characteristics | |
| Height | 5.8" |
| Width | 14.3" |
| Depth | 6.7" |
| Form Factor | Tower |
| Weight (Approximate) | 25.31 lb |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards | UL Recognized |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SUA500PDR-H_ROHS_DECLARATION&p_FileName=SUA500PDR-HKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384167192&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384167192&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN |
| California Proposition 65 Warning | "WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov" |
| REACH free of SVHC | No |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | 2 years repair or replace |
