SCHNEIDER
SCHNEIDER BVS480XDPDR DIN Rail Power Supplies Din Rail Mount Switch Power Supply Battery Back Up 24V DC 20 A
Mfg Part Number: BVS480XDPDR , Item #: 5154212
Image may not reflect the actual item.
Price: $523.71
Quantity:
In Stock: 1
Last Updated: Jan 29, 2026
No Sales Tax except these states
, PO and Wire.

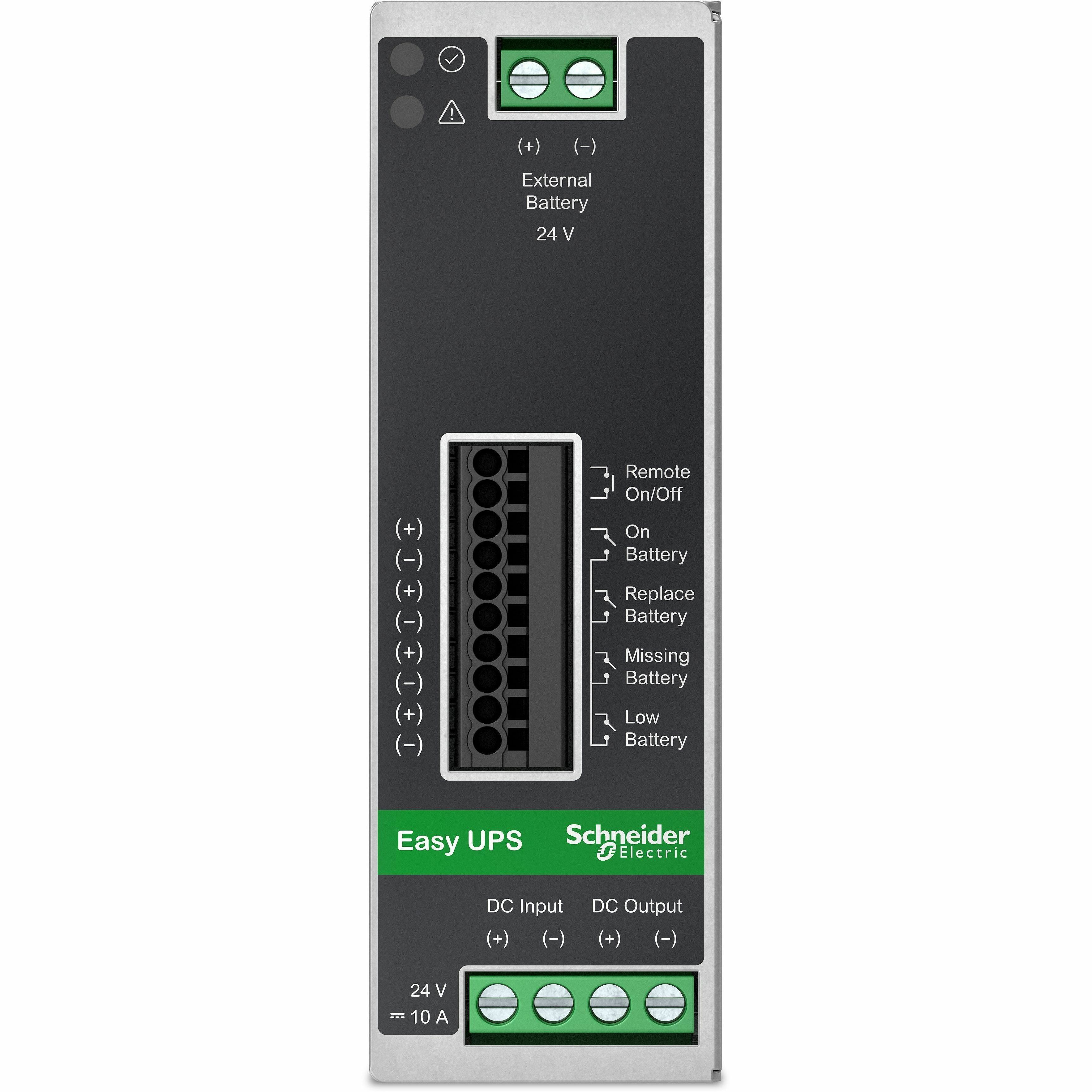

The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. This model is a 480W UPS that offers DC input to DC output for industrial equipment support. It features 0-5V signaling relay contacts, up to 4 total external battery pack support, LED indicators and EPO switch for better control over the indutrial controls infrastructure. It comes with a 2-year standard warranty.
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | BVS480XDPDR |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Easy UPS |
| Product Model | BVS480XDPDR |
| Product Name | Easy UPS BVS480XDPDR 480W DIN Rail UPS |
| Packaged Quantity | 1 |
| Product Type | DC UPS |
| Technical Information | |
| Plug/Connector Type | Terminal Block |
| Receptacle Type | DC Power |
| Cord Length | 6 ft |
| Power Description | |
| Load Capacity (Watt) | 480 W |
| Input Voltage | 24 V DC |
| Input Voltage Range | 21.6 V DC - 28.8 V DC |
| Input Current | 20 A |
| Output Voltage | 24 V DC |
| Battery Information | |
| DC System Voltage | 24 V DC |
| Battery Characteristics | External Battery System |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 12 Hour |
| Environmental Conditions | |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 9842.52 ft |
| Storage Relative Humidity | 95% |
| Sound Emission | 40 dB |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Metallic Gray |
| Height | 5.1" |
| Width | 1.6" |
| Depth | 4.7" |
| Form Factor | DIN Rail |
| Mounting Location | Horizontal |
| Weight (Approximate) | 1.10 lb |
| Miscellaneous | |
| For Country/Region | United States |
| Package Contents |
|
| Certifications & Standards | CE|TÜV |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BVS480XDPDR_ROHS_DECLARATION&p_FileName=BVS480XDPDRKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=549885638&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=549885638&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712010EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712010_EN |
| Energy Star URL | https://www.energystar.gov/products/data_center_equipment/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
