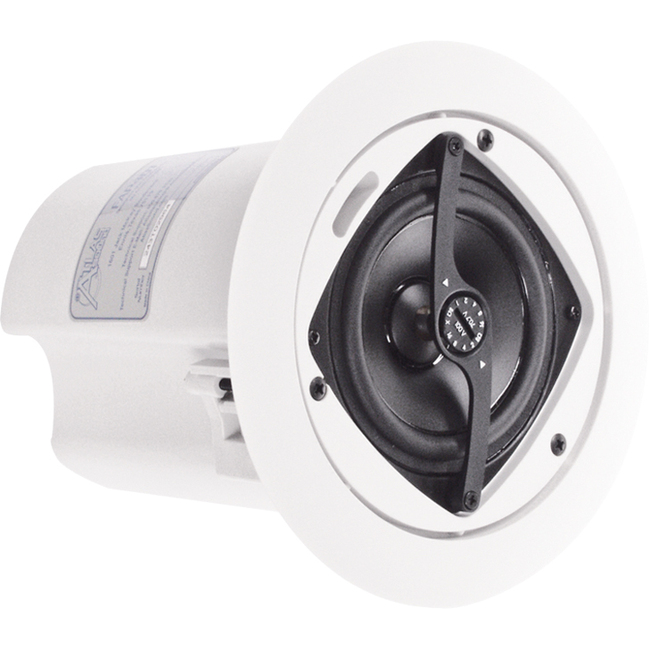

Atlas Sound FAP40T 4IN IN CEILING SPEAKER W/16WATT 70/100V TRANSFORMER PORTED ENCL

Designed to provide high performance in a very compact footprint, the FAP40T appeals to both system designers and architects. FAP40T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications. A unique (patent pending) tap selector switch design allows for easy system tuning. A full selection of taps up to 16 watts as well as an 8 ohm transformer bypass setting is included for maximum system versatility. This switch "knob" also functions as a diffuser cone, providing smooth, even dispersion of the high frequency content from the center of the 4" polypropylene driver. In fact, the high frequency response of the FAP40T is so natural that many would assume that the driver in the FAP40T was a coaxial design instead of a single cone driver. Low frequency response is enhanced by the tuned and ported enclosure design. The enclosure (UL1480 pending) is constructed of high impact injection molded plastic and includes a press fit grill design that blends quite well with contemporary architecture. A two pole terminal strip housed below a metal removable cover on the back of the FAP40T enclosure allows for easy system wiring as well as "daisy chain" wiring to other FAP40T's or even FASUB70 subwoofers (a great combination!).

General Information
Manufacturer	AtlasIED
Manufacturer Part Number	FAP40T
Manufacturer Website Address	http://www.atlassound.com
Brand Name	AtlasIED
Product Line	Strategy
Product Model	FAP40T
Product Name	4" Ceiling Speaker System With 70.7/100V-16W Transformer And 8Ω Bypass
Product Type	Speaker
Technical Information
RMS Output Power	16 W
PMPO Output Power	32 W
Woofer Driver Size	4"
Woofer Driver Material	Polypropylene
Minimum Frequency Response	80 Hz
Maximum Frequency Response	15 kHz
Impedance	8 Ohm
Sensitivity	87 dB
Physical Characteristics
Product Color	White
Product Material	Plastic
Product Material	Metal
Product Material	Butyl Rubber
Woofer Material	Polypropylene
Form Factor	In-ceiling
Speaker Installation	Indoor
Height	7.1"
Depth	7.13"
Diameter	7.4"
Miscellaneous
Package Contents	4" Ceiling Speaker System With 70.7/100V-16W Transformer And 8Ω Bypass Tile Bridge
Certifications & Standards	UL1480
Warranty
Limited Warranty	1 Year
