ICEBERG

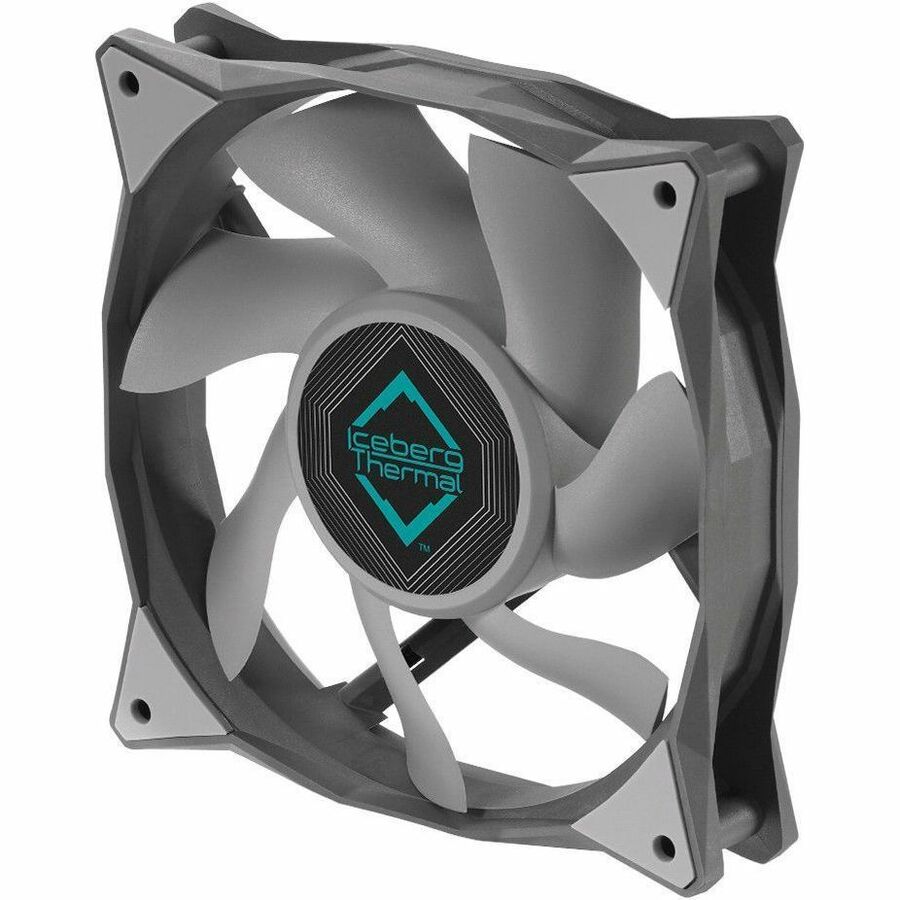

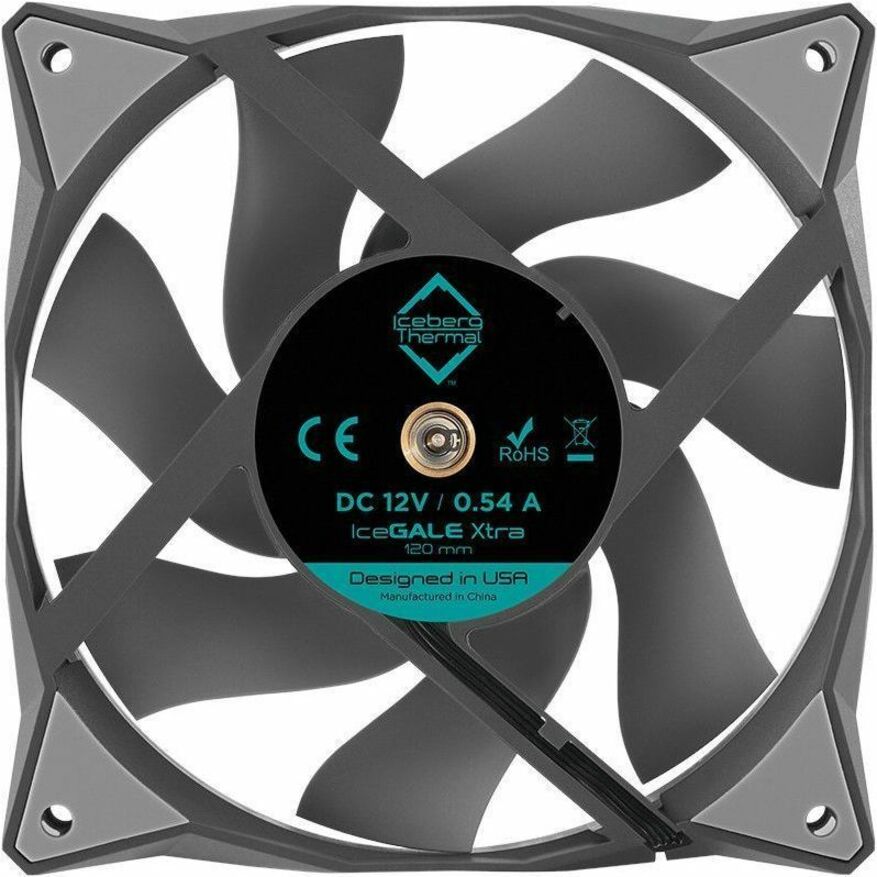

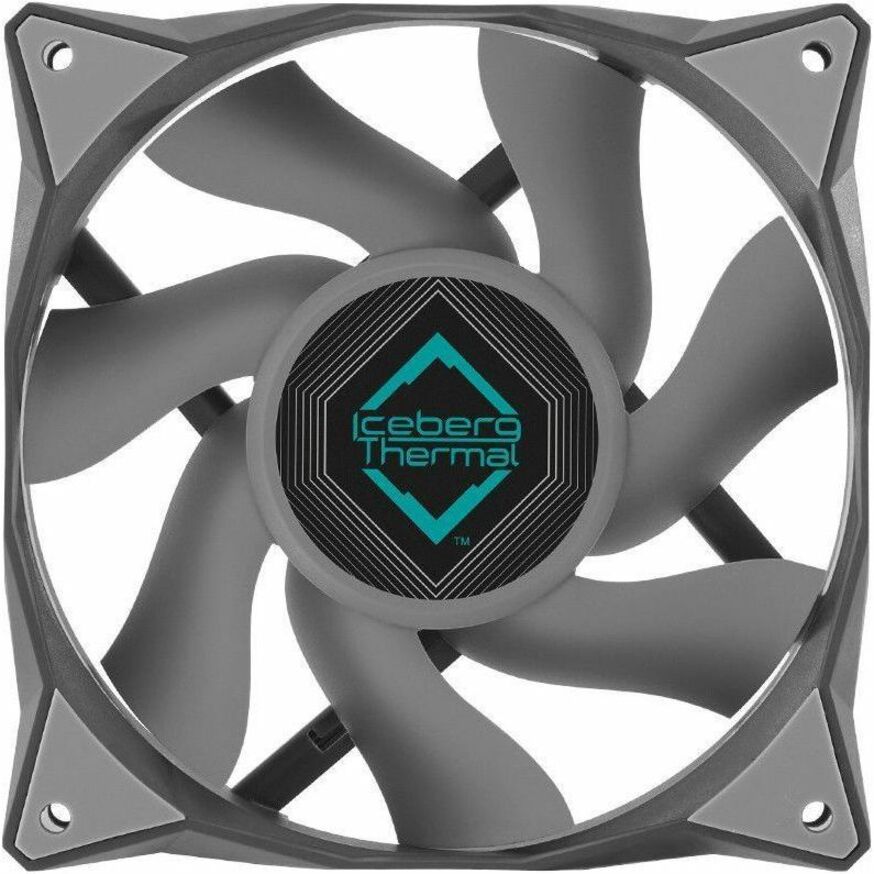

ICEGALE12X-B0A Iceberg Thermal IceGale Xtra - case fan
Mfg Part Number: ICEGALE12X-B0A , Item #: 5152273
, PO and Wire.
Rigid Brass Housing + Dual Ball Bearing = Better Lifetime
This fan boasts a rigid brass housing that provides a reliable product, along with dual ball bearings within the brass housing to extend the lifecycle of the fan. When you put the two together, you have a quality and reliable fan that will last you a long time.
Speeds Up to 3000 RPM
With a range from 500 RPM to 3000 RPM, this fan gives you the range to perform at a high-level with as little noise as possible.
Automatic START/STOP Function
Creates a quiet environment and reduces power consumption, decreasing heat, to create a more comfortable work/play experience. When the fan is in off mode it goes silent, until the PWM duty cycle reaches 21% loading.
Two-Plane Balance is Better Than One
Like any other IceGALE® fan from Iceberg Thermal, this fan comes equipped with two-plane balance to ensure stability in your fan.
Picking Up Bad Vibrations?
Our fans are designed with anti-vibration pads on the outer corners of the fans to absorb and eliminate vibrations so that your user experience is enhanced in a quiet environment.
Airflow Like No Other!
The IceGALE®Xtra gives you that Xtra airflow in your PC with a whopping 127 CFM! This fan will turn your PC into an Iceberg with how cool it is.
Xtra, Xtra, read all about it!
Xtra speed for all your needs
| General Information | |
| Manufacturer | Iceberg Thermal Inc. |
| Manufacturer Part Number | ICEGALE12X-B0A |
| Manufacturer Website Address | https://www.iceberg-thermal.com |
| Brand Name | Iceberg |
| Product Line | IceGALE Xtra |
| Product Name | IceGALE Xtra Cooling Fan |
| Packaged Quantity | 1 |
| Product Type | Cooling Fan |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Dual Ball Bearing |
| Fan Speed (Min) | 500 rpm |
| Fan Speed (Max) | 3000 rpm |
| Maximum Airflow | 127 CFM |
| Noise Levels (A-Weighted) | 44 dB(A) |
| Fan Life | 18.3 Year |
| Maximum Air Pressure | 4.6mmH2O |
| Interfaces/Ports | |
| Connectors | 4-pin PWM |
| Power Description | |
| Rated Current | 540 mA |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Gray |
| Maximum Fan Diameter | 4.72" |
| Fan Height | 0.98" |
| Fan Width | 4.72" |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | PC |
| Application/Usage | Case |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 6 Year |
