The Panduit® SmartZone™ G5 iPDU is more than a power distribution unit and energy meter. These iPDUs monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads, and physical environmental conditions that place critical IT equipment at risk. Panduit's iPDUs provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness), and drive green data center initiatives to save energy and money.
Making the right choice in IT equipment is essential for a safe, efficient data center operation. Our full range of iPDUs, environmental sensors, and dual locking power cords are the key to fulfilling mission-critical data center needs.
| General Information | |
| Manufacturer | PANDUIT CORP |
| Manufacturer Part Number | P48E11M |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MS |

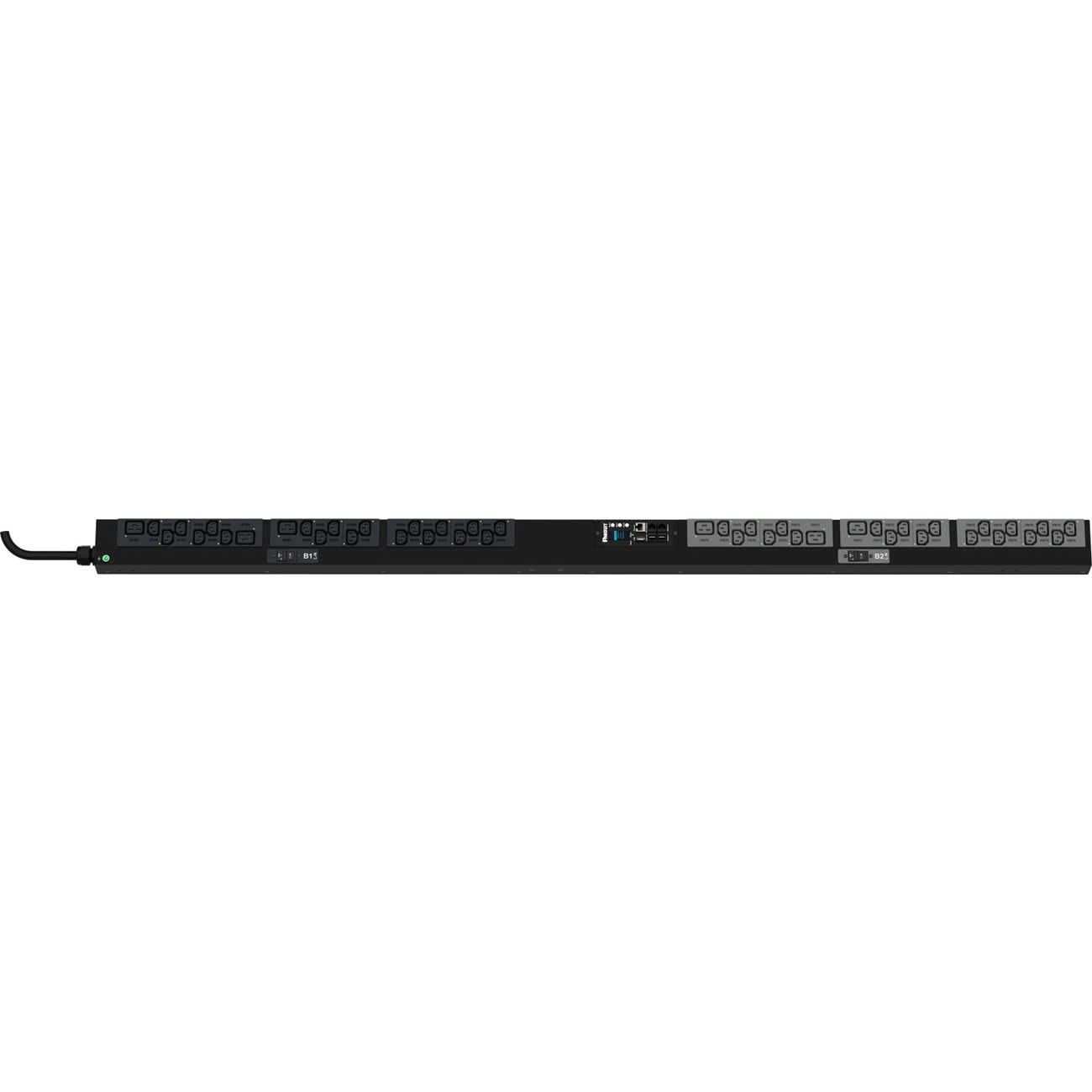

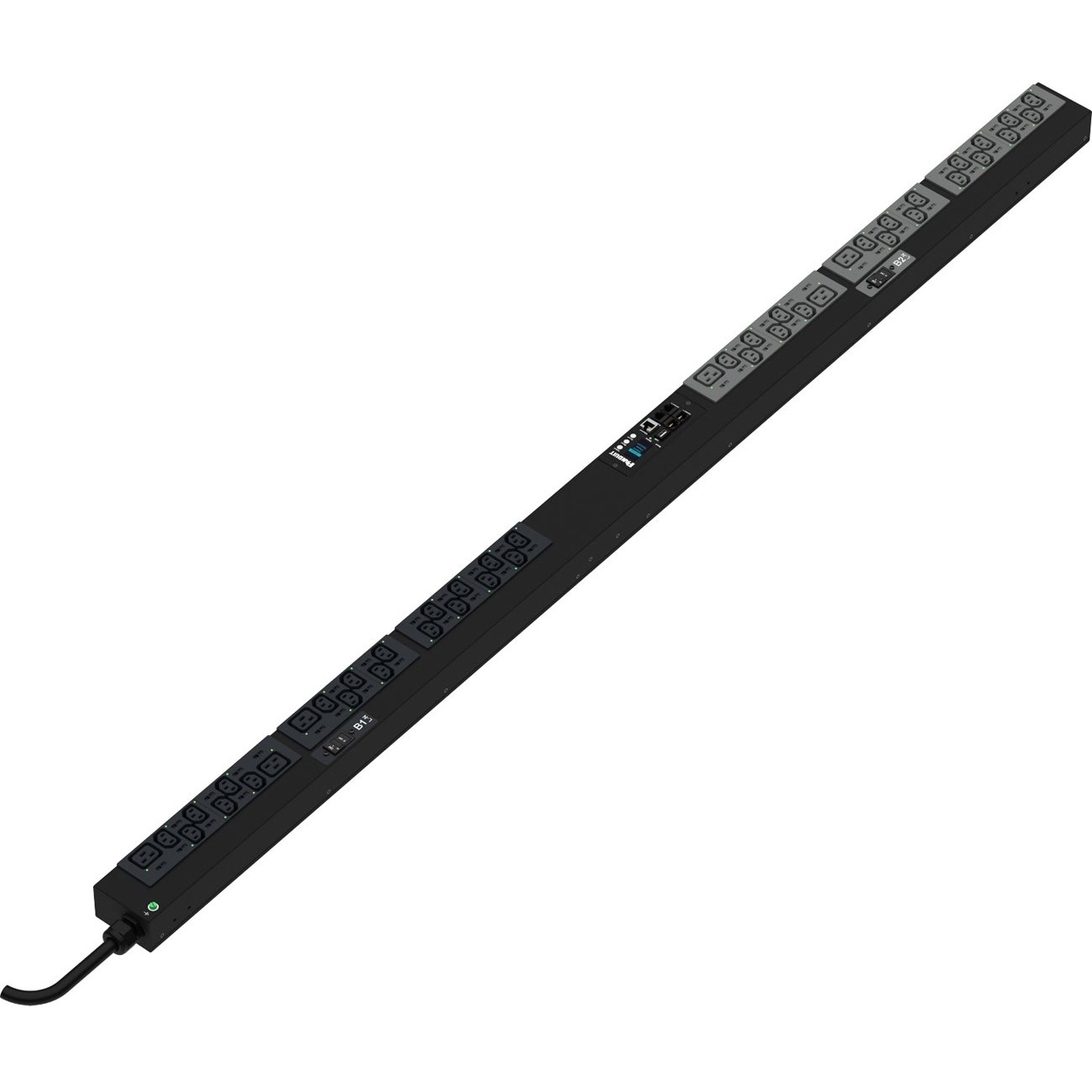

| Product Name | P48E11M Monitored Switched PDU |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 3P+N+E 6h 30A (IP44) |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 48 x IEC 60320 C13 |
| Protection Type | Overcurrent Protection |
| Protection Type | Circuit Protection |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 415 V AC |
| Output Voltage | 240 V AC |
| Power Rating (VA) | 17.30 kVA |
| Power Rating (Watt) | 17.30 kW |
| Input Current | 30 A |
| Management | |
| Management |
|
| Remote Outlet Switching | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Mounting Orientation | Vertical/Toolless |
| Mount Type | Rack-mountable |
| Mount Type | Cabinet-mountable |
| Rack Height | 0U |
| Width | 3.3" |
| Depth | 2.1" |
| Length | 74" |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
