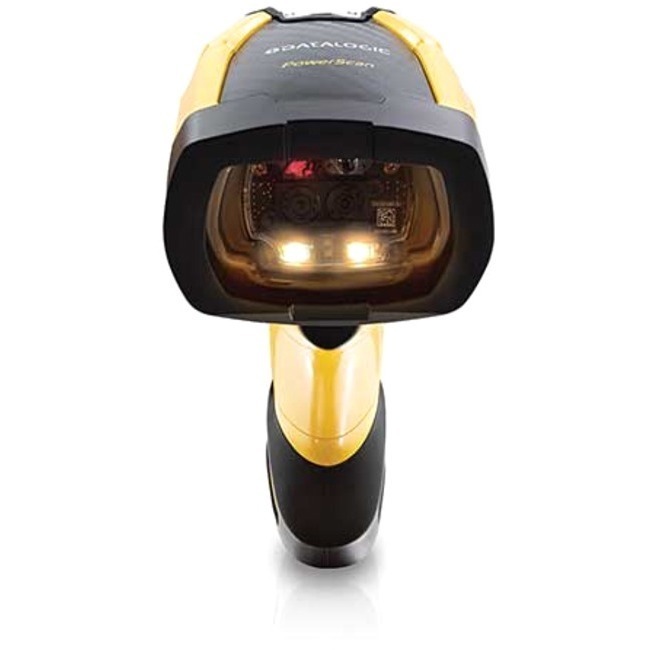

PD9630-ARK1 DATALOGIC POWERSCAN PD9630 AUTO RANGE BARCODE SCANNER - USB KIT - INCLUDES: SCAN

Mfg Part Number:  PD9630-ARK1
Image may not reflect the actual item.
Price: $873.23
Quantity:
In Stock: 6
Last Updated: Aug 15, 2025
No Sales Tax except these states
, PO and Wire.

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

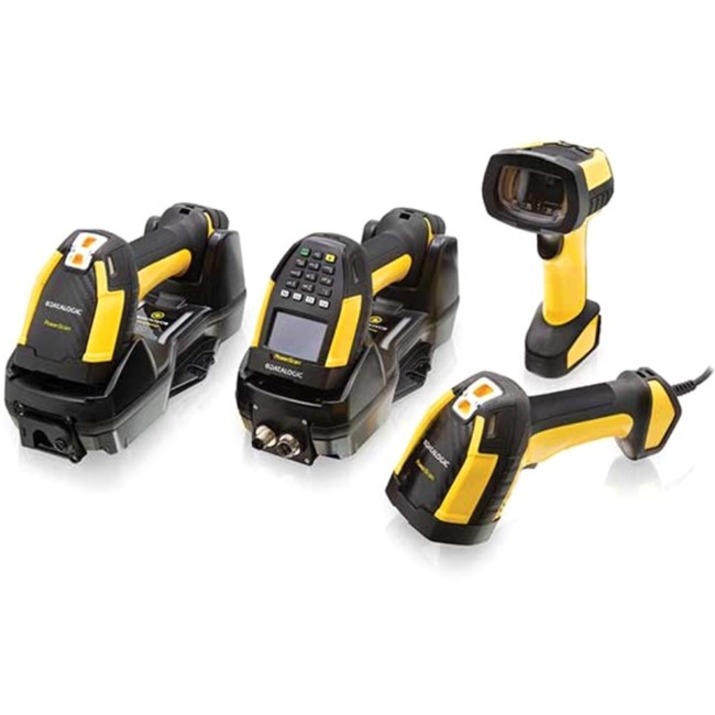

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan PD9630 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.

THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED

The PowerScan PD9630 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.

THE BEST FEEDBACK TO THE OPERATOR

The PD9630 area imagers also feature Datalogic's exclusive 3 Green Lights (3GL) for superior good-read feedback together with a loud beeper and vibration. The 'Green Spot' technology directly on the code and dual Good Read LEDs increase visibility at any angle. All models have multi-interface capabilities featuring the most popular interfaces: RS-232, USB and offer an optional Ethernet for standard or industrial uses.

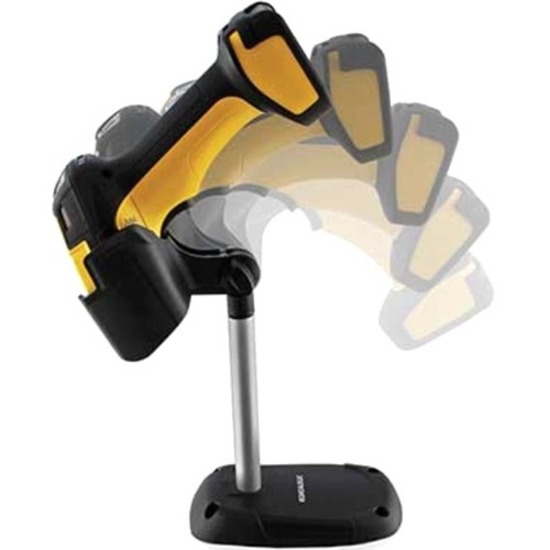

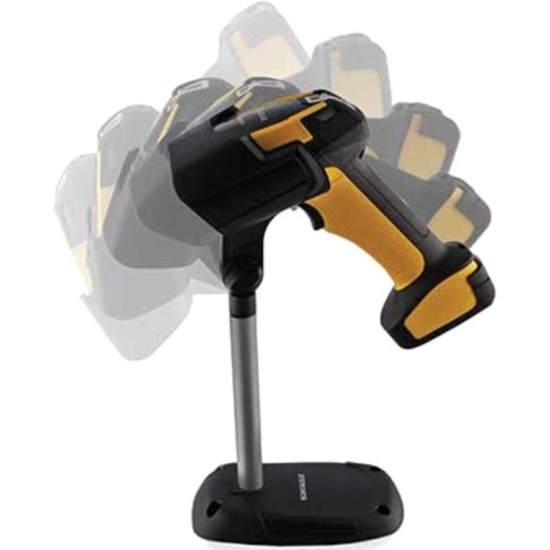

Datalogic's Motionix motion-sensing technology detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode (handheld or presentation scanning).

Main Specification
General Information
Manufacturer Datalogic S.p.A
Manufacturer Part Number PD9630ARK1
Manufacturer Website Address http://www.datalogic.com
Brand Name Datalogic
Product Line PowerScan
Product Series 9600
Product Model PD9630
Product Name POWERSCAN 9600 PD9630 Barcode Scanner Kit
Product Type Barcode Scanner Kit
Technical Information
Connectivity Technology Cable
Scanning Capability 1D
Scanning Capability 2D
Light Source LED
Image Sensor Type Imager
Scan Mode Trigger
Scan Pattern Omni-directional
Scan Pattern Area
Scanner Range Auto Range
Features Notification LED
Features Vibration
Features Beep
Cable Type Included USB
Reading Angle (Skew) 52°
Reading Angle (Pitch) 52°
Reading Angle (Roll) 360°
Maximum Ambient Light 100000 lux
Minimum Print Contrast 15%
Illumination Type LED
Illumination Color White
Air Electrostatic Discharge (+/-) 20kV
Interfaces/Ports
Host Interface Serial
Host Interface USB
Environmental Conditions
Operating Temperature -4°F (-20°C) to 122°F (50°C)
Storage Temperature -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing) 0% to 95%
Physical Characteristics
Form Factor Handheld
Rugged Yes
Color Family Dual Color
Product Color Black
Product Color Yellow

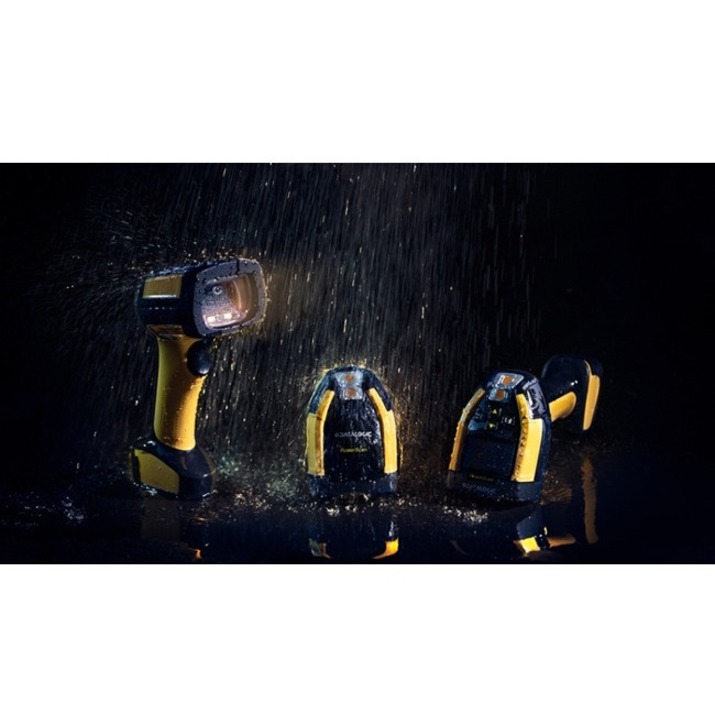

Durability Water Resistant
Durability Dust Resistant
Height 7.5"
Width 3.1"
Length 5.5"
Weight (Approximate) 11.22 oz
Miscellaneous
Ingress Protection (IP) Rating IP67
Ingress Protection (IP) Rating IP65
Application/Usage Logistics
Application/Usage Inventory
Application/Usage Sorting
Application/Usage Assembly Line
Application/Usage Manufacturing
Application/Usage Industrial
Application/Usage Component Tracking
Application/Usage Warehouse
Application/Usage Packing
Application/Usage Picking
